Hikvision DS-KIS603-P 2MP Gen2 IP Poe Video Intercom Kit with WiFi Connection & Mobile Viewing

SKU: DS-KIS603-P
Description

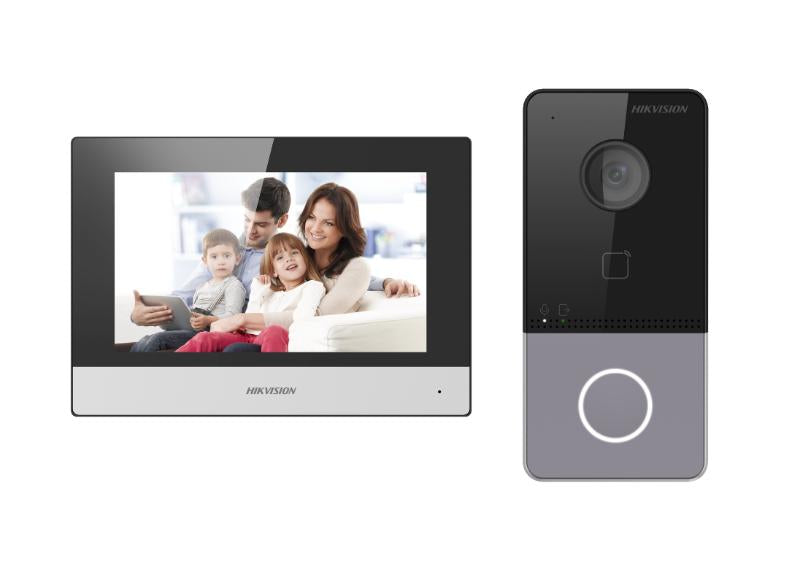

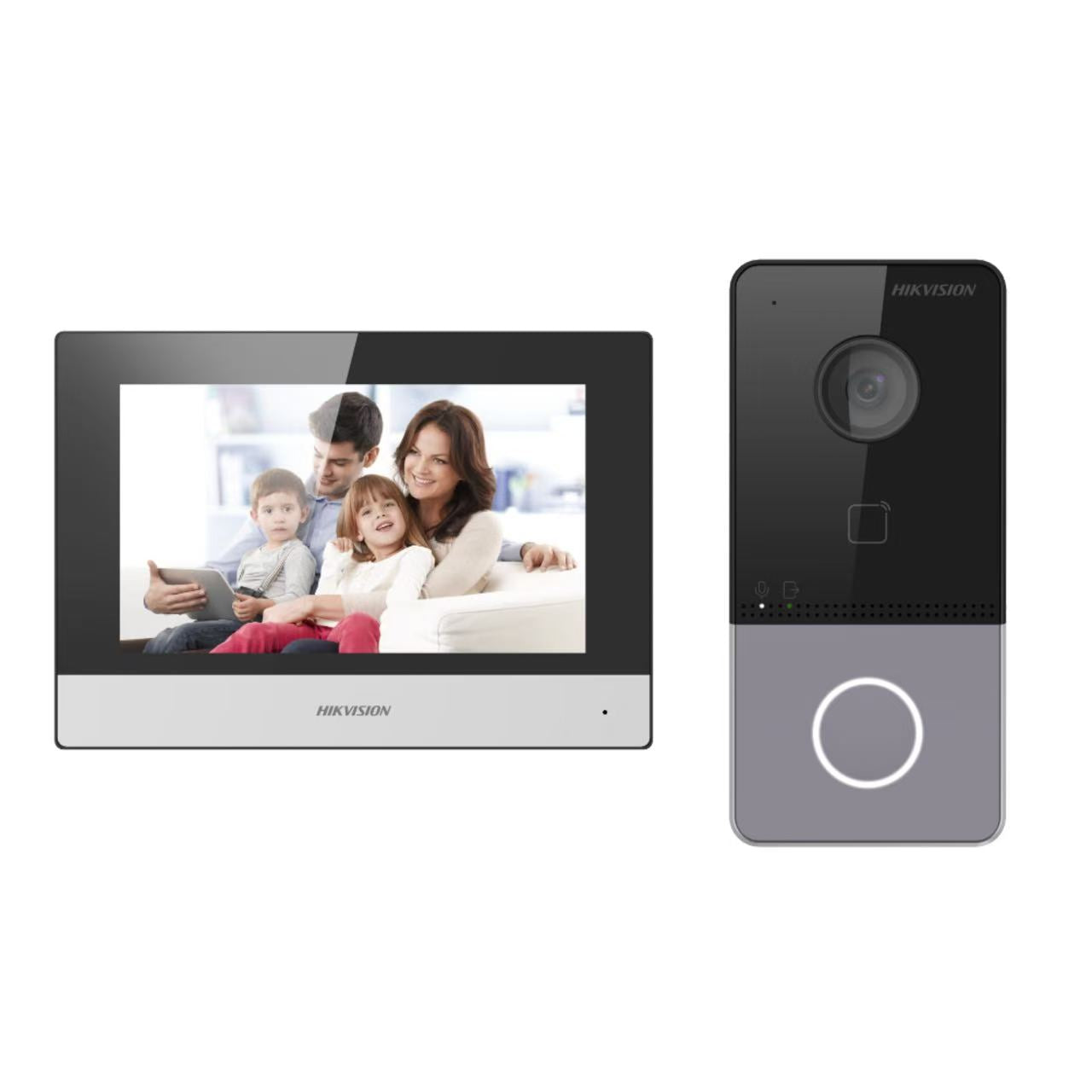

The Hikvision DS-KIS603-P(C) is a complete IP video intercom network bundle designed for villas, houses, and residential use. It includes a 2MP outdoor door station (DS-KV6113-WPE1(C)) with IP65 weather protection, and a 7-inch capacitive touchscreen indoor monitor (DS-KH6320-WTE1) with Wi-Fi connectivity, providing convenient Hik-Connect mobile app control for remote video, calls, and door release. Two power adapters are included for straightforward installation.

At a glance
- 2MP HD outdoor door station with 131° horizontal and 78° vertical field of view
- True WDR, backlight compensation, and 3 m IR night vision for clear images day and night
- 7-inch colourful TFT touchscreen indoor monitor with 1024 × 600 resolution
- Built-in Wi-Fi (802.11 b/g/n) for flexible network connection
- Two-way audio intercom with noise suppression and echo cancellation
- Hik-Connect mobile app support for remote call answering, live view, and door release
- IP65 weatherproof door station for reliable outdoor installation
- Supports PoE (IEEE802.3af) and 12 VDC power supply
$329.80 AUD $329.80 AUD $419.00 AUD
Sale 21.29% $89.20 AUD (21.29%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide

§ 01Overview

What the DS-KIS603-P is

The Hikvision DS-KIS603-P(C) is a complete IP video intercom network bundle that combines a 2MP outdoor door station and a 7-inch indoor video monitor for villa, townhouse, and single-home security. The bundle includes the DS-KV6113-WPE1(C) door station featuring a 2MP HD camera with a 131° horizontal and 78° vertical field of view, True WDR, backlight compensation, and low-light IR illumination up to 3 m. The door station is rated IP65 for outdoor use and supports both PoE (IEEE802.3af) and 12 VDC power supply.

The indoor monitor DS-KH6320-WTE1 offers a 7-inch colourful TFT touchscreen display with 1024 × 600 resolution, built-in Wi-Fi (802.11 b/g/n) and Ethernet connectivity. It features two-way audio communication with noise suppression and echo cancellation, supports 8-ch alarm inputs and 2 relay outputs for integration with security systems, and accepts a TF card up to 32 GB for local recording storage.

With Hik-Connect mobile app support, users can answer calls, view live video, and remotely unlock the door from anywhere. The system works over standard TCP/IP networks and includes two power adapters (PSU × 2) for straightforward installation. The door station operates in temperatures from -40°C to 53°C, making it suitable for a wide range of climates.

§ 02Engineering

DS-KIS603-P specifications

- Outdoor door station with 2MP HD camera, 131° horizontal and 78° vertical field of view, True WDR and backlight compensation for clear imaging in varying light conditions.

- 3 m IR night vision with low-light illumination supplement for around-the-clock monitoring.

- 7-inch colourful TFT capacitive touchscreen indoor monitor with 1024 × 600 display resolution.

- Built-in Wi-Fi (802.11 b/g/n) and 10/100 Mbps Ethernet for flexible network connectivity.

- Two-way audio intercom with built-in microphone and loudspeaker, noise suppression and echo cancellation for clear communication.

- Hik-Connect mobile app support for remote video viewing, call answering, and door release from anywhere.

- IP65 weatherproof rating on the door station for reliable outdoor installation in rain, dust, and extreme temperatures.

- 8-ch alarm inputs and 2 relay outputs on the indoor station for integration with security sensors and devices.

- TF card slot supporting up to 32 GB (SD 2.0 or lower) for local recording storage.

- Supports both PoE (IEEE802.3af) and 12 VDC power supply options for flexible installation.

- Operating temperature range from -40°C to 53°C for the door station and -10°C to 55°C for the indoor monitor.

- H.264 video compression with main stream up to 1080p@30fps and sub stream D1@25fps."

§ 04Why choose this

Built for the way you actually use the DS-KIS603-P

Complete plug-and-play kit

Includes door station, indoor monitor and two power adapters for straightforward installation out of the box.

Clear 2MP HD video

2MP camera with 131° wide-angle view, True WDR, and 3 m IR night vision for sharp images day and night.

Wi-Fi indoor monitor

7-inch touchscreen with built-in Wi-Fi eliminates the need to run a network cable to the monitor location.

Remote access via Hik-Connect

Answer calls, view live video, and unlock the door from anywhere using the Hik-Connect mobile app.

Weatherproof door station

IP65-rated outdoor station built to withstand rain, dust, and extreme temperatures from -40°C to 53°C.

§ 05Where it fits

Right at home in these scenarios

Villas and townhouses

Ideal entry-level video intercom solution for single-home residences with straightforward installation.

Home entry security

Screen visitors, answer calls, and remotely unlock the door from the indoor monitor or mobile app.

Small office or studio

Cost-effective intercom system with clear 2MP video and two-way audio for small business entry points.

Multi-tenant entry points

Use with optional rain shield (DS-KABV6113-RS) and surface-mount installation for controlled entry points needing video verification.

§ 06Setup

Installation & setup

01

Mount the door station

Surface-mount the DS-KV6113-WPE1(C) door station at the entry point. Connect Ethernet for PoE power or use the included 12 VDC power adapter.

02

Install the indoor monitor

Place the 7-inch touchscreen monitor indoors. Connect via Wi-Fi or Ethernet to the same local network as the door station.

03

Power up

Connect the included power adapters to the door station (if not using PoE) and the indoor monitor.

04

Configure via Hik-Connect

Download the Hik-Connect app, add the device, and configure remote access, call forwarding, and door release settings.

05

Test the system

Verify two-way audio, video feed, call notification to the monitor and mobile app, and remote door release before handover.

§ 08Questions

Frequently asked about the DS-KIS603-P

Q.01

What is included in the DS-KIS603-P(C) bundle?
The bundle includes one DS-KV6113-WPE1(C) outdoor door station, one DS-KH6320-WTE1 indoor video monitor, and two power adapters (PSU × 2).
Q.02

Does the door station support PoE?
Yes, the door station supports IEEE802.3af standard PoE, as well as 12 VDC power supply with the included adapter.
Q.03

Can I answer calls from my mobile phone?
Yes, the system supports the Hik-Connect mobile app for remote call answering, live video viewing, and door release from anywhere with an internet connection.
Q.04

Does the indoor monitor support Wi-Fi?
Yes, the DS-KH6320-WTE1 indoor monitor has built-in Wi-Fi (802.11 b/g/n) in addition to wired 10/100 Mbps Ethernet.
Q.05

What is the night vision range of the door station?
The door station features IR night vision with low-light illumination supplement range of up to 3 m.
Q.06

What is the weather rating of the door station?
The door station has an IP65 protection level, making it suitable for outdoor installation in rain, dust, and harsh weather conditions.
Q.07

Can I connect external alarm sensors to the system?
Yes, the indoor station supports 8-ch alarm inputs and 2 relay outputs for integration with security sensors, detectors, and other devices.
Q.08

Does the indoor monitor support local recording?
Yes, it has a TF card slot that supports up to 32 GB (SD 2.0 or lower version) for local storage of recordings and snapshots.
Q.09

What is the operating temperature range?
The door station operates from -40°C to 53°C, and the indoor monitor operates from -10°C to 55°C.

§ 10Bundles

Recommended packages

01

Kit includes

DS-KV6113-WPE1(C) door station × 1, DS-KH6320-WTE1 indoor monitor × 1, power adapters (PSU) × 2.

02

Optional accessory

DS-KABV6113-RS villa door station rain shield for additional outdoor protection.

03

Power options

The door station supports PoE (IEEE802.3af) in addition to the included 12 VDC power adapter.
