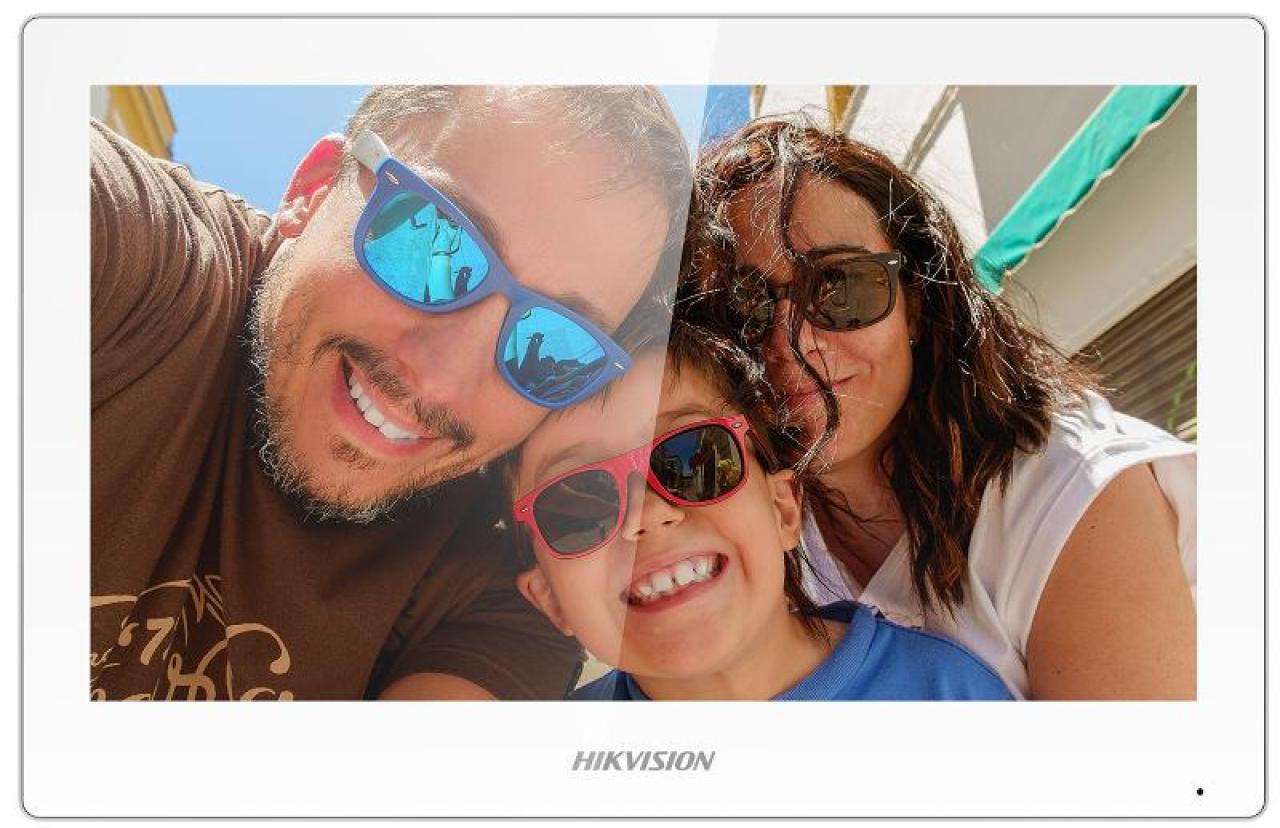

Hikvision DS-KH6350-WTE1 7-inch Indoor Station - White
The Hikvision DS-KH6350-WTE1 is a white indoor video intercom station with a 7-inch capacitive touchscreen and 1024 × 600 resolution. It lets users receive calls, view compatible door stations and manage door release through the configured intercom system. Built-in microphone and speaker support two-way communication, while 2.4 GHz Wi-Fi and a wired network interface provide connection options. Power is supplied through standard IEEE 802.3af PoE or 12 VDC. This is the indoor station only, not a complete door-entry kit. Select the compatible outdoor station, power arrangement and any required storage separately, and confirm system compatibility before ordering. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KH6350-WTE1 is
The Hikvision DS-KH6350-WTE1 provides the indoor control point for a compatible IP video intercom. Its white housing and touchscreen bring visitor calls, live viewing and door-release controls into one indoor device.
Wired Ethernet and Wi-Fi offer network connection choices, while standard PoE or a separate DC supply provides power. Wi-Fi does not remove the need for a power source, and mobile operation through Hik-Connect depends on the configured system and network connection.
Choose the outdoor station and mounting arrangement around the complete installation. This indoor station supports linked functions and local records, but it should not be mistaken for a door-station camera, an outdoor display or a complete intercom kit.
§ 02Engineering
DS-KH6350-WTE1 specifications
Communication — microphone and loudspeaker with noise suppression and echo cancellation — speak through the configured intercom.
Networking — Ethernet and 2.4 GHz Wi-Fi — choose a wired or wireless network connection.
Power — IEEE 802.3af PoE or 12 VDC — select a suitable power arrangement.
Mobile access — Hik-Connect calls, live view and door release — use linked functions through the configured system.
Storage — TF card up to 128 GB — select a card separately for local storage.
§ 03Full datasheet
Detailed specifications
Display
| Feature | Detail |
|---|---|
| Screen | 7-inch capacitive TFT touchscreen |
| Resolution | 1024 × 600 |
Network and audio
| Feature | Detail |
|---|---|
| Wi-Fi | 2.4 GHz; IEEE 802.11b/g/n |
| Ethernet | 1 × 10/100 Mbps RJ45 |
| Microphone | Built-in omnidirectional microphone |
| Speaker | Built-in loudspeaker |
| Audio processing | Noise suppression; echo cancellation |
| Mobile platform | Hik-Connect |
Power and storage
| Feature | Detail |
|---|---|
| Input | 12 VDC; 1 A; IEEE 802.3af standard PoE |
| Power consumption | ≤ 5 W |
| TF card capacity | Up to 128 GB |
General
| Feature | Detail |
|---|---|
| Colour | White |
| Environment | Indoor |
| Installation | Wall mounting; table mounting |
| Net weight | 355 g |
| Width | 175 mm |
| Height | 113.5 mm |
| Depth | 21 mm |
| Display — Screen | 7-inch capacitive TFT touchscreen |
|---|---|
| Display — Resolution | 1024 × 600 |
| Network and audio — Wi-Fi | 2.4 GHz; IEEE 802.11b/g/n |
| Network and audio — Ethernet | 1 × 10/100 Mbps RJ45 |
| Network and audio — Microphone | Built-in omnidirectional microphone |
| Network and audio — Speaker | Built-in loudspeaker |
| Network and audio — Audio processing | Noise suppression; echo cancellation |
| Network and audio — Mobile platform | Hik-Connect |
| Power and storage — Input | 12 VDC; 1 A; IEEE 802.3af standard PoE |
| Power and storage — Power consumption | ≤ 5 W |
| Power and storage — TF card capacity | Up to 128 GB |
| General — Colour | White |
| General — Environment | Indoor |
| General — Installation | Wall mounting; table mounting |
| General — Net weight | 355 g |
| General — Width | 175 mm |
| General — Height | 113.5 mm |
| General — Depth | 21 mm |
§ 08Questions
Frequently asked about the DS-KH6350-WTE1
Q.01
How large is the touchscreen?
Q.02
Can it connect over Wi-Fi?
Q.03
Can I power it through PoE?
Q.04
Can I answer visitors from a phone?
Q.05
Is the DS-KH6350-WTE1 a complete intercom kit?
Q.06
Does it support a memory card?
Q.07
Will it work with every door station?
