HiLook HA-KIT-IP2 IP Video Intercom Kit
- Remote Management & Monitoring: Control via Hik-Connect app from anywhere.
- Single Call Button: Simplified visitor calling functionality.
- Standard PoE Power: Enables data and power over one cable for simple setup.
- Weatherproof Accessories: Includes rain cover for door station durability.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is

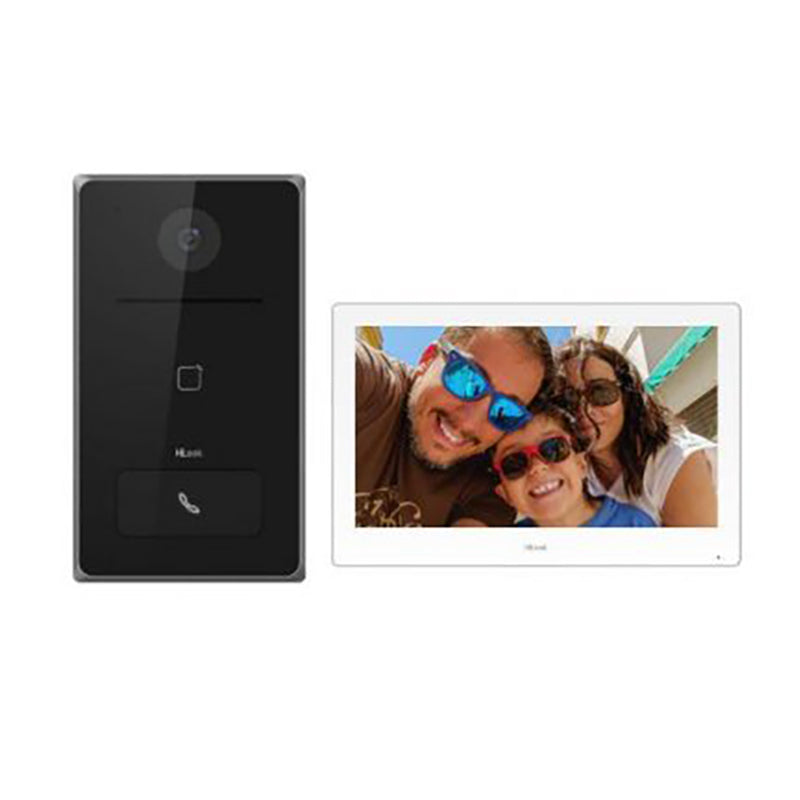

The HiLook HA-KIT-IP2 is an IP Video Intercom Kit for residential and commercial security.
Equipped with convenient mobile control via Hik-Connect, simplified communication with one call button, and standard PoE power supply.
§ 02Engineering
Technical specifications
- Simplified Calling: Single call button for straightforward visitor communication initiation.
- PoE Power Supply: Utilizes Power over Ethernet for easy installation and reliable data/power delivery.
- Two-Way Talk: Enables voice communication between door station and indoor station for interactions.
- Weather Protection: Includes rain cover for enhanced durability in outdoor conditions.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Camera | 2MP HD camera |
| Backlight Compensation | Support |
| Digital Noise Reduction | Support |
| WDR | True WDR |
| Motion Detection | Support |
| Flash-avoid Frequency | 50 Hz, 60 Hz |
Lens & Distance
| Feature | Detail |
|---|---|
| Field of View | Horizontal: 129° Vertical: 75° |
Night Vision
| Feature | Detail |
|---|---|
| Night Vision | Low illumination IR supplement mode: 2.5m |
Video
| Feature | Detail |
|---|---|
| Video Compression Standard | H.264 |
| Stream | PAL: Main stream: 1080p@25fps, 720p@25fps; Sub stream: 720p@25fps, 480p@25fps | NTSC: Main stream: 1080p@30fps, 720p@30fps; Sub stream: 720p@30fps, 480p@30fps |
Audio
| Feature | Detail |
|---|---|
| Audio Input | Door station: 1 built-in omnidirectional microphone | Indoor station: 1 built-in omnidirectional microphone |
| Audio Output | Door station: 1 built-in loudspeaker | Indoor station: 1 built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Compression Standard | Door station: G722.1, OPUS, G711U, G711A, G726, AAC_LC, AAC_LD | Indoor station: G.711 U |
| Audio Compression Rate | Door station: 16/32/64 Kbps | Indoor station: 64 Kbps |
| Audio Intercom | Two-way audio communication |
AI & Deep Learning
| Feature | Detail |
|---|
Network & Storage
| Feature | Detail |
|---|---|
| Network Protocol | TCP/IP, SIP, RSTP |
| Wi-Fi | 2.4GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Wired Network (Indoor Station) | 1 RJ-45, 10/100 Mbps self-adaptive |
| Wireless Network (Indoor Station) | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Storage | Door station: 1 TF card (Reserved) | Indoor station: Support TF card, up to 128 G |
| Operation System | Door station: LINUX | Indoor station: Linux |
| Flash | Door station: 32 MB | Indoor station: 32 MB |
| RAM/Memory | Door station: 256MB | Indoor station: 128 MB |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Input | Door station: 4 | Indoor station: 8-ch alarm inputs |
| Relay Output (Indoor Station) | 2 |
| Lock Control | 1 relay, Max. 30 VDC 2 A |
| Door Contact Input | 1 |
| TAMPER | 1 |
Interface
| Feature | Detail |
|---|---|
| RS-485 | Door station: 1 | Indoor station: 1 RS-485 (Half duplex) |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Audio Output (External) | 1 external loudspeaker (Reversed) |
| Indicator (Door Station) | 2 |
| Display Screen (Indoor Station) | 7-inch colorful TFT screen |
| Display Resolution (Indoor Station) | 1024 × 600 |
| Operation Method (Indoor Station) | Capacitive touch screen |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | IEEE802.3af, standard PoE | 12 VDC |
| Power Consumption | Door station: < 10 W | Indoor station: ≤ 5 W |
| Working Temperature | Door station: -40° C to 53° C (-40° F to 127.4° F) | Indoor station: -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | Door station: 10% to 95% | Indoor station: 10% to 90% |
| Dimension (Door Station) | 181.6 mm × 103.6 mm × 29.5 mm |
| Dimension (Indoor Station, L x W x H) | 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83") |
| Installation | Surface mounting, Flush mounting |
| Protection Level | IP65 |
