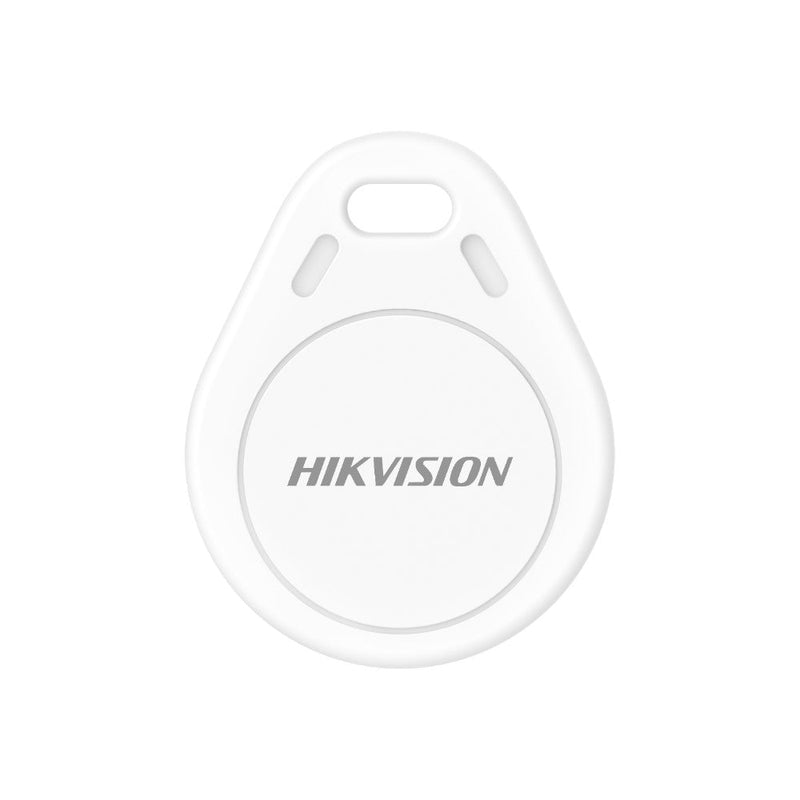

Hikvision DS-PT-M1 Ax Pro Mifare Tag
1 1
Hikvision

Hikvision DS-PT-M1 Ax Pro Mifare Tag

SKU: DS-PT-M1
Description

The Hikvision DS-PT-M1 is a compact 13.56 MHz Mifare contactless tag for Hikvision AX PRO wireless alarm systems. Tap it on the control panel's built-in tag reader or an AX PRO keypad to arm or disarm without entering a code — ideal for family members or staff who do not need full app access.

Key points
- 13.56 MHz Mifare contactless tag for Hikvision AX PRO systems
- Tap to arm or disarm at the panel's tag reader or an AX PRO keypad
- 1024 × 8 bit EEPROM (16 sectors), approx. 10-year data retention
- Durable PVC / ABS body, 41 × 32 × 3.5 mm
- Up to 48 tags per AX PRO panel; available in white or black
$3.40 AUD $3.40 AUD $6.00 AUD
Sale 43.33% $2.60 AUD (43.33%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
Bundle total: $3.40

§ 01Overview

What the DS-PT-M1 is

The Hikvision DS-PT-M1 is a Mifare contactless tag that arms and disarms a Hikvision AX PRO alarm system with a simple tap, rather than typing a code or opening the app. It is the convenient way to give family members, cleaners, trades or staff a quick arm/disarm point: present the tag to the control panel's built-in reader or to an AX PRO keypad and the system changes state.

It uses standard 13.56 MHz Mifare technology with a 1024 × 8 bit EEPROM across 16 sectors and roughly ten years of data retention, in a hard-wearing PVC/ABS body measuring 41 × 32 × 3.5 mm. An AX PRO panel supports up to 48 tags, so you can issue one to each person and remove a lost tag from the system without affecting the others.

This is a genuine Hikvision AX PRO accessory; it is sold individually and is supplied in white or black. It does not work as a standalone device — it is used with a Hikvision AX PRO panel or keypad that has a Mifare tag reader.

§ 02Engineering

DS-PT-M1 specifications

- 13.56 MHz Mifare contactless tag for Hikvision AX PRO alarm systems
- Tap to arm or disarm at the control panel's tag reader or an AX PRO keypad
- No code or app needed — simple access for family, trades or staff
- 1024 x 8 bit EEPROM (16 sectors), approx. 10-year data retention
- Durable PVC / ABS body, 41 x 32 x 3.5 mm
- Up to 48 tags supported per AX PRO panel; assign and revoke individually
- Available in white or black; genuine Hikvision AX PRO accessory

§ 03Full datasheet

Detailed specifications

Network & Storage

Network & Storage — Hikvision DS-PT-M1 Ax Pro Mifare Tag
FeatureDetail
RF Frequency 13.56 MHz
Protocol MIFARE
Data Rate 106 Kbps
Memory 1024 x 8 bit EEPROM (16 sectors)
Data Retention Approx. 10 years

§ 04Why choose this

Built for the way you actually use the DS-PT-M1

Code-free arm and disarm

A quick tap arms or disarms the system, which is easier and faster than a code for family, staff or trades coming and going.

Manage access per person

Issue a tag to each user and revoke a lost one individually, so you keep control of who can disarm the alarm without changing everyone's access.

Genuine AX PRO accessory

As the factory DS-PT-M1, it enrols cleanly on Hikvision AX PRO panels and keypads with their Mifare reader for reliable operation.

Durable and maintenance-free

A solid PVC/ABS body and passive Mifare design mean no battery to charge and roughly ten years of data retention.

§ 05Where it fits

Right at home in these scenarios

Families

Give each household member a tag for easy arm/disarm on the way in and out, instead of sharing a code.

Small business staff

Issue tags to staff for quick disarming at opening and arming at close, and revoke one when someone leaves.

Cleaners and trades

Hand out a temporary tag for access during a job, then delete it from the system afterwards.

Backup to the app

Keep a tag as a simple fallback for arming and disarming when a phone is flat or out of reach.

§ 06Setup

Installation & setup

01

What's in the box

One DS-PT-M1 Mifare tag (white or black). A compatible Hikvision AX PRO panel or keypad with a Mifare reader is required and not included.

02

Setup requirements

Enrol the tag through your AX PRO panel or the Hik-Connect app and assign it to a user. Present it to the panel's built-in tag reader or an AX PRO keypad to arm or disarm. To revoke a lost tag, delete it from the system in the app or panel menu.

§ 07Questions

Frequently asked about the DS-PT-M1

Q.01

What is the DS-PT-M1 used for?
It is a contactless Mifare tag that arms and disarms a Hikvision AX PRO alarm system. You tap it on the panel's built-in tag reader or an AX PRO keypad instead of entering a code or using the app, which is handy for anyone who needs quick access without full system control.
Q.02

Which systems is it compatible with?
It works with Hikvision AX PRO wireless alarm systems that have a Mifare tag reader, including the DS-PWA96-M-WB control panel and AX PRO keypads such as the DS-PK1-E-WB. It is not a standalone device and needs an AX PRO reader to do anything.
Q.03

How do I add a tag to my system?
You enrol the tag through the panel or the Hik-Connect app, then assign it to a user. Once enrolled, tapping it on the reader arms or disarms the system. A lost tag can be deleted from the system so it no longer works, without affecting your other tags.
Q.04

How many tags can I use?
A Hikvision AX PRO panel supports up to 48 tags, so you can issue one to each family member, staff member or trade and manage them individually.
Q.05

Does it need a battery?
No. It is a passive Mifare tag with no battery. It draws the small amount of power it needs from the reader's field when you tap it, so it never needs charging or replacing.
Q.06

What is it made of and how big is it?
It is a durable PVC/ABS keyfob-style tag measuring 41 x 32 x 3.5 mm, small enough for a keyring, and it comes in white or black.
Q.07

Is the tag waterproof?
It is a solid moulded PVC/ABS body that tolerates everyday handling on a keyring, but it is not specified as a waterproof or submersible device, so treat it like a normal access fob.

§ 09Bundles

Recommended packages

02

Add a tag reader

For a wall-mounted tap point separate from the panel, add a DS-PK1-E-WB keypad.
