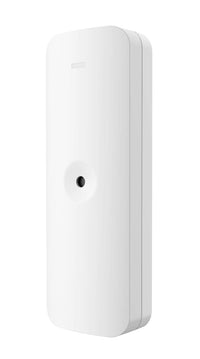

Hikvision AX Hybrid Series DS-PDBG8-EG2 Wired Glass Break Detector, Omni Directional Microphone Sensor, 8M
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision AX Hybrid Series DS-PDBG8-EG2 Wired Glass Break Detector, Omni Directional Microphone Sensor, 8M
SKU: DS-PDBG8-EG2
Description
The Hikvision DS-PDBG8-EG2 is a wired acoustic glass-break detector for AX Hybrid Pro and general hardwired alarm panels. Its omni-directional microphone listens for the two-stage sound of breaking glass - the impact and then the falling shards - and alarms the moment a window or glass door is smashed, before an intruder is even inside.
At a glance
- Wired acoustic glass-break sensor, 8m range across 120°, potentiometer-adjustable sensitivity
- Detects float, plate, tempered, wired, laminated leaded and double-glazed glass (2.4-6.4mm)
- Normally-closed output with selectable EOL resistors (1K, 2K2, 4K7, 5K6, 6K8)
- 9-16VDC wide-voltage input with reverse-polarity protection; front tamper
- Indoor wall or ceiling mount; Grade 2; for AX Hybrid Pro and general wired panels
Regular price
$26.20 AUD
Sale price
$26.20 AUD
Regular price
$30.00 AUD
Sale
12.67%
$3.80 AUD
(12.67%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Hikvision AX Hybrid Series DS-PDBG8-EG2 Wired Glass Break Detector, Omni Directional Microphone Sensor, 8M
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-PDBG8-EG2 is
The Hikvision DS-PDBG8-EG2 is a wired acoustic glass-break detector for AX Hybrid Pro and other hardwired alarm panels. Instead of waiting for movement inside the room, it listens for the distinctive sound signature of breaking glass and raises the alarm at the point of entry, so a smashed window or glass door is caught immediately.
A high-quality omni-directional microphone covers up to 8m across a 120° spread, with potentiometer-adjustable sensitivity so you can match it to the room. Its digital processing recognises a wide range of glass - float, plate, tempered, wired, laminated leaded and double glazing - from 2.4 to 6.4mm thick and pane sizes from 0.3 x 0.3m up to 3 x 3m.
Being wired, it gives a normally-closed alarm output with selectable end-of-line resistors (1K, 2K2, 4K7, 5K6, 6K8), so the panel can supervise the zone for cut or shorted wiring. It runs on a wide 9-16VDC with reverse-polarity protection and has a front tamper switch. Mount it indoors on a wall or ceiling facing the glass you want to protect. This is the wired model; a wireless DS-PDBG8-EG2-WB is available for hub-based AX PRO systems.
02Engineering
DS-PDBG8-EG2 specifications
- Omni-directional acoustic sensor detects the impact-and-shatter sound of breaking glass at the point of entry, before an intruder gets inside.
- Covers up to 8m across 120° with potentiometer-adjustable sensitivity to suit different room sizes.
- Recognises float, plate, tempered, wired, laminated leaded and double-glazed glass from 2.4-6.4mm thick and panes from 0.3 x 0.3m up to 3 x 3m.
- Normally-closed output with selectable EOL resistors (1K, 2K2, 4K7, 5K6, 6K8) for clean, supervised integration with wired panels.
- Wide 9-16VDC input with reverse-polarity protection and a front tamper switch.
- Tri-colour LED (high-frequency, low-frequency and alarm) aids set-up; indoor wall or ceiling mount; Grade 2 rated.
- Covers up to 8m across 120° with potentiometer-adjustable sensitivity to suit different room sizes.
- Recognises float, plate, tempered, wired, laminated leaded and double-glazed glass from 2.4-6.4mm thick and panes from 0.3 x 0.3m up to 3 x 3m.
- Normally-closed output with selectable EOL resistors (1K, 2K2, 4K7, 5K6, 6K8) for clean, supervised integration with wired panels.
- Wide 9-16VDC input with reverse-polarity protection and a front tamper switch.
- Tri-colour LED (high-frequency, low-frequency and alarm) aids set-up; indoor wall or ceiling mount; Grade 2 rated.
03Full datasheet
Detailed specifications
Network & Storage
| Feature | Detail |
|---|---|
| Transmission Method | Wired |
Event & Alarm
| Feature | Detail |
|---|---|
| Detection Method | Acoustic Sensor |
| Detection Range | 8m |
| Detection Angle | 120° |
| Glass Break Sensitivity | Potentiometer Adjustment |
| Glass Type | Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing |
| Glass Thickness | 2.4mm to 6.4mm |
| Glass Size | 0.3m x 0.3m to 3m x 3m |
| Digital Processing | Support |
| Tamper Protection | Front |
Interface
| Feature | Detail |
|---|---|
| Alarm Output | Normally Closed |
| LED Indicator | Red(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12V |
| Power Consumption | Maximum current: 25mA @12VDC; Quiescent current: 25mA @12VDC |
| Operation Temperature | -10°C to 55°C (14°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operation Humidity | 10% to 90% |
| Dimension (WxHxD) | 38.8 mm × 107 mm × 22.5 mm |
| Weight | 49.5g |
| Mounting Method | Wall, Ceiling |
| Application Scenario | Indoor |
| Network & Storage — Transmission Method | Wired |
|---|---|
| Event & Alarm — Detection Method | Acoustic Sensor |
| Event & Alarm — Detection Range | 8m |
| Event & Alarm — Detection Angle | 120° |
| Event & Alarm — Glass Break Sensitivity | Potentiometer Adjustment |
| Event & Alarm — Glass Type | Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing |
| Event & Alarm — Glass Thickness | 2.4mm to 6.4mm |
| Event & Alarm — Glass Size | 0.3m x 0.3m to 3m x 3m |
| Event & Alarm — Digital Processing | Support |
| Event & Alarm — Tamper Protection | Front |
| Interface — Alarm Output | Normally Closed |
| Interface — LED Indicator | Red(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm) |
| General & Environment — Power Supply | 9 to 16 VDC |
| General & Environment — Typical Voltage | 12V |
| General & Environment — Power Consumption | Maximum current: 25mA @12VDC; Quiescent current: 25mA @12VDC |
| General & Environment — Operation Temperature | -10°C to 55°C (14°F to 131°F) |
| General & Environment — Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| General & Environment — Operation Humidity | 10% to 90% |
| General & Environment — Dimension (WxHxD) | 38.8 mm × 107 mm × 22.5 mm |
| General & Environment — Weight | 49.5g |
| General & Environment — Mounting Method | Wall, Ceiling |
| General & Environment — Application Scenario | Indoor |
04Why choose this
Built for the way you actually use the DS-PDBG8-EG2
Covers any glass
Recognises float, tempered, laminated, wired and double-glazed glass, so it suits modern and older windows alike.
Supervised wired zone
A normally-closed output with selectable EOL resistors lets the panel watch for cut or shorted cabling.
Wide-voltage and forgiving
9-16VDC with reverse-polarity protection makes for a tolerant, dependable wired install.
05Where it fits
Right at home in these scenarios
Shopfronts and showrooms
Protect large glass frontages and display windows where a smash-and-grab is the main risk.
Homes with large windows
Cover lounges, sunrooms and glass doors so a forced window is caught at entry.
Ground-floor offices
Guard street-level glazing and glass partitions out of hours.
Layered protection
Combine with motion detectors so the alarm catches both the break and any movement that follows.
06Setup
Installation & setup
-
01
Where to mount
Fix it indoors on a wall or ceiling within 8m of the glass, with a clear line of sound to the window. Avoid noisy plant rooms.
-
02
Set sensitivity
Adjust the potentiometer to match the distance to the glass for reliable detection without false triggers.
-
03
Wire to the panel
Connect the normally-closed output and tamper to a panel zone, fitting the selectable EOL resistor for your panel.
-
04
Power and test
Apply 9-16VDC, check the LED behaviour, then walk-test with a glass-break simulator before arming.
08Questions
Frequently asked about the DS-PDBG8-EG2
Q.01
Is the DS-PDBG8-EG2 wired or wireless?
It is the wired version, connecting to a hardwired alarm panel by cable. For a wireless hub-based system, choose the DS-PDBG8-EG2-WB instead.
Q.02
Which panels does it work with?
It suits AX Hybrid Pro and other general wired alarm panels, using a normally-closed output and selectable EOL resistors for supervised zones.
Q.03
How does a glass-break detector work?
It uses an acoustic sensor that listens for the two-stage sound of breaking glass - the thud of impact and the higher sound of falling shards - and alarms when it hears both in the right pattern.
Q.04
How far from the window should I install it?
Within 8m of the glass you want to protect, with the sensor facing the window, and set the sensitivity to suit the distance. Walk-test by simulating a break.
Q.05
What glass types does it cover?
Float, plate, tempered, wired, laminated leaded and double-glazed glass from 2.4mm to 6.4mm thick, with pane sizes from 0.3 x 0.3m up to 3 x 3m.
Q.06
What voltage does it need?
A wide 9-16VDC with reverse-polarity protection, so it works with typical 12VDC panel auxiliary supplies and tolerates wiring variation.
Q.07
Does it have two-way audio?
No, it is purely a listening sensor. It detects the sound of breaking glass to trigger an alarm and does not have a microphone for talk-back or audio recording.
Q.08
Does it replace a motion detector?
No, it complements one. A glass-break detector alarms at the window the moment glass is smashed, while a motion detector catches movement once someone is inside - many sites use both.
