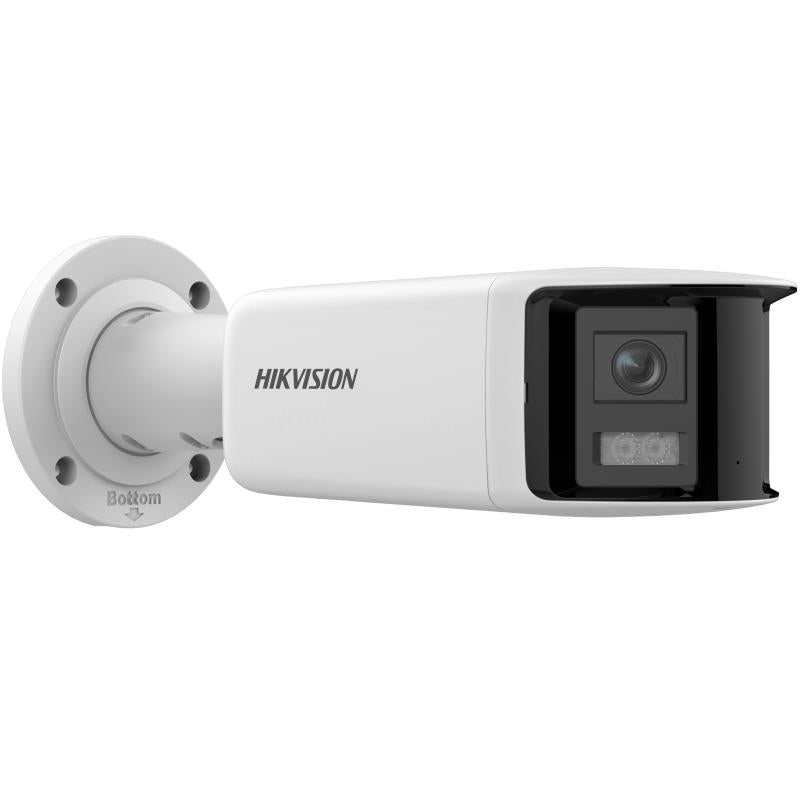

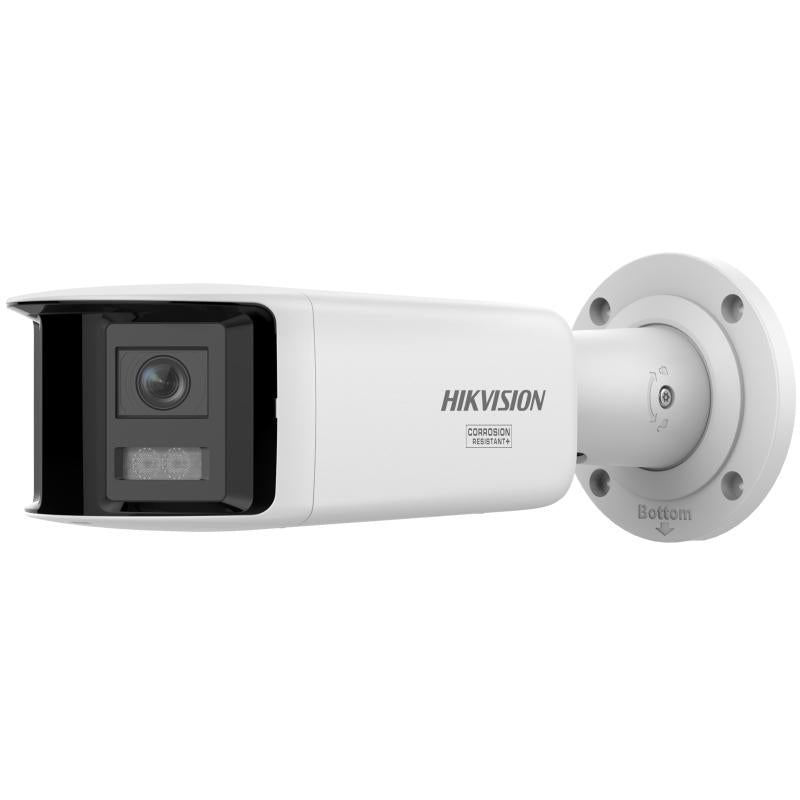

Hikvision DS-2CD2T87G3P-LIS2UY/SL 8MP 180° Panoramic Bullet Camera
Skip to product information
1
/
of
2
Vendor:
Hikvision
Hikvision DS-2CD2T87G3P-LIS2UY/SL 8MP 180° Panoramic Bullet Camera
SKU: DS-2CD2T87G3P-LIS2UY/SL
Description
The Hikvision DS-2CD2T87G3P-LIS2UY/SL is a white 8MP panoramic bullet camera for broad entrances and building frontages. ColorVu 3.0, Smart Hybrid Light and active white-light and audible warnings combine wide-area monitoring with an on-site response. This listing is for one white camera with a fixed 2.8mm lens; plan a suitable PoE+ or 12 VDC power source for installation.
Regular price
$739.90 AUD
Sale price
$739.90 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Hikvision DS-2CD2T87G3P-LIS2UY/SL 8MP 180° Panoramic Bullet Camera
1
/
of
2
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
—
Complete setup from
$1,109.90
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
01Overview
What the DS-2CD2T87G3P-LIS2UY/SL is
The Hikvision DS-2CD2T87G3P-LIS2UY/SL suits locations where activity extends across a wide frontage. Its panoramic image helps an operator follow movement across the scene without switching between narrower camera views.
A fixed lens captures the scene at up to 20 fps. ColorVu and HikAI-ISP support low-light imaging, while selectable IR, white light and Smart Hybrid Light let the installation balance colour visibility with the preferred lighting behaviour.
Human and vehicle classification works with perimeter events such as line crossing and intrusion. Set the detection areas and warning rules around the boundaries that matter, and test the light and audible response against normal site activity.
The wide field of view trades concentrated distant detail for scene coverage. Plan a separate identification view where needed, and check the recorder can handle the panoramic resolution. Ethernet power requires a PoE+ source with sufficient capacity.
02Engineering
DS-2CD2T87G3P-LIS2UY/SL specifications
DS-2CD2T87G3P-LIS2UY/SL — 8 MP panoramic bullet — a broad view from one installation point.
Image output — 4256 × 1888 at up to 20 fps — record a wide scene in a single image.
Field of view — 182.6° horizontal and 74.6° vertical — frame wide entrances and open areas.
Lighting — white light, IR and Smart Hybrid Light up to 40 m — select the night mode for the site.
Backlight handling — 130 dB WDR — retain detail across bright and shaded areas.
Event detection — human and vehicle classification — define perimeter rules around relevant movement.
Audio — dual microphones and a speaker — support sound capture and audible response.
Local storage — microSD up to 512 GB — add a compatible card for on-camera recording.
Network power — IEEE 802.3at PoE+, max 24 W — check the power source and total budget.
Image output — 4256 × 1888 at up to 20 fps — record a wide scene in a single image.
Field of view — 182.6° horizontal and 74.6° vertical — frame wide entrances and open areas.
Lighting — white light, IR and Smart Hybrid Light up to 40 m — select the night mode for the site.
Backlight handling — 130 dB WDR — retain detail across bright and shaded areas.
Event detection — human and vehicle classification — define perimeter rules around relevant movement.
Audio — dual microphones and a speaker — support sound capture and audible response.
Local storage — microSD up to 512 GB — add a compatible card for on-camera recording.
Network power — IEEE 802.3at PoE+, max 24 W — check the power source and total budget.
03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Model | DS-2CD2T87G3P-LIS2UY/SL |
| Camera type | 8 MP 180° panoramic ColorVu fixed bullet network camera; white housing |
| Image sensor | 1/2.5-inch progressive scan CMOS |
| Resolution and frame rate | 4256 × 1888 at up to 20 fps |
| Lens and view | 2.8 mm fixed lens; horizontal 182.6°, vertical 74.6°; F1.0 aperture |
| Minimum illumination | Colour: 0.0005 Lux at F1.0, AGC on; 0 Lux with light |
| Illumination | White light, IR and Smart Hybrid Light; range up to 40 m |
| Imaging | ColorVu 3.0, HikAI-ISP, 130 dB WDR, distortion correction, 3D DNR |
| Detection | Human and vehicle classification; line crossing, intrusion, region entrance and region exiting |
| Deterrence | White flashing light for /SL model and audible warning; built-in speaker |
| Audio | Arrayed dual microphones, environmental noise filtering, 1 line input and 1 line output |
| Alarm I/O | 1 input and 1 output; output max 24 VDC/24 VAC, 1 A |
| Storage | microSD/microSDHC/microSDXC up to 512 GB; NAS (NFS, SMB/CIFS) |
| Network | 1 RJ45 10/100 Mbps Ethernet port; ONVIF Profiles S, G and T; ISAPI, SDK and ISUP |
| Compression | Main stream H.265, H.264, H.264+ and H.265+ |
| Power | 12 VDC ±25%, 1.67 A, max 20 W; PoE+ IEEE 802.3at Class 4, max 24 W |
| Protection | IP67; NEMA 4X moderate corrosion protection |
| Operating temperature | -30 to 60 °C, humidity up to 95% non-condensing |
| Dimensions and weight | 118.6 mm × 78 mm × 306.5 mm; approximately 1440 g |
| DORI | Detection 62 m; observation 24 m; recognition 12 m; identification 6 m |
| Optional mounting | Junction boxes: DS-1260ZJ-Y or DS-1280ZJ-S-Y. Corner: DS-1276ZJ-SUS with DS-1280ZJ-S-Y. Pole: DS-1275ZJ-S-SUS or DS-1275ZJ-SUS with DS-1260ZJ-Y. |
| Clients | iVMS-4200, Hik-Connect and HikCentral |
| Face capture | Not supported |
| Construction | Metal front cover, body and bracket |
| Specification — Model | DS-2CD2T87G3P-LIS2UY/SL |
|---|---|
| Specification — Camera type | 8 MP 180° panoramic ColorVu fixed bullet network camera; white housing |
| Specification — Image sensor | 1/2.5-inch progressive scan CMOS |
| Specification — Resolution and frame rate | 4256 × 1888 at up to 20 fps |
| Specification — Lens and view | 2.8 mm fixed lens; horizontal 182.6°, vertical 74.6°; F1.0 aperture |
| Specification — Minimum illumination | Colour: 0.0005 Lux at F1.0, AGC on; 0 Lux with light |
| Specification — Illumination | White light, IR and Smart Hybrid Light; range up to 40 m |
| Specification — Imaging | ColorVu 3.0, HikAI-ISP, 130 dB WDR, distortion correction, 3D DNR |
| Specification — Detection | Human and vehicle classification; line crossing, intrusion, region entrance and region exiting |
| Specification — Deterrence | White flashing light for /SL model and audible warning; built-in speaker |
| Specification — Audio | Arrayed dual microphones, environmental noise filtering, 1 line input and 1 line output |
| Specification — Alarm I/O | 1 input and 1 output; output max 24 VDC/24 VAC, 1 A |
| Specification — Storage | microSD/microSDHC/microSDXC up to 512 GB; NAS (NFS, SMB/CIFS) |
| Specification — Network | 1 RJ45 10/100 Mbps Ethernet port; ONVIF Profiles S, G and T; ISAPI, SDK and ISUP |
| Specification — Compression | Main stream H.265, H.264, H.264+ and H.265+ |
| Specification — Power | 12 VDC ±25%, 1.67 A, max 20 W; PoE+ IEEE 802.3at Class 4, max 24 W |
| Specification — Protection | IP67; NEMA 4X moderate corrosion protection |
| Specification — Operating temperature | -30 to 60 °C, humidity up to 95% non-condensing |
| Specification — Dimensions and weight | 118.6 mm × 78 mm × 306.5 mm; approximately 1440 g |
| Specification — DORI | Detection 62 m; observation 24 m; recognition 12 m; identification 6 m |
| Specification — Optional mounting | Junction boxes: DS-1260ZJ-Y or DS-1280ZJ-S-Y. Corner: DS-1276ZJ-SUS with DS-1280ZJ-S-Y. Pole: DS-1275ZJ-S-SUS or DS-1275ZJ-SUS with DS-1260ZJ-Y. |
| Specification — Clients | iVMS-4200, Hik-Connect and HikCentral |
| Specification — Face capture | Not supported |
| Specification — Construction | Metal front cover, body and bracket |
04Why choose this
Built for the way you actually use the DS-2CD2T87G3P-LIS2UY/SL
Choose how the site responds
Light and sound warnings let you add a visible and audible response to configured events instead of relying on recorded footage alone.
Manage difficult lighting
Wide dynamic range and low-light image processing help when the view spans a shaded interior and a bright opening.
05Where it fits
Right at home in these scenarios
Broad building frontages
Position the Hikvision DS-2CD2T87G3P-LIS2UY/SL to cover movement along a wide entrance or external wall. Check image detail where people enter and pause.
Loading bays and yard entrances
A panoramic view helps show movement between vehicles and pedestrian routes. Add a focused identification view where a distant gate needs closer detail.
Car park approaches
Monitor activity across an open approach and define the relevant human and vehicle detection areas. Check the day and night view at the actual installation position.
06Setup
Installation & setup
-
01
Plan the power source
Supply the Hikvision DS-2CD2T87G3P-LIS2UY/SL from compatible PoE+ equipment or a suitable DC supply. Reserve enough power for illumination and warning functions.
-
02
Frame before fixing
Test the full panoramic image before tightening the mount. Avoid nearby obstructions that occupy a large part of the wide view.
-
03
Configure and test events
Set the required target types, event boundaries and warning actions. Check day and night footage and confirm the recorder exposes the functions the site needs.
08Questions
Frequently asked about the DS-2CD2T87G3P-LIS2UY/SL
Q.01
Does the DS-2CD2T87G3P-LIS2UY/SL need PoE+ power?
Use an IEEE 802.3at PoE+ source with sufficient available capacity: the camera can draw up to 24 W over PoE. It also accepts 12 VDC power, with a maximum DC consumption of 20 W. Check the per-port rating and total power budget when choosing equipment.
Q.02
Can this camera record without an NVR?
The built-in card slot supports microSD, microSDHC and microSDXC cards up to 512 GB for local recording. NAS storage using NFS or SMB/CIFS is also supported. Select storage to suit the required recording arrangement.
Q.03
What warning light does the /SL camera use?
The /SL model has a white flashing warning light and a built-in speaker for audible warnings. Its arrayed dual microphones provide audio capture. The red-and-blue flashing-light configuration belongs to the /SRB version.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Junction box choices
The Hikvision DS-2CD2T87G3P-LIS2UY/SL supports the optional DS-1260ZJ-Y and DS-1280ZJ-S-Y junction boxes. Choose the enclosure to suit the cable entry and mounting arrangement.
Pole or corner mounting
For pole mounting, combine DS-1260ZJ-Y with DS-1275ZJ-S-SUS or DS-1275ZJ-SUS. For corner mounting, combine DS-1276ZJ-SUS with DS-1280ZJ-S-Y.
Recording and power planning
Select recording equipment for the panoramic image format and required events. Allow for the camera power requirement when choosing a PoE+ source, and add compatible local storage if required.
