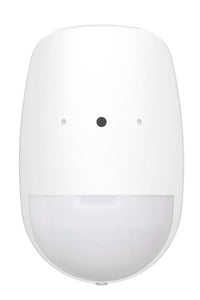

Hikvision AX PRO Series DS-PDPG12P-EG2-WB Wireless PIR-Glass Break Detector
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision AX PRO Series DS-PDPG12P-EG2-WB Wireless PIR-Glass Break Detector
SKU: DS-PDPG12P-EG2-WB
Description
The Hikvision DS-PDPG12P-EG2-WB is a wireless dual-function detector for the AX PRO system, combining a 12-metre PIR with an 8-metre acoustic glass-break sensor in one unit. It offers up to 30kg pet immunity, runs on Tri-X two-way wireless, lasts up to four years on its batteries, and is for indoor wall mounting.
At a glance
- Dual function: 12m / 85.9-degree PIR plus 8m acoustic glass-break detection
- Up to 30kg pet immunity (Auto / High / Pet sensitivity)
- Tri-X two-way wireless (433MHz, AES-128), up to 1km open-air
- Battery powered (2 x CR123A), up to 4 years standby
- Indoor wall mount 1.8m to 2.4m; optional wall/ceiling bracket; front and rear tamper
Regular price
$75.65 AUD
Sale price
$75.65 AUD
Regular price
$112.00 AUD
Sale
32.46%
$36.35 AUD
(32.46%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision AX PRO Series DS-PDPG12P-EG2-WB Wireless PIR-Glass Break Detector
1
/
of
1
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the DS-PDPG12P-EG2-WB is
The Hikvision DS-PDPG12P-EG2-WB is a wireless dual-function detector that puts two protections in one unit: a 12-metre PIR motion sensor over 85.9 degrees, and an 8-metre acoustic glass-break sensor. That covers both an intruder moving through a room and the sound of a window being smashed at the perimeter.
The acoustic sensor recognises breaking float, plate, tempered, wired, laminated and double-glazed glass, while intelligent PIR processing gives up to 30kg pet immunity so cats and dogs do not trigger the alarm. It joins the AX PRO system over Tri-X two-way wireless on 433MHz with AES-128 encryption, reaching up to 1km in open air.
It is battery powered with two CR123A cells for up to four years of standby, mounts on a wall at 1.8m to 2.4m for indoor use, and has front and rear tamper protection. An optional wall or ceiling bracket adjusts the aim, and everything is configured in the Hik-Connect app.
§ 02Engineering
DS-PDPG12P-EG2-WB specifications
- Two protections in one unit: a 12-metre, 85.9-degree PIR plus an 8-metre acoustic glass-break sensor covering 52 detection zones.
- The acoustic sensor recognises breaking float, plate, tempered, wired, laminated and double-glazed glass from 2.4mm to 6.4mm thick.
- Up to 30kg pet immunity with Auto, High and Pet sensitivity modes, so household pets do not trigger false alarms.
- Tri-X two-way wireless on 433MHz with AES-128 encryption, reaching up to 1km in open air for reliable communication with the hub.
- Battery powered with two CR123A cells and up to four years of standby life, with front and rear tamper protection.
- Indoor wall mount at 1.8m to 2.4m, with an optional wall or ceiling bracket; configured and monitored in the Hik-Connect app.
- The acoustic sensor recognises breaking float, plate, tempered, wired, laminated and double-glazed glass from 2.4mm to 6.4mm thick.
- Up to 30kg pet immunity with Auto, High and Pet sensitivity modes, so household pets do not trigger false alarms.
- Tri-X two-way wireless on 433MHz with AES-128 encryption, reaching up to 1km in open air for reliable communication with the hub.
- Battery powered with two CR123A cells and up to four years of standby life, with front and rear tamper protection.
- Indoor wall mount at 1.8m to 2.4m, with an optional wall or ceiling bracket; configured and monitored in the Hik-Connect app.
§ 03Full datasheet
Detailed specifications
Network & Storage
| Feature | Detail |
|---|---|
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | Support |
| Transmission Range (Free Space) | 1Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up, Remote ID, QR Code |
Event & Alarm
| Feature | Detail |
|---|---|
| Detection Method | Passive Infrared, Acoustic Sensor |
| Detection Range | 12m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3～2m/s |
| Pet Immunity | 30Kg |
| PIR Sensitivity | Auto, High, Pet |
| White Light Filter | 6500lux |
| Glass Break Range | 8m |
| Glass Type | Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing |
| Glass Thickness | 2.4mm to 6.4mm |
| Glass Break Sensitivity | 2m, 4m, 6m, 8m |
| Digital Temperature Compensation | Support |
| Glass Size | 0.3m x 0.3m to 3m x 3m |
| Creep Zone Protection | Support |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front, Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
Interface
| Feature | Detail |
|---|---|
| Power Switch | Power Up Enrolling |
| LED Indicator | Green(PIR), Red(BG), Blue(alarm) |
General & Environment
| Feature | Detail |
|---|---|
| Standard Battery Life | Up to 4 years (standby time) |
| Power Supply | Battery Powered |
| Battery Type | CR123A × 2 |
| Typical Voltage | 3V |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension (WxHxD) | 65.5mm×103mm×48.5mm |
| Weight | 134g |
| Mounting Height | 1.8 to 2.4m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
| Network & Storage — Transmission Technology | Tri-X Wireless |
|---|---|
| Network & Storage — Transmission Method | Two-Way RF Wireless |
| Network & Storage — Transmission Frequency | 433MHz |
| Network & Storage — Transmission Security | Support |
| Network & Storage — Transmission Range (Free Space) | 1Km |
| Network & Storage — Frequency Hopping | Support |
| Network & Storage — Enrolling Method | Power up, Remote ID, QR Code |
| Event & Alarm — Detection Method | Passive Infrared, Acoustic Sensor |
| Event & Alarm — Detection Range | 12m |
| Event & Alarm — Detection Angle | 85.9° |
| Event & Alarm — Detection Zones | 52 |
| Event & Alarm — Detectable Speed | 0.3～2m/s |
| Event & Alarm — Pet Immunity | 30Kg |
| Event & Alarm — PIR Sensitivity | Auto, High, Pet |
| Event & Alarm — White Light Filter | 6500lux |
| Event & Alarm — Glass Break Range | 8m |
| Event & Alarm — Glass Type | Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing |
| Event & Alarm — Glass Thickness | 2.4mm to 6.4mm |
| Event & Alarm — Glass Break Sensitivity | 2m, 4m, 6m, 8m |
| Event & Alarm — Digital Temperature Compensation | Support |
| Event & Alarm — Glass Size | 0.3m x 0.3m to 3m x 3m |
| Event & Alarm — Creep Zone Protection | Support |
| Event & Alarm — Digital Processing | Support |
| Event & Alarm — Sealed Optics | Support |
| Event & Alarm — Tamper Protection | Front, Rear |
| Event & Alarm — Environment Temperature Indicator | Support |
| Event & Alarm — Signal Strength Indicator | Support |
| Interface — Power Switch | Power Up Enrolling |
| Interface — LED Indicator | Green(PIR), Red(BG), Blue(alarm) |
| General & Environment — Standard Battery Life | Up to 4 years (standby time) |
| General & Environment — Power Supply | Battery Powered |
| General & Environment — Battery Type | CR123A × 2 |
| General & Environment — Typical Voltage | 3V |
| General & Environment — Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| General & Environment — Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| General & Environment — Operation Humidity | 10% to 90% |
| General & Environment — Dimension (WxHxD) | 65.5mm×103mm×48.5mm |
| General & Environment — Weight | 134g |
| General & Environment — Mounting Height | 1.8 to 2.4m |
| General & Environment — Mounting Method | Wall |
| General & Environment — Application Scenario | Indoor |
| General & Environment — Bracket | Optional Wall & Ceiling Accessory |
§ 04Why choose this
Built for the way you actually use the DS-PDPG12P-EG2-WB
Pet-friendly
Up to 30kg pet immunity with a dedicated Pet mode lets cats and dogs roam without setting off the alarm.
Wireless and long-lasting
Tri-X two-way wireless and two CR123A cells give up to four years of standby with no cabling.
Catches break-ins early
Glass-break detection can trigger as the window is smashed, before an intruder is fully inside the room.
§ 05Where it fits
Right at home in these scenarios
Living rooms with large windows
Combine motion and glass-break cover for rooms that open onto glass doors or big windows.
Homes with pets
Protect a room while letting cats and dogs move freely thanks to 30kg pet immunity.
Shopfronts and offices
Detect a smashed window at the perimeter and movement inside from one wall-mounted unit.
Ground-floor rooms
Add early warning where glass entry is the most likely break-in point.
§ 06Setup
Installation & setup
In the box
DS-PDPG12P-EG2-WB detector, two CR123A batteries, mounting hardware and instructions.
Where it mounts
Fit it on a wall at 1.8m to 2.4m with a clear view of the room and the glass you want to protect; it is for indoor use.
Aiming options
Mount it with screws or sponge tape, or use the optional wall/ceiling bracket to fine-tune the angle.
Pairing to the hub
Enrol it to an AX PRO wireless hub via power-up, remote ID or QR code in the Hik-Connect app. It is a detector, so it needs a control panel.
§ 07Questions
Frequently asked about the DS-PDPG12P-EG2-WB
Q.01
What does the DS-PDPG12P-EG2-WB detect?
Two things in one unit: movement, with a 12-metre 85.9-degree PIR, and the sound of breaking glass, with an 8-metre acoustic sensor.
Q.02
Does it have pet immunity?
Yes. It offers up to 30kg pet immunity with Auto, High and Pet sensitivity modes, so household pets do not trigger the alarm.
Q.03
What glass types can it detect?
It recognises breaking float, plate, tempered, wired, laminated and double-glazed glass from 2.4mm to 6.4mm thick.
Q.04
Is it wireless?
Yes. It uses Tri-X two-way wireless on 433MHz with AES-128 encryption, reaching up to 1km in open air.
Q.05
How long does the battery last?
Up to four years of standby on two CR123A cells.
Q.06
Where should it be mounted?
On a wall at 1.8m to 2.4m, indoors, with a clear view of the room and the glass you want to protect. An optional bracket helps with aiming.
Q.07
Does it need a hub?
Yes. It is a detector, so it must be paired with an AX PRO wireless control panel or kit.
Q.08
Can I adjust the mounting angle?
Yes. It mounts with screws or sponge tape, or you can use the optional DS-PDB-IN wall or ceiling bracket to fine-tune the aim.
§ 09Bundles
Recommended packages
Aim it precisely
Add the DS-PDB-IN-Wall bracket or DS-PDB-IN-Ceiling bracket to angle the detector for the best coverage.
Add the AX PRO hub
This detector needs a control panel. Start with the AX PRO PWA96 kit as the system brain.
Cover the whole room
Pair with a ceiling 360-degree sensor such as the DS-PDCL12-EG2-WB for open-plan spaces.
Local control
Add a keypad such as the DS-PK1-LT-WB with tag reader for arming at the door.
