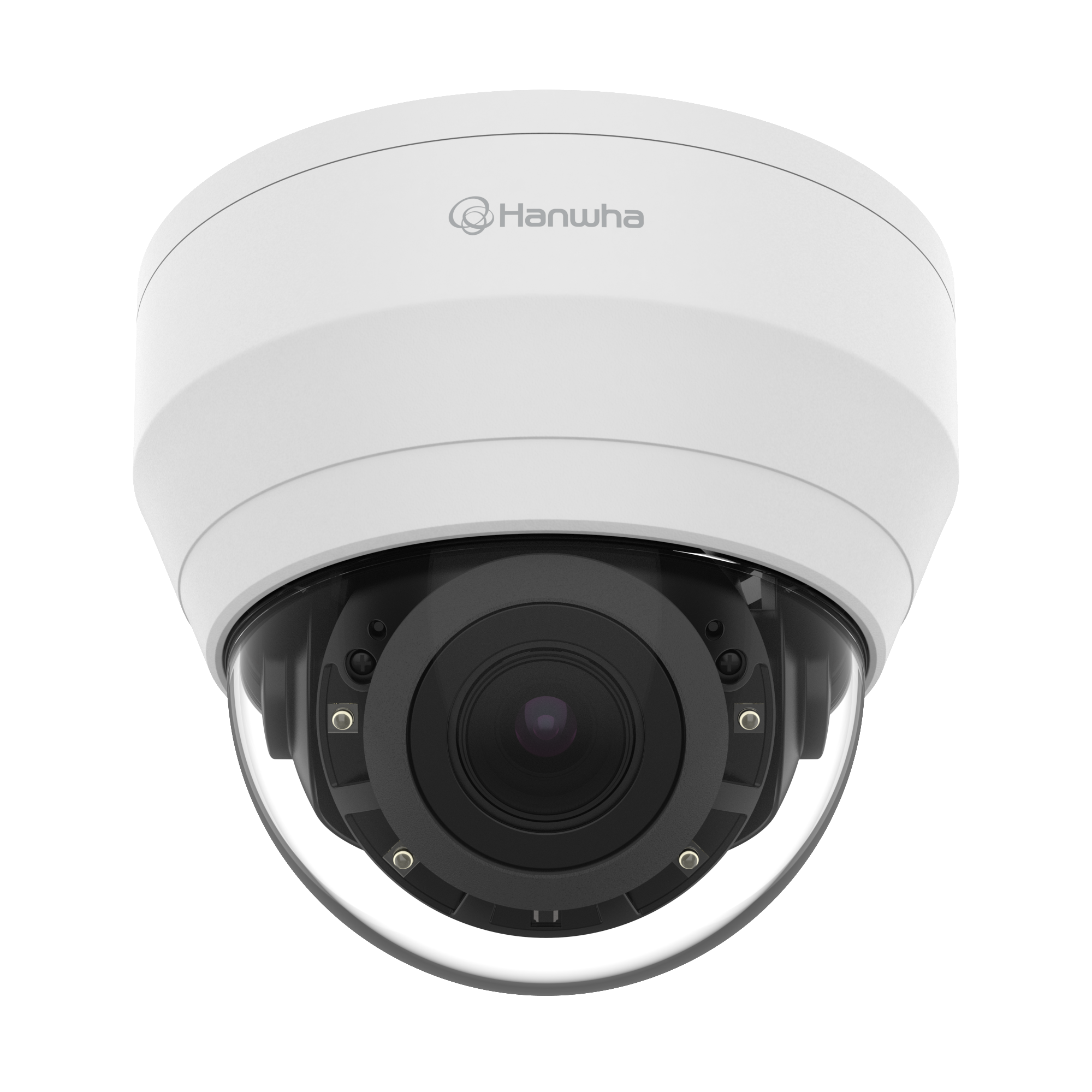

Hanwha QND-8080R 5MP Indoor VF Dome, 3.2-10mm Motor, 20m IR

SKU: QND-8080R
Description

- 5MP Q-Series Indoor Dome With Varifocal: essential-features platform with motorized varifocal for remote framing flexibility — one camera fits multiple room roles.
- Motorized 3.2mm to 10mm Range: 100° wide down to 31° tight, adjustable over the network. Cover a wide lobby at 3.2mm or focus on the till counter at 10mm from the same mount.
- Extreme Low Light Capability: 0.015 Lux minimum illumination in B/W mode captures usable image at near-total darkness before IR activates.
- 20m IR + Hallway View: after-hours identification range plus corridor-oriented framing (90°/270° rotation) for narrow rooms.
$585.90 AUD $585.90 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $955.90

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $585.90

§ 01Overview

What the QND-8080R is

The Hanwha QND-8080R is a 5MP indoor dome camera from the Wisenet Q series with a motorized 3.2mm to 10mm varifocal lens — mid-range indoor coverage with remote framing flexibility.

The 100° wide to 31° tight range lets one camera cover multiple room roles from a single install: wide reception area at 3.2mm, or focused counter shot at 10mm, adjustable over the network without ladder access.

The 1/2.8" CMOS sensor captures 2592x1944 at 30fps; minimum illumination reaches 0.015 Lux in B/W mode — near-total darkness capture before IR activation.

IR LEDs reach 20m for full-dark identification; 120dB WDR handles backlit windows and mixed lighting; WiseStream II reduces bandwidth consumption.

Video analytics include defocus, directional, motion detection, enter/exit, tampering and virtual line crossing.

Hallway view (90°/270° rotation) fits corridor coverage.

Micro SD/SDHC/SDXC edge storage up to 128GB; PoE (IEEE 802.3af, Class 3) power.

ONVIF Profile S/G/T integration.

§ 02Engineering

QND-8080R specifications

- 5MP (2592x1944) resolution at up to 30fps in H.265/H.264, MJPEG codec
- 3.2mm to 10mm motorized varifocal lens, 100° to 31° horizontal field of view
- 120dB WDR (Wide Dynamic Range)
- IR LEDs providing 20m of night vision coverage
- Minimum illumination 0.015 Lux (B/W mode) for near-darkness capture
- H.265, H.264, MJPEG codec with WiseStream II bandwidth optimisation
- Analytics: defocus, directional, motion detection, enter/exit, tampering, virtual line
- Hallway view mode (90°/270° rotation)
- Micro SD/SDHC/SDXC memory slot up to 128GB
- ONVIF Profile S/G/T, SUNAPI (HTTP API)
- Standard PoE (IEEE 802.3af, Class 3), 12VDC input
- Indoor VF dome housing

§ 04Why choose this

Built for the way you actually use the QND-8080R

Varifocal Framing at Q-Series Price

The 3.2-10mm motorized lens gives one camera the flexibility to cover multiple room roles — no physical lens swap needed. Getting this framing flexibility at Q-series price makes multi-camera deployments cheaper than upgrading to P series.

Near-Total Darkness Capture

At 0.015 Lux in B/W mode, this camera captures usable image at illumination levels most standard indoor domes fail. Before IR kicks in, the camera keeps recording — meaningful in venues with dim ambient lighting.

Standard PoE Runs Everything

IEEE 802.3af Class 3 is enough. Any standard PoE switch port powers the camera; no PoE+ upgrade required despite the motorized varifocal lens.

Directional and Enter/Exit Analytics

Beyond simple motion detection, this camera runs directional detection and enter/exit zone rules — useful for entry/exit event flagging in offices and retail without the AI-classification overhead of P series.

§ 05Where it fits

Right at home in these scenarios

Office Reception & Foyer

Motorized varifocal lets one install cover different framings — wide for full reception, tight for the counter — adjusted from the security desk remotely.

Retail Store Interior

Ceiling-mounted 5MP dome with motorized varifocal — cover a wide aisle at 3.2mm or focus tight on till points at 10mm as security priorities shift.

Warehouse Aisle & Interior Bays

Warehouse interior aisles benefit from varifocal to adjust between wide overview and specific stock area detail without repositioning the camera.

Corridor & Long-Room Coverage

Hallway view (90°/270°) plus varifocal give clean corridor-facing coverage; tight framing catches distant end of corridor detail.

Retail Loss Prevention

Motorized varifocal + 5MP + directional detection = flexible loss-prevention monitoring where camera framing tightens on specific product areas during promotions.

§ 06Setup

Installation & setup

01

What's in the Box

1. Hanwha QND-8080R Camera x 1 2. Mounting Template & Fixings x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE (IEEE 802.3af, Class 3) - any standard PoE switch port works; alternatively 12VDC input. 2. Storage: micro SD/SDHC/SDXC card slot up to 128GB (sold separately). 3. Mounting: indoor dome housing - ceiling or wall. 4. Network: ONVIF Profile S/G/T for third-party VMS or Wisenet WAVE / SSM native.

03

App & Setup

1. Discover with Wisenet Toolbox Plus or Device Manager. 2. Set admin password on first login (brute-force prevention enforced), configure H.265 with WiseStream II. 3. Set focal length via motorized varifocal from the network (3.2-10mm). 4. Enable event rules (motion detection, directional, enter/exit, tampering) per site.

§ 08Questions

Frequently asked about the QND-8080R

Q.01

What's the difference between this and the fixed-lens QND-8010R sibling?
The QND-8010R uses a fixed 2.8-millimetre lens covering 105° horizontal — install-and-forget for one room shape. This QND-8080R has a 3.2-10mm motorized varifocal lens, so one camera can cover different framings by remotely adjusting focal length after mount. Choose fixed for the simpler, cheaper install; choose varifocal when coverage requirements might change over time.
Q.02

How dark can this camera see?
Minimum illumination reaches 0.015 Lux in black-and-white mode — near-total darkness capture without needing IR activation. In colour mode the threshold is higher; IR LEDs then handle complete darkness scenarios up to 20m range.
Q.03

What analytics does this camera support?
Motion detection, defocus detection, tampering, directional detection, enter/exit zone rules, and virtual line crossing. Q series doesn't include AI object classification (Person/Face/Vehicle/License plate) — that's a P series feature.
Q.04

Does it need PoE+ for the motorized lens?
No. Standard PoE (IEEE 802.3af, Class 3) is sufficient — the motorized varifocal lens is designed for standard PoE draw. Any standard PoE switch port powers it.
Q.05

What VMS platforms does it integrate with?
ONVIF Profile S / G / T so it drops into any ONVIF-compatible VMS including Milestone, Genetec, and Hanwha's own Wisenet WAVE / SSM.
Q.06

Is 5MP resolution enough for a retail store?
For typical retail store interior coverage (till points, aisles, dressing room approaches, back-office access), 5MP is comfortably sufficient. For larger stores where the camera needs to cover 20+ feet with identifiable detail, consider a higher-resolution P series unit.
Q.07

How much storage does the microSD slot support?
The microSD/SDHC/SDXC slot supports cards up to 128GB. For continuous 5MP H.265 recording, expect roughly 5-7 days of retention on 128GB — sufficient for a network-drop fallback, not primary storage.
