Hanwha QND-8010R 5MP Indoor Dome Camera, 2.8mm Fixed, 20m IR
Email us
1 4
Hanwha

Hanwha QND-8010R 5MP Indoor Dome Camera, 2.8mm Fixed, 20m IR

SKU: QND-8010R
Description

- 5MP Q-Series Indoor Dome: essential-feature set (H.265, 120dB WDR, IR, edge SD) at a price suited to mid-tier indoor commercial coverage.
- 2.8mm Fixed Wide Lens: 105° horizontal covers a typical office, corridor, or retail area from a single ceiling mount — no varifocal alignment needed.
- Standard PoE Powered: IEEE 802.3af Class 3 works from any standard PoE switch port — no PoE+ upgrade required.
- 20m IR + Hallway View: after-hours identification range plus corridor-oriented framing (90°/270° rotation) for narrow room shapes.

$380.75 AUD $380.75 AUD $551.00 AUD
Sale 30.9% $170.25 AUD (30.9%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Build your setup Build a complete CCTV system Complete setup from $750.75

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $380.75

01Overview

What the QND-8010R is

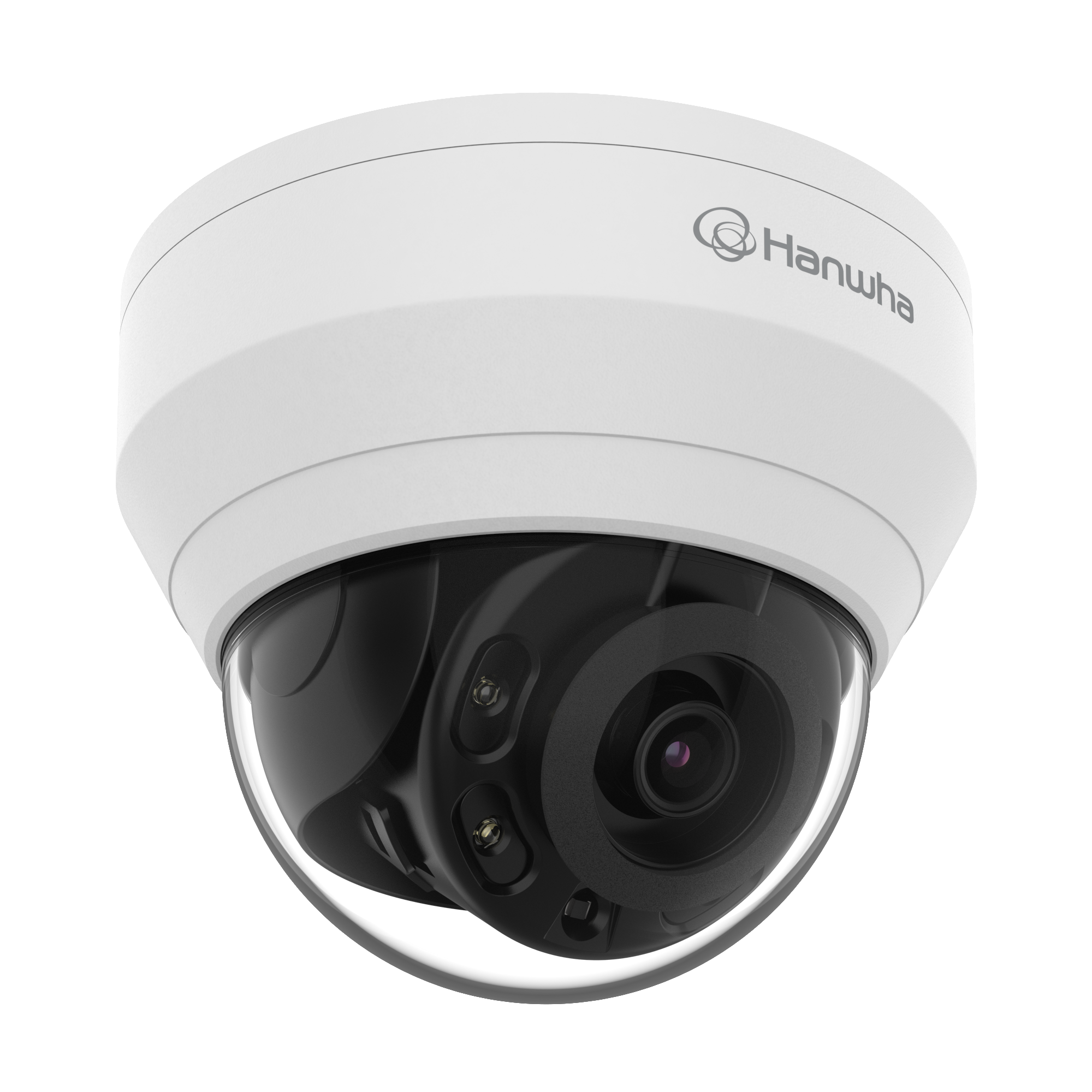

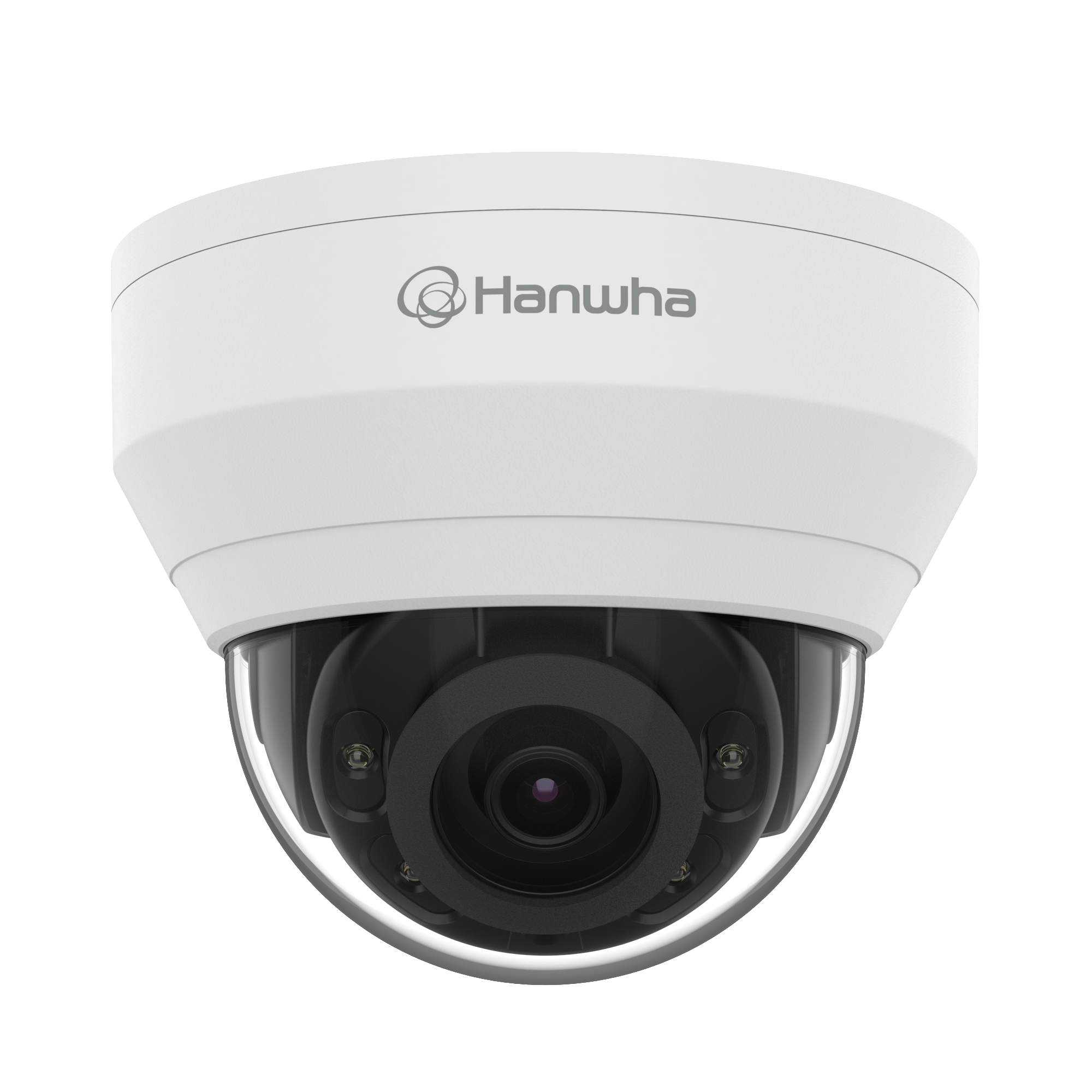

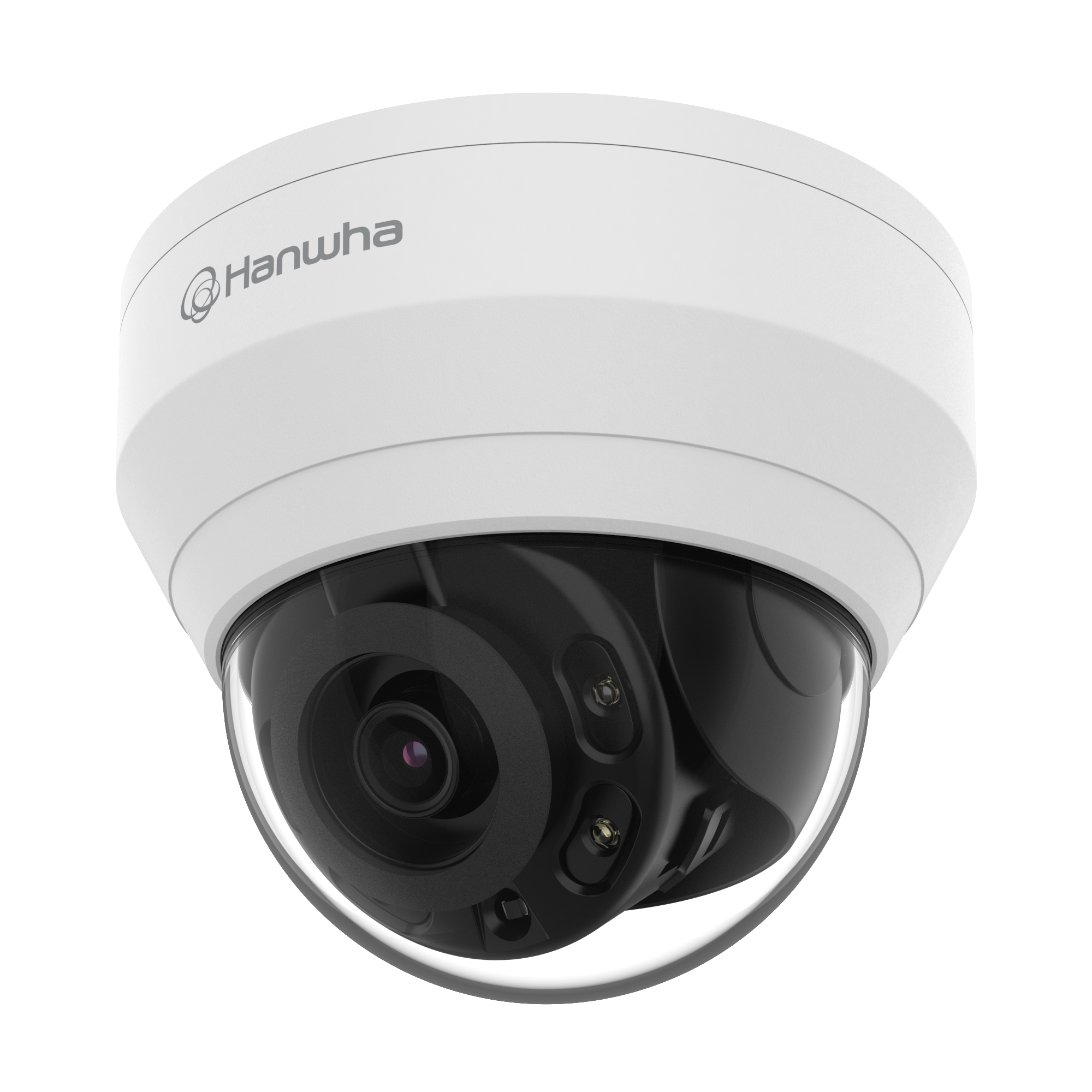

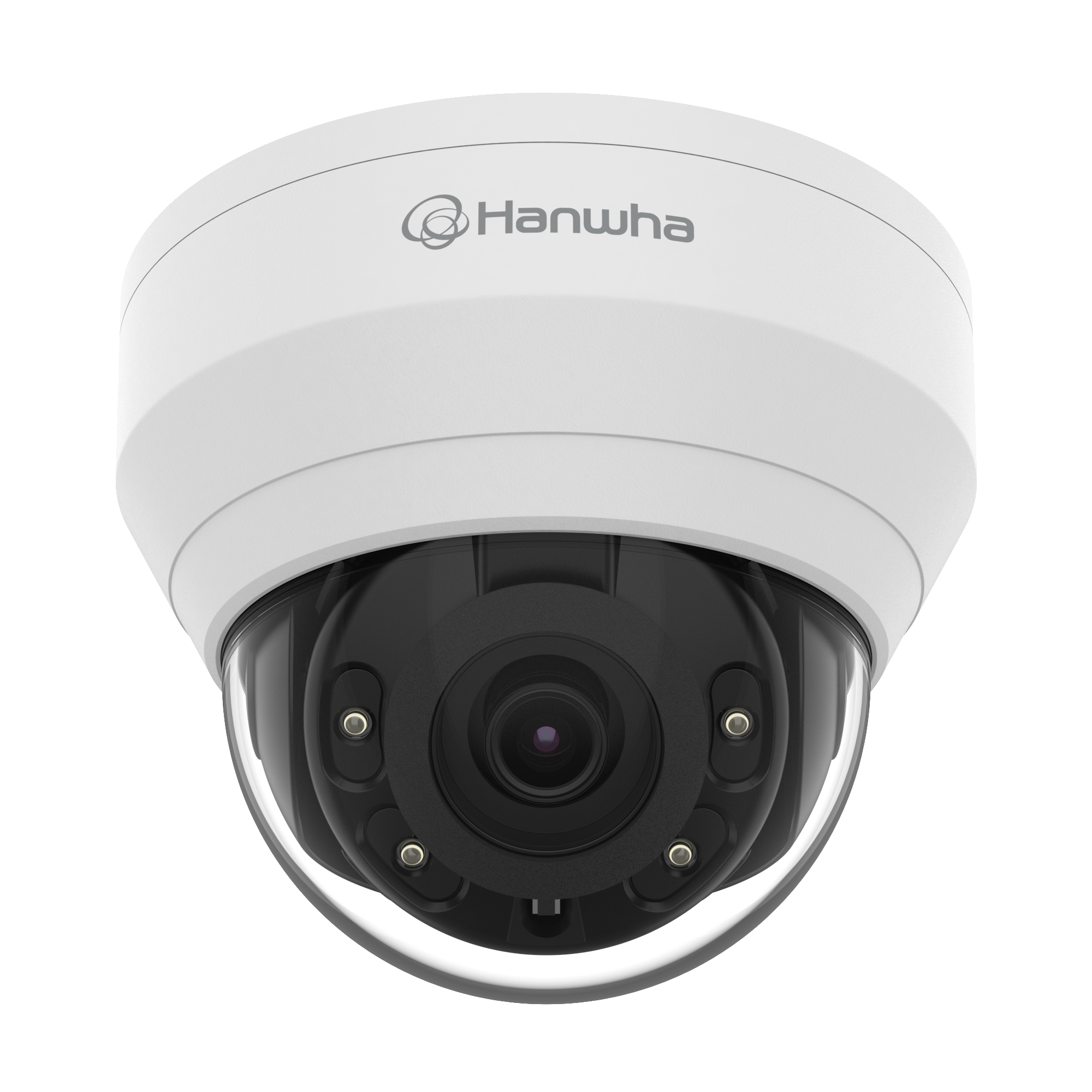

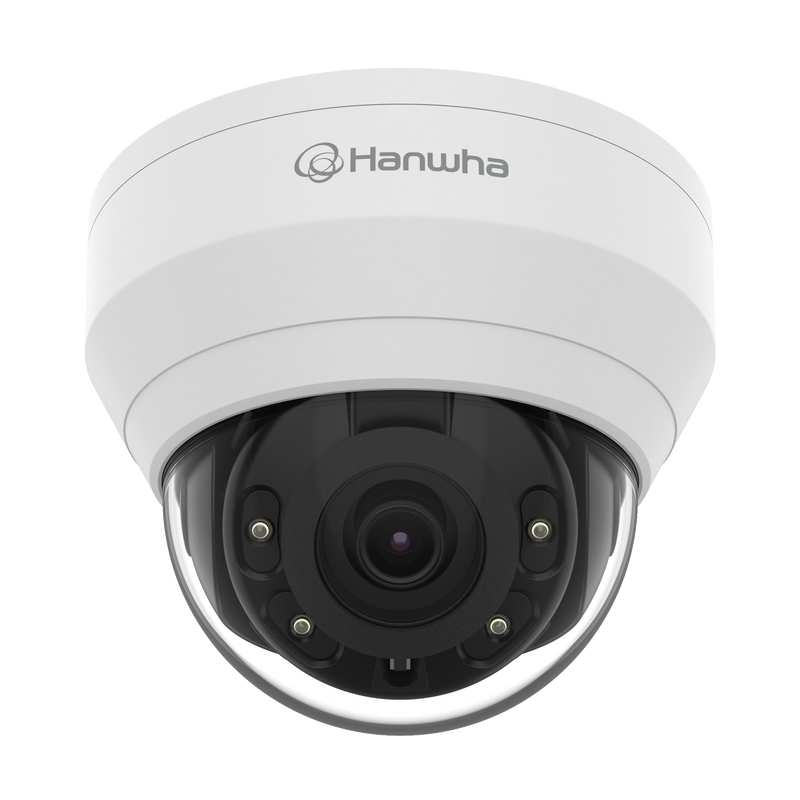

The Hanwha QND-8010R is a 5MP indoor dome camera from Hanwha's Wisenet Q series — the essential-features product line for cost-sensitive indoor commercial deployments.

A 2.8mm fixed wide-angle lens covers 105° horizontal, sufficient for a typical office, meeting room, corridor, or small retail area from a single ceiling mount.

IR LEDs reach 20m for after-hours coverage.

H.265, H.264 and MJPEG codecs with WiseStream II bandwidth optimisation and 120dB WDR handle backlit-window scenes; PoE (IEEE 802.3af, Class 3) power runs on any standard PoE switch port.

Analytics include motion detection, tampering, defocus detection, virtual area (intrusion/enter/exit) and virtual line crossing.

Hallway view mode (90°/270° rotation) fits corridor coverage.

Micro SD/SDHC/SDXC edge storage up to 128GB.

ONVIF Profile S/G/T support integrates with all major VMS including Milestone XProtect and Genetec Security Center.

02Engineering

QND-8010R specifications

- 5MP (2592x1944) resolution at up to 30fps in H.265/H.264, MJPEG codec
- 2.8mm fixed wide lens, 105° horizontal field of view
- 120dB WDR (Wide Dynamic Range)
- IR LEDs providing 20m of night vision coverage
- H.265, H.264, MJPEG codec with WiseStream II bandwidth optimisation
- Analytics: motion detection, tampering, defocus, virtual area (intrusion/enter/exit), virtual line crossing
- Hallway view mode (90°/270° rotation) for corridor coverage
- Micro SD/SDHC/SDXC memory slot up to 128GB
- ONVIF Profile S/G/T, SUNAPI (HTTP API)
- Standard PoE (IEEE 802.3af, Class 3), 12VDC input
- Indoor dome housing with IK10 impact rating

04Why choose this

Built for the way you actually use the QND-8010R

Essential Features at Q-Series Price

Q series is Hanwha's essential-features range: H.265 + WDR + IR + edge storage + hallway view. Enough capability for standard indoor commercial coverage without paying for the AI classification and higher-tier analytics found in P series.

Standard PoE Runs the Camera

802.3af Class 3 PoE is enough — efficient power draw within the standard PoE budget. Any standard PoE switch port powers it; no PoE+ infrastructure upgrade needed, cheaper switches work.

Fixed Lens Simplifies Install

No motorized varifocal to align at commissioning; mount, cable, configure. Fewer components to fail years later. 105° horizontal covers a typical room from a single ceiling position.

VMS Platform Choice

ONVIF Profile S / G / T support means the camera integrates with any major VMS including Milestone XProtect, Genetec Security Center, and Hanwha's own Wisenet WAVE / SSM. No lock-in to a single vendor.

05Where it fits

Right at home in these scenarios

Office & Meeting Rooms

A single ceiling-mounted dome covers a typical office footprint — 105° captures the whole meeting room; hallway view rotates for narrow-shape rooms.

Retail Store Interior

Ceiling-mounted 5MP dome covers front-of-house floor space; motion detection and virtual line crossing rules cover after-hours intrusion events.

Corridors & Hallways

90°/270° rotation produces a portrait-format stream that matches corridor proportions — more efficient use of the 5MP sensor.

Bank Branches & Teller Areas

IK10 impact rating combined with 5MP resolution supports the physical-security and evidence-recording needs of banking branches.

School Classrooms

Ceiling-mounted dome in classrooms and corridors; the Q-series price point suits multi-classroom deployments where budget matters.

06Setup

Installation & setup

  1. What's in the Box

    • Hanwha QND-8010R Camera x 1
    • Mounting Template & Fixings x 1 set
    • Quick Start Guide x 1

  2. Installation Requirements

    • Power: PoE (IEEE 802.3af, Class 3) - any standard PoE switch port works; alternatively 12VDC input.
    • Storage: micro SD/SDHC/SDXC card slot up to 128GB (sold separately).
    • Mounting: indoor dome housing, IK10 rated - ceiling or wall.
    • Network: ONVIF Profile S/G/T for third-party VMS or Wisenet WAVE / SSM native.

  3. App & Setup

    • Discover with Wisenet Toolbox Plus or Device Manager.
    • Set admin password on first login (brute-force prevention enforced), configure H.265 with WiseStream II.
    • Fixed lens - no focal alignment needed; orient the mount for desired 105° coverage.
    • Enable event rules (motion detection zones, tampering, virtual line/area).

08Questions

Frequently asked about the QND-8010R

Q.01

How does this compare to the higher-tier P series?
Q series is the essential-features range: H.265, WDR, IR, motion/tampering/defocus detection, virtual line/area rules, and hallway view — enough for standard indoor commercial coverage. P series adds AI object classification (Person, Face, Vehicle, License plate), higher-resolution sensors, and more sophisticated analytics. Choose Q when the essential feature set is enough; choose P when AI-scoped rule triggering matters.
Q.02

What analytics events does the camera support?
Motion detection, tampering detection, defocus detection, virtual area (intrusion / enter / exit), and virtual line (crossing / direction). No AI object classification — those are P-series features.
Q.03

How many PoE cameras can I typically run on one switch?
This camera runs on PoE Class 3 (efficient power draw). A standard 24-port PoE switch with a normal PoE budget comfortably powers a full complement of these cameras depending on other loads on the switch.
Q.04

What VMS platforms integrate with this camera?
ONVIF Profile S / G / T — the camera integrates with all major VMS including Milestone XProtect, Genetec Security Center, and Hanwha's native Wisenet WAVE / SSM. SUNAPI (HTTP API) is documented for custom integrations.
Q.05

How does hallway view mode work?
Hallway view rotates the sensor orientation to produce a tall, narrow frame suited to long corridors, hallways and access passages — 90° or 270° rotation. Instead of wasting resolution on ceiling and floor in a standard 16:9 frame, it maximises coverage of the corridor's usable depth.
Q.06

Does the camera work with third-party NVRs?
Yes. ONVIF Profile S support drops the camera into any ONVIF-compatible NVR — Milestone, Genetec, and Hanwha's own recorders. Full plug-and-play integration is available with Hanwha's WAVE and SSM platforms.
Q.07

What's the maximum resolution and frame rate combination?
5MP (2592×1944) at up to 30fps in H.265/H.264. WDR active reduces this to lower frame rates for some settings; lower resolutions can run at higher frame rates.
