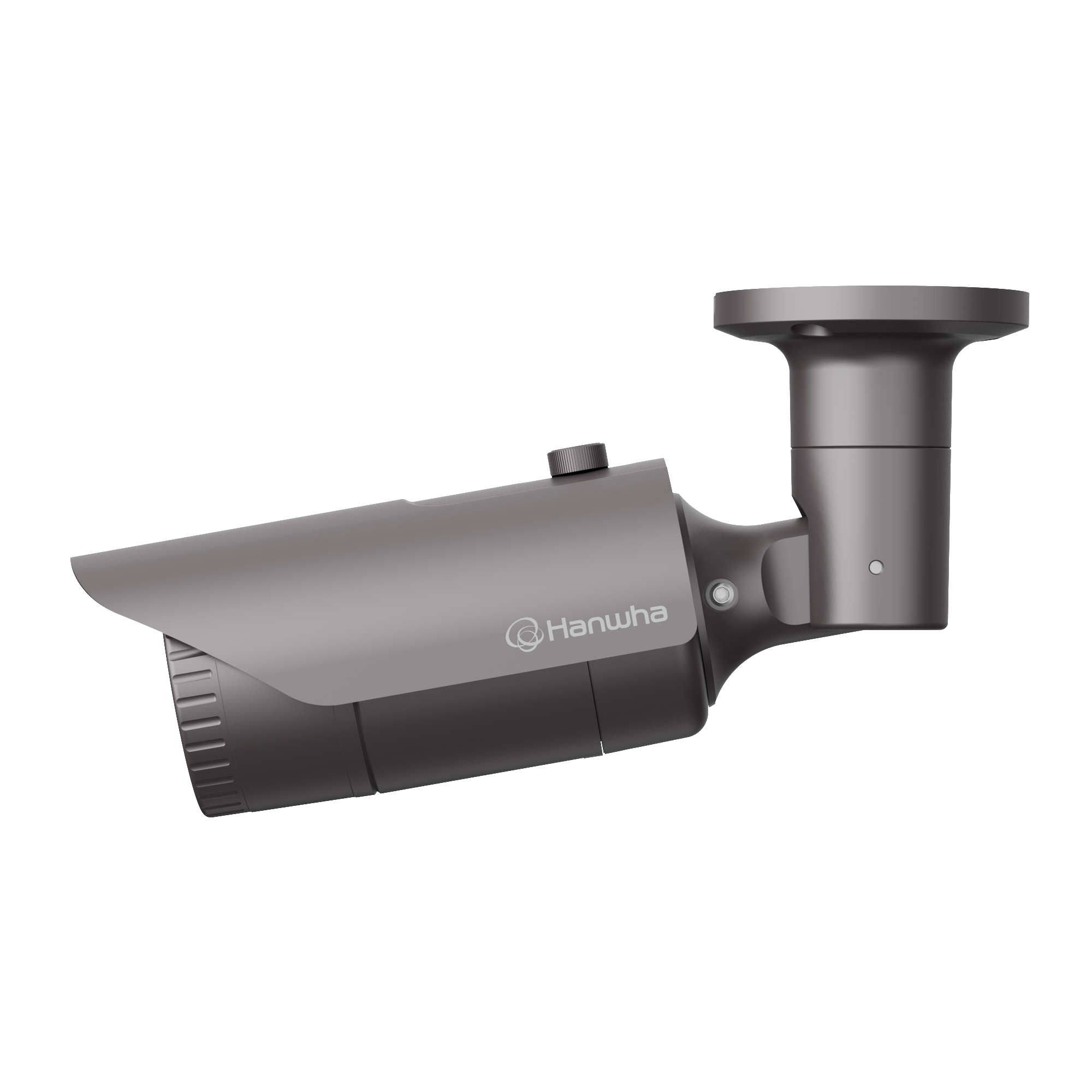

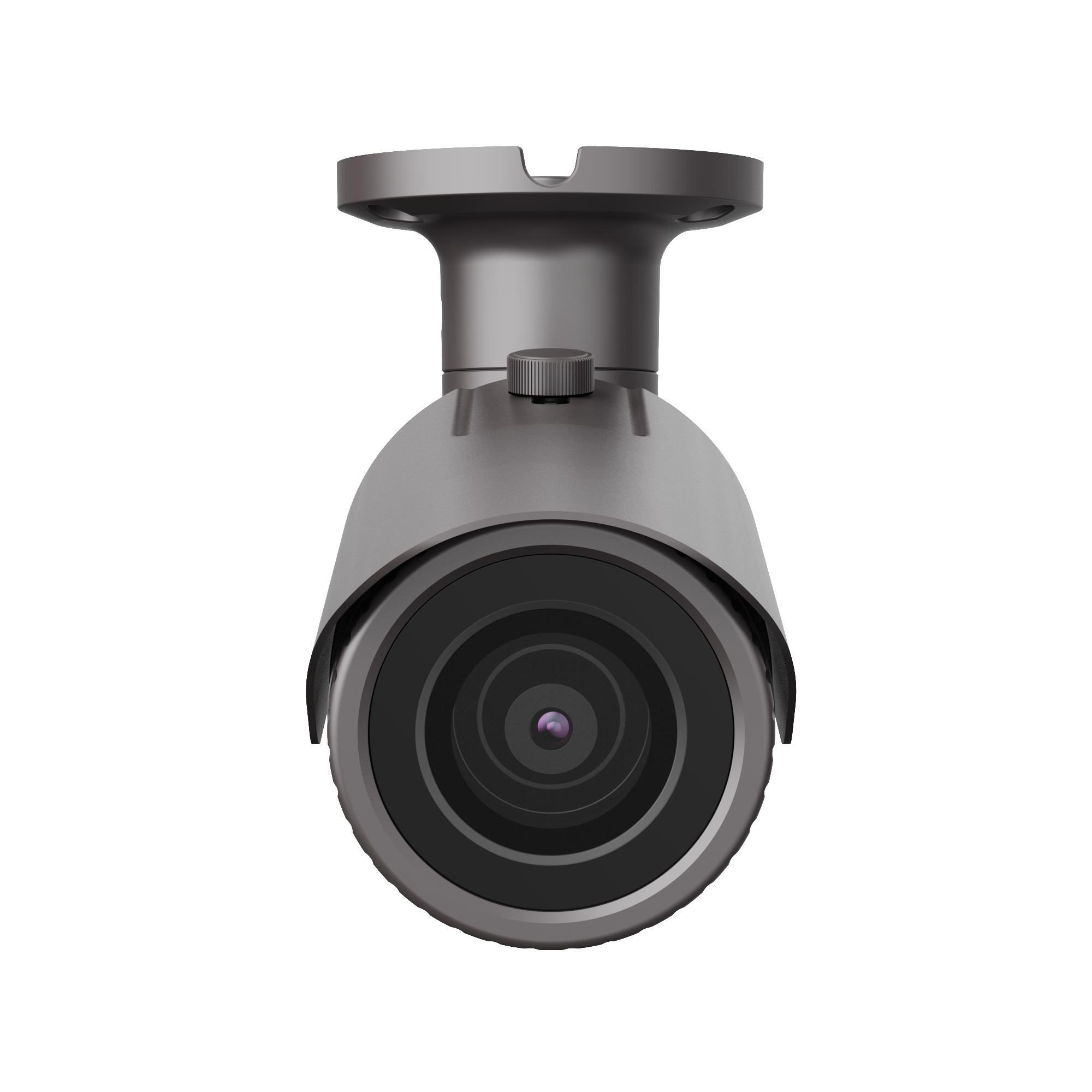

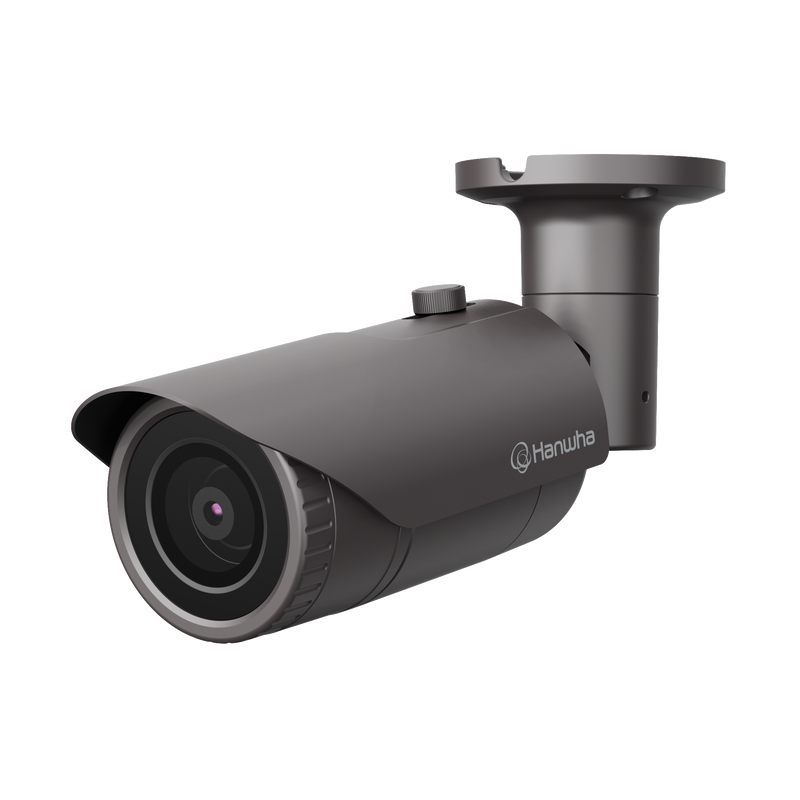

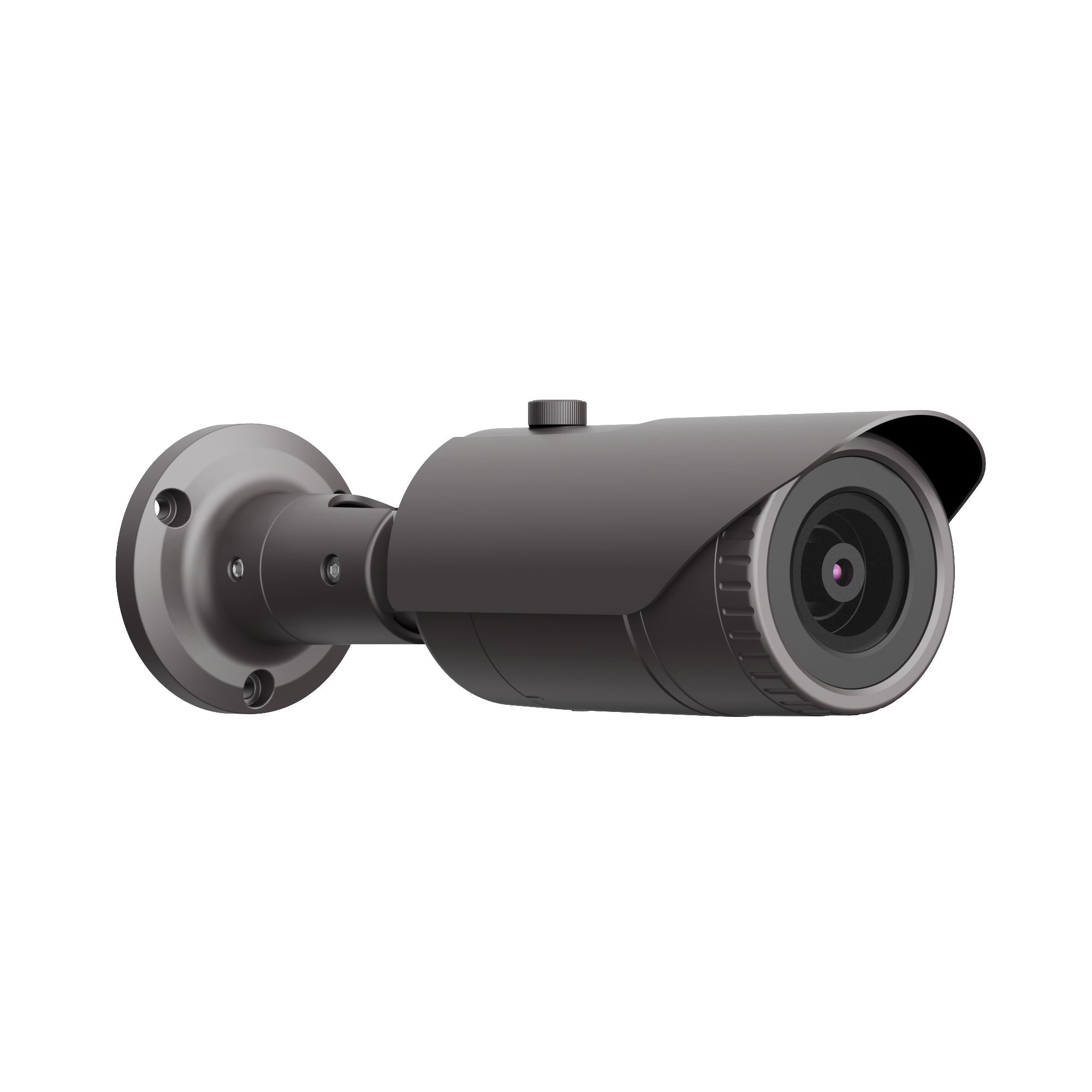

Hanwha QNO-8020R 5MP H.265 IR Bullet Camera 4mm — 80° FoV, 25m IR, 120dB WDR, IP66/IK10
1 5
Hanwha

Hanwha QNO-8020R 5MP H.265 IR Bullet Camera 4mm — 80° FoV, 25m IR, 120dB WDR, IP66/IK10

SKU: QNO-8020R
Description

- 5MP Detail With Focused 80° Framing: Fixed 4.0mm F1.6 lens frames 2592×1944 detail across an 80° horizontal / 59° vertical field of view, better suited to targeted long-view scenes than a wider fixed lens.
- 25m IR With 120dB WDR: 850nm IR LEDs illuminate to 25m at 0.015 lux B/W, while 120dB WDR paired with SSNR preserves detail across sunlit thresholds and shaded interiors.
- Efficient H.265 + WiseStream II: H.265 / H.264 / MJPEG codecs run to 30fps under WiseStream II smart bitrate control, trimming storage and bandwidth on shared or multi-camera networks.
- Weatherproof Aluminium Housing: Dark grey aluminium bullet rated IEC 60529 IP66 and IEC 62262 IK10, powered on IEEE 802.3af Class 3 PoE (max 7.50W, typical 6.10W).
$490.80 AUD $490.80 AUD $845.25 AUD
Sale 41.93% $354.45 AUD (41.93%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $860.80

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $490.80

§ 01Overview

What the QNO-8020R is

The Hanwha QNO-8020R is a 5MP H.265 IR bullet camera from the Wisenet Q Series, tuned for focused outdoor coverage.

A 1/2.8-inch CMOS sensor pairs with a fixed 4.0mm F1.6 lens covering an 80° horizontal / 59° vertical / 106° diagonal field of view, and delivers 2592×1944 at 30fps under H.265, H.264, and MJPEG codecs with WiseStream II smart compression.

120dB WDR combined with SSNR noise reduction preserves detail through mixed daylight, while 850nm IR LEDs illuminate the scene to 25m at 0.015 lux B/W for overnight coverage.

The dark grey aluminium bullet housing is IP66 and IK10 rated across -30°C to +55°C, mounts on a 128GB Micro SD slot for edge recording, and draws a maximum 7.50W (typical 6.10W) over IEEE 802.3af Class 3 PoE.

ONVIF profiles S, G, and T plus SUNAPI keep integration straightforward.

§ 02Engineering

QNO-8020R specifications

- 5MP (2592×1944) 1/2.8" CMOS sensor at 30fps H.265 / H.264
- Fixed 4.0mm F1.6 lens, 80° H / 59° V / 106° D field of view
- 25m 850nm IR LED illumination, 0.15 lux colour / 0.015 lux B/W minimum
- 120dB Wide Dynamic Range with SSNR noise reduction
- WiseStream II smart codec, MJPEG support, hallway view 90° / 270°
- Motion, tampering, defocus detection plus Virtual line and Virtual area rules
- microSD / SDHC / SDXC edge recording up to 128GB
- IP66 / IK10 aluminium housing, -30°C to +55°C operating range
- PoE IEEE 802.3af Class 3, max 7.50W (typical 6.10W)
- ONVIF Profile S, G, T plus SUNAPI HTTP API

§ 04Why choose this

Built for the way you actually use the QNO-8020R

Focused Coverage With DORI Reach

The 4mm lens narrows the horizontal FoV to 80° in exchange for extended DORI reach — Detect to 62.0m, Observe to 24.8m, Recognize to 12.4m, and Identify to 6.2m — better suited to entrance corridors, longer driveways, and yard boundaries than the wider QNO-8010R.

120dB WDR for Real-World Lighting

Wide Dynamic Range at 120dB combined with SSNR keeps highlights and shadows readable when the camera faces bright sky, sunlit thresholds, or dark bay entries — the everyday failure cases for cheaper bullets.

Cost-Sensitive H.265 Deployments

WiseStream II with H.265 shrinks bitrate on quiet scenes without dropping quality on active ones, protecting both bandwidth on shared networks and long-term storage budgets across larger multi-camera systems.

Weatherproof and Vandal Rated

The IP66-sealed aluminium housing and IK10 impact rating handle exposed exterior mounts including entry canopies, warehouse walls, and school perimeters where lower-rated housings would degrade in service.

§ 05Where it fits

Right at home in these scenarios

Vehicle Entries and Driveways

The 80° horizontal field of view with 62.0m Detect and 12.4m Recognize distances makes the QNO-8020R a good fit for gated driveways, service road entries, and boom-gate approaches where identifying a vehicle at distance matters more than covering a wide shopfront.

School and Community Building Perimeters

IK10 impact resistance and the discreet dark grey housing suit locations subject to occasional tampering or ball strikes, and the narrower FoV concentrates pixels on the actual boundary line rather than surrounding open area.

Loading Bay and Yard Boundaries

IP66 sealing plus a -30°C to +55°C operating range handle Australian exterior temperature swings; Virtual line and Virtual area rules can flag perimeter breaches at meaningful distance thanks to the extended DORI reach.

Rear-of-Building or Alleyway Coverage

Narrower framing with 25m IR sustains overnight coverage down long, narrow spaces where a wide-angle camera would waste pixels on adjacent walls.

§ 06Setup

Installation & setup

01

PoE Only — No 12V Option

Powered exclusively over IEEE 802.3af Class 3 PoE at 6.10W typical / 7.50W maximum. Any 802.3af-compliant switch or injector will support the camera; confirm total PoE budget when adding multiple cameras to a shared switch.

02

Physical Housing

Compact dark grey aluminium bullet, 680g, dimensions per the datasheet CAD drawing. Compatible mounting hardware in the Hanwha SBP / SBO accessory ranges applies for wall or junction-box mounts.

03

First-Time Setup

Configure via the Hanwha Vision web interface after connecting to the network; the CVBS video-out is preview-only for installation alignment and is not a recording output.

04

Environmental Range

Operating -30°C to +55°C (start-up above -20°C), storage -30°C to +60°C. Preserve the IP66 rating by sealing all conduit and cable entry points; the housing is not suitable for permanent submersion.

§ 08Questions

Frequently asked about the QNO-8020R

Q.01

Q: What field of view and DORI reach should I plan for from this lens?
A: The fixed 4.0mm F1.6 lens provides an 80° horizontal, 59° vertical, and 106° diagonal field of view. DORI figures per EN62676-4 give Detect at 62.0m, Observe at 24.8m, Recognize at 12.4m, and Identify at 6.2m — plan mounting so target subjects sit inside the Recognize or Identify bands rather than at the outer Detect edge.
Q.02

Q: How is the QNO-8020R different from the QNO-8010R?
A: The QNO-8020R uses a 4.0mm lens giving 80° horizontal FoV and 25m IR range. The QNO-8010R is the wider-lens sibling in the same series — choose the 8020R when subject detail at longer distance matters, and the 8010R when broad scene width matters more than long-range detail.
Q.03

Q: How far does the night vision reach?
A: The 850nm IR LEDs illuminate to 25m (82.02ft), and minimum illumination is 0.15 lux in colour and 0.015 lux in B/W at 1/30 sec / 30 IRE. In near-total darkness the camera falls back to B/W with IR on, sustaining scene coverage across the IR range.
Q.04

Q: What PoE budget does the camera consume?
A: The QNO-8020R draws typical 6.10W and maximum 7.50W over IEEE 802.3af Class 3 PoE. Any Class 3-compliant switch or injector will run the camera; verify the total port budget when adding units to a shared PSE.
Q.05

Q: How much microSD storage is supported?
A: A single Micro SD / SDHC / SDXC slot supports cards up to 128GB. Edge recording is intended as a failover buffer when the primary NVR or network link is temporarily unavailable, not as a primary long-term archive.
Q.06

Q: Does this camera include AI object classification?
A: No. The QNO-8020R runs Normal analytics only — motion detection, tampering, defocus detection, and Virtual line / Virtual area (Intrusion / Enter / Exit) rules. For on-device person and vehicle classification with colour attributes, see the AI-based QNO-C series.
Q.07

Q: Is the housing rated for direct outdoor exposure?
A: Yes. The aluminium housing carries IEC 60529 IP66 (dust-tight, protected against water jets) and IEC 62262 IK10 (impact resistance) ratings, with operating range -30°C to +55°C. Seal all cable and conduit entries to preserve the IP66 rating.
Q.08

Q: What ONVIF and API options are supported for integration?
A: The camera implements ONVIF profiles S, G, and T alongside SUNAPI (HTTP API) and Hanwha Vision Open Platform, with Ethernet on RJ-45 10/100BASE-T and support for up to 6 unicast users and 3 stream profiles simultaneously.
