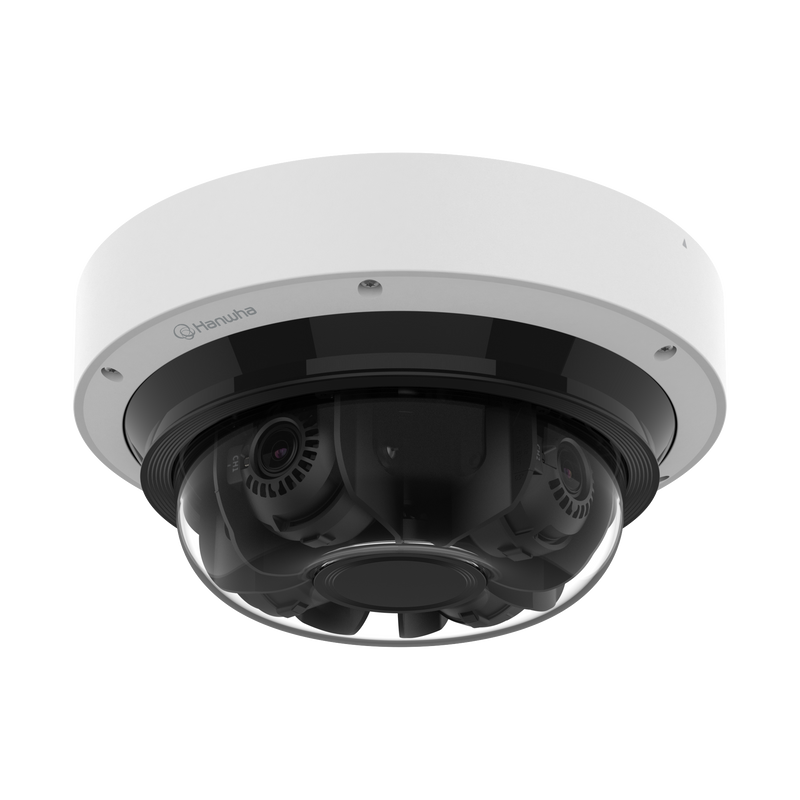

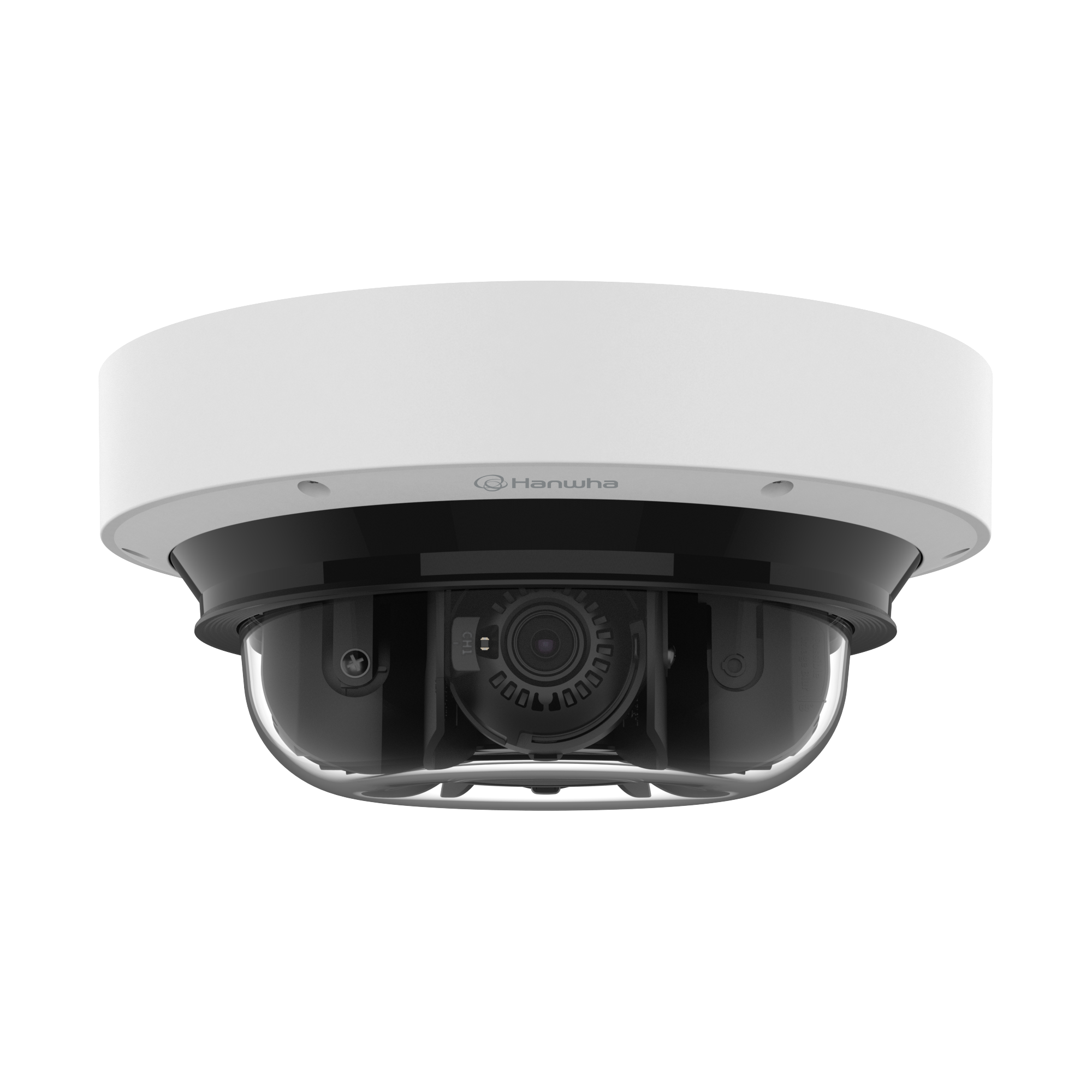

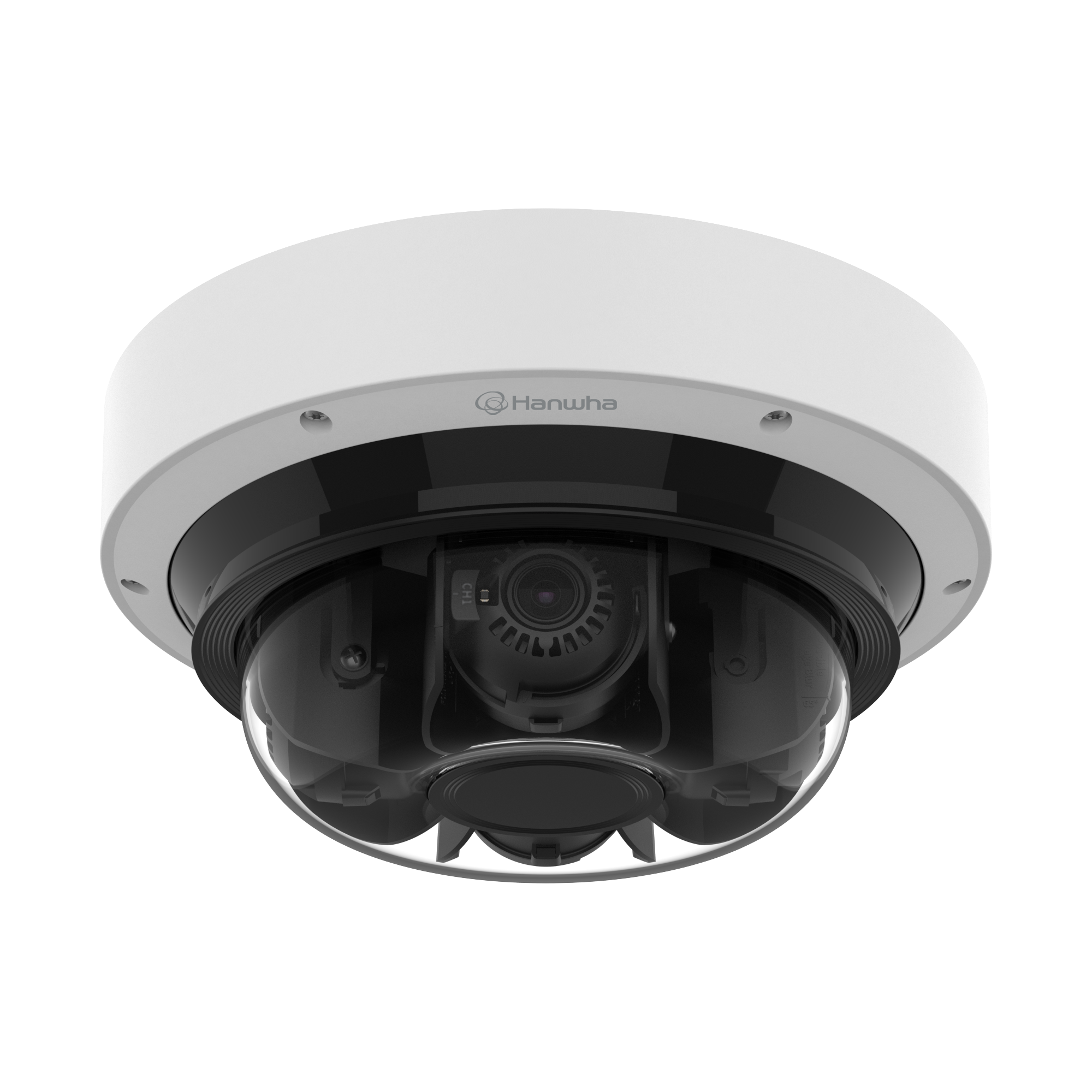

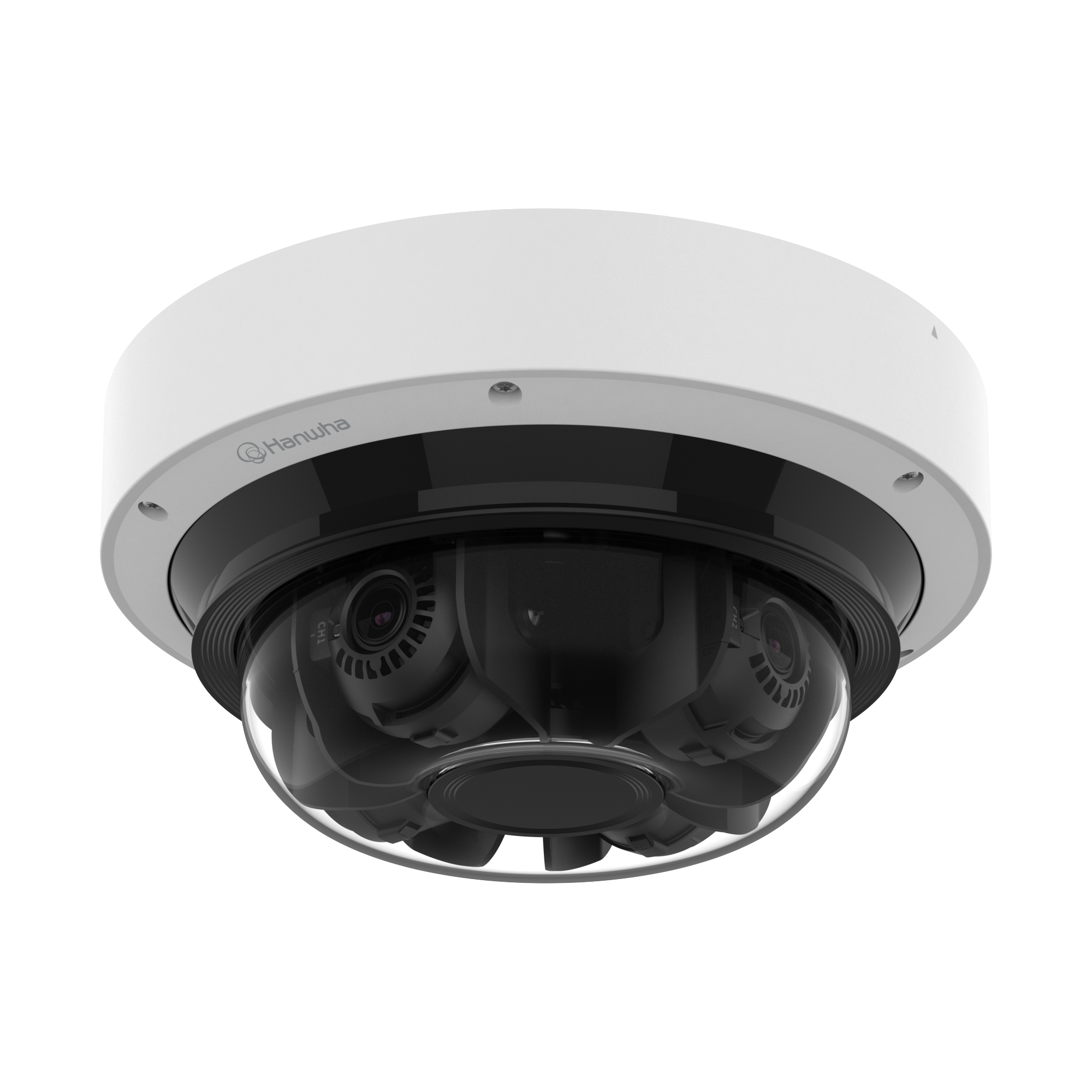

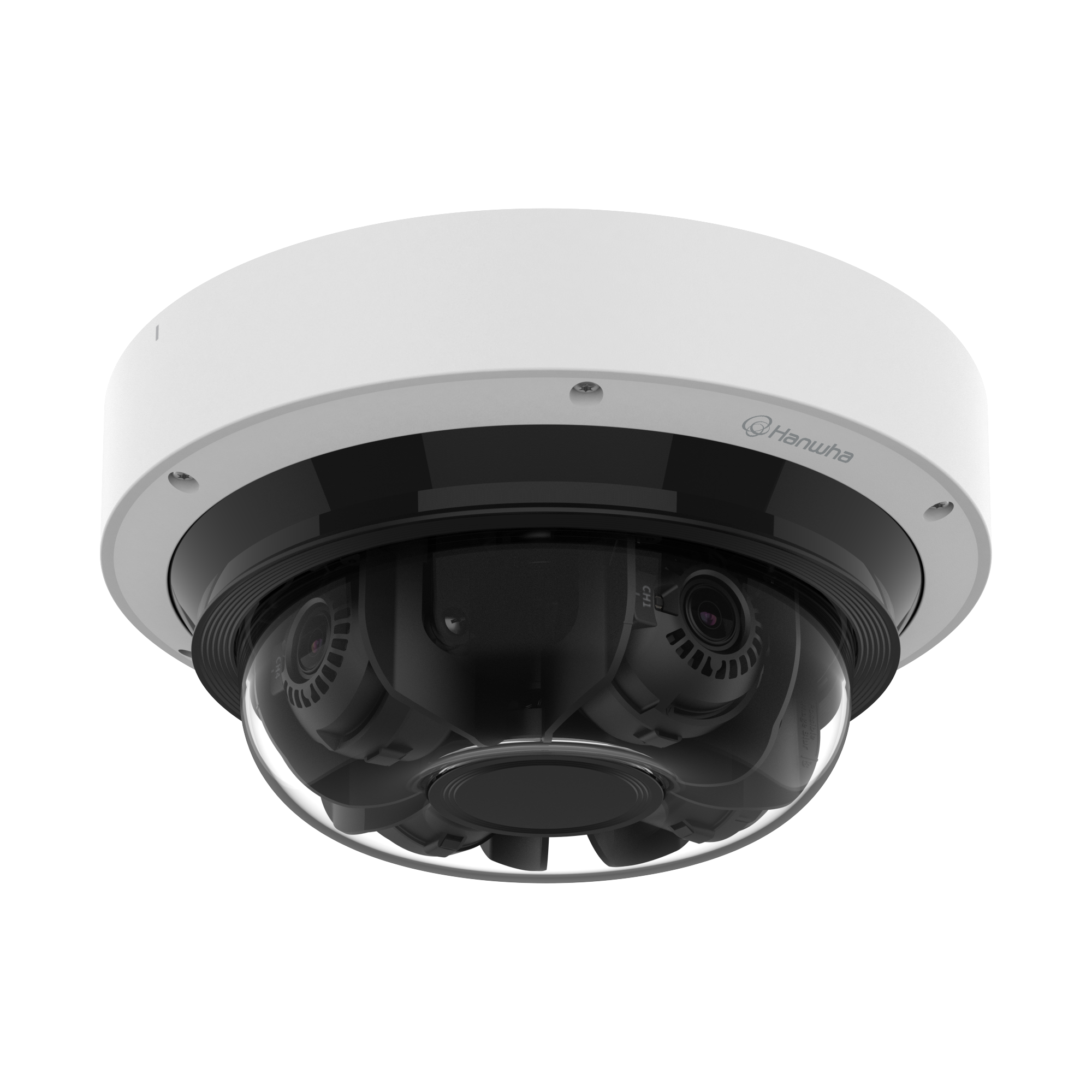

Hanwha PNM-C16083RVQ 16MP 4x4MP AI Multi-Sensor Dome Camera

SKU: PNM-C16083RVQ
Description

- Four 4MP Sensors, 360° No Blind Spots: quad-view monitoring captures all four cardinal directions simultaneously — 16MP total across the housing with no rotation required.
- Native License Plate Detection on Device: plate recognition runs locally, triggering alerts in single-digit milliseconds — no cloud or VMS latency, no per-lane licence.
- Motorized 3.3mm to 5.7mm Per Sensor: each of the four sensors has its own varifocal for independent framing of each direction (100° wide to 53° tight per channel).
- PoE+ or PoE++ Options: PoE+ delivers 15m WiseIR per channel; PoE++ (802.3bt Class 6) extends to 20m per channel for longer perimeter coverage.
$2,714.00 AUD $2,714.00 AUD
Member Sign in to save $54.28 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $2,983.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $2,714.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the PNM-C16083RVQ is

The Hanwha PNM-C16083RVQ is a 4-sensor AI multi-directional camera built to eliminate 360° blind spots in a single install.

Four independent 4MP sensors each carry their own motorized 3.3mm to 5.7mm varifocal lens, covering 100° wide to 53° tight per direction — one physical device delivers 16MP total across four separately framed views.

Each sensor runs the same AI engine: Person, Face, Vehicle and License plate classification, virtual line and area rules, with license-plate recognition running natively on-camera (no cloud or VMS latency).

Business intelligence (people counting, queue management, heatmap, vehicle counting) runs per channel.

IR coverage scales with power tier — WiseIR 15m per channel on PoE+ (IEEE 802.3at Class 4), extending to WiseIR 20m per channel on PoE++ (IEEE 802.3bt type3 Class 6).

IP66, IK10 and NEMA 4X outdoor housing.

ONVIF Profile S/G/T/M for third-party VMS.

§ 02Engineering

PNM-C16083RVQ specifications

- 16MP combined resolution (4 x 4MP sensors) at up to 30fps per sensor in H.265/H.264
- 3.3mm to 5.7mm motorized varifocal lens per sensor, 100° to 53° horizontal per channel
- WiseIR 15m per channel (PoE+) or 20m per channel (PoE++)
- 120dB WDR, WiseNR II AI-driven noise reduction, WiseStream III smart codec
- AI Object Classification per channel: Person, Face, Vehicle, License plate + IVA events
- Native on-camera license plate detection with millisecond-level event triggering
- Business Intelligence per channel: People counting, Queue management, Heatmap, Vehicle counting
- ONVIF Profile S/G/T/M, SUNAPI (HTTP API)
- PoE+ (802.3at Class 4) or PoE++ (802.3bt type3 Class 6) — choose per IR reach
- IP66, IK10, NEMA 4X — outdoor vandal multi-directional dome housing, 2,730g weight

§ 04Why choose this

Built for the way you actually use the PNM-C16083RVQ

Genuine 360° in One Housing

Four sensors each on 100° coverage overlap to eliminate 360° blind spots without the geometry loss of a fisheye dewarp. Every direction is a proper rectangular perspective at full 4MP resolution.

Native License Plate Recognition

Plate reading happens on the camera itself, triggering event alerts within milliseconds. Most competing multi-sensor cameras offload plate work to a VMS server or cloud service, introducing latency and dependency on that infrastructure.

PoE Tier Choice for IR Range

PoE+ install delivers 15m IR per channel; upgrading to PoE++ (802.3bt Class 6) extends to 20m per channel. Choose the power tier to match your site's IR reach requirement rather than settling for a single fixed range.

Motorized Per-Channel Varifocal

Unlike fixed-lens multi-sensor units, each channel can be independently zoomed and focused over the network — a corner mount can have three tight lens channels for perimeter approaches and one wide channel for the courtyard.

§ 05Where it fits

Right at home in these scenarios

Car Park Overhead Coverage

Four sensors framed on four rows or four entry points from a single mast — with license-plate detection running natively per channel for lane-level entry logging.

Building Facade Corners

A single unit at a two-facade corner covers both facade lines plus the corner approach zone and the ground-level path — four channels of AI-classified events from one cable drop.

Traffic Junction Monitoring

Four independent AI streams cover four approaches to an intersection; native license plate recognition on-device triggers alerts to a management system without VMS-side ANPR licences.

Campus Quadrangle Centers

Central mounting on a light pole covers all four surrounding buildings at 4MP each — one physical position replaces four perimeter cameras at each quadrangle corner.

Distribution Yard Choke Points

Loading area choke points with vehicles moving in multiple directions — each channel classifies its own approach with vehicle-type filtering for rule triggering.

§ 06Setup

Installation & setup

01

What's in the Box

1. Hanwha PNM-C16083RVQ Camera x 1 2. Mounting Template & Fixings x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE+ (IEEE 802.3at, Class 4) for standard 15m IR — or PoE++ (IEEE 802.3bt type3, Class 6) for extended 20m IR per channel. 2. Storage: micro SD/SDHC/SDXC card slots for edge recording (sold separately). 3. Mounting: 2,730g outdoor multi-directional dome; IP66/IK10/NEMA 4X. Verify substrate strength. 4. Network: RJ-45 with weather-sealed connector for outdoor positions; ONVIF Profile S/G/T/M for third-party VMS or Wisenet WAVE / SSM native.

03

App & Setup

1. Discover with Wisenet Toolbox Plus or Device Manager. 2. Set admin password on first login (brute-force prevention enforced), configure H.265 with WiseStream III. 3. Frame each of the four 4MP sensors independently via motorized varifocal — different focal per direction as required. 4. Enable AI object classification per channel + native license plate detection where required; scope IVA rules per direction.

§ 07Questions

Frequently asked about the PNM-C16083RVQ

Q.01

How does 4-sensor coverage compare to a fisheye?
A fisheye uses a single ultra-wide lens producing a distorted image that must be dewarped, losing resolution to geometry. This unit has four physically separate sensors and lenses each producing a rectangular perspective at native 4MP — no dewarping, no geometry loss, four proper streams into the VMS.
Q.02

Why does the IR range depend on the PoE tier?
IR LEDs draw significant power. PoE+ (802.3at Class 4) delivers enough power to drive 15m WiseIR per channel across four channels. PoE++ (802.3bt Class 6) increases the power budget so each channel's IR can reach 20m. Choose the tier to match your site's coverage requirement.
Q.03

What's the latency on the native license plate detection?
Hanwha states single-digit milliseconds — because the plate recognition runs on the camera itself rather than being offloaded to a VMS server or cloud service, event alerts fire without the network round-trip latency of centralised ANPR.
Q.04

Do the four channels count as four devices on the NVR?
Yes — each sensor exposes a separate video channel. Four NVR channel licences consumed, but physically it's one device on one IP address and one PoE port.
Q.05

Can I focus each channel differently?
Yes. Each of the four sensors has its own motorized 3.3mm to 5.7mm varifocal lens — one channel can be at 3.3mm wide while another sits at 5.7mm tight. Configuration via the camera's web interface, no ladder returns needed.
Q.06

What AI licence do I need for plate detection?
None. Object classification (Person, Face, Vehicle, License plate) plus IVA events and business intelligence are all included on the camera itself, running natively without any additional licence or subscription.
Q.07

What VMS integrations does it support?
ONVIF Profile S, G, T and M — drops into any ONVIF-compatible VMS. Native Wisenet WAVE and SSM integration is fullest; SUNAPI (HTTP API) for custom code.
