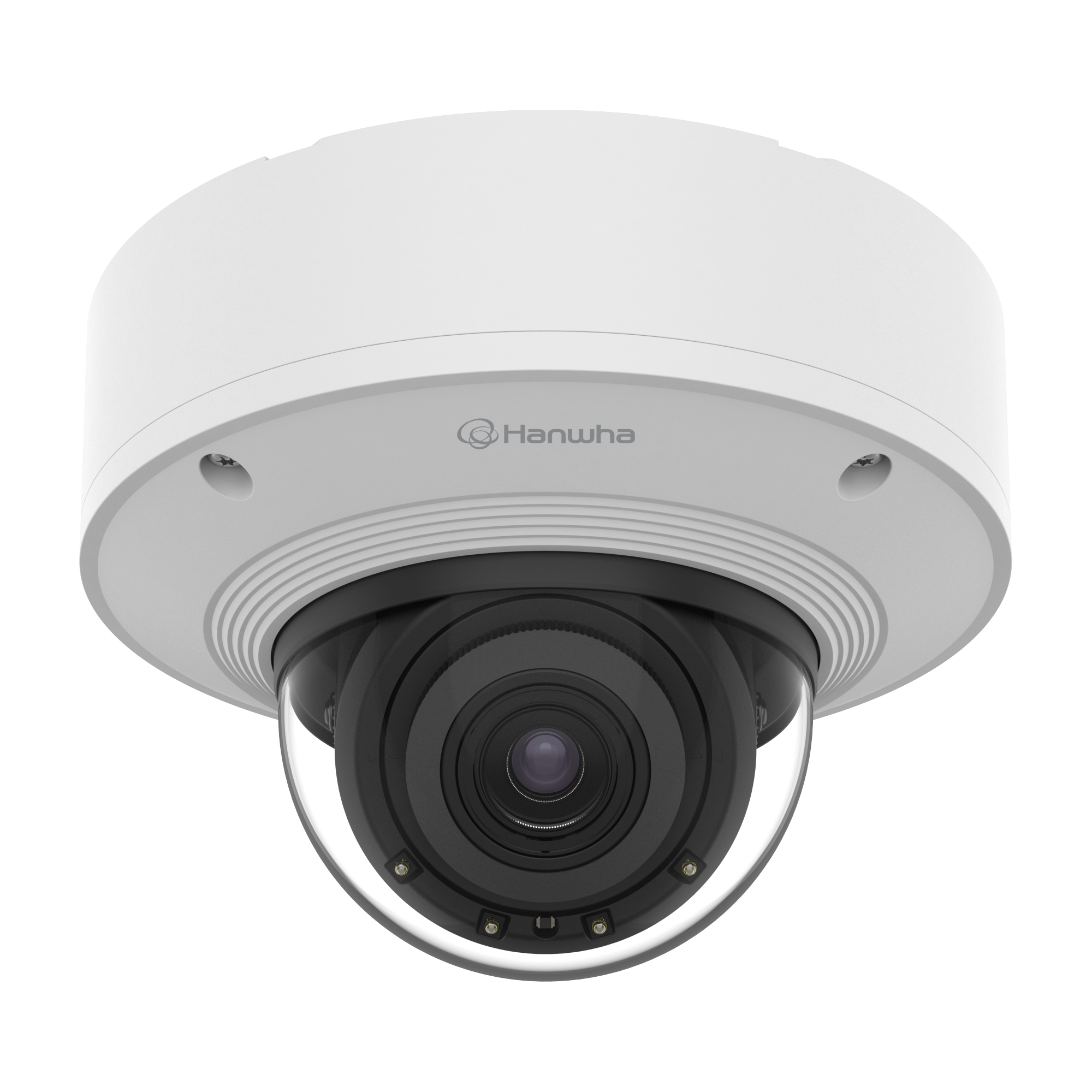

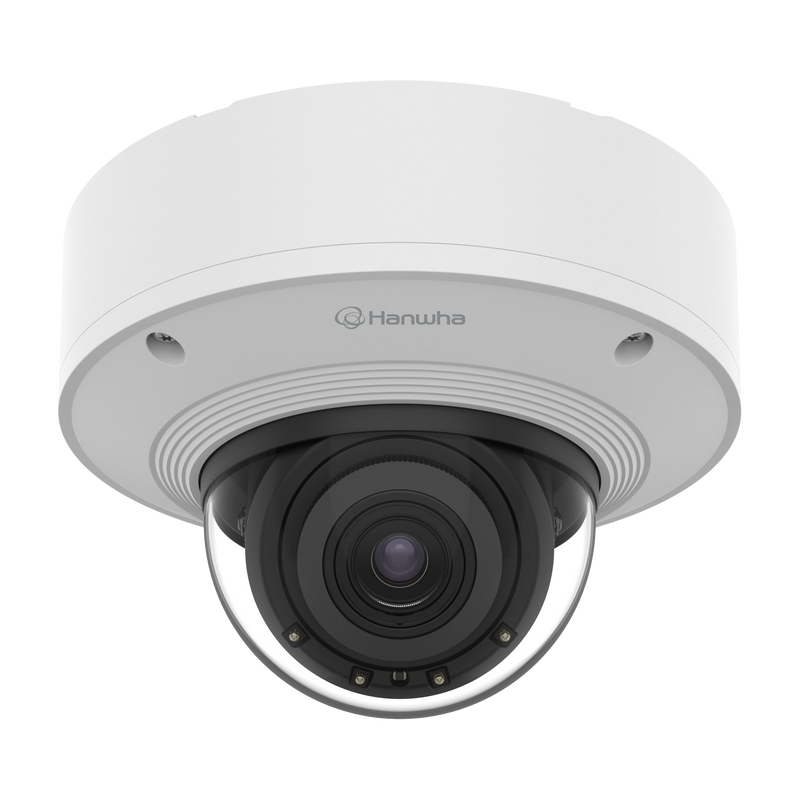

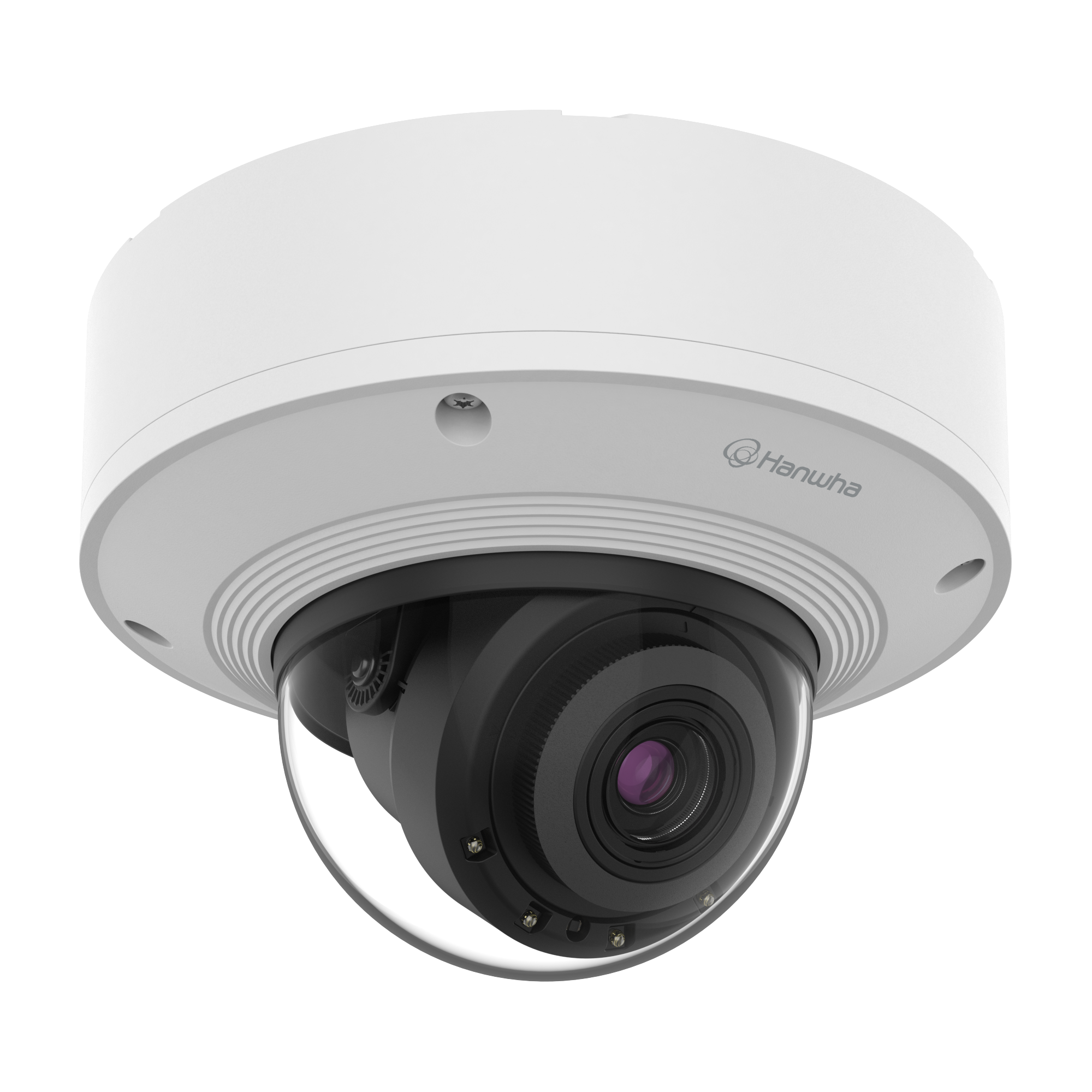

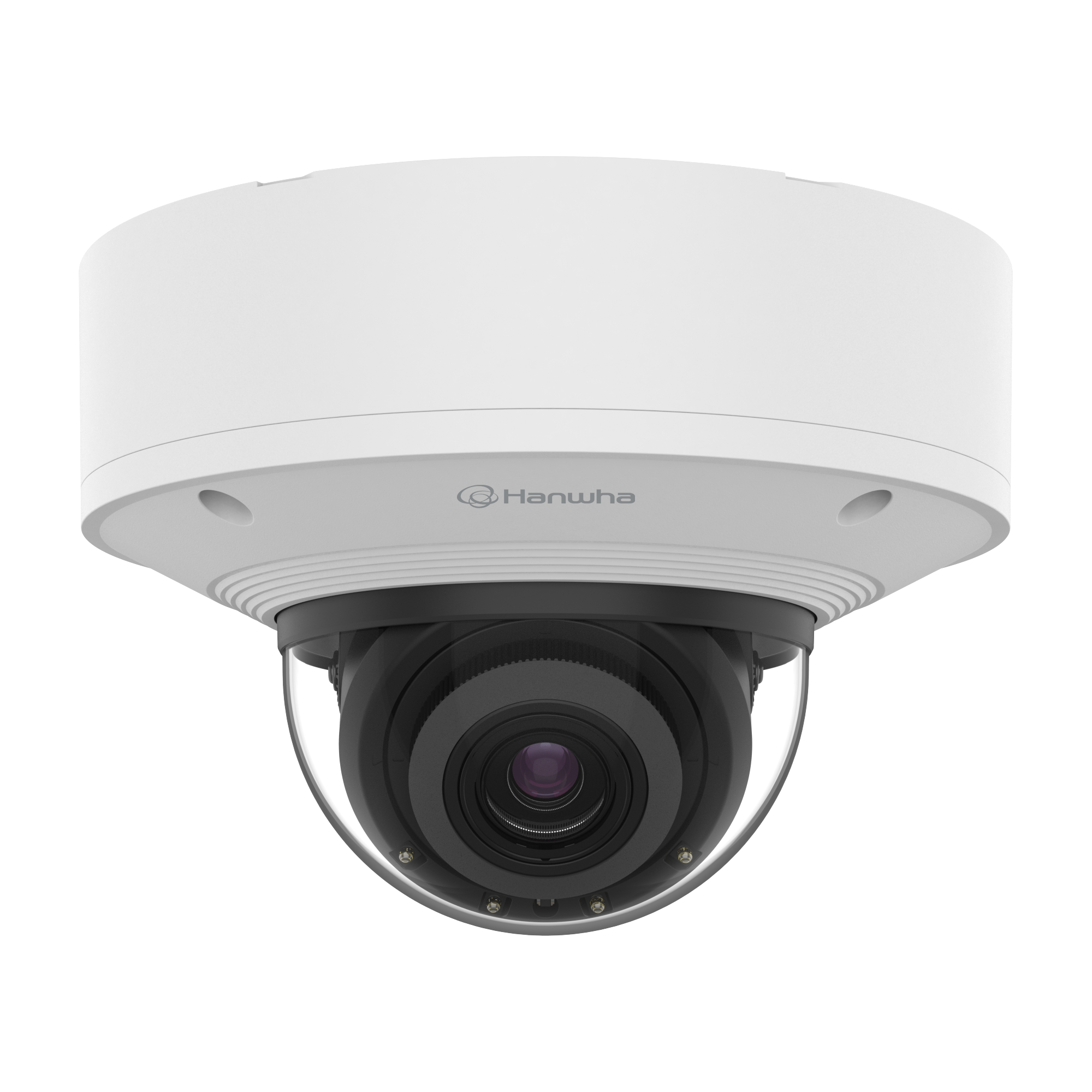

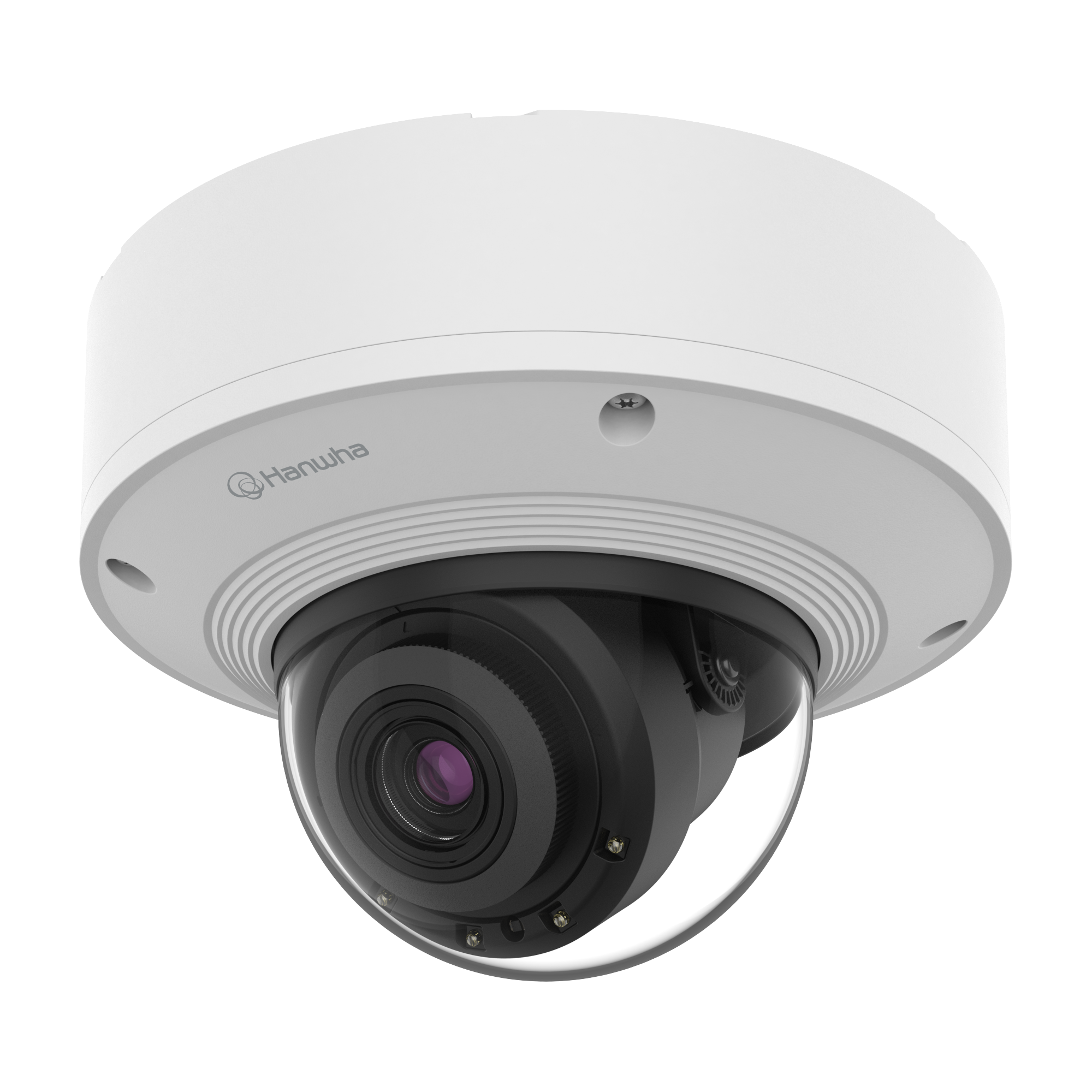

Hanwha PNV-A9081R 8MP 4K AI Outdoor Vandal Dome, 30m WiseIR
Hanwha PNV-A9081R 8MP 4K AI Outdoor Vandal Dome, 30m WiseIR
Hanwha PNV-A9081R 8MP 4K AI Outdoor Vandal Dome, 30m WiseIR
Hanwha PNV-A9081R 8MP 4K AI Outdoor Vandal Dome, 30m WiseIR
Hanwha PNV-A9081R 8MP 4K AI Outdoor Vandal Dome, 30m WiseIR
1 4
Hanwha

Hanwha PNV-A9081R 8MP 4K AI Outdoor Vandal Dome, 30m WiseIR

SKU: PNV-A9081R
Description

- 8MP (3840x2160) 4K Resolution: forensic-review headroom in outdoor vandal dome form; digital zoom into any part of the wide shot still resolves identifying detail.
- 4.5mm to 10mm Motorized Varifocal, 2.2x Zoom: 101.4° wide down to 45.5° tight; remote focal length and focus from the network after physical mount.
- On-Camera AI Classification: Person, Face, Vehicle, License plate with attribute extraction — rule triggering only fires on the class you scope, dropping nuisance alerts.
- Efficient PoE Draw: standard PoE port powers the camera comfortably; efficient for multi-camera perimeter installs where PoE switch budget matters.
$2,651.90 AUD $2,651.90 AUD
Member Sign in to save $53.04 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $2,921.35

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $2,651.90
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the PNV-A9081R is

The Hanwha PNV-A9081R is an 8MP (3840x2160) AI outdoor vandal dome camera in the Wisenet P series — a 4K vandal dome built for exposed facade, perimeter and entry-approach installs where 4K resolution supports forensic review of wide scenes.

The 4.5mm to 10mm motorized varifocal lens covers 101.4° wide down to 45.5° tight (2.2x zoom), with framing and focus adjusted over the network.

AI classifies Person, Face, Vehicle and License plate on-camera, with attribute extraction and BestShot event capture; face mask and social distancing analytics are also included for compliance-monitoring applications.

WiseIR reaches 30m for full-dark identification; extremeWDR (120dB) handles backlit entrances, and DIS Digital Image Stabilisation counters vibration at pole-mounted positions.

PoE (802.3af compatible) — efficient enough for standard PoE switch budgets on multi-camera runs.

IP66/IP67/IK10 plus NEMA 4X outdoor housing, dual micro SD/SDHC/SDXC card slots (up to 512GB total).

NDAA compliant and ONVIF Profile S/G/T certified.

§ 02Engineering

PNV-A9081R specifications

- 8MP (3840x2160) resolution at up to 30fps in H.265/H.264, MJPEG codec
- 4.5mm to 10mm motorized varifocal lens, 101.4° to 45.5° horizontal (2.2x zoom)
- 120dB WDR, DIS Digital Image Stabilisation
- WiseIR up to 30m, minimum illumination 0.05 Lux (colour, F1.6) / 0 Lux (IR on)
- AI Object Classification: Person, Face, Vehicle, License plate with attribute extraction
- Face mask detection, social distancing detection
- Business Intelligence: People counting, Queue management, Heatmap, Vehicle counting
- Dual micro SD/SDHC/SDXC card slots (up to 512GB total)
- ONVIF Profile S/G/T, SUNAPI (HTTP API), NDAA compliant
- PoE (IEEE 802.3af) compatible, efficient power draw
- IP66, IP67, IK10, NEMA 4X - outdoor vandal dome

§ 04Why choose this

Built for the way you actually use the PNV-A9081R

4K Forensic Headroom in a Vandal Dome

At 8MP (3840x2160), this dome delivers substantially more pixel budget than a standard outdoor unit. During incident review, digital zoom into any part of the wide shot still resolves usable identifying detail rather than a smudge.

On-Camera AI Filters False Alerts

Object classification per class (Person / Face / Vehicle / License plate) means virtual line and area rules only fire on the target. Wildlife, shadows and non-target motion stop generating operator noise.

PoE 802.3af Compatible

Most 4K vandal domes require PoE+ (802.3at Class 4). This camera runs on standard 802.3af PoE — cheaper switches, existing infrastructure works, more headroom per PoE switch budget across multi-camera deployments.

NDAA-Compliant for Government Procurement

Federal, defence and critical-infrastructure procurement bars filter out uncertified cameras. NDAA compliance clears these gates, opening government and public-sector projects without a hardware substitution.

§ 05Where it fits

Right at home in these scenarios

Building Entry & Facade Coverage

4K dome-form-factor at entry approaches, foyer canopies, and facade corners where a bullet would be aesthetically inappropriate.

Retail Chain Store Interiors & Kerbs

Ceiling-mounted or awning-installed vandal dome coverage of till points, kerb frontage, and back-office access with face + vehicle classification.

Government Building Perimeters

NDAA compliance clears procurement gates; 4K + AI classification supports the incident-review workflow expectations of government tenants.

Multi-Tenant Residential Common Areas

Lobbies, carpark entries, plant rooms across strata-managed buildings — the vandal-resistant dome housing tolerates tenant contact.

Schools & Educational Facilities

External wall and eave mounts at reachable positions; IK10 vandal rating combined with dome form factor suits public-facing school perimeters.

§ 06Setup

Installation & setup

01

What's in the Box

1. Hanwha PNV-A9081R Camera x 1 2. Mounting Template & Fixings x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE (IEEE 802.3af compatible) - standard PoE switch port sufficient. 2. Storage: dual micro SD/SDHC/SDXC card slots supporting up to 512GB total (sold separately). 3. Mounting: outdoor vandal dome housing IP66/IP67/IK10/NEMA 4X - verify substrate for impact rating. 4. Network: ONVIF Profile S/G/T for third-party VMS or Wisenet WAVE / SSM native.

03

App & Setup

1. Discover with Wisenet Toolbox Plus. 2. Set admin password on first login (brute-force prevention enforced), configure H.265 with WiseStream II. 3. Frame via motorized varifocal from the network; enable DIS for pole/mast positions. 4. Enable AI object classification; scope virtual line, virtual area and enter/exit rules per object class.

§ 07Questions

Frequently asked about the PNV-A9081R

Q.01

How does 4K compare to lower-resolution outdoor domes?
At 3840x2160, this dome delivers substantially more pixel budget than lower-resolution outdoor domes. During post-event review, that extra resolution lets you digitally zoom into any region of the wide shot and still resolve identifying detail — often the difference between usable evidence and unclear footage.
Q.02

What AI features are built in?
Object classification (Person, Face, Vehicle, License plate) with attribute extraction, plus face mask detection, social distancing monitoring, and standard IVA events (virtual line, virtual area, intrusion, enter/exit, loitering). All on-camera, no separate analytics server.
Q.03

What are the PoE requirements?
Standard PoE (IEEE 802.3af) is sufficient — one of the more efficient 4K domes in this class. This is unusual for a 4K dome; most competing 4K units require PoE+ (802.3at, Class 4). Existing 802.3af switch infrastructure powers this camera without upgrade.
Q.04

What's the practical difference vs the newer PNV-A9082RZ?
The newer PNV-A9082RZ uses a Wisenet 9 dual NPU processor, a longer varifocal lens, extended WiseIR reach, and a higher impact rating. Choose this PNV-A9081R model when 30m IR and 4.5-10mm zoom fit the site — lower price point with the same 4K sensor.
Q.05

Is this camera NDAA-compliant?
Yes. NDAA-compliant and cleared for US federal, defence and critical-infrastructure procurement. Australian government tenders referencing NDAA (defence, transport, some council facilities) can use this camera without procurement issues.
Q.06

What VMS platforms does it integrate with?
ONVIF Profile S / G / T so it drops into any ONVIF-compatible VMS. Native Wisenet WAVE and SSM integration is fullest; SUNAPI (HTTP API) supports custom code.
Q.07

How does the dual SD card slot help?
Two micro SD slots supporting up to 512GB combined let you split continuous vs event recording across cards, or mirror both drives for redundancy. On sites where the network drops occasionally, edge recording becomes the primary rather than fallback storage.
