Dahua DH-IPC-HDW3666EMP-S-AUS 6MP Turret Network Camera 30m IR 2.8mm with SMD 4.0, Wizsense
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-IPC-HDW3666EMP-S-AUS 6MP Turret Network Camera 30m IR 2.8mm with SMD 4.0, Wizsense
SKU: DH-IPC-HDW3666EMP-S-AUS
Description
- 6MP Resolution: 3072x2048 @25/30fps with Starlight Technology for enhanced night visibility.
- SMD Plus 4.0: AI-powered smart motion detection for accurate human and vehicle classification, reducing false alarms.
- Built-in Mic and IR LEDs: Audio capture capability and infrared night vision up to 30 meters.
- MicroSD Slot: Supports local storage up to 256GB for edge backup without NVR.
Regular price
$131.25 AUD
Sale price
$131.25 AUD
Regular price
$200.00 AUD
Sale
34.38%
$68.75 AUD
(34.38%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua DH-IPC-HDW3666EMP-S-AUS 6MP Turret Network Camera 30m IR 2.8mm with SMD 4.0, Wizsense
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $595.70 or kits from $726.95
Or pick a ready-made kit
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens: 2.8mm.
Color options: White or Black.
Note: Please indicate your choice in your order message.

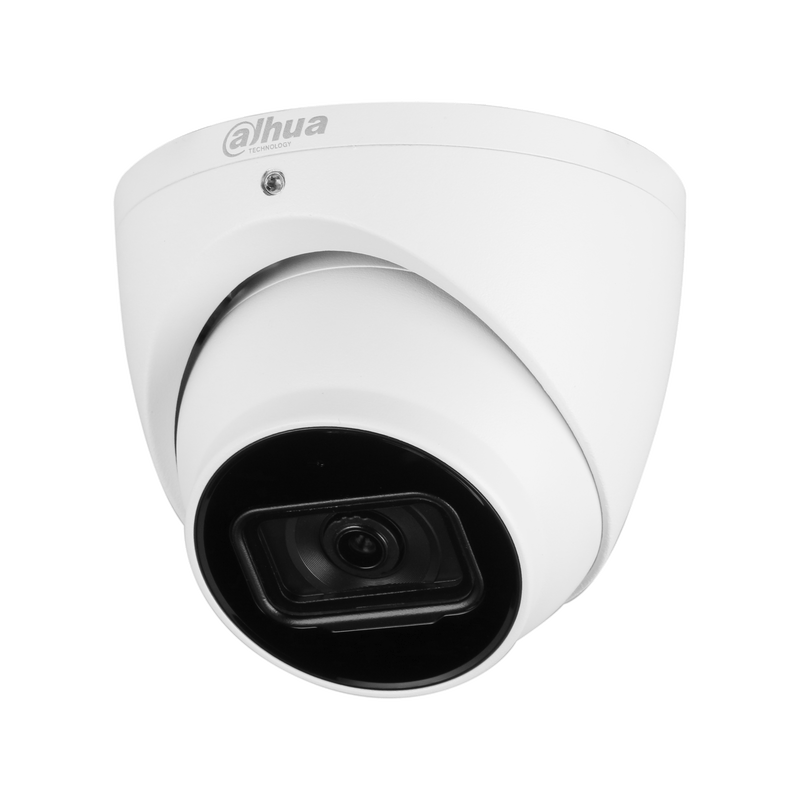

The Dahua DH-IPC-HDW3666EMP-S-AUS is a 6MP turret-style IP camera designed for indoor and outdoor security surveillance.
Equipped with Starlight Technology for enhanced low-light visibility, AI-powered smart motion detection for high accuracy alerts, built-in infrared night vision up to 30 meters, and local storage via MicroSD slot.
§ 02Engineering
Technical specifications
- High Resolution: 3072 × 2048 resolution at 25/30fps with Starlight Technology for enhanced night visibility and detail capture.
- SMD Plus 4.0 AI Detection: Detects humans and vehicles using AI-based algorithms to reduce false alarms and ensure higher accuracy.
- Built-in Infrared LEDs: Supports infrared night vision up to 30 metres for clear visibility in total darkness.
- Built-in Mic: Enables audio capture for comprehensive security monitoring.
- SMD Plus 4.0 AI Detection: Detects humans and vehicles using AI-based algorithms to reduce false alarms and ensure higher accuracy.
- Built-in Infrared LEDs: Supports infrared night vision up to 30 metres for clear visibility in total darkness.
- Built-in Mic: Enables audio capture for comprehensive security monitoring.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3072 (H) × 2048 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) | 0.0005 lux@F1.4 (B/W, 30 IRE) | 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.4 |
| Field of View | 2.8 mm:Horizontal: 97°; Vertical: 71°; Diagonal:129° | 3.6 mm:Horizontal: 80°; Vertical: 57°; Diagonal:107° | 6 mm:Horizontal: 50°; Vertical: 37°; Diagonal: 64° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.1 m (3.61 ft) | 3.6 mm: 1.7 m (18.37 ft) | 6 mm: 3.3 m (10.83 ft) |
| DORI Distance | 2.8 mm: Detect 63.6 m (208.66 ft); Observe 25.4 m (83.33 ft); Recognize 12.7 m (41.67 ft); Identify 6.4 m (21.00 ft) | 3.6 mm: Detect 85.4 m (280.18 ft); Observe 34.2 m (112.20 ft); Recognize 17.1 m (56.10 ft); Identify 8.5 m (27.89 ft) | 6 mm: Detect 124.0 m (406.82 ft); Observe 49.6 m (162.73 ft); Recognize 24.8 m (81.36 ft); Identify 12.4 m (40.68 ft) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 50 m (164.04 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ | Smart H.264+ |
| AI Coding | AI H.265 | AI H.264 |
| Video Frame Rate | Main stream: 3072 × 2048 @ (1–25/30) fps | Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) | Sub stream 2: 1920 × 1080 @ (1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 6M (3072 × 2048); 5M (2592 x 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps | H.265: 3 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI-SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE:IE11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 4.3 W (12 VDC); 4.9 W (PoE) | Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
| Protection | IP67 |
| Casing | Metal |
| Product Dimensions | 93.6 mm × Φ106.0 mm (3.69" × Φ4.17") |
| Net Weight | 500 g (1.10 lb) |
| Gross Weight | 770 g (1.70 lb) |
| Certifications | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
§ 04Why choose this
Built for the way you actually use it
WizSense Smart Motion Detection 4.0
Advanced AI algorithms accurately recognise humans and vehicles, reducing false alarms triggered by animals, leaves, or rain.
Starlight Night Vision Technology
Delivers enhanced colour images in low-light conditions and clear infrared night vision up to 30 metres.
IP67 Weatherproof Turret Design
Robust construction resists water and dust, ensuring reliable performance in harsh Australian outdoor weather conditions.
§ 05Where it fits
Right at home in these scenarios
Front Verandah and Entrance
The wide 110° field of view covers the entire entry area, perfect for monitoring visitors and deliveries.
Residential Driveway Security
SMD 4.0 distinguishes between family vehicles and street traffic, ensuring you only receive relevant alerts for your property.
Backyard and Pool Area
Long-range 30-metre night vision and weatherproofing provide comprehensive 24/7 protection for outdoor entertaining spaces.
Indoor Business Monitoring
Compact turret design blends discreetly into corners to monitor office spaces or internal stock areas.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-IPC-HDW3666EMP-S-AUS Camera × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power Source: Requires standard 802.3af PoE switch or separate 12V DC mains power adapter (sold separately). 2. Network Connection: Wired Ethernet connection via Cat5e or Cat6 cable for stable video data transmission. 3. Mounting Surface: Solid wall, ceiling, or eave surface capable of supporting the camera for secure installation.
App Setup
1. Download the free DMSS mobile app from the Google Play Store or Apple App Store. 2. Create an account and scan the device QR code to add the camera to your network. 3. Configure live view, playback, and push notification preferences directly within the app interface.
§ 07Questions
Frequently asked
Q.01
Does this camera work with my existing Dahua NVR?
Yes, it's compatible with Dahua WizSense and AI NVRs like the NVR4108HS-8P-AI/ANZ and NVR4104HS-P-4KS2/L. It also works with ONVIF-compliant third-party recorders.
Q.02
Can I use this camera without an NVR?
Yes, the camera includes a MicroSD card slot supporting up to 256GB for local recording. You can also access live footage remotely via the DMSS mobile app without an NVR.
Q.03
What's the field view of 2.8mm lens?
The 2.8mm lens provides approximately 110° field of view for wider coverage of areas like driveways.
Q.04
Does SMD 4.0 really reduce false alarms from animals and weather?
Yes, SMD 4.0 uses AI to distinguish between humans, vehicles, and other objects like small animals, tree movement, or rain, significantly reducing false notifications compared to basic motion detection.
Q.05
Will this camera perform well at night for identifying faces or number plates?
The camera has Starlight technology for colour images in low light, but moving objects at night may show motion blur. For identification at distance, consider the 3.6mm or 6mm lens option.
Q.06
Is PoE power sufficient or do I need a separate 12V supply?
Standard 802.3af PoE provides sufficient power (4.9W typical, 8.9W maximum). Separate 12V DC is only needed if you don't have a PoE switch or NVR.
Q.07
How do I update the firmware on this camera?
Firmware can be updated through your Dahua NVR interface or by accessing the camera's web interface directly. Download the correct firmware from Dahua's Australian website for the -AUS model specifically.
Q.08
What warranty coverage applies in Australia?
The camera includes a 3-year manufacturer warranty covering defects. Hard drives have separate warranty terms, and installation labour is typically not covered unless performed by authorised installers.
