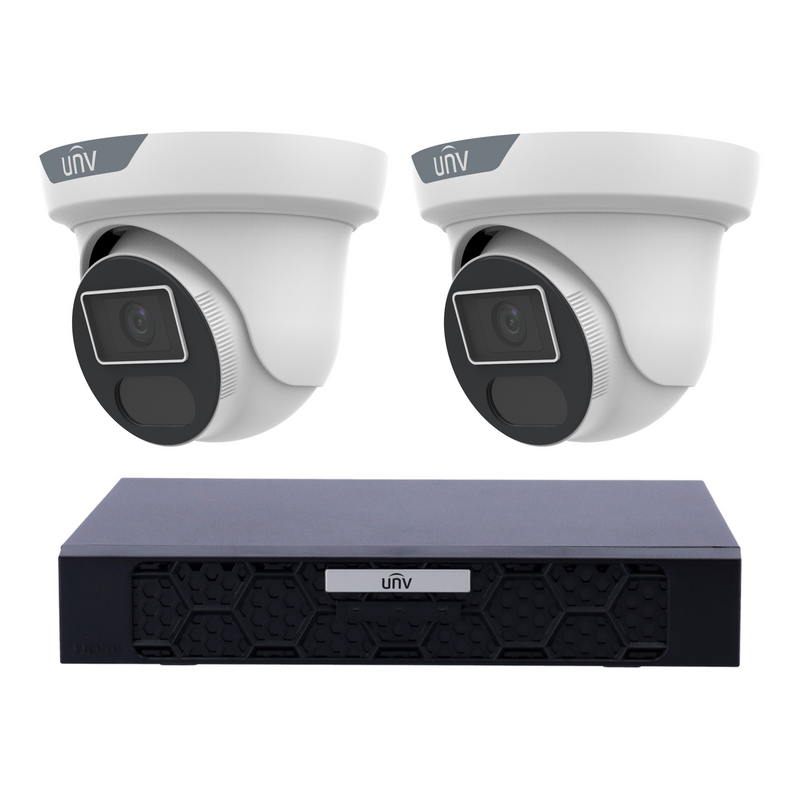

Uniview 2 x 8MP IPC3618SS-ADF28K-I1 LightHunter Turret CCTV Kit + NVR501-04B-P4-IQ 4CH PoE NVR, No HDD
1 1
Uniview

Uniview 2 x 8MP IPC3618SS-ADF28K-I1 LightHunter Turret CCTV Kit + NVR501-04B-P4-IQ 4CH PoE NVR, No HDD

SKU: UNVKIT-IPC3618SS-ADF28K-I1-2CAM-NVR501-04B-P4-IQ
Description

2 x Uniview IPC3618SS-ADF28K-I1 8MP LightHunter turret cameras,
1 x Uniview NVR501-04B-P4-IQ 4-channel PoE NVR (no hard drive included, add a surveillance drive to record).
2 cameras 8MP Ultra HD 4 x POE PORTS
$586.65 AUD $586.65 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Customize this kit $586.65
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 2 × Uniview IPC3618SS-ADF28K-I1 8MP 2.8mm LightHunter Camera
  • 1 × Uniview NVR501-04B-P4-IQ 4 Channel 4 PoE 4K AI NVR
  • No HDD included (add one below)
Add extra cameras IPC3618SS-ADF28K-I1
+$0.00
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Uniview 2 x 8MP IPC3618SS-ADF28K-I1 LightHunter Turret CCTV Kit + NVR501-04B-P4-IQ 4CH PoE NVR, No HDD $586.65
Total: $586.65

§ 01Overview

What the UNVKIT-IPC3618SS-ADF28K-I1-2CAM-NVR501-04B-P4-IQ is

This kit pairs two IPC3618SS-ADF28K-I1 LightHunter turret cameras with the NVR501-04B-P4-IQ 4-channel recorder. Every camera takes one Ethernet run to the recorder, which powers it over PoE and records its stream, so there is no separate switch or power supply per camera. No hard drive is included: add a surveillance drive before checkout and the recorder is ready to record.

The IPC3618SS pairs a 1/2.8" CMOS sensor with Uniview's LightHunter low-light processing, holding colour to 0.002 lux and working at 0 lux with the IR on, the IR-cut filter switching automatically to Smart IR to 40 m in black and white. It records 8MP (3840 × 2160) at up to 30 fps through a 2.8 mm F1.6 lens with a 97.49° view and 130 dB WDR. Analytics run on the camera: cross-line, intrusion, enter-area and leave-area detection with human, motor vehicle and non-motor vehicle classification, plus people flow counting. A built-in microphone records sound; there is no speaker or warning light. The IP67 housing is rated for -30 °C to 60 °C.

The NVR501-04B-P4-IQ has 4 PoE ports at up to 30 W each and 50 W in total, records up to 16MP per channel, and takes one SATA drive of up to 16TB. With two cameras connected, 2 PoE channels remain for later.

See it in action

What the UNVKIT-IPC3618SS-ADF28K-I1-2CAM-NVR501-04B-P4-IQ features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

Illustrative — simulated for demonstration

§ 02Engineering

UNVKIT-IPC3618SS-ADF28K-I1-2CAM-NVR501-04B-P4-IQ specifications

2 x IPC3618SS-ADF28K-I1 — 1/2.8" CMOS, 8MP (3840 × 2160) at up to 30 fps, 2.8 mm F1.6 fixed lens, 97.49° horizontal view — one camera covers a driveway or a shopfront
Night vision — colour to 0.002 lux, 0 lux with IR on, Smart IR to 40 m with automatic IR-cut switching — black and white after dark, with Smart IR to stop close faces blowing out
Detection on the camera — cross-line, intrusion, enter-area and leave-area detection with human, motor vehicle and non-motor vehicle classification, plus people flow counting — alerts about people and vehicles, not raw motion
Audio — built-in microphone, no speaker — records sound, cannot talk back
NVR501-04B-P4-IQ — 4 channels, 4 PoE ports (IEEE 802.3af/at, 30 W per port, 50 W total), records up to 16MP — cameras plug straight in
Storage — 1 SATA bay, up to 16TB, no drive included — add a surveillance drive to record
PoE budget — two cameras at max 7 W each is 14 W against the recorder's 50 W — headroom for 2 more of the same camera
Outdoor — IP67 housings rated for -30 °C to 60 °C — the cameras live outside, the recorder stays inside

§ 03Full datasheet

Detailed specifications

Specification

Specification — Uniview 2 x 8MP IPC3618SS-ADF28K-I1 LightHunter Turret CCTV Kit + NVR501-04B-P4-IQ 4CH PoE NVR, No HDD
FeatureDetail
Imaging 8MP 1/2.8-inch CMOS sensor; 3840 x 2160 at up to 30 fps
Lens Fixed 2.8mm F1.6 lens
Illumination Infrared illumination up to 40m
Dynamic range 130dB WDR
Audio Built-in microphone
Detection Perimeter detection with human and vehicle target classification
Local storage MicroSD card support up to 512GB
Power 12V DC or IEEE 802.3af PoE; maximum 7W
Protection IP67
Weight 0.42kg

§ 06Setup

Installation & setup

01

What's in the Box

1. Uniview IPC3618SS-ADF28K-I1 camera × 2 2. Uniview NVR501-04B-P4-IQ NVR × 1 (no hard drive included)

02

Installation Requirements

1. One Cat5e or Cat6 Ethernet run from each camera to a PoE port on the recorder, up to 100 m per run; the port carries power and video together. 2. Mount each camera under an eave or on a wall; the turret body pans and tilts in its base, so aim after fixing. 3. Fit a SATA surveillance hard drive in the recorder and connect its network port to your router for remote viewing. Recording runs on the local network without internet.

03

Setup

1. Power the recorder, set a strong password and initialise the drive from the storage menu with overwrite enabled. 2. Add the cameras on the PoE ports from the recorder's camera menu and set each camera's name and time. 3. Draw each camera's intrusion and cross-line zones tight to your own property and both rules detect on people and vehicles.

§ 08Questions

Frequently asked about the UNVKIT-IPC3618SS-ADF28K-I1-2CAM-NVR501-04B-P4-IQ

Q.01

Does the Uniview 2-camera IPC3618SS kit come with a hard drive?
No. The NVR501-04B-P4-IQ has one SATA bay for a surveillance-rated drive of up to 16TB, and a drive must be fitted and initialised before it records. Choose a 2TB to 10TB drive in the kit customiser before checkout, or fit your own.
Q.02

Can the NVR501-04B-P4-IQ power both cameras?
Yes. The recorder supplies IEEE 802.3af and 802.3at PoE at up to 30 W per port and 50 W in total, and each IPC3618SS draws a maximum of 7 W, so two cameras need 14 W at most.
Q.03

Can I add more cameras later?
Yes. 2 of the 4 PoE channels are free, and the recorder records up to 16MP per channel, so a further Uniview PoE camera plugs straight into a spare port; keep the total draw under the recorder's 50 W PoE budget (two IPC3618SS use 14 W at most).
Q.04

Do the cameras record sound, and can I talk through them?
It records sound, but cannot talk back. Each IPC3618SS has a built-in microphone and no speaker, so audio is captured alongside the video and there is no two-way talk or siren on the cameras. Check your state's rules on audio recording before enabling it on cameras that face public space.
Q.05

Is night footage in colour or black and white?
Black and white under infrared. The IPC3618SS holds colour down to 0.002 lux with AGC on and works at 0 lux with its infrared on, the IR-cut filter switching automatically; Smart IR has a range of 40 m, which dims for a close subject so faces are not blown out. The datasheet lists infrared illumination only, so night footage is monochrome.
Q.06

Does it need an internet connection?
Not for recording. Recording, detection and playback run on the recorder over your local network; internet is only needed for remote viewing, which the recorder supports over P2P for up to 128 remote users.
