Uniview 2 x 6MP IPC3636SS-ADF28KMC-I1 Active Deterrence Turret CCTV Kit + NVR501-04B-P4-IQ 4CH PoE NVR, No HDD
1 1
Uniview

Uniview 2 x 6MP IPC3636SS-ADF28KMC-I1 Active Deterrence Turret CCTV Kit + NVR501-04B-P4-IQ 4CH PoE NVR, No HDD

SKU: UNVKIT-IPC3636SS-ADF28KMC-I1-2CAM-NVR501-04B-P4-IQ
Description

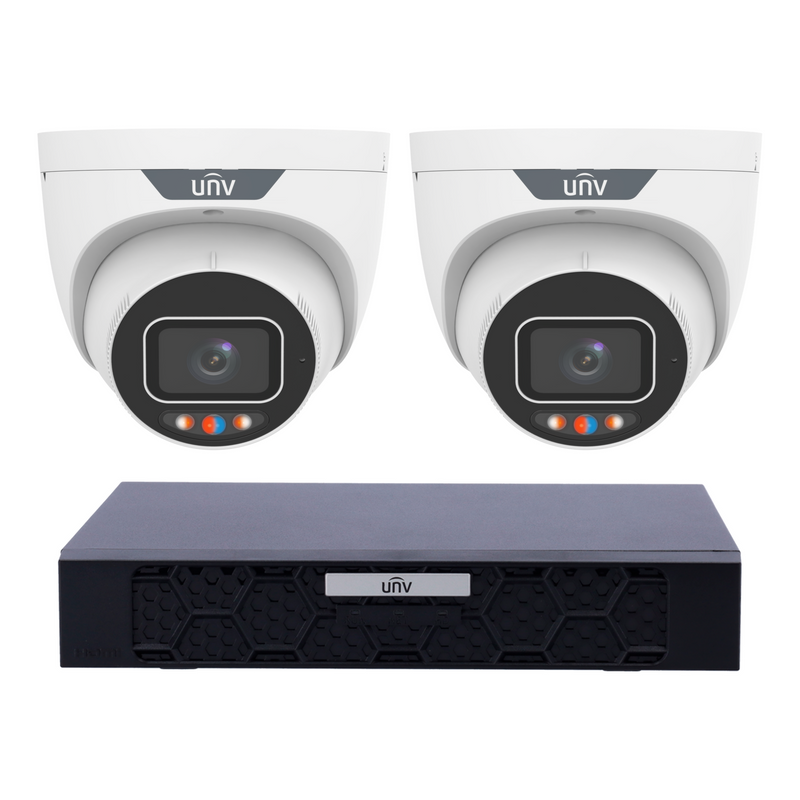

2 x Uniview IPC3636SS-ADF28KMC-I1 6MP active deterrence turret cameras,
1 x Uniview NVR501-04B-P4-IQ 4-channel PoE NVR (no hard drive included, add a surveillance drive to record).
2 cameras 6MP Ultra HD 4 x POE PORTS
$692.20 AUD $692.20 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Customize this kit $692.20
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 2 × Uniview IPC3636SS-ADF28KMC-I1 6MP Active Deterrence Camera
  • 1 × Uniview NVR501-04B-P4-IQ 4 Channel 4 PoE 4K AI NVR
  • No HDD included (add one below)
Add extra cameras IPC3636SS-ADF28KMC-I1
+$0.00
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Uniview 2 x 6MP IPC3636SS-ADF28KMC-I1 Active Deterrence Turret CCTV Kit + NVR501-04B-P4-IQ 4CH PoE NVR, No HDD $692.20
Total: $692.20

§ 01Overview

What the UNVKIT-IPC3636SS-ADF28KMC-I1-2CAM-NVR501-04B-P4-IQ is

This kit pairs two IPC3636SS-ADF28KMC-I1 active deterrence turret cameras with the NVR501-04B-P4-IQ 4-channel recorder. Every camera takes one Ethernet run to the recorder, which powers it over PoE and records its stream, so there is no separate switch or power supply per camera. No hard drive is included: add a surveillance drive before checkout and the recorder is ready to record.

The IPC3636SS answers an intruder rather than just filming one. It carries both infrared and a warm light, each reaching 30 m, a red and blue warning light, and a built-in microphone and speaker for two-way talk. Detection runs on the camera: cross-line, intrusion, enter-area and leave-area detection with human, motor vehicle and non-motor vehicle classification, plus people flow counting. The 1/2.7" CMOS sensor and 2.8 mm F1.0 lens record 6MP (3072 × 2048) at up to 30 fps with 130 dB WDR, colour holds to 0.001 lux, and the view is 107.2° across. It has alarm and audio in/out connections (1 in / 1 out), and the IP67 housing is rated for -30 °C to 60 °C.

The NVR501-04B-P4-IQ has 4 PoE ports at up to 30 W each and 50 W in total, records up to 16MP per channel, and takes one SATA drive of up to 16TB. With two cameras connected, 2 PoE channels remain for later.

See it in action

What the UNVKIT-IPC3636SS-ADF28KMC-I1-2CAM-NVR501-04B-P4-IQ features actually look like

Representative illustrations of how each key feature performs in a real scene.

6MP Ultra HD — 6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a fac...

6MP Ultra HD

6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.

Illustrative — simulated for demonstration

§ 02Engineering

UNVKIT-IPC3636SS-ADF28KMC-I1-2CAM-NVR501-04B-P4-IQ specifications

2 x IPC3636SS-ADF28KMC-I1 — 1/2.7" CMOS, 6MP (3072 × 2048) at up to 30 fps, 2.8 mm F1.0 fixed lens, 107.2° horizontal view — one camera covers a driveway or a shopfront
Night vision — colour to 0.001 lux, IR 30 m and warm light 30 m (dual light) — discreet infrared or lit colour, your choice per camera
Detection on the camera — cross-line, intrusion, enter-area and leave-area detection with human, motor vehicle and non-motor vehicle classification, plus people flow counting — alerts about people and vehicles, not raw motion
Audio and warning — built-in microphone and speaker, two-way audio, red and blue warning light, alarm 1 in / 1 out — microphone, speaker and warning light on the camera itself
NVR501-04B-P4-IQ — 4 channels, 4 PoE ports (IEEE 802.3af/at, 30 W per port, 50 W total), records up to 16MP — cameras plug straight in
Storage — 1 SATA bay, up to 16TB, no drive included — add a surveillance drive to record
PoE budget — two cameras at max 10 W each is 20 W against the recorder's 50 W — headroom for 2 more of the same camera
Outdoor — IP67 housings rated for -30 °C to 60 °C, 4 kV surge protection — the cameras live outside, the recorder stays inside

§ 03Full datasheet

Detailed specifications

Specification

Specification — Uniview 2 x 6MP IPC3636SS-ADF28KMC-I1 Active Deterrence Turret CCTV Kit + NVR501-04B-P4-IQ 4CH PoE NVR, No HDD
FeatureDetail
Imaging 6MP CMOS sensor; 3072 x 2048 at up to 30 fps
Lens Fixed 2.8mm F1.0 lens
Illumination Infrared and warm light, each up to 30m
Active warning Red and blue warning light; built-in microphone and speaker
Dynamic range 130dB WDR
Detection Perimeter detection with human and vehicle target classification
Local storage MicroSD card support up to 256GB
Power 12V DC or IEEE 802.3af PoE; maximum 10W
Protection IP67
Weight 0.69kg

§ 06Setup

Installation & setup

01

What's in the Box

1. Uniview IPC3636SS-ADF28KMC-I1 camera × 2 2. Uniview NVR501-04B-P4-IQ NVR × 1 (no hard drive included)

02

Installation Requirements

1. One Cat5e or Cat6 Ethernet run from each camera to a PoE port on the recorder, up to 100 m per run; the port carries power and video together. 2. Mount each camera under an eave or on a wall; the turret body pans and tilts in its base, so aim after fixing. 3. Fit a SATA surveillance hard drive in the recorder and connect its network port to your router for remote viewing. Recording runs on the local network without internet.

03

Setup

1. Power the recorder, set a strong password and initialise the drive from the storage menu with overwrite enabled. 2. Add the cameras on the PoE ports from the recorder's camera menu and set each camera's name and time. 3. Draw each camera's intrusion and cross-line zones tight to your own property and both rules detect on people and vehicles.

§ 08Questions

Frequently asked about the UNVKIT-IPC3636SS-ADF28KMC-I1-2CAM-NVR501-04B-P4-IQ

Q.01

Does the Uniview 2-camera IPC3636SS kit come with a hard drive?
No. The NVR501-04B-P4-IQ has one SATA bay for a surveillance-rated drive of up to 16TB, and a drive must be fitted and initialised before it records. Choose a 2TB to 10TB drive in the kit customiser before checkout, or fit your own.
Q.02

Can the NVR501-04B-P4-IQ power both cameras?
Yes. The recorder supplies IEEE 802.3af and 802.3at PoE at up to 30 W per port and 50 W in total, and each IPC3636SS draws a maximum of 10 W, so two cameras need 20 W at most.
Q.03

Can I add more cameras later?
Yes. 2 of the 4 PoE channels are free, and the recorder records up to 16MP per channel, so a further Uniview PoE camera plugs straight into a spare port; keep the total draw under the recorder's 50 W PoE budget (two IPC3636SS use 20 W at most).
Q.04

Do the cameras record sound, and can I talk through them?
Both. Each IPC3636SS has a built-in microphone and speaker with two-way audio, so each of the two cameras can both record sound and talk back, and each has a red and blue warning light. Check your state's rules on audio recording before enabling it on cameras that face public space.
Q.05

Is night footage in colour or black and white?
Either. The IPC3636SS carries both infrared and a warm light, each reaching 30 m. Colour holds to 0.001 lux; below that the camera can run discreet infrared in black and white, or switch the warm light on for colour; it also has a red and blue warning light.
Q.06

Does it need an internet connection?
Not for recording. Recording, detection and playback run on the recorder over your local network; internet is only needed for remote viewing, which the recorder supports over P2P for up to 128 remote users.
