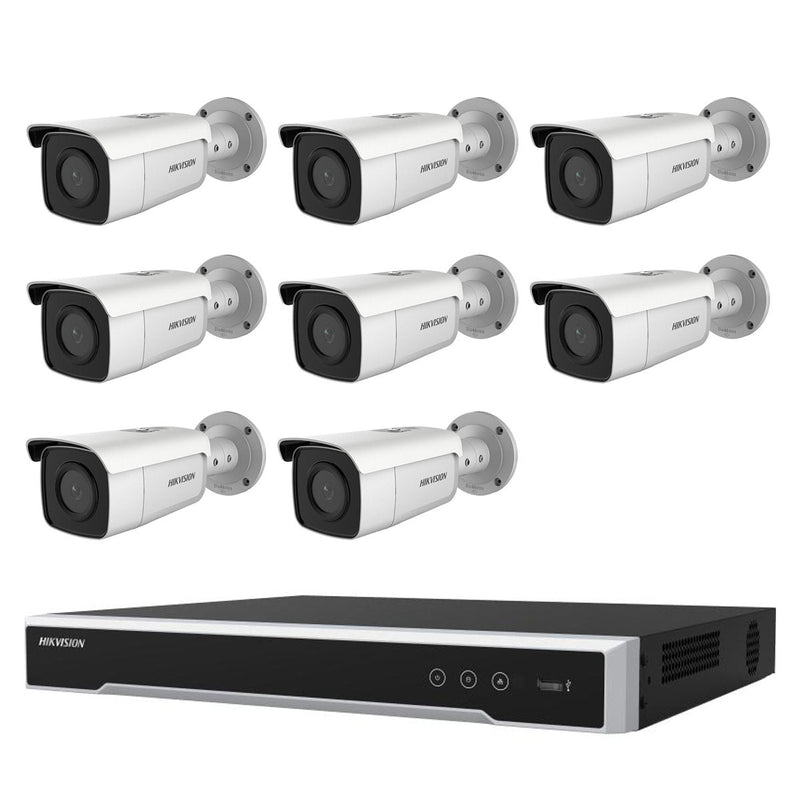

Hikvision 8MP 8CH CCTV Kit: 8 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR
This Hikvision 8 MP 8-channel kit pairs eight DS-2CD2T86G2-2I AcuSense bullet cameras, powered by DarkFighter, with an 8-channel DS-7608NI-M2/8P PoE NVR and a 4 TB surveillance hard drive, supplied ready to record.
What's in the kit
- 8 x DS-2CD2T86G2-2I 8 MP (4K) AcuSense bullet cameras
- Powered-by-DarkFighter low-light imaging
- Human and vehicle classification; 50 metre EXIR infrared
- 120 dB WDR; IP67 weatherproof metal bodies
- 1 x DS-7608NI-M2/8P 8-channel PoE NVR
- No HDD included — add a hard drive to enable recording
- 4K output and H.265+ compression
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Customize this kit Kit price $3,506.65
- 8 × Hikvision DS-2CD2T86G2-2I 8MP Outdoor Bullet CCTV Camera 50M IR powered by Darkfighter & Acusense
- 1 × Hikvision DS-7608NI-M2/8P 8ch PoE CCTV NVR, 128Mbps 8 PnP ports, 4K, 2 HDD Bay NO HDD (8ch)
- No HDD included (add one below)
No hard drive selected
Without a hard drive the system cannot record footage.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD2T86G2-2I is
This Hikvision 8 MP 8-channel kit is a complete eight-camera system for a larger home or business, supplied ready to record.
It combines eight DS-2CD2T86G2-2I AcuSense bullet cameras and an eight-channel DS-7608NI-M2/8P PoE NVR — no hard drive included (add one below to enable recording).
Each camera runs on a single network cable to a built-in PoE port, and the recorder is set up to capture all eight channels from the start.
The cameras are built for demanding outdoor coverage.
Each is an 8 MP (4K) bullet with Powered-by-DarkFighter low-light imaging for clean detail in dark conditions, AcuSense deep learning that classifies human and vehicle targets so alerts and searches ignore rain, shadows and animals, and a 120 dB wide dynamic range that holds detail against bright backlight.
A 50 metre EXIR infrared range reaches well down driveways, fences and car parks at night.
These are -2I cameras with no built-in microphone, so the kit records high-quality video without audio.
A couple of honest notes so it is set up well.
DarkFighter is a low-light sensor technology, which means clean images in the dark, but at night the picture is infrared black and white, not full colour, so this is not a ColorVu kit.
The IP67 metal bodies with integrated sun shields suit exposed walls and poles in Australian weather.
No hard drive is included — add one below to enable recording; a 4 TB drive gives generous everyday retention, and H.265+ compression keeps storage and bandwidth efficient; a larger drive can be fitted for longer retention.
See it in action
What the DS-2CD2T86G2-2I features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
50m IR Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD2T86G2-2I specifications
- Powered-by-DarkFighter low-light imaging for clean detail in the dark
- AcuSense human and vehicle classification to reduce false alarms
- 50 m EXIR infrared at night (infrared black-and-white image)
- 120 dB WDR and 3D noise reduction for clear detail in hard light
- IP67 weatherproof metal bullet cameras for outdoor runs
- DS-7608NI-M2/8P 8-channel NVR with built-in PoE ports
- No HDD included (add a hard drive to enable recording); 4K output and H.265+ compression
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| WDR | 120 dB |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed lens, 2.8/4/6 mm |
| Aperture | F1.6 |
| FOV | 2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131° | 4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8° | 6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60° |
| Lens Mount | M16 |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| IR Range | -2I: up to 50 m | -4I: up to 80 m |
| Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720) | 60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) | 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) | 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 | Sub-stream: H.265/H.264/MJPEG | Third stream: H.265/H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding support |
| Region of Interest | 1 fixed region for main stream, sub-stream and third stream |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification) |
Network & Storage
| Feature | Detail |
|---|---|
| Network Storage | microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
General & Environment
| Feature | Detail |
|---|---|
| Web Client Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter |
| Reset | Reset via reset button on camera body, web browser and client software |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3) |
| Power Consumption and Current | -2I: 12 VDC, 0.63 A, max. 7.5 W; PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W | -4I: 12 VDC, 0.88 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W |
| Material | Metal |
| Dimensions | Camera: Φ 105 × 290 mm (Φ 4.1" × 11.4") | With package: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1") |
| Weight | Camera: approx. 1270 g (2.8 lb.) | With package: approx. 1510 g (3.3 lb.) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | Ingress protection: IP67 (IEC 60529-2013) |
§ 04Why choose this
Built for the way you actually use the DS-2CD2T86G2-2I
Clean low-light detail
Powered-by-DarkFighter imaging and 50 metre EXIR infrared keep the picture usable down long, dark approaches.
Fewer false alarms
AcuSense human and vehicle classification keeps alerts and searches focused on people and vehicles, not weather or animals.
Built for the outdoors
IP67 metal bullets with sun shields suit driveways, fences and car parks in Australian conditions.
§ 05Where it fits
Right at home in these scenarios
Larger homes
Cover the perimeter, driveway and yard of a bigger property with eight long-range 4K cameras.
Business premises
Watch a car park, loading area and entrances with eight channels of 4K AcuSense coverage.
Rural and acreage
Long infrared reach suits fences, gates and sheds set back from the house.
Warehouses and yards
Monitor approaches and storage areas with human and vehicle alerts and 4K evidence.
§ 06Setup
Installation & setup
In the box
Eight DS-2CD2T86G2-2I bullet cameras, the DS-7608NI-M2/8P NVR (no HDD included — add a hard drive to enable recording), power supply and mounting accessories. Connect a monitor for local viewing.
Cabling
Run one network cable from each camera to a PoE port on the NVR. Standard Ethernet runs apply, and a PoE switch can extend reach for distant cameras.
Mounting
Fix each bullet high on a wall or pole aimed along the run you want covered, within the 50 metre infrared range, using the sun shield against glare and rain.
Setup
Connect the NVR to a screen and the network, add the cameras on the plug-and-play PoE ports, set the AcuSense human and vehicle rules and recording schedule, and set up remote viewing in the Hik-Connect app.
§ 07Questions
Frequently asked about the DS-2CD2T86G2-2I
Q.01
Is the kit ready to record out of the box?
Q.02
Does DarkFighter mean the cameras film in colour at night?
Q.03
What does AcuSense do?
Q.04
Do the cameras record sound?
Q.05
Why bullet cameras with 50 metre infrared?
Q.06
Is the kit full, or can I add more cameras?
Q.07
How much will a 4 TB drive store?
Q.08
Are the cameras built for Australian weather?
§ 09Bundles
Recommended packages
Replace or expand a camera
Add or swap a matching DS-2CD2T86G2-2I 8MP AcuSense bullet. The kit fills all eight channels, so to run more cameras step up to a larger recorder.
Add storage
No HDD is included — fit an 8TB surveillance hard drive or a 10TB surveillance hard drive rated for continuous recording.
Grow beyond eight cameras
Step up to a DS-7616NI-M2/16P 16-channel PoE NVR and add an NS-0109P-60 8-port PoE switch for the extra ports.
