Hikvision 6MP 8CH CCTV Kit: 8 x Mini Bullet Cameras + 8CH NVR/4TB
SKU: DS-2CD2066G2H-IU
Description
8 x 6MP Hikvision AcuSense Mini Bullet Cameras
Model: DS-2CD2066G2H-IU
Specs: 6MP High-Resolution Imaging, AcuSense Human & Vehicle Detection, Built-in Microphone for Audio, 30m EXIR Night Vision, IP67 Weatherproof
1 x 8CH Hikvision M-Series PoE NVR (4TB HDD)
Model: DS-7608NI-M2-8P
Specs: 8-Port Plug & Play PoE, Up to 8K Recording Support, H.265+ High-Efficiency Compression, 4TB Surveillance-Grade HDD
Regular price
$2,488.40 AUD
Sale price
$2,488.40 AUD
Regular price
$3,348.00 AUD
Sale
25.68%
$859.60 AUD
(25.68%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision 6MP 8CH CCTV Kit: 8 x Mini Bullet Cameras + 8CH NVR/4TB
1
/
of
1
Customize this kit Kit price $2,488.40

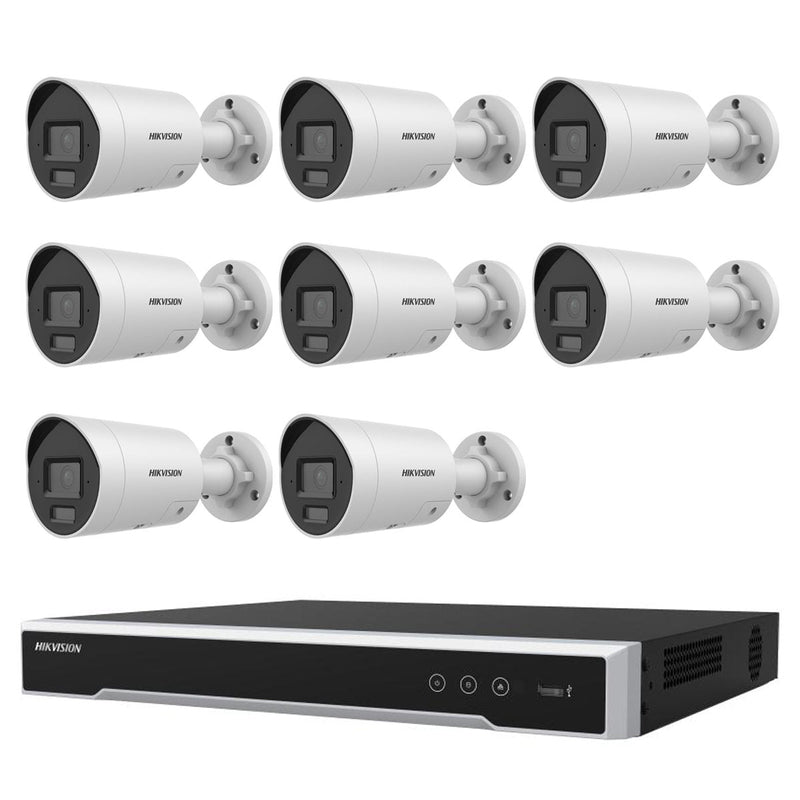

This kit includes:
- 8 × Hikvision DS-2CD2066G2H-IU 6MP DarkFighter Bullet Camera with Mic, IP67, 2.8mm / 4mm Lenses
- 1 × Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Hikvision DS-2CD2066G2-I2 / DS-7608NI-3tb 6MP Mini Bullet Camera Kit provides high-definition surveillance tailored for Australian residential and commercial environments. This security Product includes advanced AI Features that help various organisations reduce false alarms through intelligent human and vehicle recognition.
§ 02Engineering
Technical specifications
- 8 x 6MP Cameras: Mini bullet-style outdoor AI cameras with high-resolution sensors, featuring AcuSense technology for precise detection and a built-in microphone for audio recording.
- AcuSense Intelligence: Deep learning algorithms distinguish between people, vehicles, and irrelevant movement like falling leaves or small animals to ensure accurate alerts.
- Searchable Event Analytics: Smart metadata allows users to quickly search recorded footage for specific human or vehicle incidents, saving time during video review.
- Built-in Microphone: Integrated audio hardware captures real-time security sounds, providing an extra layer of evidence when an alarm is triggered.
- High-Resolution Imaging: 6MP sensor captures fine details necessary for the identification of individuals and licence plates in various lighting conditions.
- Active Deterrence: Intelligent system triggers timely alerts and notifications to proactively manage security threats as they occur.
- Weatherproof Durability: Robust mini bullet housing is designed to withstand outdoor elements, making it suitable for Australian warehouses and factories.
- Efficient Footage Management: Precise detection filters out irrelevant video, significantly reducing the storage space required for meaningful security events.
- Compact Form Factor: The mini bullet design offers a discreet installation profile while maintaining professional-grade performance and deterrence.
- 8CH NVR System: Base setup supports up to eight cameras, pre-configured with a 3TB hard drive for reliable long-term video storage.
- AcuSense Intelligence: Deep learning algorithms distinguish between people, vehicles, and irrelevant movement like falling leaves or small animals to ensure accurate alerts.
- Searchable Event Analytics: Smart metadata allows users to quickly search recorded footage for specific human or vehicle incidents, saving time during video review.
- Built-in Microphone: Integrated audio hardware captures real-time security sounds, providing an extra layer of evidence when an alarm is triggered.
- High-Resolution Imaging: 6MP sensor captures fine details necessary for the identification of individuals and licence plates in various lighting conditions.
- Active Deterrence: Intelligent system triggers timely alerts and notifications to proactively manage security threats as they occur.
- Weatherproof Durability: Robust mini bullet housing is designed to withstand outdoor elements, making it suitable for Australian warehouses and factories.
- Efficient Footage Management: Precise detection filters out irrelevant video, significantly reducing the storage space required for meaningful security events.
- Compact Form Factor: The mini bullet design offers a discreet installation profile while maintaining professional-grade performance and deterrence.
- 8CH NVR System: Base setup supports up to eight cameras, pre-configured with a 3TB hard drive for reliable long-term video storage.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5° | 4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 1.7 m to ∞ | 4 mm: 2.2 m to ∞ |
| DORI | 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m | 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3200 × 1800); 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 (supported under certain settings) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| Smart Event | Scene change detection |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.58 A, max. 7.0 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 8.5 W |
| Material | Front cover: Metal, body: Metal, bracket: Metal |
| Dimension | Ø 74.4 mm × 179.2 mm (Ø 2.9" × 7.1") |
| Package Dimension | 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6") |
| Weight | Approx. 505 g (1.2 lb.) |
| With Package Weight | Approx. 815 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| Anti-corrosion Level | No specific protection |
