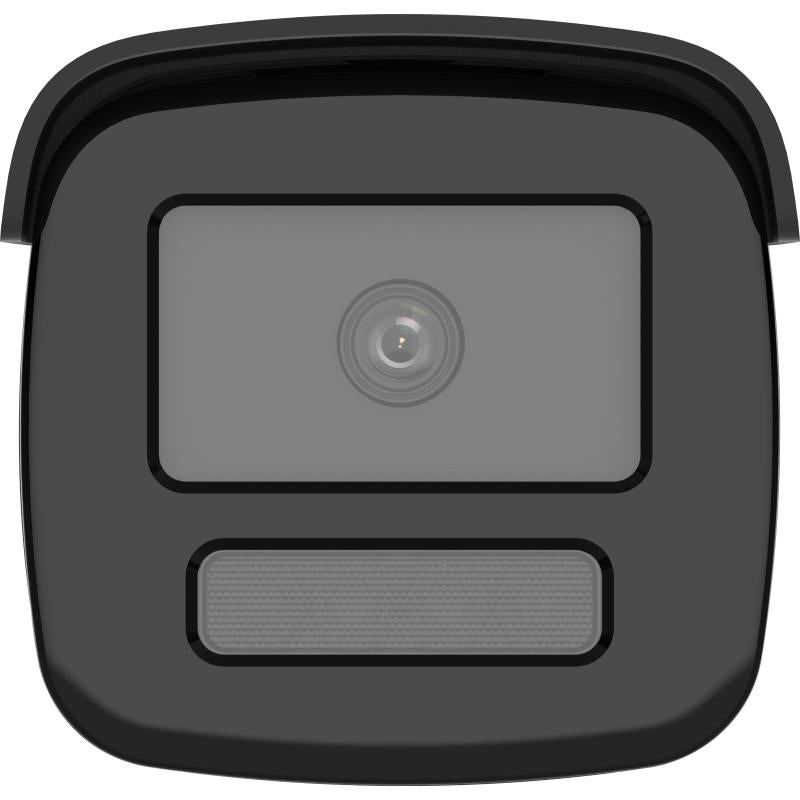

Hikvision DS-2CD2T86G2H-2I (Black) 8MP Bullet
1 1
Hikvision

Hikvision DS-2CD2T86G2H-2I (Black) 8MP Bullet

SKU: DS-2CD2T86G2H-2I (Black)
Description

The Hikvision DS-2CD2T86G2H-2I (Black) is the black-finish 8MP AcuSense powered-by-DarkFighter fixed bullet with a 2.8 mm lens. A 1/1.8-inch sensor rated to 0.0008 lux in colour, 60 m infrared, 120 dB WDR and deep-learning human and vehicle classification are housed in an all-metal IP67 body, so the camera suits dark fascias, eaves and poles where a white bullet would be conspicuous.
$350.00 AUD $350.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $720.00

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $350.00

§ 01Overview

What the DS-2CD2T86G2H-2I (Black) is

Hikvision DS-2CD2T86G2H-2I (Black). The bullet records 3840 × 2160 from a 1/1.8-inch progressive scan CMOS sensor behind an F1.0 2.8 mm lens with a 105.1° horizontal field of view. Hikvision rates colour sensitivity at 0.0008 lux with AGC on, and the -2I build carries infrared up to 60 m for black-and-white coverage in darkness. DORI figures for the 2.8 mm lens are 89 m detect, 35 m observe, 17 m recognise and 8 m identify.

Deep-learning classification focuses perimeter protection on humans and vehicles across line crossing, intrusion, region entrance and region exiting events. 120 dB WDR balances driveways and gateways that face low sun. Footage can also be stored on a microSD card up to 512 GB.

The front cover, body and bracket are metal and the unit is rated IP67 for -30 °C to 60 °C operation. Power is 12 VDC at max. 7.2 W or PoE (IEEE 802.3af, Class 3, max. 9 W). The black configuration is DS-2CD2T86G2H-2I(2.8mm)/Black.

§ 02Engineering

DS-2CD2T86G2H-2I (Black) specifications

8MP 3840 × 2160 bullet on a 1/1.8-inch progressive scan CMOS sensor
Powered-by-DarkFighter colour sensitivity of 0.0008 lux at F1.0 with AGC on
Infrared up to 60 m on the -2I build with 120 dB WDR
Deep-learning human and vehicle classification for line crossing and intrusion events
All-metal IP67 body in black, powered by 12 VDC or PoE 802.3af at max. 9 W

§ 03Full datasheet

Detailed specifications

Specification

Specification — Hikvision DS-2CD2T86G2H-2I (Black) 8MP Bullet
FeatureDetail
Model DS-2CD2T86G2H-2I (Black), datasheet code DS-2CD2T86G2H-2I(2.8mm)/Black
Image Sensor 1/1.8" Progressive Scan CMOS
Max Resolution 3840 × 2160
Lens Fixed 2.8 mm, horizontal FOV 105.1°
Min Illumination Colour: 0.0008 Lux @ (F1.0, AGC ON); B/W: 0 Lux with IR
IR Range Up to 60 m (-2I)
WDR 120 dB
Analytics Human and vehicle classification based on deep learning; line crossing, intrusion, region entrance and region exiting
Storage microSD/microSDHC/microSDXC card, up to 512 GB
Power 12 VDC ± 25%, 0.6 A, max. 7.2 W; PoE IEEE 802.3af, Class 3, max. 9 W
Protection IP67
Operating Temperature -30 °C to 60 °C
Dimensions 286.7 mm × 93.3 mm × 91.2 mm
Weight Approx. 1180 g
Material Front cover: metal, body: metal, bracket: metal
DORI (2.8 mm) Detect 89 m, Observe 35 m, Recognise 17 m, Identify 8 m
Colour Black
Resolution 8 MP
Related -4I variant Shared datasheet comparison only: -4I IR up to 80 m; this listing is -2I, IR up to 60 m

§ 08Questions

Frequently asked about the DS-2CD2T86G2H-2I (Black)

Q.01

What is the difference between the DS-2CD2T86G2H-2I and the -4I?
Both share the datasheet, sensor, lens options and 120 dB WDR. The -2I build has infrared up to 60 m and draws max. 9 W over PoE; the -4I build has infrared up to 80 m. This black listing is the -2I with the 2.8 mm lens.
