Hikvision DS-2CD2186G2H-ISU (Black) 8MP Dome
1 1
Hikvision

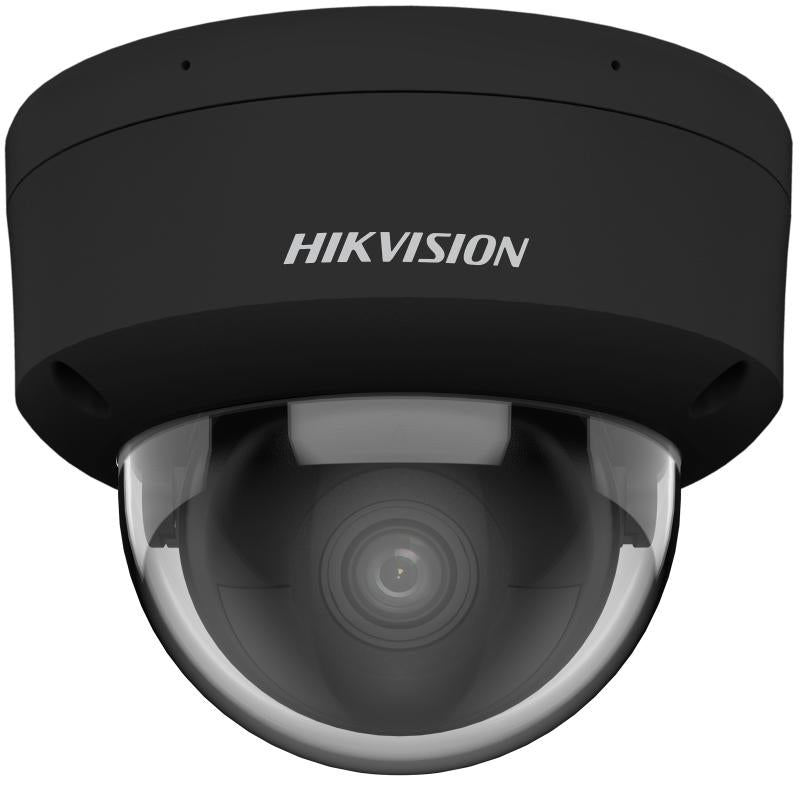

Hikvision DS-2CD2186G2H-ISU (Black) 8MP Dome

SKU: DS-2CD2186G2H-ISU (Black)
Description

The Hikvision DS-2CD2186G2H-ISU (Black) is the black-finish version of the 8MP powered-by-DarkFighter fixed dome. It pairs a 1/1.8-inch sensor and F1.0 2.8 mm lens with 30 m infrared, a built-in microphone, deep-learning human and vehicle classification and an IP67, IK10 aluminium alloy housing, so it suits dark ceilings, soffits and fascias where a white dome would stand out.
$315.00 AUD $315.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $685.00

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $315.00

§ 01Overview

What the DS-2CD2186G2H-ISU (Black) is

Hikvision DS-2CD2186G2H-ISU (Black). This dome records 3840 × 2160 video from a 1/1.8-inch progressive scan CMOS sensor. Hikvision rates colour sensitivity at 0.0008 lux at F1.0 with AGC on, and 130 dB WDR handles doorways and glazed lobbies where bright and dark areas share the frame. When light runs out, infrared reaches up to 30 m.

The -U build adds a built-in microphone for audio alongside video, and the -S build provides one alarm input and one alarm output. Human and vehicle classification based on deep learning filters perimeter events such as line crossing and intrusion. A microSD slot accepts cards up to 512 GB.

The housing is aluminium alloy, rated IP67 and IK10, with an operating range of -30 °C to 60 °C. Power is 12 VDC or PoE (IEEE 802.3af, Class 3, max. 9.5 W). Hikvision's ANZ order list carries this black finish with the 2.8 mm lens under the code DS-2CD2186G2H-ISU(2.8mm)(eF)/O-STD/BLACK.

§ 02Engineering

DS-2CD2186G2H-ISU (Black) specifications

8MP 3840 × 2160 video from a 1/1.8-inch progressive scan CMOS sensor
Powered-by-DarkFighter low-light imaging rated 0.0008 lux colour at F1.0
Infrared illumination up to 30 m with 130 dB WDR for backlit entrances
Built-in microphone plus one alarm input and one alarm output
IP67 and IK10 aluminium alloy housing in black, PoE 802.3af powered

§ 03Full datasheet

Detailed specifications

Specification

Specification — Hikvision DS-2CD2186G2H-ISU (Black) 8MP Dome
FeatureDetail
Model DS-2CD2186G2H-ISU (Black), order code DS-2CD2186G2H-ISU(2.8mm)(eF)/O-STD/BLACK
Image Sensor 1/1.8" Progressive Scan CMOS
Max Resolution 3840 × 2160
Lens Fixed 2.8 mm, horizontal FOV 105.1°
Min Illumination Colour: 0.0008 Lux @ (F1.0, AGC ON); B/W: 0 Lux with IR
IR Range Up to 30 m
WDR 130 dB
Audio Built-in microphone (-U)
Alarm I/O 1 input, 1 output (max. 12 VDC, 30 mA) (-S)
Storage microSD/microSDHC/microSDXC card, up to 512 GB
Power 12 VDC ± 25%, 0.66 A, max. 8 W; PoE IEEE 802.3af, Class 3, max. 9.5 W
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Operating Temperature -30 °C to 60 °C
Dimensions Ø 121.5 mm × 97.6 mm
Weight Approx. 525 g
Material Base: aluminium alloy, cover: aluminium alloy
Colour Black
Resolution 8 MP
Analytics Human and vehicle classification based on deep learning; line crossing, intrusion, region entrance and region exiting
