Hikvision AX PRO Series DS-PDPC12PF-EG2-WB Wireless PIRCAM Detector with Image Verification Colorvu
Hikvision AX PRO DS PDPC12PF EG2 WB Wireless PIRCAM Detector Colorvu
1 1
Hikvision

Hikvision AX PRO Series DS-PDPC12PF-EG2-WB Wireless PIRCAM Detector with Image Verification Colorvu

SKU: DS-PDPC12PF-EG2-WB
Description

Detect movement and receive instant image verification to confirm whether an alarm is a real threat or a false alert.
$160.05 AUD $160.05 AUD $226.00 AUD
Sale 29.18% $65.95 AUD (29.18%)
Member Sign in to save $3.20 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
Bundle total: $160.05
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-PDPC12PF-EG2-WB is

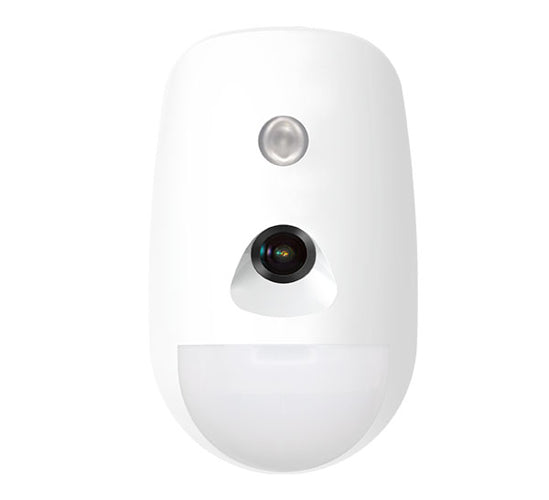

The Hikvision DS-PDPC12PF-EG2-WB is a wireless PIRCAM detector for the AX PRO alarm system: a passive-infrared motion sensor with a built-in ColorVu camera that captures full-colour images, day or night, the moment an alarm is triggered.

Those images are pushed to your phone (or a monitoring centre) through the Hik-Connect app, so you can see what set the alarm off instead of acting on a blind motion alert.

Detection: 12 m over an 85.9 degree field, with pet immunity up to 30 kg.

Verification: full-colour JPEG images (up to 640 x 480) via a white-light fill — not continuous video.

It is an indoor, battery-powered (3 x CR123A, up to 6 years) two-way wireless detector and must be paired with a Hikvision AX PRO hub to operate.

3-year Australian warranty.

§ 02Engineering

DS-PDPC12PF-EG2-WB specifications

- ColorVu image verification: a built-in camera with white-light fill captures full-colour images day and night when motion triggers an alarm.
- See your alarms: JPEG images (up to 640 x 480) are sent to the Hik-Connect app or a monitoring centre, so you can confirm a real event before responding.
- 12 m PIR detection at 85.9 degrees across 52 zones, with SEC (Smart Environmental Control) and 3D optics to reduce false alarms.
- Pet immunity up to 30 kg: ignores most household cats and dogs to cut nuisance triggers.
- Battery powered for up to 6 years: runs on 3 x CR123A cells with easy, PCB-protected replacement and no mains wiring.
- Two-way wireless: fully supervised link to the AX PRO hub; enrol and configure entirely through the app.
- Front and rear tamper protection with sealed optics for reliable indoor security.
- Pairs with a Hikvision AX PRO control panel (sold separately) — it is an alarm detector, not a standalone CCTV camera.

§ 04Why choose this

Built for the way you actually use the DS-PDPC12PF-EG2-WB

See every alarm

A ColorVu camera sends full-colour images day and night, so you act on real events, not blind motion alerts.

Pet immunity to 30 kg

Keeps household pets from triggering nuisance alarms.

Up to 6-year battery

Runs on 3× CR123A cells with no mains wiring to run.

Wireless setup

App-managed enrolment and configuration through Hik-Connect.

Anti-tamper optics

Front and rear tamper protection with SEC and 3D optics for fewer false alarms.

AX PRO ecosystem

Part of the expandable Hikvision AX PRO system, backed by a 3-year Australian warranty.

§ 05Where it fits

Right at home in these scenarios

Visual verification

Adds image verification to a Hikvision AX PRO system in homes and small offices.

Homes with pets

Motion alarms without constant false triggers from pets up to 30 kg.

Indoor rooms

Where you want a colour snapshot of an intruder, not just a motion notification.

ARC-monitored sites

Where an alarm receiving centre needs image verification before dispatch.

Wire-free installs

Where running cabling for a detector is impractical.

§ 06Setup

Installation & setup

01

What's in the Box

1. DS-PDPC12PF-EG2-WB PIRCAM Detector × 1 2. Mounting Screw Kit × 1 3. CR123A Batteries (pre-fitted) × 3 4. Quick Start Guide × 1

02

Setup Requirements

1. Hub: a Hikvision AX PRO control panel — enrol the detector through the Hik-Connect app (hold it near the panel during pairing). 2. No wiring: it is battery powered (3 x CR123A), so no mains or data cable is needed. 3. Mounting: indoor wall at a height of 1.8 to 2.4 m; keep the detection path clear of heat sources and pet-climbable furniture. 4. Brackets (optional): use the DS-PDB-IN wall or ceiling bracket to angle the detector into the room.

§ 07Questions

Frequently asked about the DS-PDPC12PF-EG2-WB

Q.01

Does this work on its own, or do I need a hub?
It is a wireless detector for the Hikvision AX PRO alarm system and must be enrolled to an AX PRO control panel (hub) to work. It does not function as a standalone or CCTV camera.
Q.02

Does it record continuous video?
No. It is an alarm detector that captures still colour images (JPEG, up to 640 x 480) when motion triggers an event, for visual verification rather than continuous recording.
Q.03

Can it take colour images at night?
Yes. It has a built-in white-light fill (ColorVu), so it captures full-colour verification images day and night, not just black and white.
Q.04

Will my pets set it off?
It has pet immunity up to 30 kg, so most cats and dogs are ignored. Mount it at the recommended height and keep pet-climbable furniture out of the detection path for best results.
Q.05

How are the alarm images sent to me?
When an alarm triggers, images are pushed through the Hik-Connect app to your phone, and can also go to a monitoring centre (ARC), so you can see what caused the alarm before responding.
Q.06

How long does the battery last and what does it use?
It runs on 3 x CR123A lithium batteries with a typical life of up to 6 years, and they are easy to replace, with no mains wiring required.
Q.07

Is it for indoor or outdoor use?
It is an indoor detector. For outdoor perimeter detection you would choose an outdoor-rated AX PRO detector instead.
Q.08

How far can it be from the hub?
It uses encrypted two-way wireless to the AX PRO panel, with a free-space range up to 800 m that is much shorter through walls. Enrol it through the app (power-up, Remote ID or QR code), and add a wireless repeater to extend coverage in larger homes.

§ 08In motion

Hikvision AX PRO Wireless PIRCAM Detector - Overview & Setup

Hikvision AX PRO Wireless PIRCAM Detector - Overview & Setup

§ 09Bundles

Recommended packages

01

You will need an AX PRO hub

This detector only works with a Hikvision AX PRO control panel. If you are starting out, an AX PRO hub kit gives you the panel to enrol it to.
