Hanwha XND-C7083RV X-Core 4MP AI IR Indoor Dome 2.8-10mm — 40m WiseIR, extremeWDR 120dB, IP52/IK08

SKU: XND-C7083RV
Description

- X-Core AI Face + Plate Classification: Distinguishes people, vehicles, faces, and licence plates for corporate indoor deployments — richer AI than Q-Core siblings.
- 4MP Sweet Spot: More detail than Full HD without the storage cost of 6MP/4K — the practical resolution tier for busy retail floors and corporate lobbies.
- 2.8-10mm Motorised Varifocal: 3.6x optical zoom adjustable remotely — one camera covers wide corridor sweeps and focused counter framing.
- WiseIR 40m + WiseNR II: Full lobby coverage after hours with AI noise reduction keeping IR-lit footage clean.
$1,238.70 AUD $1,238.70 AUD $1,277.02 AUD
Sale 3.0% $38.32 AUD (3.0%)
Member Sign in to save $24.77 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,508.15

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $1,238.70
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the XND-C7083RV is

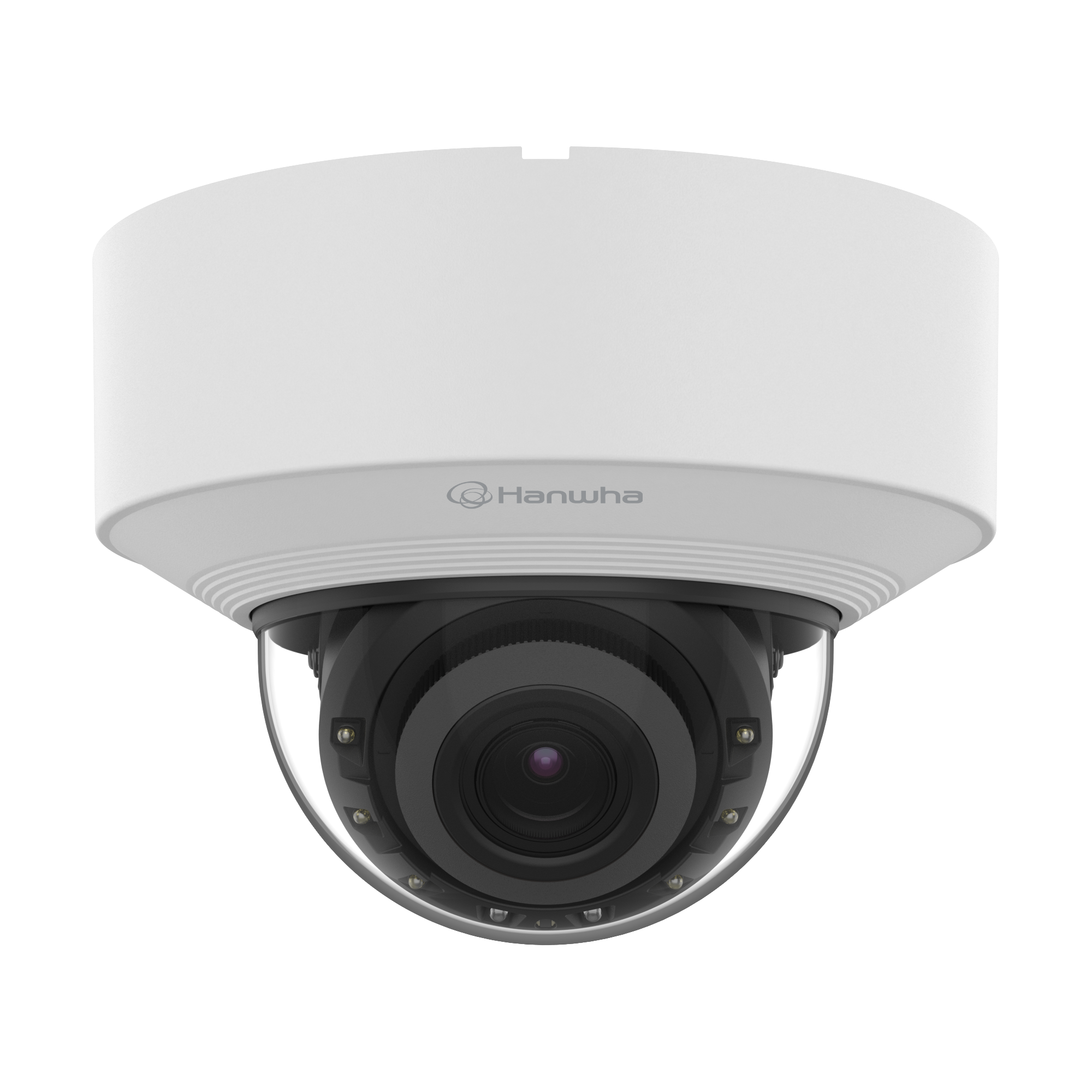

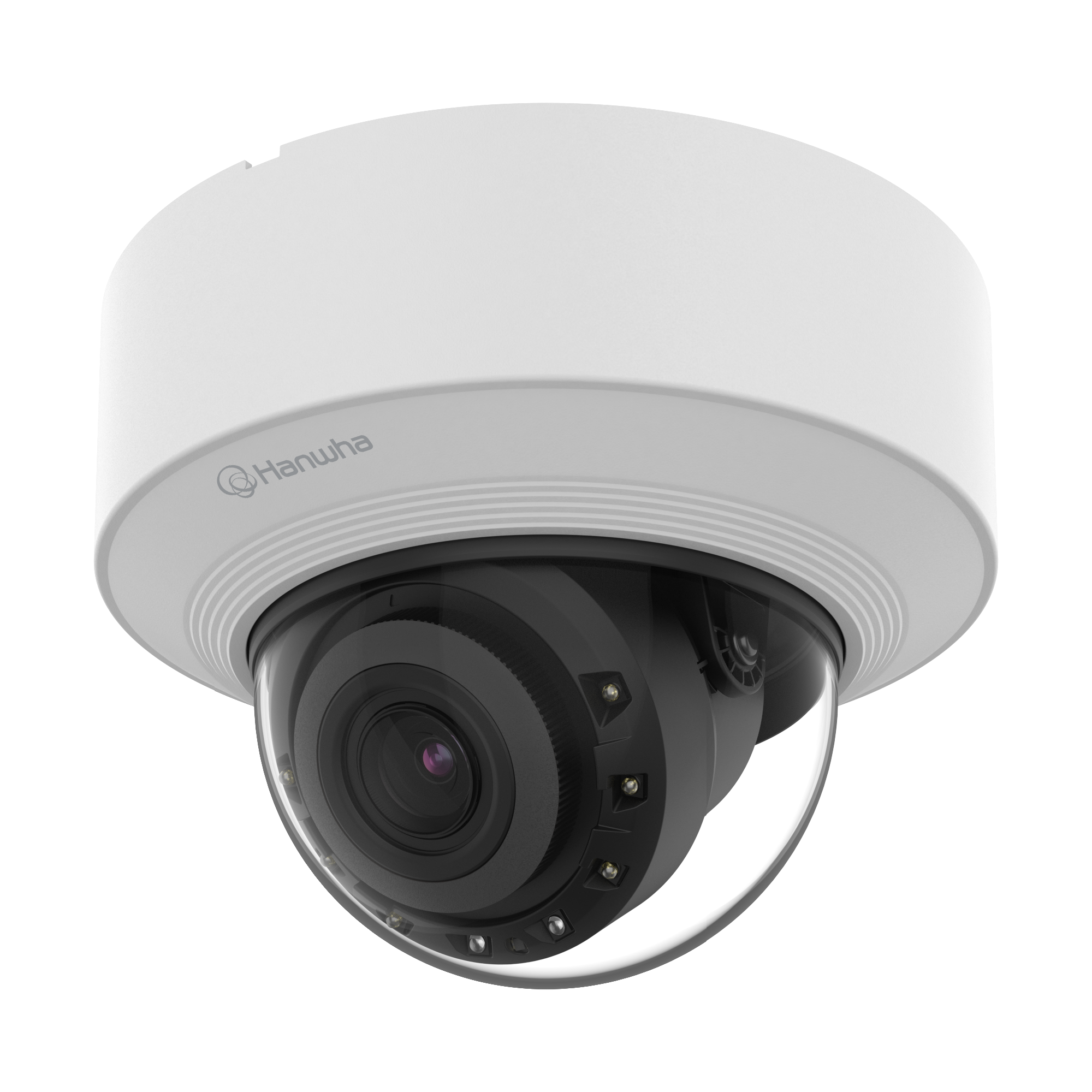

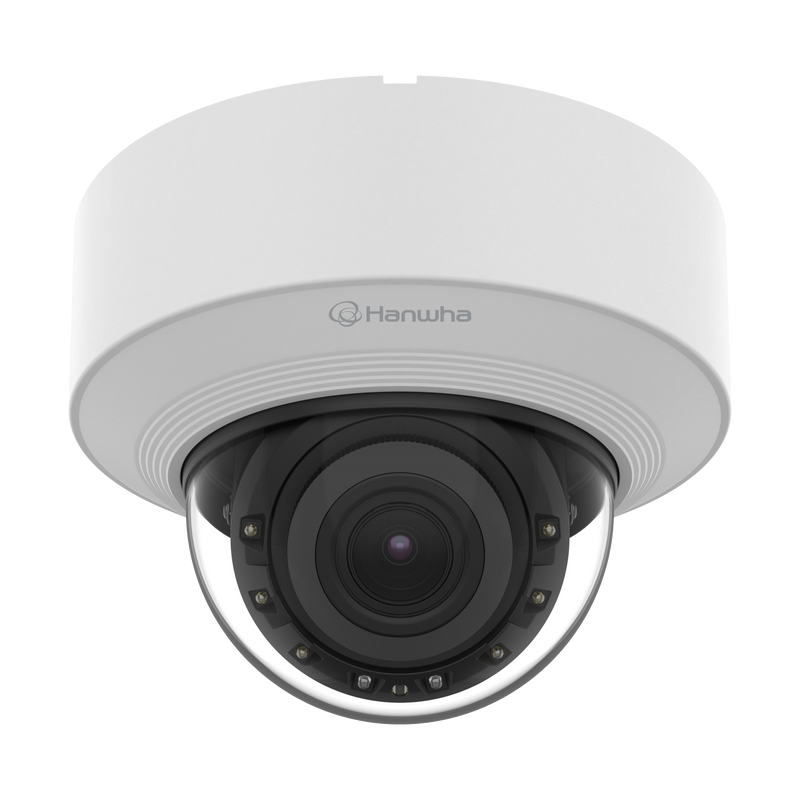

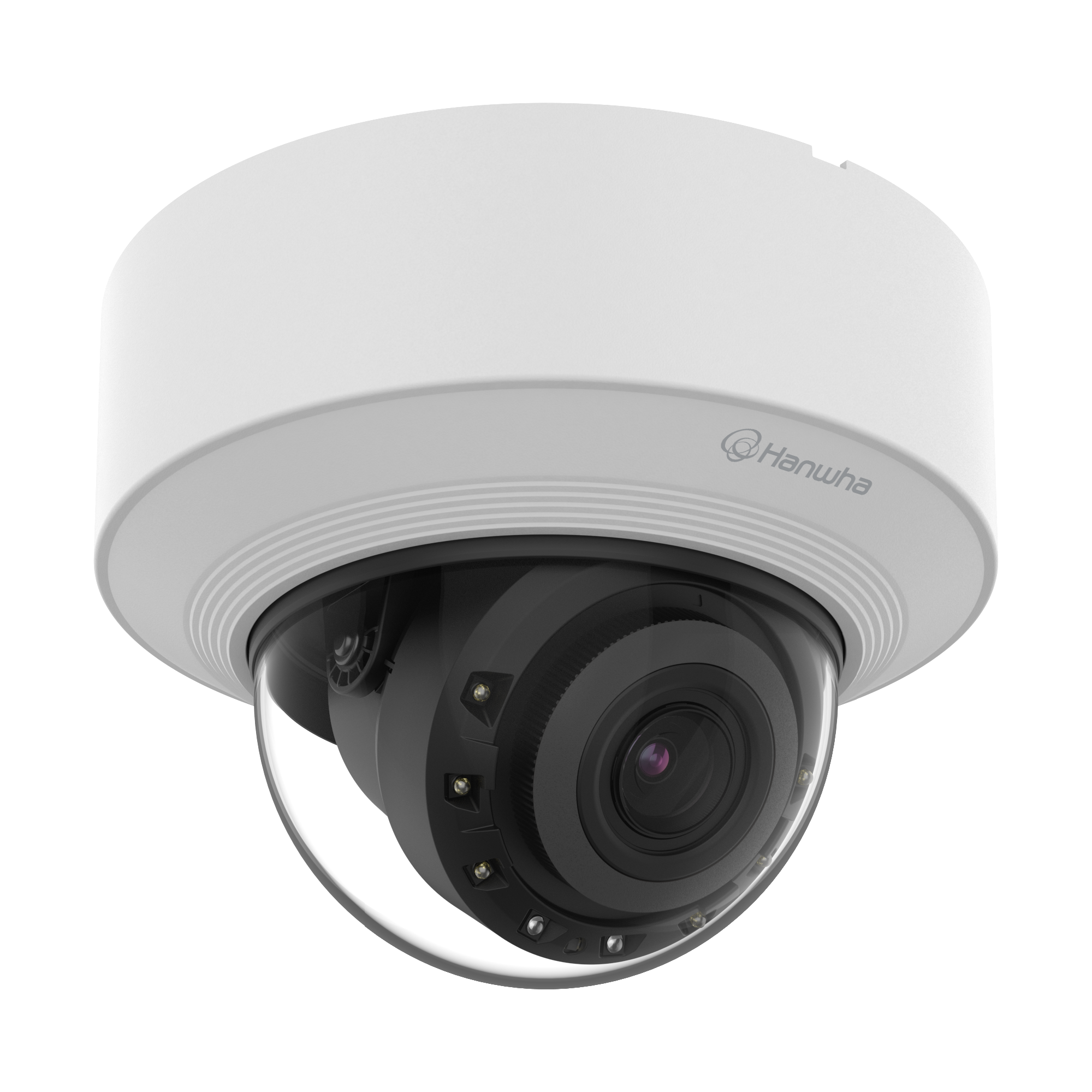

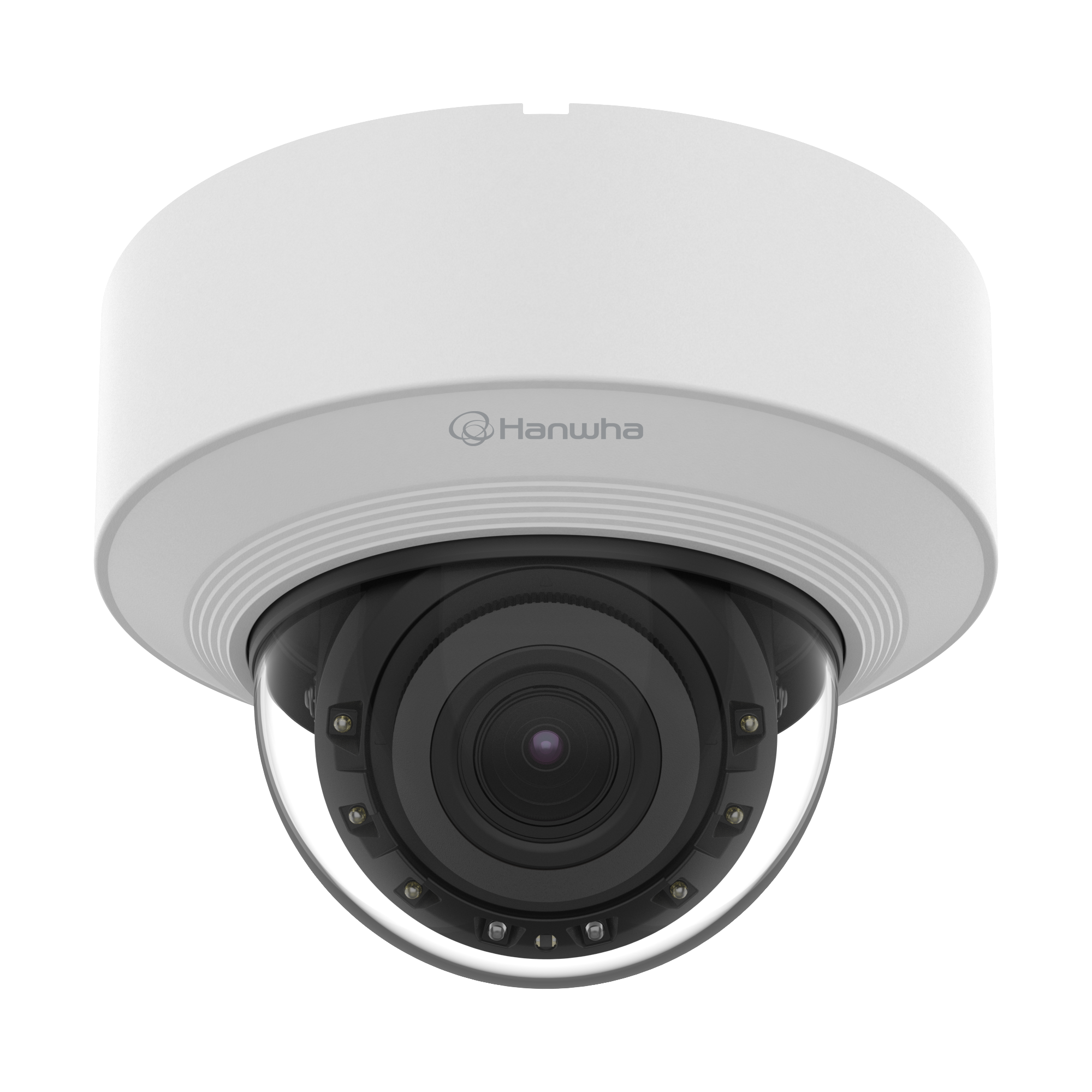

The Hanwha XND-C7083RV is the 4MP tier of the X-Core AI indoor dome family — the sweet spot resolution for commercial ceiling-mounted installation on retail floors, office corridors, lobbies, and education facilities where 4MP detail is worth the storage step up from 2MP without incurring the 6MP or 4K premium.

A 2.8-10mm motorised varifocal lens with 3.6x optical zoom supports remote focal length adjustment without physical repositioning after installation.

The X-Core AI engine classifies people, vehicles, faces, and licence plates, and supports behavioural analytics covering intrusion, loitering, and line crossing events.

Sensor output is 2592x1520 at up to 60fps under H.265, H.264, and MJPEG codecs, with extremeWDR at 120dB handling high-contrast lighting at entrances and windowed spaces, and WiseStream III bandwidth optimisation combined with WiseNR II AI-based noise reduction keeping storage and bitrate manageable at 4MP scale.

WiseIR reaches approximately 40m for full lobby or long-corridor coverage after site lighting shuts down.

The IK08-rated compact dome housing provides vandal resistance suited to semi-public indoor areas, and microSD support enables local edge storage as a backup or standalone option.

IP52 rating means indoor use only.

§ 02Engineering

XND-C7083RV specifications

- 4MP resolution (2592x1520) at up to 60fps H.265/H.264
- 1/2" CMOS sensor
- 2.8-10mm motorised varifocal lens, 3.6x optical zoom
- On-device AI person, vehicle, face, licence plate classification
- Intrusion, loitering, line crossing analytics
- extremeWDR 120dB for backlit indoor scenes
- WiseNR II AI-based noise reduction
- WiseStream III bandwidth optimisation
- WiseIR IR illumination up to 40m
- H.265, H.264, MJPEG codecs
- Compact indoor dome housing
- IP52 (indoor) / IK08 impact resistant
- microSD edge storage
- PoE powered
- Hanwha Vision X-Core platform

§ 04Why choose this

Built for the way you actually use the XND-C7083RV

4MP Resolution Sweet Spot

More usable detail than Full HD for post-event review and identification, without the storage cost of 6MP or 4K streams. Fits corporate and retail sites where 2MP is thin and 6MP+ is overkill for the mounting distance.

Face and Plate Classification

Richer AI than Q-Core siblings — the XND-C7083RV distinguishes faces and licence plates alongside person/vehicle classification. Fits corporate reception and retail loss-prevention workflows where subject identification matters.

3.6x Zoom Adjustable Remotely

The 2.8-10mm motorised varifocal lens dials from wide corridor sweep at 2.8mm to focused intersection or counter shot at 10mm — adjust from web viewer without opening the housing.

WiseNR II Keeps IR Footage Clean

AI-based noise reduction specifically targets sensor noise on IR-lit low-light footage, preventing dark-scene bitrate inflation on the WiseIR 40m coverage range. Practical impact: consistent storage across day/night cycles.

§ 05Where it fits

Right at home in these scenarios

Retail Floor and Aisle Monitoring

The motorised varifocal lens frames individual aisles or wider store sections; AI face classification supports loss-prevention workflows. 4MP resolution supports post-event zoom to identify shoplifters from wide-frame footage.

Corporate Office Corridors and Reception

WiseIR to 40m covers full corridor lengths after hours; face classification supports visitor identification and access control integration. Compact dome blends into professional ceiling finishes.

Education Facilities (Classroom Corridors, Library Common Areas)

IK08 impact resistance handles publicly accessible mounts around classrooms and common areas; AI intrusion detection flags after-hours access to restricted zones.

Retail Point-of-Sale Coverage

4MP with 10mm framing supports counter-focused monitoring with sufficient face detail for dispute resolution, and the varifocal lens can be widened back to full-floor coverage when the store layout changes.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha XND-C7083RV Camera x 1 2. Mounting Screws & Anchors x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE — verify switch/injector budget when adding X-Core AI cameras. 2. Mounting: ceiling, indoor only — IP52 rating not for outdoor exposure. 3. Storage: microSD card for edge failover recording. 4. Environment: controlled indoor spaces; not for exterior walls or covered outdoor entries.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Dial in zoom and focus remotely across the 2.8-10mm range. 3. Configure AI analytics: face/plate classification, intrusion zones, virtual lines, loitering dwell times. 4. Enable extremeWDR on scenes with strong backlight from external glazing.

§ 07Questions

Frequently asked about the XND-C7083RV

Q.01

Q: How is this different from the XND-C6083RV sibling?
A: The C7083RV is the 4MP tier of the X-Core indoor AI dome family; the C6083RV is 2MP. Same X-Core AI feature set (face/plate classification), same WiseIR 40m, same IP52/IK08 housing. Main differences: 4MP resolution provides more usable detail for post-event zoom, but the C6083RV has higher extremeWDR (150dB vs 120dB). Pick the C7083RV when 4MP detail matters; pick the C6083RV when extreme backlight scenes matter more.
Q.02

Q: Why 4MP instead of 2MP or 6MP?
A: 4MP is the sweet spot — noticeably more detail than Full HD (2MP) for identification and post-event zoom, without the storage cost of 6MP or 4K streams. Fits most corporate and retail indoor scenes where 2MP feels thin and 6MP+ is overkill for typical ceiling-to-floor distances.
Q.03

Q: What AI events can this camera detect?
A: Person, vehicle, face, and licence plate classification, plus intrusion detection, loitering, and line crossing. Configure through the web viewer or Wisenet WAVE.
Q.04

Q: Is this suitable for outdoor use?
A: No — IP52 is an indoor rating (dust-protected, drip-protected only). Fine for controlled indoor commercial ceilings, corridors, lobbies, and public foyers, but not for exterior walls, covered outdoor entries, or car park entrances subject to blown rain.
Q.05

Q: What field of view can I get?
A: The 2.8-10mm motorised varifocal lens with 3.6x optical zoom lets you dial framing between wide corridor coverage at 2.8mm and focused counter or intersection shots at 10mm. Adjust remotely from web viewer.
Q.06

Q: How far does WiseIR reach?
A: Approximately 40m — enough for full lobby, corridor, or open-plan floor coverage after site lighting shuts down.
Q.07

Q: Can this integrate with third-party VMS?
A: Yes — the XND-C7083RV supports ONVIF for standard third-party integration. For AI-specific event forwarding, test event delivery to your recorder before large rollouts.
