Hanwha XNB-6002 X-Series 2MP Remote Head Camera — Wisenet7, extremeWDR 120dB, 1TB microSDXC (Lens Sold Separately)
1 6
Hanwha

Hanwha XNB-6002 X-Series 2MP Remote Head Camera — Wisenet7, extremeWDR 120dB, 1TB microSDXC (Lens Sold Separately)

SKU: XNB-6002
Description

- Concealed Installation Design: Imaging sensor separates from the main body — a compact lens module hides in-frame while the body sits out of sight, purpose-built for covert deployments.
- 2MP Full HD at 60fps: Wisenet7 chipset delivers 1920x1080 at up to 60fps, with extremeWDR 120dB handling ATM lobby glare and backlit retail scenes.
- Business-Intelligence AI: Face detection, people counting, heat mapping, queue management — beyond security, into retail analytics.
- 1TB microSDXC Edge Storage: Runs as semi-standalone edge recorder when central NVR access is difficult — appropriate for concealed installations.
$485.90 AUD $485.90 AUD $500.94 AUD
Sale 3.0% $15.04 AUD (3.0%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $855.90

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $485.90

§ 01Overview

What the XNB-6002 is

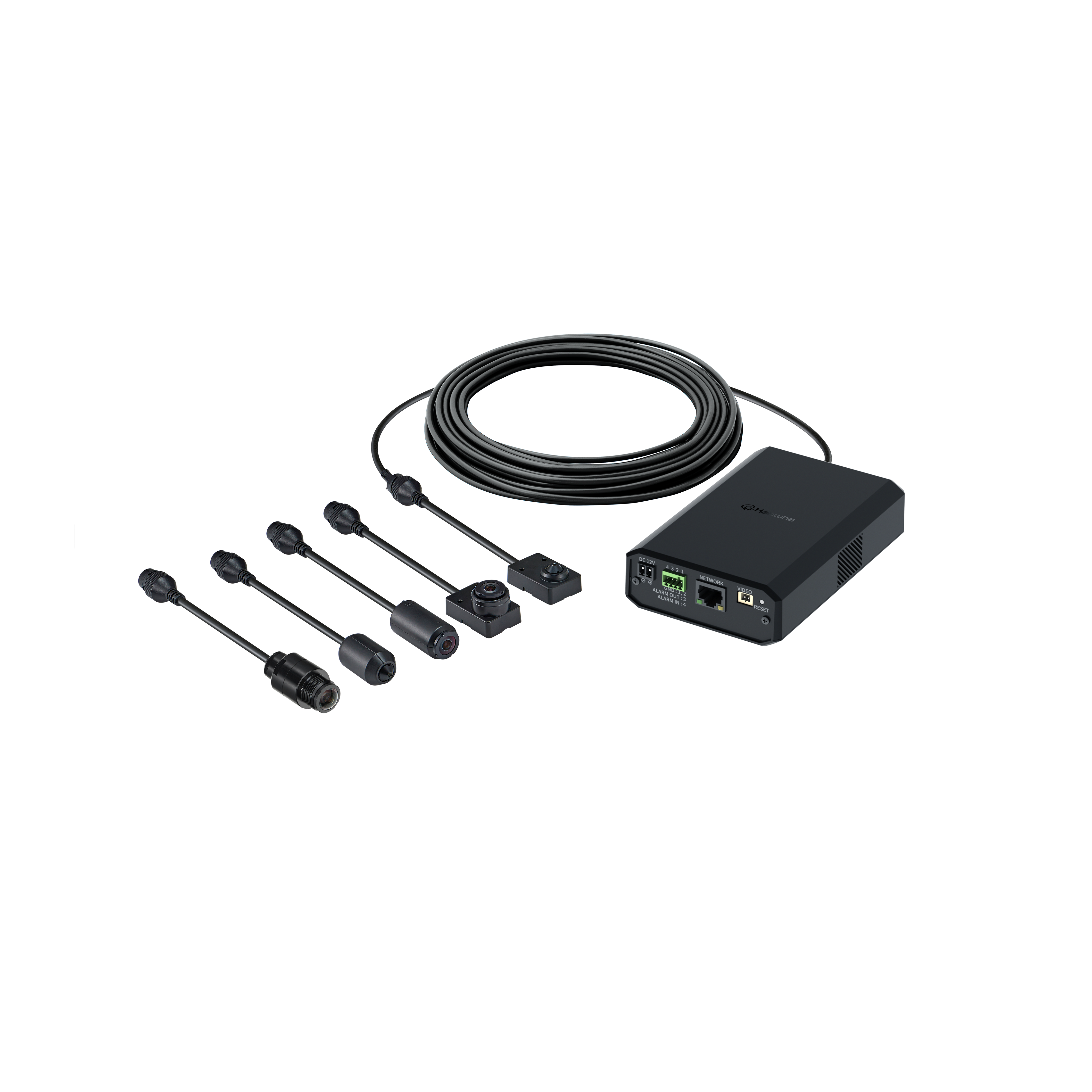

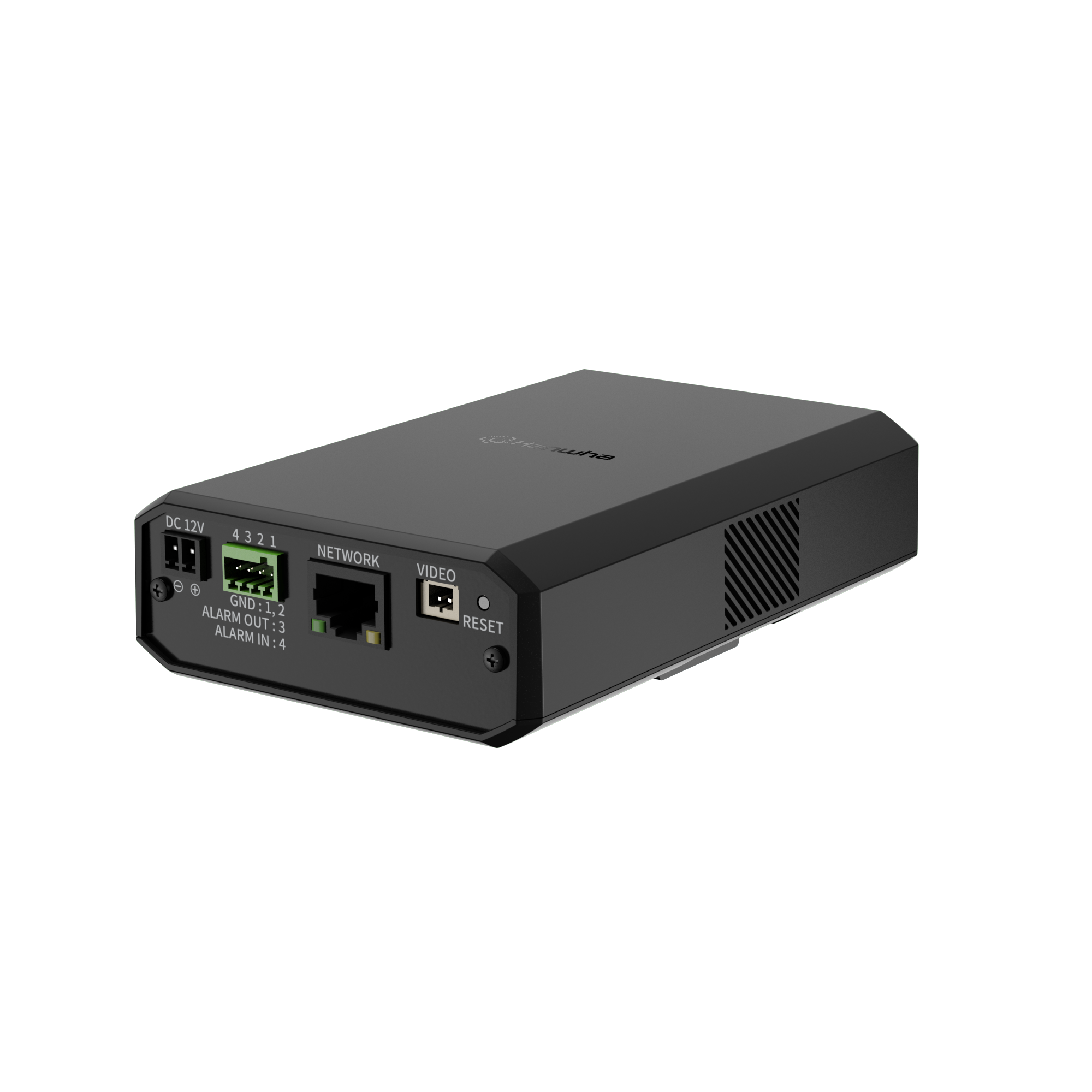

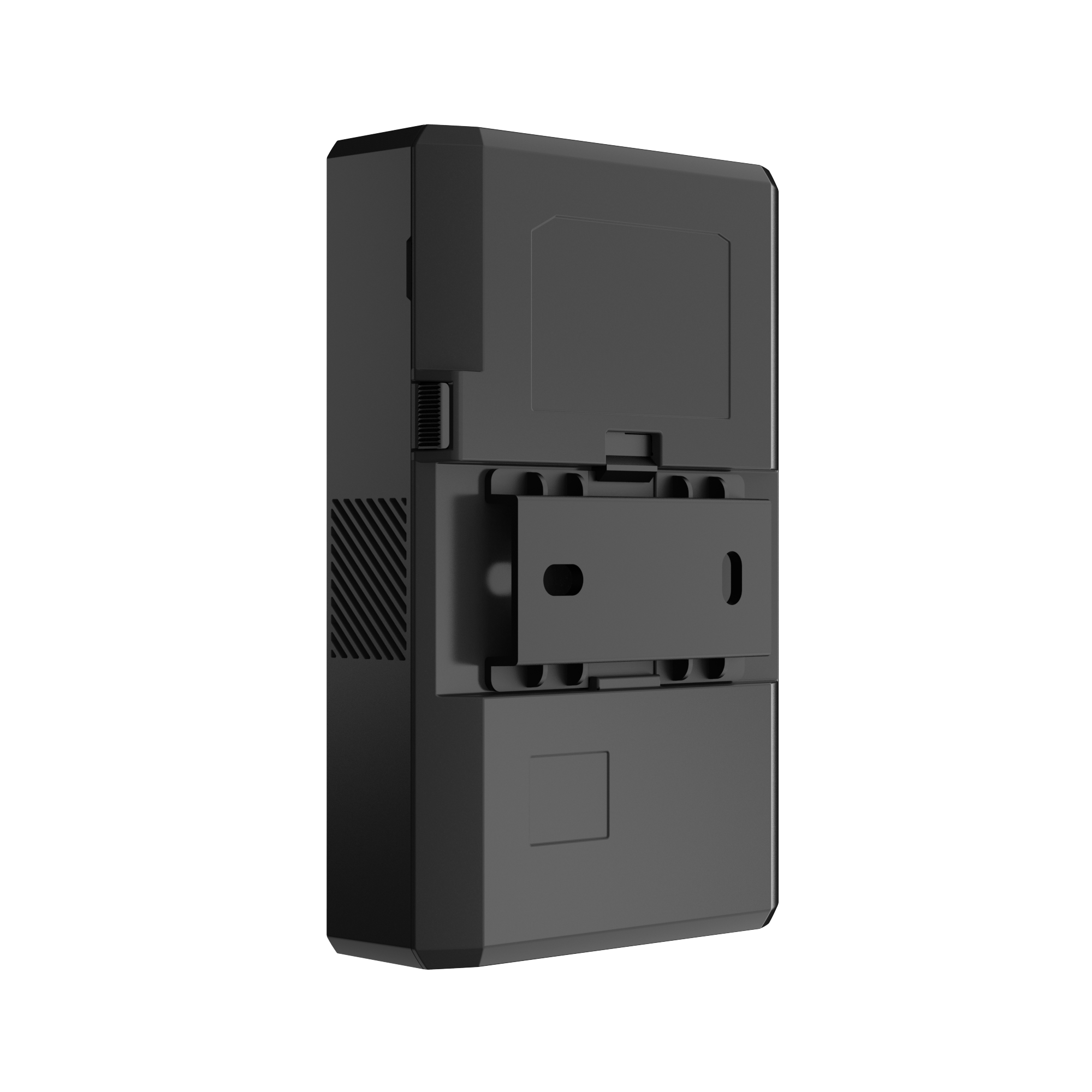

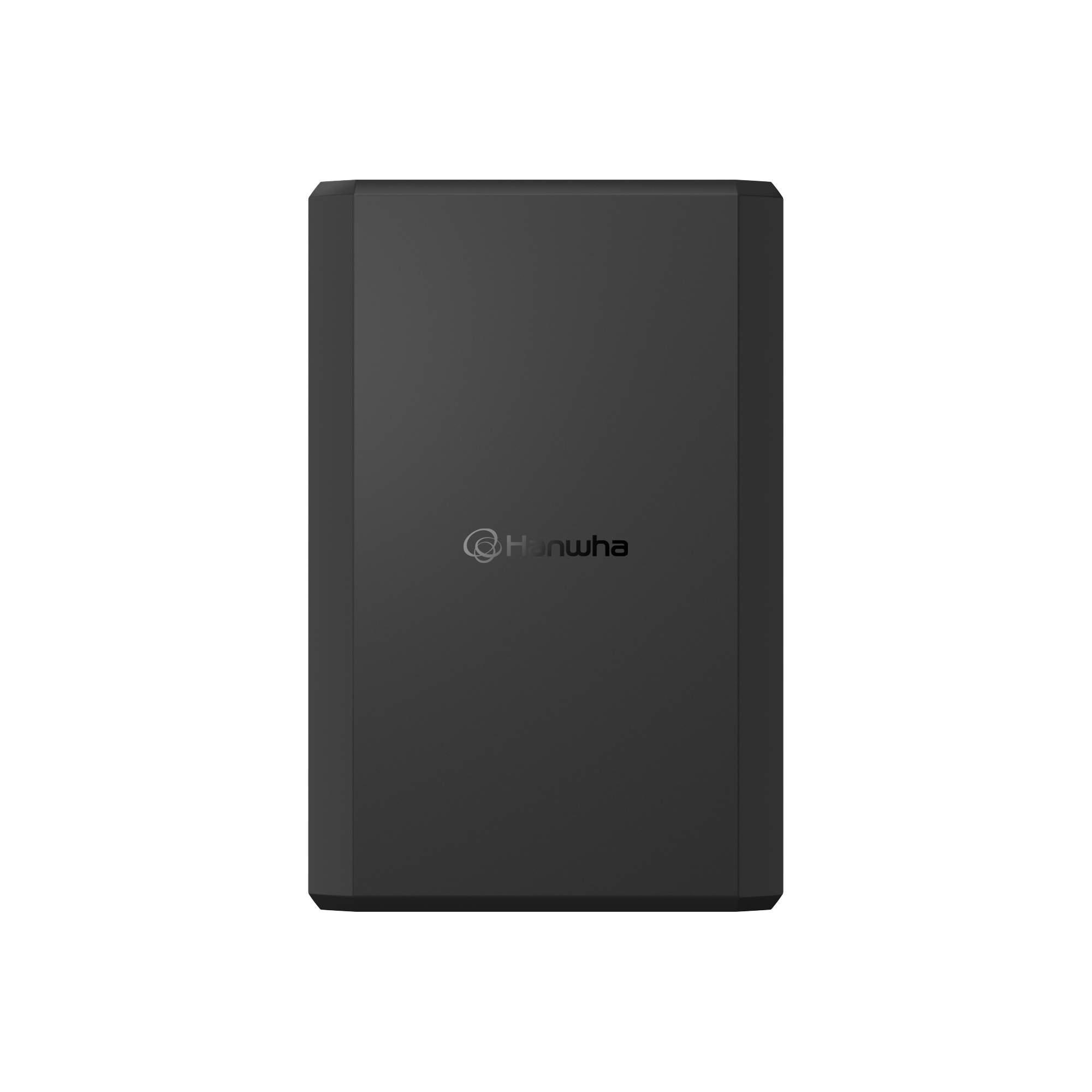

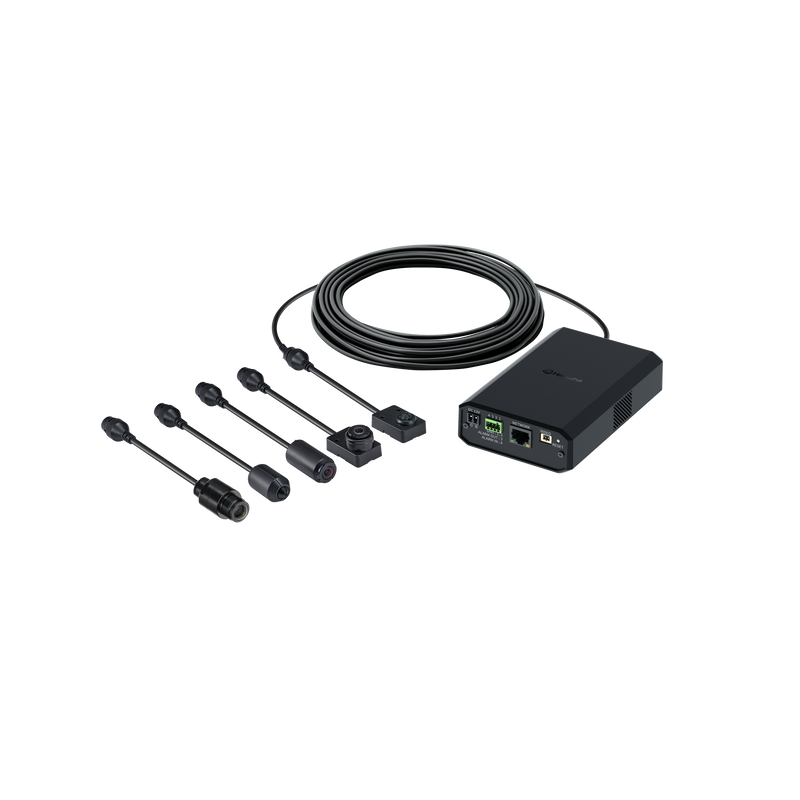

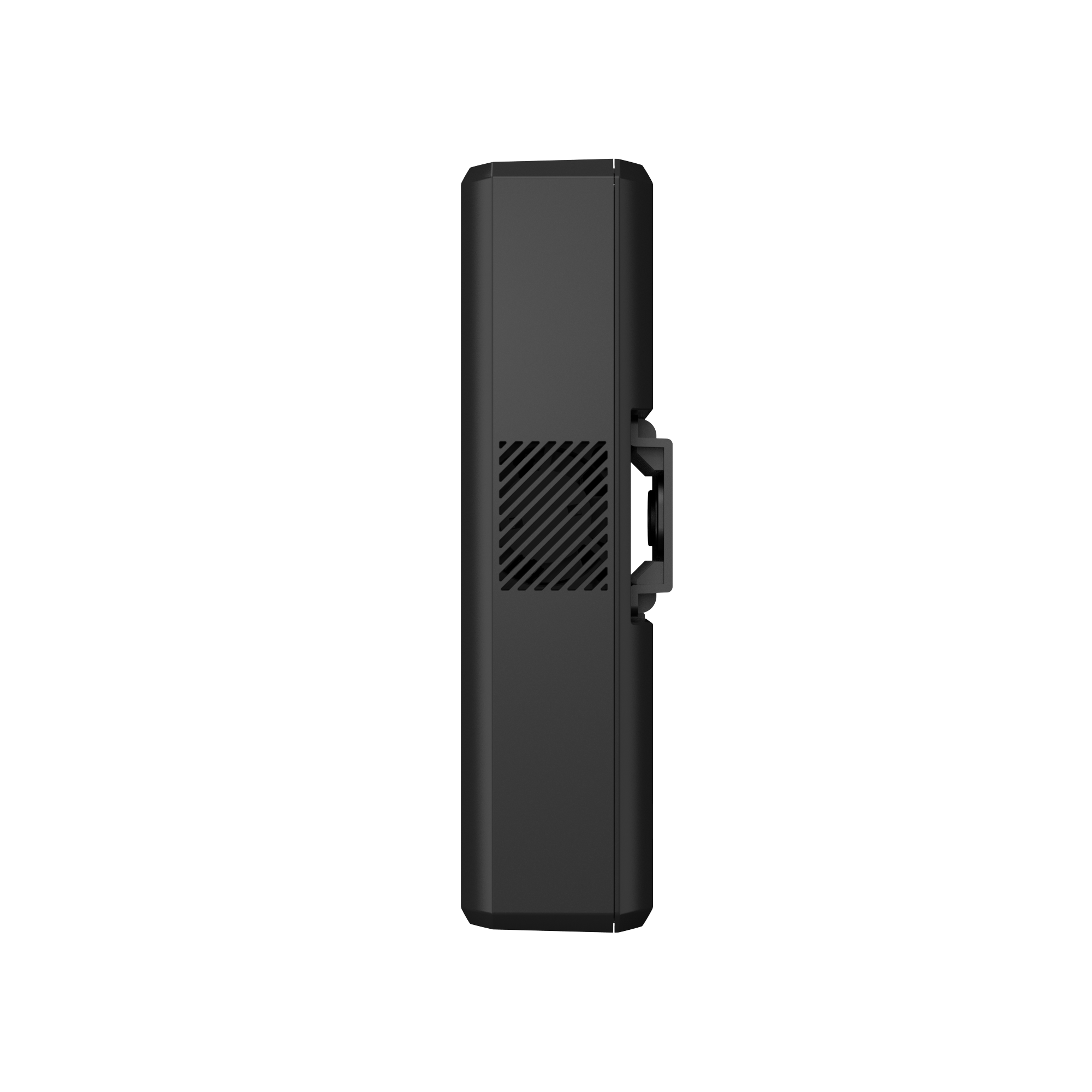

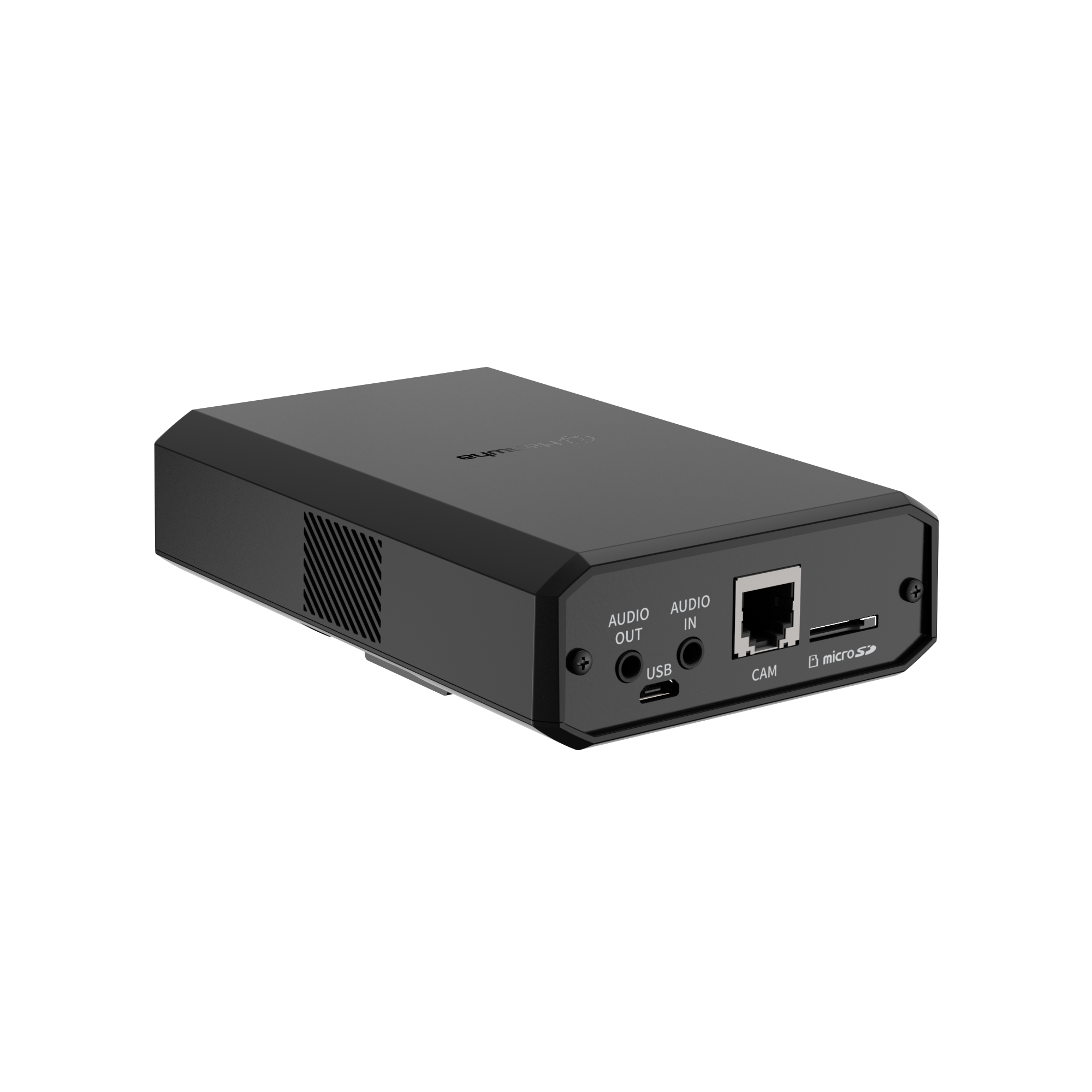

The Hanwha XNB-6002 is an X-Series 2MP remote head camera built for covert installations where a standard camera body would be visually obvious or physically hard to mount.

The imaging sensor separates from the main processing body — a compact lens module positions in a concealed spot while the body sits out of sight elsewhere.

Powered by the Wisenet7 chipset, it captures 1920x1080 Full HD at up to 60fps under H.265, H.264, and MJPEG codecs, with extremeWDR at 120dB handling difficult lighting conditions such as strong backlighting at ATM surrounds or brightly lit retail counters.

AI analytics on Wisenet7 extend well beyond simple video capture: face detection, people counting, heat mapping, sound classification, queue management, loitering, directional movement, and tampering — a broader feature set than Q-Core or X-Core platforms, positioned for retail and hospitality business-intelligence deployments alongside security monitoring.

Bi-directional audio, digital defog, and digital image stabilisation round out the imaging feature set.

microSDXC storage up to 1TB supports semi-standalone edge recording when central NVR access is difficult.

Note: no lens is included — a compatible Hanwha remote head lens module (SLA-T4680V etc) must be selected separately based on the specific installation's FoV and focal length requirements.

Budget accordingly.

§ 02Engineering

XNB-6002 specifications

- 2MP Full HD resolution (1920x1080) at up to 60fps
- Wisenet7 chipset
- Remote head / covert modular design — sensor separates from body
- extremeWDR 120dB for backlit and mixed-lighting scenes
- H.265, H.264, MJPEG codecs
- AI: face detection, people counting, heat mapping
- AI: sound classification, queue management, loitering
- AI: directional movement, tampering detection
- Bi-directional audio support
- Digital defog, digital image stabilisation
- microSDXC edge storage up to 1TB
- PoE or 12V DC power
- No lens included — compatible SLA lens module required

§ 04Why choose this

Built for the way you actually use the XNB-6002

Camera Where a Camera Cannot Go

The remote head design separates a small lens module from the main body — deploy the visible sensor into hidden spots (behind smoked plexi, inside signage, in a wall pocket) while the body handles processing elsewhere. Covert surveillance without compromising imaging performance.

Wisenet7 Business-Intelligence AI

Face detection, people counting, heat mapping, queue management, sound classification — a broader feature set than security-grade AI. Fits retail analytics, hospitality flow analysis, and customer-experience monitoring alongside security use.

1TB Edge Recording Ceiling

microSDXC up to 1TB supports semi-standalone edge recording — practical for concealed installations where cable runs to a central NVR are difficult, or where the recording body itself needs to be independently retrievable.

Full 60fps at Full HD

60fps output at 1920x1080 supports slow-motion incident review and matches modern VMS display expectations — the 30fps ceiling on lower-tier X-series cameras leaves less headroom for post-event analysis.

§ 05Where it fits

Right at home in these scenarios

ATM Lobby and Bank Vestibule Monitoring

The lens module fits behind smoked glass or into a wall pocket while the body stays in the back-of-house — face detection at ATM position, extremeWDR handling foyer-to-bright-exterior contrast. Retail-banking regulatory-compliance-friendly.

Retail Loss Prevention (Discreet)

Concealed lens in customer-facing spaces with AI people counting and directional movement tracking — cover shoplifting hotspots without the deterrent visibility of a wall-mounted dome. Body and card storage in the back office.

Hospitality Customer Flow Analytics

People counting + heat mapping generates business-intelligence data on customer movement through a restaurant, hotel lobby, or venue — informs staffing and layout decisions beyond security applications.

Museum and Gallery Coverage

Compact hidden lens module preserves gallery aesthetics; AI loitering and directional movement analytics support security while remaining visually unobtrusive against curated interior finishes.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha XNB-6002 Camera Body x 1 2. Mounting Screws & Anchors x 1 set 3. Quick Start Guide x 1 (Note: NO lens module included — order separately.)

02

Installation Requirements

1. Compatible lens module: order a Hanwha remote head lens (e.g., SLA-T4680V) separately, sized to the installation's FoV and focal length needs. 2. Power: PoE (IEEE 802.3af) or 12V DC — verify PoE budget when adding with a lens module. 3. Storage: microSDXC card up to 1TB for edge recording (particularly recommended for concealed installations). 4. Cable routing: plan the sensor-to-body cable run and concealment path during design phase.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Configure AI analytics: face detection, people counting zones, heat mapping regions. 3. Set up microSDXC as edge recording target with appropriate retention policy. 4. Confirm audio capture is legally compliant with signage or consent requirements before enabling on public-facing installations.

§ 08Questions

Frequently asked about the XNB-6002

Q.01

Q: What's a 'remote head' camera and why would I want one?
A: The imaging sensor is physically separated from the main body — a compact lens module deploys into a concealed spot (behind smoked plexi, inside signage, in a wall pocket) while the body sits out of sight elsewhere. Purpose-built for covert surveillance where a standard camera body would be visually obvious.
Q.02

Q: Does this come with a lens?
A: No — the XNB-6002 ships without a lens. A compatible Hanwha remote head lens module (e.g., SLA-T4680V, a 2MP 4.6mm pinhole lens module) must be selected separately based on your installation's FoV and focal length needs. Budget for camera + lens as separate line items.
Q.03

Q: What AI events can this camera detect?
A: A broader set than Q-Core or X-Core: face detection, people counting, heat mapping, sound classification, queue management, loitering, directional movement, and tampering. Wisenet7's business-intelligence AI works alongside security applications, particularly on retail and hospitality deployments.
Q.04

Q: How is this different from a standard X-series camera?
A: Two things: (1) The remote head modular design vs a fixed camera body; (2) Wisenet7 chipset's broader AI feature set — heat mapping, sound classification, queue management aren't standard on X-Core platform cameras. XNB-6002 is positioned for covert + analytics use, not general commercial camera duty.
Q.05

Q: How much microSDXC storage is supported?
A: Up to 1TB — substantially higher than the 128GB or 256GB ceilings on lower-tier cameras. Practical fit for concealed installations where cable runs to a central NVR are difficult, and the camera runs as a semi-standalone edge recorder.
Q.06

Q: Can I use audio recording? What are the legal considerations?
A: The camera supports bi-directional audio. Australian privacy law varies by state — VIC, WA, and ACT require both-party consent for recording private conversations. Common practical mitigation is signage disclosure that audio is being recorded on the premises, or disable audio capture on public-facing installations where consent can't be verified.
Q.07

Q: What's the power requirement?
A: PoE (IEEE 802.3af) or 12V DC. On covert installations where cable routing is already complex, PoE simplifies the electrical infrastructure to a single cable per lens+body pair.
Q.08

Q: Can this integrate with a third-party NVR or VMS?
A: Yes — the XNB-6002 supports ONVIF for standard third-party integration. For Wisenet7-specific AI events (heat mapping, queue management), test event forwarding into third-party VMS analytics workflows before large rollouts.
