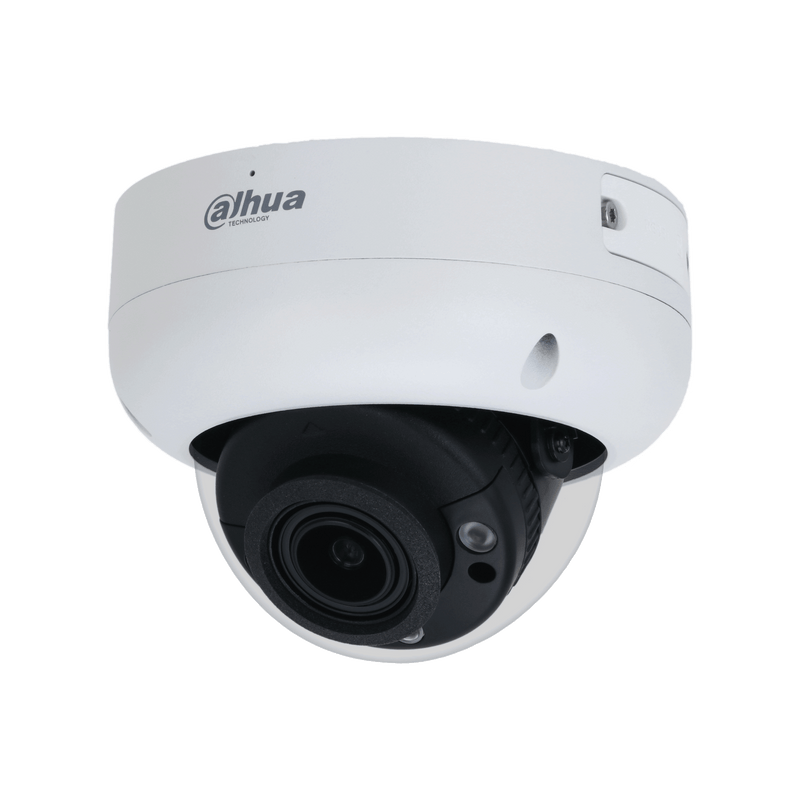

Dahua 8MP DH-IPC-HDBW3866RP-ZAS-AUS (4K) Starlight IP Dome MotorisedWDR, IR 40m
Dahua DH-IPC-HDBW3866RP-ZAS-AUS 8MP Starlight Motorised Dome
1 1
Dahua

Dahua 8MP DH-IPC-HDBW3866RP-ZAS-AUS (4K) Starlight IP Dome MotorisedWDR, IR 40m

SKU: DH-IPC-HDBW3866RP-ZAS-AUS
Description

The Dahua DH-IPC-HDBW3866RP-ZAS-AUS is an 8 MP (4K) WizSense dome with a motorised 2.7-13.5 mm varifocal lens, so you can set the exact field of view remotely. It adds SMD 4.0 human and vehicle classification, 40 m infrared, a built-in microphone and a tough IP67, IK10 housing, making it a flexible choice for car parks, entrances and larger open areas.

Key points
- 8 MP (3840 x 2160) 1/2.8" CMOS at up to 25/30 fps
- Motorised 2.7-13.5 mm varifocal lens, remote zoom and focus
- SMD 4.0 human and vehicle classification to cut false alarms
- 40 m infrared night vision (black-and-white in the dark)
- Built-in microphone; audio and alarm I/O on this -ZAS model
- 120 dB WDR; IP67 weatherproof and IK10 vandal resistant
- Powered by PoE (802.3af) or 12 VDC; microSD up to 256 GB
8MP Ultra HD 40m IR Night Vision IP67 Weatherproof Human/Vehicle Detection Built-in Microphone
$362.71 AUD $362.71 AUD $437.00 AUD
Sale 17.0% $74.29 AUD (17.0%)
Member Sign in to save $7.25 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $862.16

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
Bundle total: $362.71
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HDBW3866RP-ZAS-AUS is

The Dahua DH-IPC-HDBW3866RP-ZAS-AUS is a flagship 8 MP 4K dome for sites that need both fine detail and a view you can adjust.

Its motorised 2.7-13.5 mm varifocal lens lets you set zoom and focus from the software, so you can frame a wide forecourt or zoom in on an entry point without climbing back to the camera.

At 3840 x 2160 it captures the detail needed to read faces and number plates across a large area.

SMD 4.0 classifies human and vehicle targets so motion alarms and perimeter rules focus on real activity, and 120 dB WDR keeps detail against bright backlight.

A 40 m infrared illuminator covers night scenes, and a built-in microphone records audio.

This -ZAS model also adds audio and alarm input and output terminals for integrating an external speaker, sensor or relay.

The housing is IP67 against weather and IK10 against impact.

Two honest notes: the camera has a built-in microphone but no built-in speaker, so by itself it records audio rather than offering two-way talk; you can wire an external speaker to the audio output if you need it.

And in full darkness its infrared images are black-and-white.

Power it from PoE or 12 VDC and record it to a Dahua WizSense NVR.

See it in action

What the DH-IPC-HDBW3866RP-ZAS-AUS features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (1/2)
40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (2/2)

40m IR Night Vision

Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDBW3866RP-ZAS-AUS specifications

- 8 MP 4K (3840 x 2160) 1/2.8" CMOS at up to 25/30 fps
- Motorised 2.7-13.5 mm varifocal lens with remote zoom and focus
- SMD 4.0 deep-learning human and vehicle classification
- 40 m infrared night vision (black-and-white in darkness)
- Built-in microphone; audio and alarm input/output on the -ZAS model
- 120 dB WDR and 3D NR for high-contrast and low-light scenes
- IP67 weatherproof and IK10 vandal resistant
- Powered by PoE or 12 VDC; microSD up to 256 GB; H.265

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua 8MP DH-IPC-HDBW3866RP-ZAS-AUS (4K) Starlight IP Dome MotorisedWDR, IR 40m
FeatureDetail
Image Sensor 1/2.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 lux@F1.5 (Color, 30 IRE); 0.0007 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio >56 dB
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDBW3866RP-ZAS-AUS

Set the view from your desk

A motorised 2.7-13.5 mm lens adjusts zoom and focus remotely, so you get the exact framing without a second trip up the ladder.

4K detail across a wide area

8 MP resolution reads faces and plates over a car park or forecourt, with 120 dB WDR against headlights.

Alerts that matter

SMD 4.0 human and vehicle classification keeps motion and perimeter alarms on people and cars.

Built to take a hit

An IP67, IK10 dome stands up to weather and tampering in public areas.

§ 05Where it fits

Right at home in these scenarios

Car parks and forecourts

Cover vehicle areas with 4K detail and zoom in on entries or bays as needed.

Building entrances

Frame a doorway or lobby precisely with the motorised lens and read faces in WDR lighting.

Large yards and compounds

Set a wide view of an open area and adjust the zoom to suit the boundary.

Schools and campuses

Watch grounds and gates with a tough, vandal-resistant 4K dome.

§ 06Setup

Installation & setup

01

What's in the box

One DH-IPC-HDBW3866RP-ZAS-AUS 8MP motorised dome camera with mounting template and fixings. The microSD card, power supply or PoE source and any NVR are supplied separately.

02

Installation requirements

Mount it on a wall, eave or ceiling over the area to cover and power it from a PoE switch or NVR or a 12 VDC supply. Connect the network, set the motorised zoom and focus, the day and night behaviour and the SMD perimeter rules in the software, and add it to a Dahua NVR for recording and event search. Wire an external speaker to the audio output if you need talk-back.

§ 07Questions

Frequently asked about the DH-IPC-HDBW3866RP-ZAS-AUS

Q.01

What does the motorised varifocal lens give me?
The 2.7-13.5 mm motorised lens lets you adjust zoom and focus remotely from the software, so you can set a wide overview or a tight long-range view and fine-tune it without physically touching the camera.
Q.02

How sharp is it for reading plates and faces?
It captures 8 MP at 3840 x 2160, and with the lens zoomed in it can read faces and number plates well across a car park or driveway. 120 dB WDR keeps that detail visible against bright backlight.
Q.03

Does it have two-way audio?
It has a built-in microphone that records audio with the video, but no built-in speaker, so it is not a two-way talk camera on its own. This -ZAS model has audio output terminals, so you can wire an external speaker if you need to talk back.
Q.04

How does SMD 4.0 reduce false alarms?
SMD 4.0 classifies human and vehicle targets with deep learning, so motion alarms and perimeter rules trigger on people and cars and ignore animals, rain and moving foliage. It also speeds up searching recorded footage.
Q.05

How far does the night vision reach and is it colour?
It has a 40 m infrared illuminator. Like any infrared camera the night image is black-and-white; the infrared lets it see clearly in complete darkness out to that range.
Q.06

Is it weatherproof and vandal resistant?
Yes. It is rated IP67 against dust and heavy rain and IK10 against impact, so it suits car parks, entrances and other exposed or public positions.
Q.07

How is it powered?
It runs on PoE (802.3af) or a 12 VDC supply, so you can power and network it over one cable from a PoE NVR or switch, or use a local 12 VDC source.
Q.08

Which recorder should I pair it with?
Use a Dahua WizSense NVR with enough bandwidth for 8 MP streams so the SMD events are kept for fast search. An 8-channel PoE NVR suits a small 4K install; choose 16 channels for larger sites.

§ 08In motion

Dahua 3866 Camera Review Video

Dahua 3866 Camera Review Video

§ 09Bundles

Recommended packages

02

Surface-mount the cabling

Use a DH-PFA137 junction box or a DH-PFB203W wall bracket to route and protect the cable.
