Dahua DHI-KTX01(S)-S2 2-Wire Wi-Fi Hybrid Video Intercom Kit
1 3
Dahua

Dahua DHI-KTX01(S)-S2 2-Wire Wi-Fi Hybrid Video Intercom Kit

SKU: DHI-KTX01(S)-S2
Description

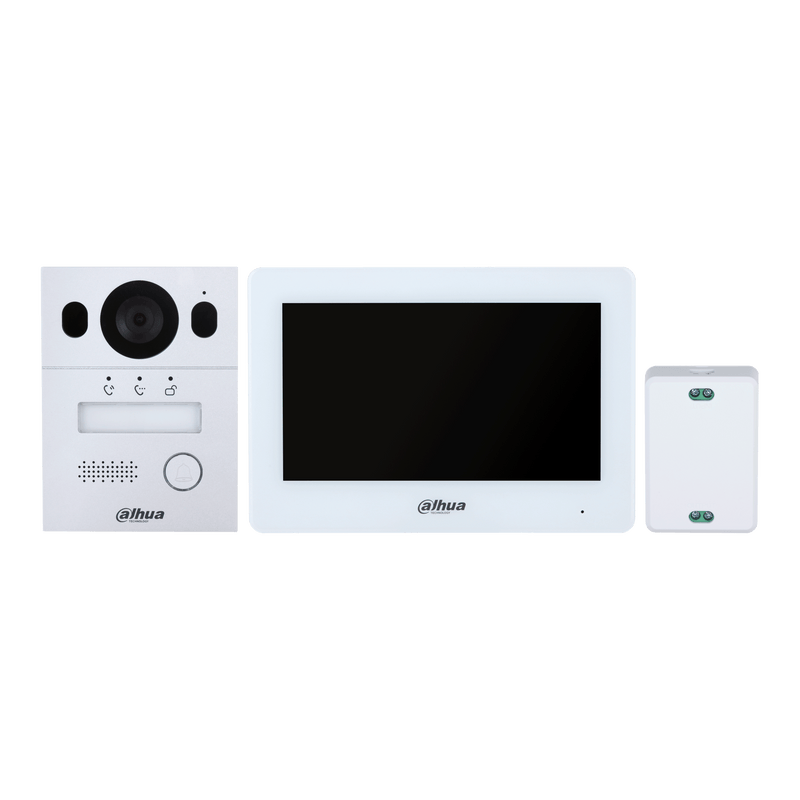

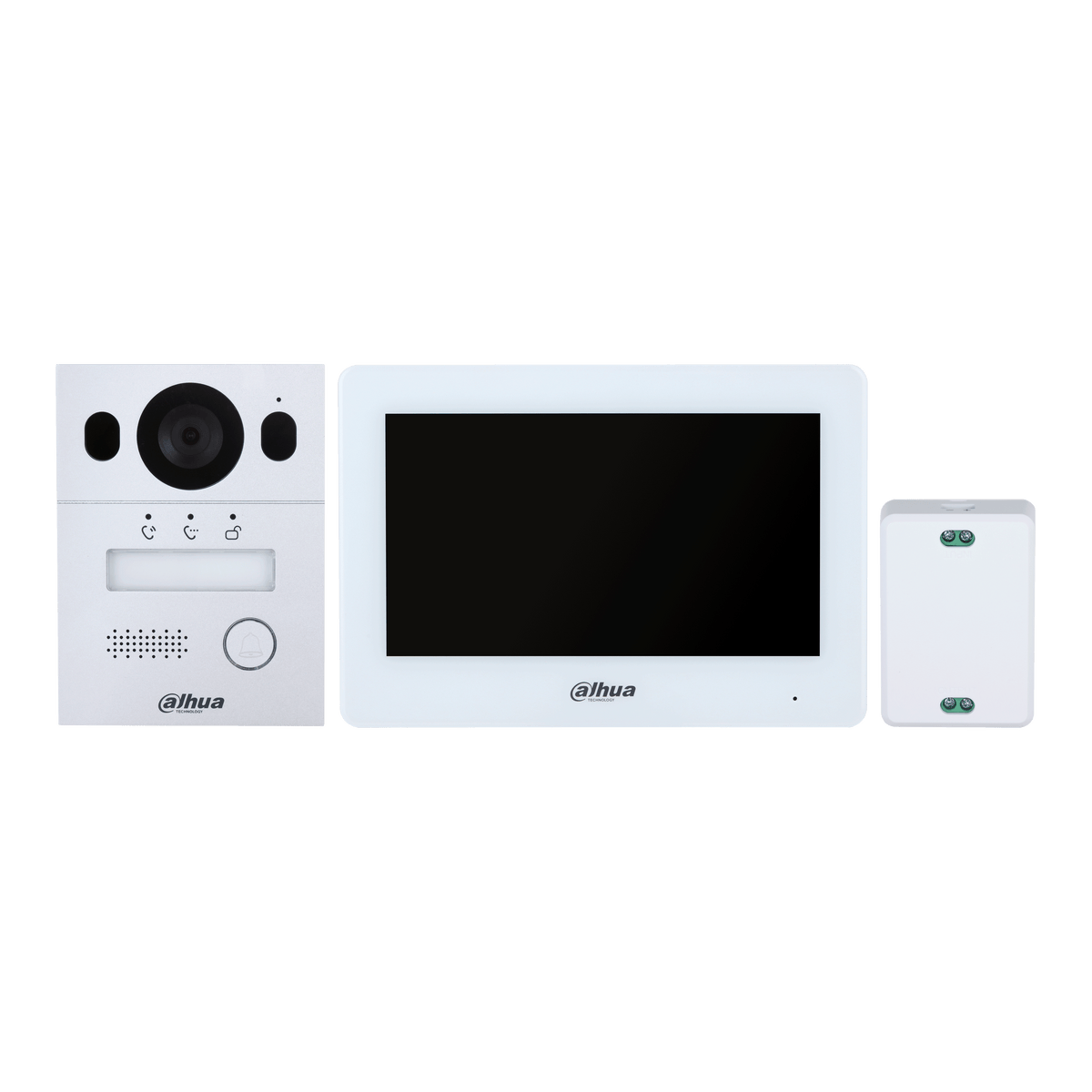

The Dahua DHI-KTX01(S)-S2 is a two-wire hybrid video intercom kit with 2MP door station, 7-inch Wi-Fi monitor, two-wire controller and surface-mount box.

Kit includes

Connection and power: Wire the door station and monitor through the VTNC1003C controller. Monitor Wi-Fi provides network connectivity; it does not replace the two-wire device connections.

Storage: Recording and snapshots require a compatible microSD card in the monitor, up to 64GB. A card is not listed in the kit contents.

DMSS remote functions require a compatible network connection and system configuration. Electric locks, site cabling and installation are arranged separately.

$349.00 AUD $349.00 AUD

Log in to save 3%

Apply for TradePrice Match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the DHI-KTX01(S)-S2 is

The Dahua DHI-KTX01(S)-S2 is a two-wire hybrid video intercom kit with 2MP door station, 7-inch Wi-Fi monitor, two-wire controller and surface-mount box.

Kit includes: 1 × VTO2003F two-wire hybrid door station; 1 × VTH5123H-W 7-inch Wi-Fi touchscreen monitor; 1 × VTNC1003C two-wire controller; 1 × Surface-mount box — VTM115; 1 × Power adapter — 48 VDC controller supply; 1 × Power cord — Included.

The door camera has a 2MP sensor, with PAL 960 × 576 or NTSC 960 × 480 video. Door-to-monitor audio is half duplex.

Wire the door station and monitor through the VTNC1003C controller. Monitor Wi-Fi provides network connectivity; it does not replace the two-wire device connections.

Recording and snapshots require a compatible microSD card in the monitor, up to 64GB. A card is not listed in the kit contents.

02Engineering

DHI-KTX01(S)-S2 specifications

- 2MP door station, 7-inch Wi-Fi monitor, two-wire controller and surface-mount box

- The door camera has a 2MP sensor, with PAL 960 × 576 or NTSC 960 × 480 video. Door-to-monitor audio is half duplex.

- Wire the door station and monitor through the VTNC1003C controller. Monitor Wi-Fi provides network connectivity; it does not replace the two-wire device connections.

- Recording and snapshots require a compatible microSD card in the monitor, up to 64GB. A card is not listed in the kit contents.

03Full datasheet

Detailed specifications

Specification

Specification — Dahua DHI-KTX01(S)-S2 2-Wire Wi-Fi Hybrid Video Intercom Kit
FeatureDetail
Kit configuration DHI-VTO2003F door station; DHI-VTH5123H-W indoor monitor; VTNC1003C 2-wire controller; VTM115 surface-mounted box; one power adapter and one power cord
Door station camera 2 MP CMOS; 110° horizontal and 60° vertical field of view
Indoor display 7-inch capacitive touchscreen; 1024 × 600
Indoor Wi-Fi 2.4 GHz IEEE 802.11b/g/n
Indoor storage MicroSD up to 64 GB; card required for recording and snapshots
Door protection IP65 and IK07
Controller power 48 VDC
Mounting Surface-mount VTM115 box included in the (S) kit

04Why choose this

Built for the way you actually use the DHI-KTX01(S)-S2

Matched system

2MP door station, 7-inch Wi-Fi monitor, two-wire controller and surface-mount box.

Everyday use

The door camera has a 2MP sensor, with PAL 960 × 576 or NTSC 960 × 480 video. Door-to-monitor audio is half duplex.

Connection and power

Wire the door station and monitor through the VTNC1003C controller. Monitor Wi-Fi provides network connectivity; it does not replace the two-wire device connections.

05Where it fits

Right at home in these scenarios

Choosing an entrance system

Choose this two-wire hybrid kit for an installation that matches its cable, power and door-control requirements.

Compare complete kits

Compare the related packages by wiring type, monitor controls, door access method and included power hardware. Cross-brand packages are complete alternatives; their components are not assumed interchangeable.

06Setup

Installation & setup

  1. Check supplied components

    1 × VTO2003F two-wire hybrid door station; 1 × VTH5123H-W 7-inch Wi-Fi touchscreen monitor; 1 × VTNC1003C two-wire controller; 1 × Surface-mount box — VTM115; 1 × Power adapter — 48 VDC controller supply; 1 × Power cord — Included.

  2. Connection and power

    Wire the door station and monitor through the VTNC1003C controller. Monitor Wi-Fi provides network connectivity; it does not replace the two-wire device connections.

  3. Storage and commissioning

    Recording and snapshots require a compatible microSD card in the monitor, up to 64GB. A card is not listed in the kit contents. DMSS remote functions require a compatible network connection and system configuration. Electric locks, site cabling and installation are arranged separately.

08Questions

Frequently asked about the DHI-KTX01(S)-S2

Q.01

What is included?
1 × VTO2003F two-wire hybrid door station; 1 × VTH5123H-W 7-inch Wi-Fi touchscreen monitor; 1 × VTNC1003C two-wire controller; 1 × Surface-mount box — VTM115; 1 × Power adapter — 48 VDC controller supply; 1 × Power cord — Included.
Q.02

How is the system connected and powered?
Wire the door station and monitor through the VTNC1003C controller. Monitor Wi-Fi provides network connectivity; it does not replace the two-wire device connections.
Q.03

Is a memory card included?
Recording and snapshots require a compatible microSD card in the monitor, up to 64GB. A card is not listed in the kit contents.
Q.04

How does this kit differ?
The door camera has a 2MP sensor, with PAL 960 × 576 or NTSC 960 × 480 video. Door-to-monitor audio is half duplex.
Q.05

What else is needed?
DMSS remote functions require a compatible network connection and system configuration. Electric locks, site cabling and installation are arranged separately.
