Dahua DHI-KTD01L(S) 2-Wire IP Video Intercom Kit with Surface-Mount Door Station
1 1
Dahua

Dahua DHI-KTD01L(S) 2-Wire IP Video Intercom Kit with Surface-Mount Door Station

SKU: DHI-KTD01L(S)
Description

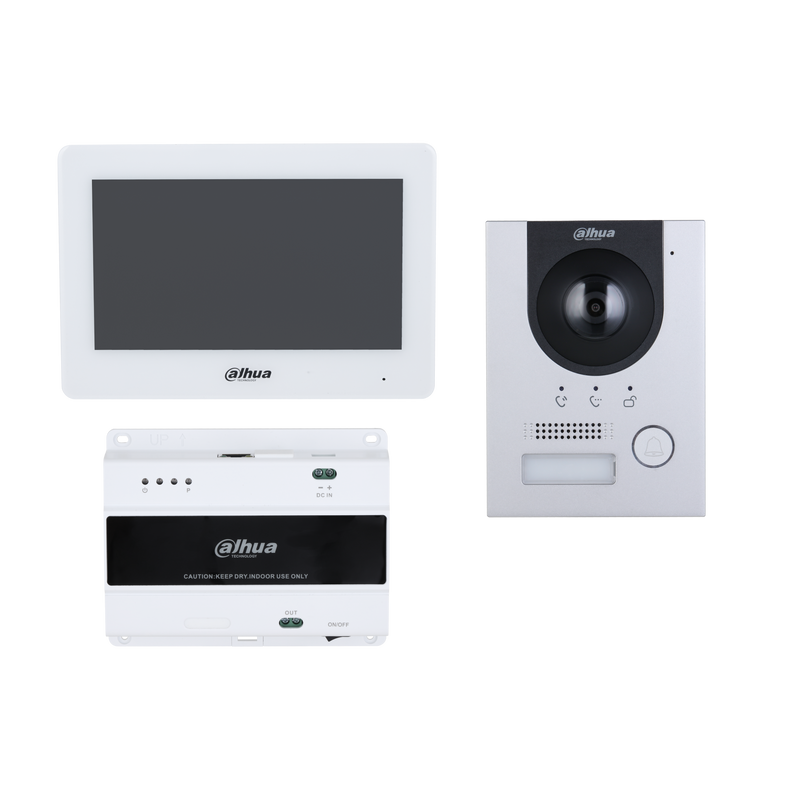

The Dahua DHI-KTD01L(S) two-wire IP video intercom kit combines a VTO2202F-P-S2 door station, VTH5422HW 7-inch indoor monitor and VTNS1001B-2 network controller. It supports visitor video calls, two-way talk and remote door release through a compatible connected lock.

$568.00 AUD $568.00 AUD

Log in to save 3%

Price MatchApply for Trade
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the DHI-KTD01L(S) is

The 2MP door station provides a wide 168.6-degree horizontal view, infrared illumination and 120 dB wide dynamic range. The door station is rated IP65 and IK07; Dahua requires silicone sealing of the shell as described in the quick start guide.

The indoor monitor has a 1024 x 600 capacitive touchscreen. The kit uses Dahua digital two-wire networking; the network controller comes with a 48 VDC power adapter. The (S) package includes the surface-mount box.

02Engineering

DHI-KTD01L(S) specifications

System: 2-wire IP
Display: 7-inch touchscreen
Camera: 2MP wide-angle
Mounting: Surface mount

03Full datasheet

Detailed specifications

Specifications

Specifications — Dahua DHI-KTD01L(S) 2-Wire IP Video Intercom Kit with Surface-Mount Door Station
FeatureDetail
Kit model DHI-KTD01L(S)
Door station DHI-VTO2202F-P-S2
Indoor monitor DHI-VTH5422HW
Network controller DHI-VTNS1001B-2
Display 7-inch TFT capacitive touchscreen, 1024 x 600
Door camera 2MP CMOS
Door field of view 168.6 degrees horizontal / 87.1 degrees vertical
Wide dynamic range 120 dB
Door protection IP65 / IK07 with required installation sealing
System connection Digital two-wire IP
Monitor storage microSD, up to 64 GB
Controller power 48 VDC adapter included
Installation Surface-mount box included
