Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD

Dahua

Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD

Name: Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Brand: Dahua
Price: 1234.45 AUD
Availability: InStock

SKU: DH-IPC-HDW2549EMP-S-PRO-ANZ

Description

1 x DHI-NVR4108HS-8P-AI/ANZ with 4TB HDD,
4 x DH-IPC-HDW2549EMP-S-PRO-ANZ.

$1,234.45 AUD

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock

Customize this kit Kit price $1,234.45

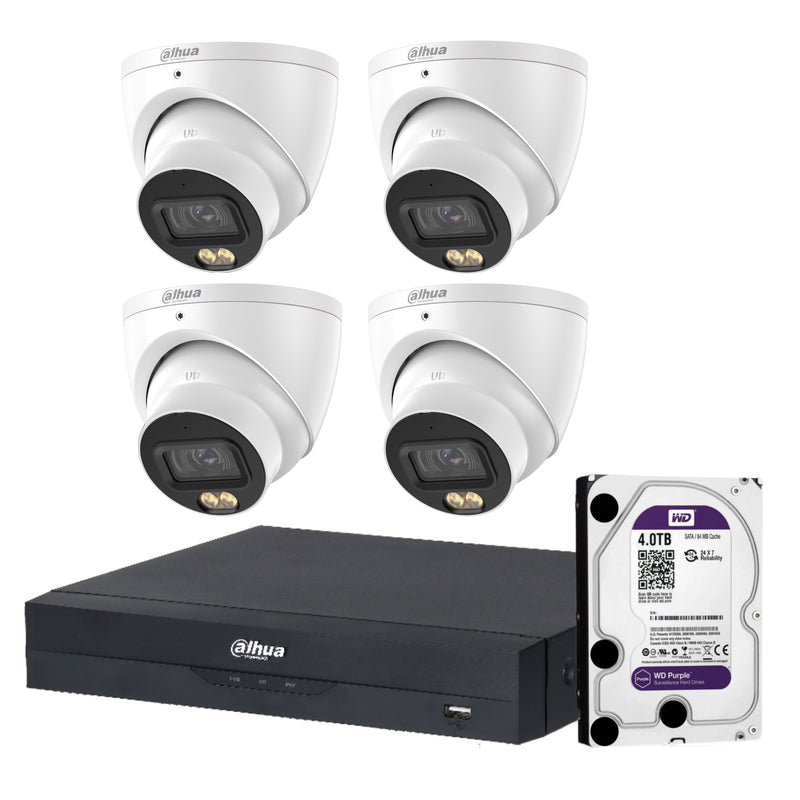

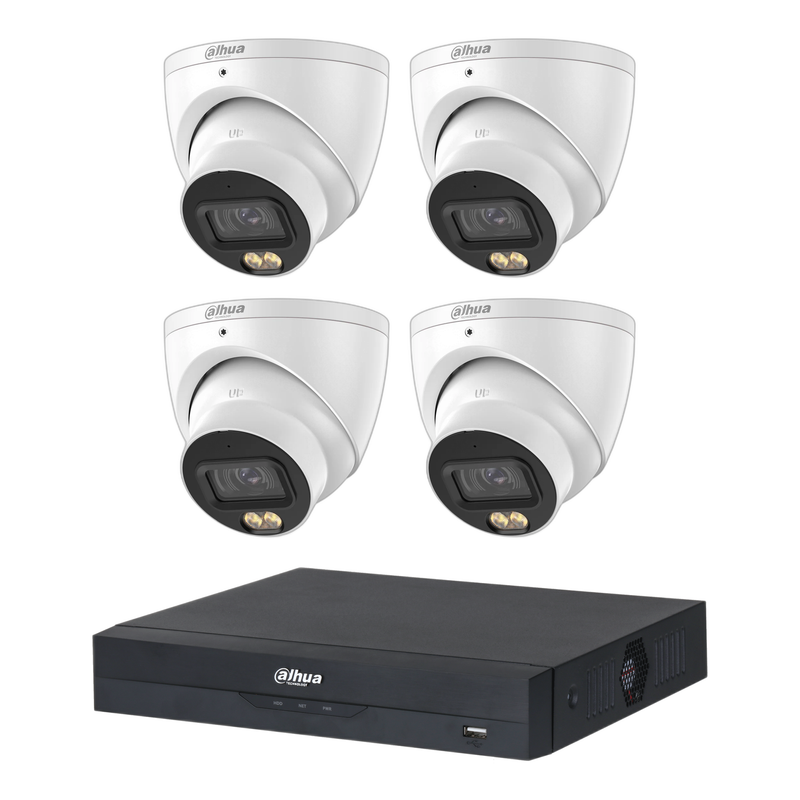

This kit includes:

4 × Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ 5MP WizColor Series Network Camera
1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder (8ch)
1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)

Add extra cameras Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ 5MP WizColor Series Network Camera · max 16

+$0.00

NVR Base: 8ch · Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder

8ch Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up... Base (included)

Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder

16ch Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 1... +$297.80

Hard Drive Base: 4TB · 4TB HDD – WD Purple / Seagate Surveil...

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB 4TB HDD – WD Purple / Seagate Surveillance HDD ... Base (included)

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB 6TB HDD – WD Purple / Seagate Surveillance HDD ... +$135.55

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB 8TB HDD – Purple / Skyhawk Surveillance Hard Dr... +$275.70

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB 10TB HDD – Purple Surveillance Hard Drive for D... +$429.55

Notes for warehouse (optional)

3-Year Warranty

Warranty on all cameras

Free Shipping

On orders over $300

30-Day Returns

Easy returns for unopened items

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What this product is

The DH-IPC-HDW2549EMP-S-PRO-ANZ & DHI-NVR4108HS-8P-AI/ANZ CCTV Kit delivers a high-performance surveillance solution for Australian homes and small organisations. It ensures reliable 24/7 security by combining vivid colour night vision with intelligent AI-driven alerts for comprehensive property protection.

§ 02Engineering

Technical specifications

- 4 x 5MP Cameras: Turret-style outdoor WizColor cameras with 2960 × 1668 resolution, featuring full-colour night imaging and built-in microphones.

- WizColor Technology: Utilises large-aperture lenses and warm LED illumination to capture vibrant, true-to-life colour video even in complete darkness.

- SMD 4.0 AI: Accurately distinguishes between human and vehicle targets to significantly reduce false alarms caused by animals, foliage, or weather.

- Integrated Microphones: Captures clear audio alongside video streams to provide essential situational context and enhanced evidence for security events.

- IP67 Weather Resistance: Robust camera housing designed to withstand the harsh Australian climate, ensuring long-term durability against rain and dust.

- Smart H.265+ Compression: Optimises bandwidth and storage efficiency, allowing for longer recording history without compromising 5MP image quality.

- Intelligent AI Search: Supports rapid filtering of recorded footage to quickly locate specific human or vehicle incidents during playback review.

- 8CH NVR System: Base setup supports four cameras, expandable with four additional PoE ports and adjustable HDD storage options.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
Image Sensor	1/1.8" CMOS
Max. Resolution	2960 (H) × 1668 (V)
ROM	128 MB
RAM	256 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0005 lux@F1.0
S/N Ratio	>56 dB
Day/Night	Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
LDC	Yes

Lens & Distance

Lens & Distance — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
Lens Type	Fixed-focal
Lens Mount	M16
Focal Length	2.8 mm
Max. Aperture	F1.0
Field of View	2.8 mm: H: 112°; V: 60°; D: 134°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 1.7 m (5.58 ft)
DORI Distance	2.8 mm: Detect 57.9 m (189.96 ft); Observe 23.2 m (76.12 ft); Recognize 11.6 m (38.06 ft); Identify 5.8 m (19.03 ft)
Pan Range	0°–360°
Tilt Range	0°–78°
Rotation Range	0°–360°

Night Vision

Night Vision — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
Illumination Distance	Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	2 (Warm light)
Smart Illumination	Yes

Video

Video — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
Video Frame Rate	Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps) \| sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability	2 streams
Resolution	5M (2960 × 1668); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	VBR;CBR
Video Bit Rate	H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps

Audio

Audio — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726

AI & Deep Learning

AI & Deep Learning — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
IVS (Perimeter Protection)	Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human);
SMD	SMD Plus
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Network & Storage

Network & Storage — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registeration
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI
User/Host	20 (Total bandwidth: 48 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser	IE; Chrome; Firefox
Management Software	Smart PSS Lite; DSS; DMSS
Mobile Client	iOS;Android
Cyber Security	Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Event & Alarm

Event & Alarm — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Interface

Interface — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
Network Port	RJ-45 (10/100 Base-T)

General & Environment

General & Environment — Dahua 4 x 5MP+ 8 Channels Kit:4x WizColor Turrets with SMD 4.0 + 8CH PoE NVR+ 4TB HDD
Feature	Detail
Power Supply	12 VDC; PoE
Power Consumption	Basic: 2.0 W (12 VDC); 2.5 W (PoE); Max.: 5.3 W (12 VDC); 6.4 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Protection	IP67
Casing Material	Inner core: Metal; Cover: Plastic
Product Dimensions	109.5 mm × Φ109.9 mm (4.31" × Φ4.33")
Net Weight	0.42 kg (0.93 lb)
Gross Weight	0.59 kg (1.30 lb)
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

§ 08In motion

WizColor HDW2549 Camera Review

Dahua WizColor Series | Turn Night As Bright As Daylight

Dahua WizColor Technologies
