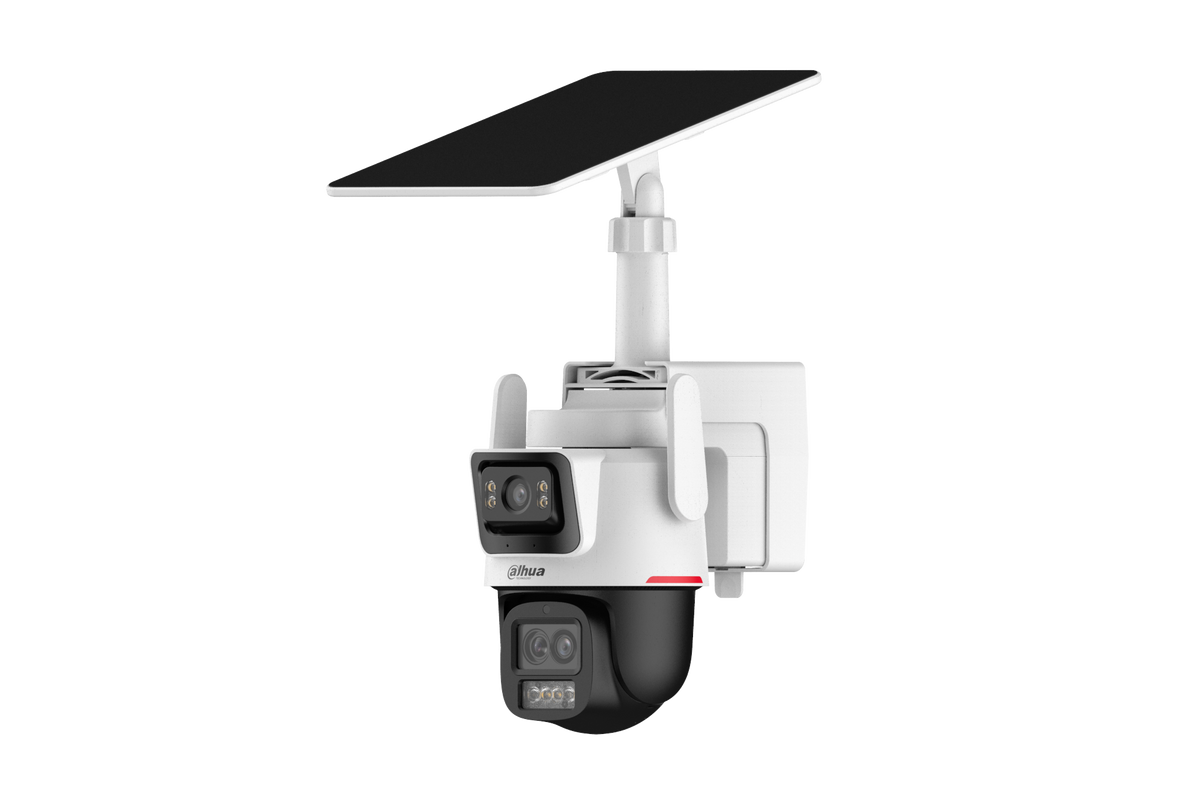

Dahua DH-IPC-PTS2649C-3E3Z-4GB20 Dual 3MP 4G Solar PT Camera
1 1
Dahua

Dahua DH-IPC-PTS2649C-3E3Z-4GB20 Dual 3MP 4G Solar PT Camera

SKU: DH-IPC-PTS2649C-3E3Z-4GB20
Description

Dahua DH-IPC-PTS2649C-3E3Z-4GB20 combines a fixed view with a movable pan-and-tilt view. Each channel provides 3MP imaging, allowing one view to retain scene context while the other follows activity.
$489.00 AUD $489.00 AUD
Installation in Sydney & Melbourne Through licensed local installers
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $859.00

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $489.00

01Overview

What the DH-IPC-PTS2649C-3E3Z-4GB20 is

Dahua DH-IPC-PTS2649C-3E3Z-4GB20 combines a fixed view with a movable pan-and-tilt view. Each channel provides 3MP imaging, allowing one view to retain scene context while the other follows activity.

The camera offers 6× hybrid zoom, SMD 3.0 and Auto Tracking Lite. Built-in microphones and a speaker support two-way audio, with light and sound warnings available for configured events.

A 4G connection, 65Wh battery and 8W solar panel support an installation away from a wired link. Confirm SIM compatibility, mobile signal, panel exposure and storage requirements before mounting the unit.

02Engineering

DH-IPC-PTS2649C-3E3Z-4GB20 specifications

Dahua DH-IPC-PTS2649C-3E3Z-4GB20 — Resolution: 3 MP
Imaging: Two 3 MP views; 2304 × 1296 at up to 15 fps per channel
Fixed lens: 2.8 mm, F1.0; 93.5° horizontal view
PT lenses: 3.6 mm / 8.4 mm; 6× hybrid zoom
Pan and tilt: 350° pan; 90° tilt
Events: SMD 3.0; Auto Tracking Lite; light and sound warnings
Warm illumination: Fixed view up to 30 m; PT view up to 50 m
Audio and storage: Two-way audio; microSD up to 512 GB

03Full datasheet

Detailed specifications

Specification

Specification — Dahua DH-IPC-PTS2649C-3E3Z-4GB20 Dual 3MP 4G Solar PT Camera
FeatureDetail
Resolution 3 MP
Imaging Two 3 MP views; 2304 × 1296 at up to 15 fps per channel
Fixed lens 2.8 mm, F1.0; 93.5° horizontal view
PT lenses 3.6 mm / 8.4 mm; 6× hybrid zoom
Pan and tilt 350° pan; 90° tilt
Events SMD 3.0; Auto Tracking Lite; light and sound warnings
Warm illumination Fixed view up to 30 m; PT view up to 50 m
Audio and storage Two-way audio; microSD up to 512 GB
Connectivity 4G; compatible SIM and coverage required
Energy system 65 Wh ternary lithium battery; 8 W solar panel
Charging Type-C with QC2.0
Protection IP66

04Why choose this

Built for the way you actually use the DH-IPC-PTS2649C-3E3Z-4GB20

Match the view to the task

Dahua DH-IPC-PTS2649C-3E3Z-4GB20 supports a defined camera view for the site. Position the lens around the entrance, path or activity area that needs coverage.

Work with changing light

Set exposure and available illumination for the scene, then check footage under the brightest and darkest expected conditions.

Plan a complete system

Check mobile coverage, energy use and storage before choosing a location away from a wired network.

05Where it fits

Right at home in these scenarios

Entrance monitoring

Dahua DH-IPC-PTS2649C-3E3Z-4GB20 can monitor an approach to a building. Test the image at the distance where people pause or pass through.

Remote site monitoring

Use the mobile connection where a wired link is impractical. Confirm local signal strength and a clear solar-panel position before fixing the hardware.

Day and night recording

Review sample footage at the intended mounting height. Reflections, surrounding lighting and target movement all affect the usable image.

06Setup

Installation & setup

  1. Plan connections

    Dahua DH-IPC-PTS2649C-3E3Z-4GB20 requires the specified power and network arrangements. Check the complete connection path before mounting.

  2. Position and secure

    Choose a fixing surface suited to the camera weight. Protect cable entries and follow the mounting and sealing instructions for the housing.

  3. Commission the recording

    Set the supported resolution and frame rate, confirm the camera view and test playback. Configure only the event and audio functions required by the site.
