Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK 8MP Dome
1 1
Dahua

Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK 8MP Dome

SKU: DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK
Description

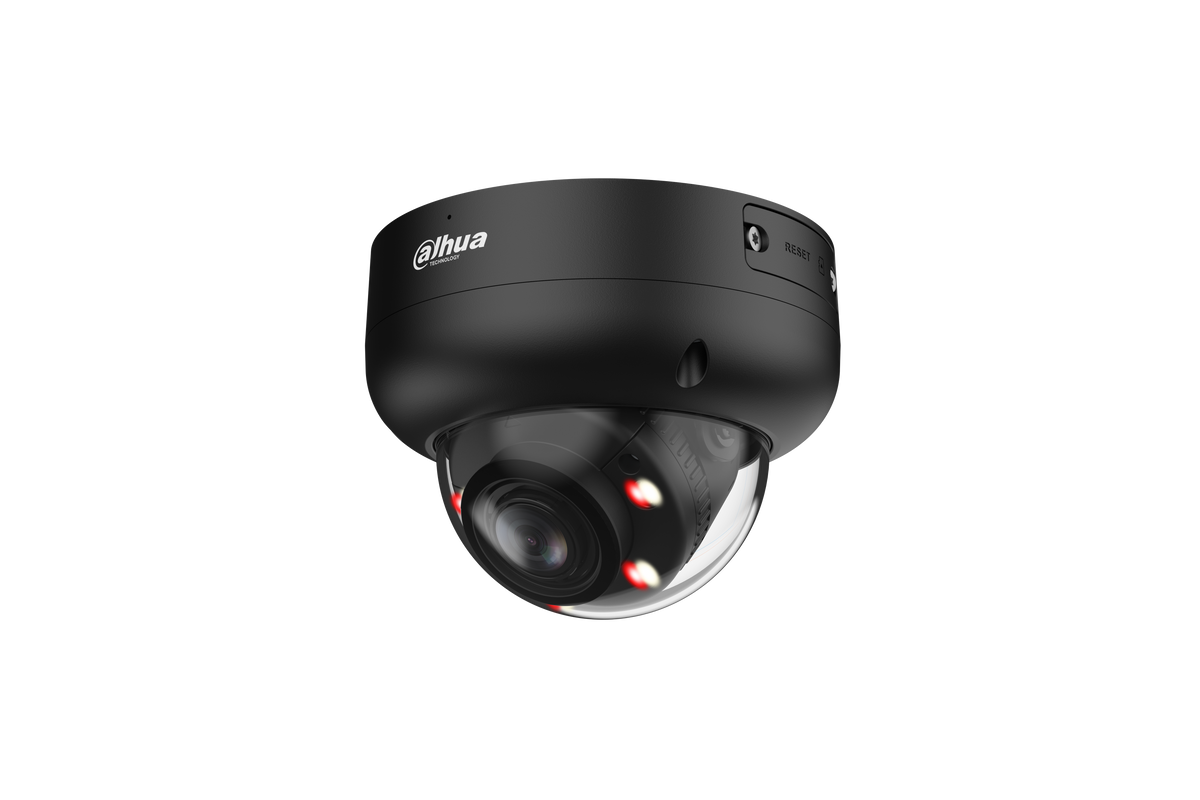

The Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK is the black housing version of Dahua's 8MP Smart Dual Light vari-focal dome for the Australia and New Zealand market. Its motorised 2.7 to 13.5 mm lens lets an installer set the field of view after the dome is mounted, and the built-in IR and warm light illuminators each reach up to 50 m. WizSense analytics classify people and vehicles for tripwire and intrusion rules, and the metal IP67, IK10 housing suits exposed or public locations where a dark finish is wanted.
$430.00 AUD $430.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $800.00

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $430.00

§ 01Overview

What the DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK is

Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK. This dome records 3840 x 2160 video from a 1/2.7-inch CMOS sensor at up to 25 or 30 frames per second, with an F1.4 lens and 120 dB wide dynamic range for entrances and car parks with mixed lighting. The motorised 2.7 to 13.5 mm lens gives an identification distance of 8.5 m at the wide end and 28 m at the tele end, so one model covers both a broad approach and a tighter view of a gate or doorway.

Smart Dual Light keeps the IR illuminator on at night and switches to the warm light when the camera detects a target, recording the event in colour before returning to IR when the target leaves. Tripwire and intrusion rules classify human and vehicle targets, SMD 4.0 filters motion events, and AcuPick supports target search on compatible Dahua back-end devices.

The camera has a built-in microphone plus one RCA audio input, one RCA audio output, one alarm input and one alarm output, and takes a microSD card up to 512 GB. It runs on 12 VDC or 802.3af PoE with maximum consumption of 9.2 W on DC or 11.3 W on PoE, is rated IP67 and IK10, and operates from -30 °C to +60 °C.

§ 02Engineering

DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK specifications

Motorised 2.7 to 13.5 mm lens sets the view after mounting, identify distance 8.5 m wide to 28 m tele
Smart Dual Light runs IR at night and switches to warm light for colour recording when a target is detected, both up to 50 m
Tripwire and intrusion rules classify people and vehicles, with SMD 4.0 and AcuPick on compatible Dahua back-end devices
Built-in microphone plus RCA audio in and out and one alarm input and output for external devices
Black metal IP67 IK10 housing rated -30 °C to +60 °C, powered by 12 VDC or 802.3af PoE

§ 03Full datasheet

Detailed specifications

Specification

Specification — Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK 8MP Dome
FeatureDetail
Model DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK (black housing of IPC-HDBW3867R-ZAS-IL-ANZ)
Image sensor 1/2.7-inch CMOS
Maximum resolution 3840 x 2160 (8MP), main stream 1 to 25/30 fps
Lens Motorised vari-focal 2.7 to 13.5 mm, F1.4
Illumination IR up to 50 m and warm light up to 50 m (Smart Dual Light)
Minimum illumination 0.007 lux colour, 0.0007 lux black and white at F1.4 (30 IRE)
Wide dynamic range 120 dB
Video compression H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
Smart functions Tripwire and intrusion with human and vehicle classification, SMD 4.0, AcuPick, AI SSA
Audio Built-in microphone, 1 RCA audio input, 1 RCA audio output
Alarm I/O 1 alarm input (wet contact), 1 alarm output (wet contact, 300 mA 12 VDC)
Local storage microSD card up to 512 GB
Interoperability ONVIF Profile S, G, T, M; CGI
Power 12 VDC or PoE (802.3af); basic 3.3 W DC / 4.0 W PoE; maximum 9.2 W DC / 11.3 W PoE
Protection rating IP67, IK10
Operating temperature -30 °C to +60 °C
Dimensions and weight 94.0 mm x Ø122.0 mm, 560 g
DORI identify distance 8.5 m wide, 28 m tele
Resolution 8 MP
Smart Dual Light operation IR at night; visible light on for a target in the monitoring area, then off and IR resumes when the target leaves

§ 08Questions

Frequently asked about the DH-IPC-HDBW3867R-ZAS-IL-ANZ-BLK

Q.01

Does the warm light stay on all night, or only when someone is detected?
In the Smart Dual Light operation described in the datasheet, IR is used at night. When a target enters the monitored area, the visible light switches on for colour recording, then turns off as the target leaves and IR resumes. This describes smart operation rather than a promise about factory settings on every unit.
Q.02

Can I connect an external speaker, microphone or alarm device to this dome?
The datasheet lists a built-in microphone, one RCA audio input and one RCA audio output, plus one wet-contact alarm input and one wet-contact alarm output rated 300 mA at 12 VDC. Confirm the electrical and audio interface requirements of the external device before choosing it; these ports do not establish compatibility with every speaker, siren or door contact.
