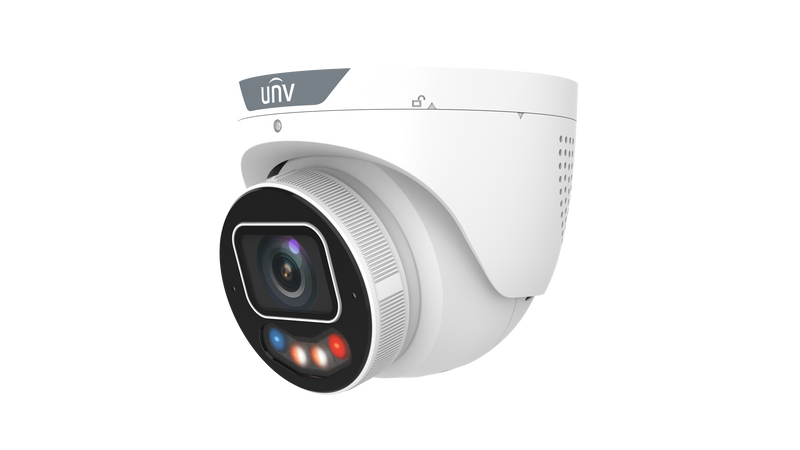

Uniview IPC3638SE-ADZKMC-WP-I 8MP Tri-Guard Zoom Turret
SKU: IPC3638SE-ADZKMC-WP-I
Description
The Uniview IPC3638SE-ADZKMC-WP-I is an 8 MP outdoor turret with a 2.8 to 12 mm motorised lens, ColorHunter night imaging, Tri-Guard smart intrusion prevention and two-way audio through its speaker and two microphones.
What you get
- IPC3638SE-ADZKMC-WP-I — motorised turret with IR and warm light to 30 m, plus IP67, IK10 and NEMA 4X protection
You'll also need
- A compatible PoE recorder or PoE switch, or a DC 12 V±25% power supply
- One network cable run per camera
- Storage — a recorder with a hard drive, NAS or a Micro SD card up to 512 GB
- A compatible mounting accessory where the cable cannot pass directly through the mounting surface
Regular price
$523.80 AUD
Sale price
$523.80 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews

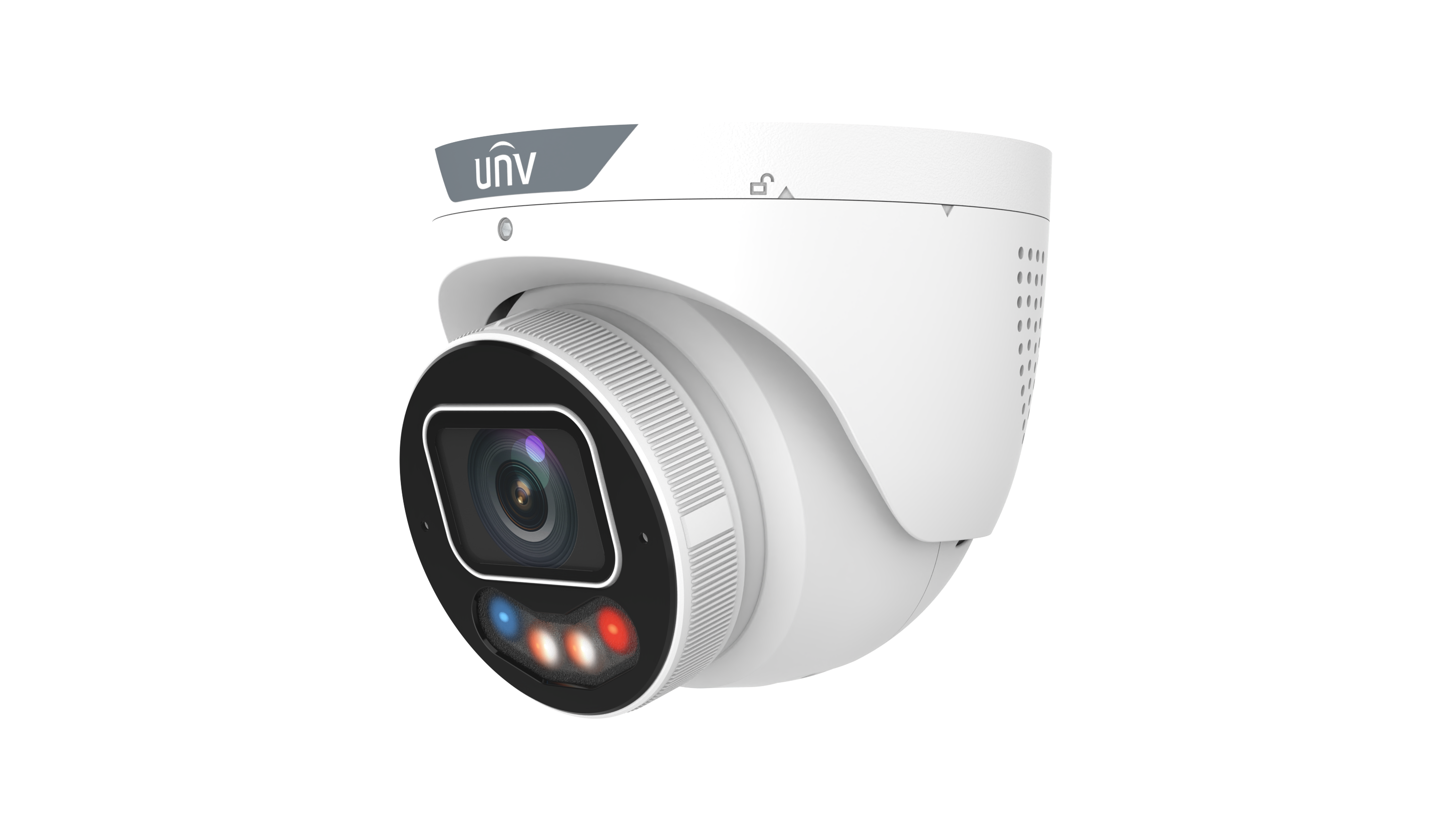

Uniview IPC3638SE-ADZKMC-WP-I 8MP Tri-Guard Zoom Turret
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
—
Complete setup from
$1,106.60
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
§ 01Overview
What the IPC3638SE-ADZKMC-WP-I is
The Uniview IPC3638SE-ADZKMC-WP-I is the turret to choose when the required framing will only become clear during commissioning. Its motorised lens runs from 2.8 to 12 mm, changing the horizontal field of view from 111.5° to 54.1°. Across those lens endpoints, DORI identify changes from 6.3 m to 27.0 m, while DORI detect changes from 63.0 m to 270.0 m.
The camera records 8MP (3840 × 2160) at 30 fps using a 1/1.8" CMOS sensor and F1.2 lens. ColorHunter with Wise ISP supports full-colour night imaging, while the dual illuminator provides 850 nm infrared to 30 m or warm light to 30 m. 130 dB WDR balances scenes containing strongly contrasting bright and dark areas.
The camera's Smart Intrusion Prevention covers cross-line, intrusion, enter-area and leave-area detection, with false-alarm filtering and classification of humans, vehicles and non-motor vehicles. People-flow counting, crowd-density monitoring and object-left or object-removed detection provide additional monitoring choices. Two microphones, a built-in speaker and two-way audio support conversation, while alarm and audio inputs and outputs are available for compatible integrations.
The metal body carries IP67, IK10 and NEMA 4X protection and operates from -30 °C to 60 °C with a maximum draw of 7.0 W. The lens position is motorised, but its F1.2 iris is fixed rather than adjustable. The Australian warranty period is 36 Months.
See it in action
What the IPC3638SE-ADZKMC-WP-I features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
Dual-Light Night Vision
Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
False Alarm Reduction
Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Illustrative — simulated for demonstration
§ 02Engineering
IPC3638SE-ADZKMC-WP-I specifications
Uniview IPC3638SE-ADZKMC-WP-I imaging — 1/1.8" CMOS · 8MP (3840 × 2160) at 30 fps · triple streams — records full resolution at the maximum frame rate
Motorised framing — 2.8 to 12 mm F1.2 · 111.5° to 54.1° horizontal — provides a broad view or tighter framing from the same lens
DORI range — identify 6.3 m to 27.0 m · detect 63.0 m to 270.0 m — shows how reach changes between the lens endpoints
Night imaging — ColorHunter with Wise ISP · 0.0005 lux · 850 nm IR to 30 m · warm light to 30 m — offers discreet infrared or illuminated colour
Intrusion filtering — cross line, intrusion, enter and leave area · human, vehicle and non-motor vehicle classification — helps prioritise defined targets
Two-way audio — two microphones · built-in speaker · audio and alarm I/O — lets users hear and speak while retaining integration connections
Backlight control — 130 dB WDR — balances detail where bright and dark areas share the frame
Storage — Micro SD up to 512 GB · ANR · NAS — provides local and network recording options
Outdoor build — metal · IP67 · IK10 · NEMA 4X · -30 °C to 60 °C · 4 KV surge protection — adds multiple layers of environmental protection
Motorised framing — 2.8 to 12 mm F1.2 · 111.5° to 54.1° horizontal — provides a broad view or tighter framing from the same lens
DORI range — identify 6.3 m to 27.0 m · detect 63.0 m to 270.0 m — shows how reach changes between the lens endpoints
Night imaging — ColorHunter with Wise ISP · 0.0005 lux · 850 nm IR to 30 m · warm light to 30 m — offers discreet infrared or illuminated colour
Intrusion filtering — cross line, intrusion, enter and leave area · human, vehicle and non-motor vehicle classification — helps prioritise defined targets
Two-way audio — two microphones · built-in speaker · audio and alarm I/O — lets users hear and speak while retaining integration connections
Backlight control — 130 dB WDR — balances detail where bright and dark areas share the frame
Storage — Micro SD up to 512 GB · ANR · NAS — provides local and network recording options
Outdoor build — metal · IP67 · IK10 · NEMA 4X · -30 °C to 60 °C · 4 KV surge protection — adds multiple layers of environmental protection
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Max Resolution | 8 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Colour: 0.0005 lux (F1.2, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | > 56 dB |
| WDR | 130 dB |
| Auto Scene Match (ASM) | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Corridor Mode | Support 9:16 Corridor Mode |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 2.8 to 12 mm |
| Iris Type | Fixed |
| Iris | F1.2 |
| Lens Type | Motorized |
| Field of View (H) | 111.5° to 54.1° |
| Field of View (V) | 60.2° to 30.6° |
| Field of View (D) | 128.7° to 61.9° |
| DORI Lens | 2.8 mm, 12.0 mm |
| DORI Detect | 63.0 m (206.7 ft), 270.0 m (885.8 ft) |
| DORI Observe | 25.2 m (82.7 ft), 108.0 m (354.3 ft) |
| DORI Recognize | 12.6 m (41.3 ft), 54.0 m (177.2 ft) |
| DORI Identify | 6.3 m (20.7 ft), 27.0 m (88.6 ft) |
Night Vision
| Feature | Detail |
|---|---|
| Colour Technology | Colorhunter with Wise ISP technology ensures 24 hour full color images |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| IR On/Off Control | Auto/Manual |
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Main Stream Frame Rate | 8MP (3840 × 2160), Max 30 fps; 5MP (3072 × 1728), Max 30 fps; 4MP (2560 × 1440), Max 30 fps; 1080P (1920 × 1080), Max 30 fps; 720P (1280 × 720), Max 30 fps |
| Sub Stream Frame Rate | 1080P (1920 × 1080), Max 30 fps; 720P (1280 × 720), Max 30 fps; D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps |
| Third Stream Frame Rate | D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Built-in Mic | Built-in two mics |
| Built-in Speaker | Support |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| Attribute Collection | SIP with color retrieval |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
Network & Storage
| Feature | Detail |
|---|---|
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
Event & Alarm
| Feature | Detail |
|---|---|
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Alarm I/O | 1/1 |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
Power & Electrical
| Feature | Detail |
|---|---|
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 7.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Surge Protection | 4 KV |
General & Environment
| Feature | Detail |
|---|---|
| Dimensions | Ø129 × 110 mm (Ø5.1" × 4.3") (Ø × H) |
| Weight | 0.99 kg (2.19 lb) |
| Material | Metal |
| Protection | IP67 (IEC 60529); IK10 (IEC 62262); NEMA 4X |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Reset Button | Support |
| Certification EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4); FCC (FCC 47 CFR part15 B) |
| Certification Safety | CE-LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Certification Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
| Web Client Language | 20 Languages |
| Compatible Accessories | TR-JB03-H-IN Junction Box for Metal Turret Camera (Support wiring from behind); TR-JB07/WM03-F-IN Wall Mounting Assembling Bracket with Back Hole for 3 Inch Hemisphere; TR-WM03-B-IN Wall Mounting Assembling Bracket for 3 Inch Hemisphere; TR-UC08-C Bullet and Dome Corner Mounting Bracket; TR-SE24-IN Dome Pendant Mounting Pole 200mm; TR-SE24-A-IN Dome Pendant Mounting Pole 500mm; TR-CM24-IN Dome Pendant Mounting Bracket (Indoor); TR-UP06-IN Universal Pole Mounting Bracket |
| Series | PRIME-III (Tri-Guard) |
| Colour | WHITE |
| Warranty | 36 Months |
| Camera & Image — Max Resolution | 8 MP |
|---|---|
| Camera & Image — Sensor | 1/1.8" CMOS |
| Camera & Image — Min. Illumination | Colour: 0.0005 lux (F1.2, AGC ON) |
| Camera & Image — Day/Night | IR-cut filter with auto switch (ICR) |
| Camera & Image — Shutter | Auto/Manual, 1 to 1/100000 s |
| Camera & Image — Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Camera & Image — S/N | > 56 dB |
| Camera & Image — WDR | 130 dB |
| Camera & Image — Auto Scene Match (ASM) | Support |
| Camera & Image — White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Camera & Image — Digital Noise Reduction | 2D/3D DNR |
| Camera & Image — Smart IR | Support |
| Camera & Image — Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Camera & Image — Corridor Mode | Support 9:16 Corridor Mode |
| Camera & Image — HLC | Support |
| Camera & Image — BLC | Support |
| Camera & Image — Defog | Digital defog |
| Lens & Distance — Focal Length | 2.8 to 12 mm |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Iris | F1.2 |
| Lens & Distance — Lens Type | Motorized |
| Lens & Distance — Field of View (H) | 111.5° to 54.1° |
| Lens & Distance — Field of View (V) | 60.2° to 30.6° |
| Lens & Distance — Field of View (D) | 128.7° to 61.9° |
| Lens & Distance — DORI Lens | 2.8 mm, 12.0 mm |
| Lens & Distance — DORI Detect | 63.0 m (206.7 ft), 270.0 m (885.8 ft) |
| Lens & Distance — DORI Observe | 25.2 m (82.7 ft), 108.0 m (354.3 ft) |
| Lens & Distance — DORI Recognize | 12.6 m (41.3 ft), 54.0 m (177.2 ft) |
| Lens & Distance — DORI Identify | 6.3 m (20.7 ft), 27.0 m (88.6 ft) |
| Night Vision — Colour Technology | Colorhunter with Wise ISP technology ensures 24 hour full color images |
| Night Vision — Supplemental Light | Dual light |
| Night Vision — Illumination Distance (IR) | 30 m (98.4 ft) |
| Night Vision — Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Night Vision — IR On/Off Control | Auto/Manual |
| Night Vision — Light On/Off Control | Auto/Manual |
| Night Vision — Wavelength | 850 nm |
| Video — Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video — H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video — Main Stream Frame Rate | 8MP (3840 × 2160), Max 30 fps; 5MP (3072 × 1728), Max 30 fps; 4MP (2560 × 1440), Max 30 fps; 1080P (1920 × 1080), Max 30 fps; 720P (1280 × 720), Max 30 fps |
| Video — Sub Stream Frame Rate | 1080P (1920 × 1080), Max 30 fps; 720P (1280 × 720), Max 30 fps; D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps |
| Video — Third Stream Frame Rate | D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps |
| Video — Video Bit Rate | 128 Kbps to 16 Mbps |
| Video — U-code | Support |
| Video — OSD | Up to 8 OSDs |
| Video — Privacy Mask | Up to 4 areas |
| Video — ROI | Support |
| Video — Video Stream | Triple streams |
| Audio — Audio Compression | G.711U, G.711A |
| Audio — Audio Bitrate | 64 Kbps |
| Audio — Two-way Audio | Support |
| Audio — Suppression | Support |
| Audio — Sampling Rate | 8 kHz |
| Audio — Built-in Mic | Built-in two mics |
| Audio — Built-in Speaker | Support |
| AI & Deep Learning — Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| AI & Deep Learning — People Counting | Support people flow counting and crowd density monitoring |
| AI & Deep Learning — Attribute Collection | SIP with color retrieval |
| AI & Deep Learning — Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| Network & Storage — Edge Storage | Micro SD, up to 512 GB |
| Network & Storage — Network Storage | ANR, NAS (NFS) |
| Network & Storage — Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Network & Storage — Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Network & Storage — User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Network & Storage — Client | UNV-Link, UNV-Link Pro, EZStation |
| Network & Storage — Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Event & Alarm — General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Event & Alarm — Alarm I/O | 1/1 |
| Event & Alarm — Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Power & Electrical — Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power & Electrical — Power Consumption | Max 7.0 W |
| Power & Electrical — Power Interface | Ø5.5 mm coaxial power plug |
| Power & Electrical — Surge Protection | 4 KV |
| General & Environment — Dimensions | Ø129 × 110 mm (Ø5.1" × 4.3") (Ø × H) |
| General & Environment — Weight | 0.99 kg (2.19 lb) |
| General & Environment — Material | Metal |
| General & Environment — Protection | IP67 (IEC 60529); IK10 (IEC 62262); NEMA 4X |
| General & Environment — Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| General & Environment — Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| General & Environment — Reset Button | Support |
| General & Environment — Certification EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4); FCC (FCC 47 CFR part15 B) |
| General & Environment — Certification Safety | CE-LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| General & Environment — Certification Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
| General & Environment — Web Client Language | 20 Languages |
| General & Environment — Compatible Accessories | TR-JB03-H-IN Junction Box for Metal Turret Camera (Support wiring from behind); TR-JB07/WM03-F-IN Wall Mounting Assembling Bracket with Back Hole for 3 Inch Hemisphere; TR-WM03-B-IN Wall Mounting Assembling Bracket for 3 Inch Hemisphere; TR-UC08-C Bullet and Dome Corner Mounting Bracket; TR-SE24-IN Dome Pendant Mounting Pole 200mm; TR-SE24-A-IN Dome Pendant Mounting Pole 500mm; TR-CM24-IN Dome Pendant Mounting Bracket (Indoor); TR-UP06-IN Universal Pole Mounting Bracket |
| General & Environment — Series | PRIME-III (Tri-Guard) |
| General & Environment — Colour | WHITE |
| General & Environment — Warranty | 36 Months |
§ 04Why choose this
Built for the way you actually use the IPC3638SE-ADZKMC-WP-I
Plan for greater reach
DORI identify changes from 6.3 m at 2.8 mm to 27.0 m at 12.0 mm, while DORI detect changes from 63.0 m to 270.0 m. Those categories make it easier to compare candidate mounting positions and lens settings.
Choose colour or discreet IR at night
ColorHunter with Wise ISP holds colour down to 0.0005 lux. Dual-light illumination provides 850 nm infrared to 30 m or warm light to 30 m, with automatic or manual light control.
Focus alarms on defined targets
Smart Intrusion Prevention classifies humans, vehicles and non-motor vehicles while supporting false-alarm filtering. Cross-line, intrusion, enter-area and leave-area rules let the installer define the activity that matters.
Hear and speak through the camera
Two microphones, a built-in speaker and two-way audio support conversation through a compatible client. Separate audio and alarm inputs and outputs remain available for compatible integrations.
Protection for exposed positions
The metal housing combines IP67, IK10 and NEMA 4X protection with operation from -30 °C to 60 °C and 4 KV surge protection. Those ratings provide several layers of protection for demanding outdoor placements.
§ 05Where it fits
Right at home in these scenarios
Long driveway entrance
Mount the Uniview IPC3638SE-ADZKMC-WP-I where the driveway enters a defined monitoring zone and use the 12.0 mm setting for a 54.1° horizontal view. DORI identify at 27.0 m and DORI detect at 270.0 m help guide placement without guaranteeing a particular subject outcome.
Yard access point
Use the 2.8 mm setting and its 111.5° horizontal field to monitor one defined approach rather than expecting one camera to cover an entire yard. The motorised lens can then be narrowed towards the gate or path that needs more concentrated framing.
Loading bay or side entrance
Object-left and object-removed detection can monitor a defined bay, while Smart Intrusion Prevention places a line or area rule across the entrance. The built-in speaker and microphones also let staff communicate through a compatible client.
§ 06Setup
Installation & setup
Package contents check
Open the carton and confirm the Uniview IPC3638SE-ADZKMC-WP-I model label, camera body, cable tail and every other received item against the order confirmation before discarding the packaging. Check for transit damage. Compatible mounting accessories sold separately include the TR-JB03-H-IN junction box, TR-WM03-B-IN wall bracket, TR-SE24-IN pendant mounting pole, TR-CM24-IN pendant bracket and TR-UP06-IN pole bracket.
Cabling
Run one network cable per camera back to the recorder or PoE switch, and keep each run within the maximum supported by that equipment. Measure the actual route before ordering cable. Protect the tail-cable junction inside a waterproof junction box, pole chamber or conduit, and plan separate connections if the audio or alarm I/O will be used.
Power
PoE (IEEE 802.3af) carries power and data through the network connection with a maximum draw of 7.0 W. The alternative input is DC 12 V±25%.
Recorder and monitor
For central recording, place a compatible recorder where it can connect to the router and fit a hard drive sized for the recording plan. A monitor connected to the recorder makes initial configuration easier, while standalone recording can use a Micro SD card up to 512 GB.
App and network setup
Supported clients include UNV-Link, UNV-Link Pro and EZStation. For EZCloud enrolment, connect the camera or recorder to the router in the same network segment, enable EZCloud and scan the displayed code in EZView.
When you need an electrician
Use a licensed electrician for a new mains power point or any other mains-voltage work. A PoE connection to existing compatible equipment avoids needing a separate power point beside the camera.
§ 08Questions
Frequently asked about the IPC3638SE-ADZKMC-WP-I
Q.01
Does the Uniview IPC3638SE-ADZKMC-WP-I record in colour at night?
Yes. ColorHunter with Wise ISP supports full-colour imaging, with a minimum illumination of 0.0005 lux and warm-light illumination to 30 m. It can also use 850 nm infrared to 30 m, while Day/Night mode can operate automatically or be fixed to colour or black and white.
Q.02
How does the motorised lens change the view?
The lens moves from 2.8 to 12 mm, changing its horizontal field of view from 111.5° to 54.1°. Across those settings, DORI identify changes from 6.3 m to 27.0 m and DORI detect changes from 63.0 m to 270.0 m. These are standard DORI categories rather than guaranteed face or person outcomes.
Q.03
Can I talk through the camera?
It supports two-way audio through two built-in microphones and a built-in speaker. A compatible client can be used to hear and speak through it, while external audio input and output remain available.
Q.04
Can I add more cameras later?
Yes, provided the chosen recorder has spare compatible channels and sufficient PoE capacity. Choose the recorder around the total number of cameras expected at the finished site, because the recorder sets the expansion limit.
Q.05
Will it work with a non-Uniview recorder?
It supports ONVIF Profile S, Profile G, Profile T and Profile M for compatible third-party systems. Both devices must support a common protocol, and setup uses the camera's network address and login. If it connects without live video, changing compression to H.264, disabling U-code or adjusting RTSP authentication can help.
Q.06
How is it powered, and what should I check if it will not start?
It uses PoE (IEEE 802.3af) or DC 12 V±25%, with a maximum draw of 7.0 W. For PoE, one network cable carries data and power between the camera and compatible equipment. If it will not start, cross-test the cable and power source with known-good equipment.
Q.07
Can it record without a recorder?
Yes, it supports a Micro SD card up to 512 GB for local video and snapshots. NAS is available for network storage, while ANR can use card storage when communication with central storage is interrupted. Cached video can transfer back after communication is restored.
Q.08
Is it suitable for exposed outdoor installation?
The metal housing is rated IP67, IK10 and NEMA 4X and operates from -30 °C to 60 °C at Humidity: ≤ 95% RH (non-condensing). Keep the tail-cable junction inside a waterproof junction box, pole chamber or conduit rather than leaving it exposed. Do not install a waterproof junction box horizontally where water can pool.
Q.09
What is the Australian warranty period?
The Australian warranty period is 36 Months. Keep the purchase record and product identification available for a warranty request.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Choose the recorder for the finished system
The Uniview IPC3638SE-ADZKMC-WP-I can receive PoE power and send video through a compatible network recorder. Select the recorder's channel capacity and PoE capacity around the total camera count planned for the completed site.
Plan one cable route per camera
Each camera uses its own Ethernet connection through a 1 × RJ45 10 M/100 M Base-TX interface. Measure the path before ordering and use compatible PoE equipment where power and data will share the run.
Choose local or central storage
A Micro SD card up to 512 GB supports recording at the camera, while NAS provides network storage. ANR can use local card storage during an interruption and transfer cached video after communication returns.
