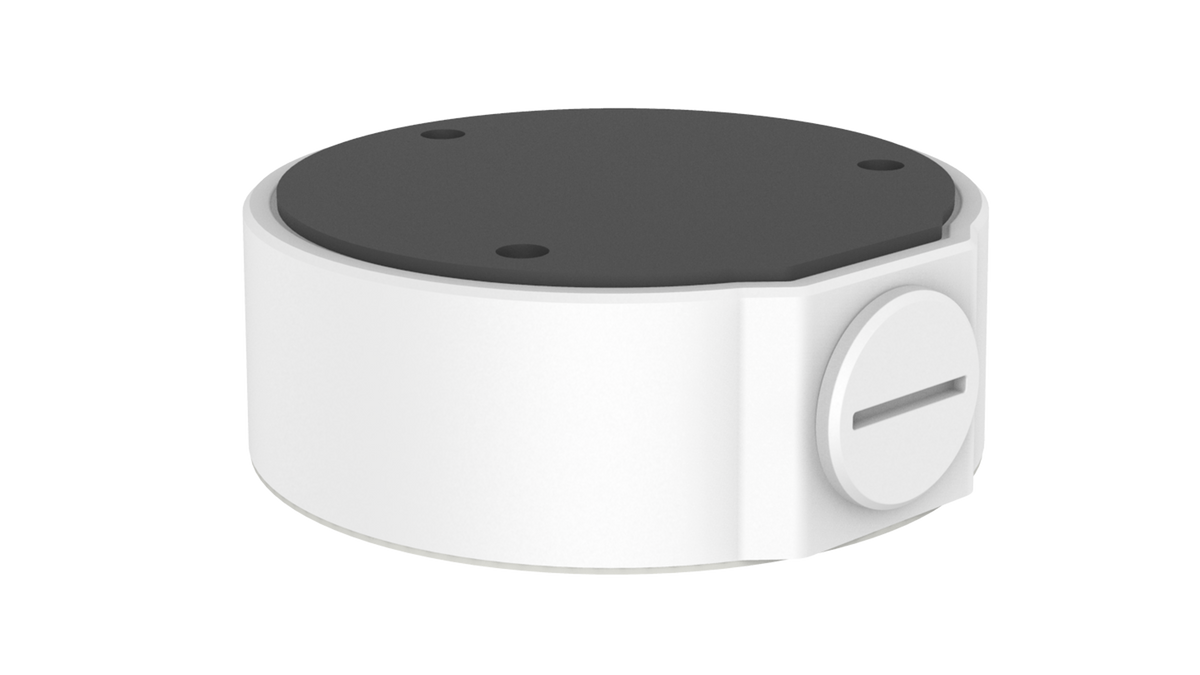

Uniview TR-JB03-H-IN-V2-SE Junction Box for Metal Turret Cameras
1 1
Uniview

Uniview TR-JB03-H-IN-V2-SE Junction Box for Metal Turret Cameras

SKU: TR-JB03-H-IN-V2-SE
Description

The Uniview TR-JB03-H-IN-V2-SE is the junction box for a metal turret camera, and it supports wiring from behind, so the cable can leave through the wall rather than down its face.

What you get

  • 1 × TR-JB03-H-IN-V2-SE junction box, white aluminium alloy, three-hole pattern, with NPS 3/4" thread

You'll also need

  • A metal turret camera it is listed for, and the fixings suited to the surface
$13.70 AUD $13.70 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the TR-JB03-H-IN-V2-SE is

The Uniview TR-JB03-H-IN-V2-SE is made for the metal turret cameras in the Uniview range, and its useful trick is that it supports wiring from behind. On a brick or rendered wall that means the cable disappears straight into the cavity instead of running down to a gland.

It is aluminium alloy in white, 126.0 mm across and 38.5 mm deep, weighing 0.24 kg, with a three-hole mounting pattern and an NPS 3/4" thread, and it suits mini dome, dome, turret, UFO and fixed dome camera types. It does not include the camera or the fixings, and it is a junction box rather than a wall arm, so a camera that has to stand off the wall needs a bracket as well. The warranty is 12 Months.

§ 03Full datasheet

Detailed specifications

General & Environment

General & Environment — Uniview TR-JB03-H-IN-V2-SE Junction Box for Metal Turret Cameras
FeatureDetail
Application Junction box for Metal Turret Camera (Support wiring from behind)
Dimensions Φ126.0 mm × 38.5 mm (Φ5.0” × 1.5”)
Weight 0.24 kg (0.53 lb)
Material Aluminum alloy
Thread Type NPS 3/4" thread
Mounting Hole Configurations 3 HOLES
Colour WHITE
Suits Camera Type MINI DOME; DOME; TURRET; UFO; FIXED DOME
Warranty 12 Months
Model TR-JB03-H-IN-V2-SE
Bracket Dimensions Φ126.0 mm × 38.5 mm (Φ5.0” × 1.5”)
Bracket Weight 0.24 kg (0.53 lb)
Bracket Material Aluminum alloy
