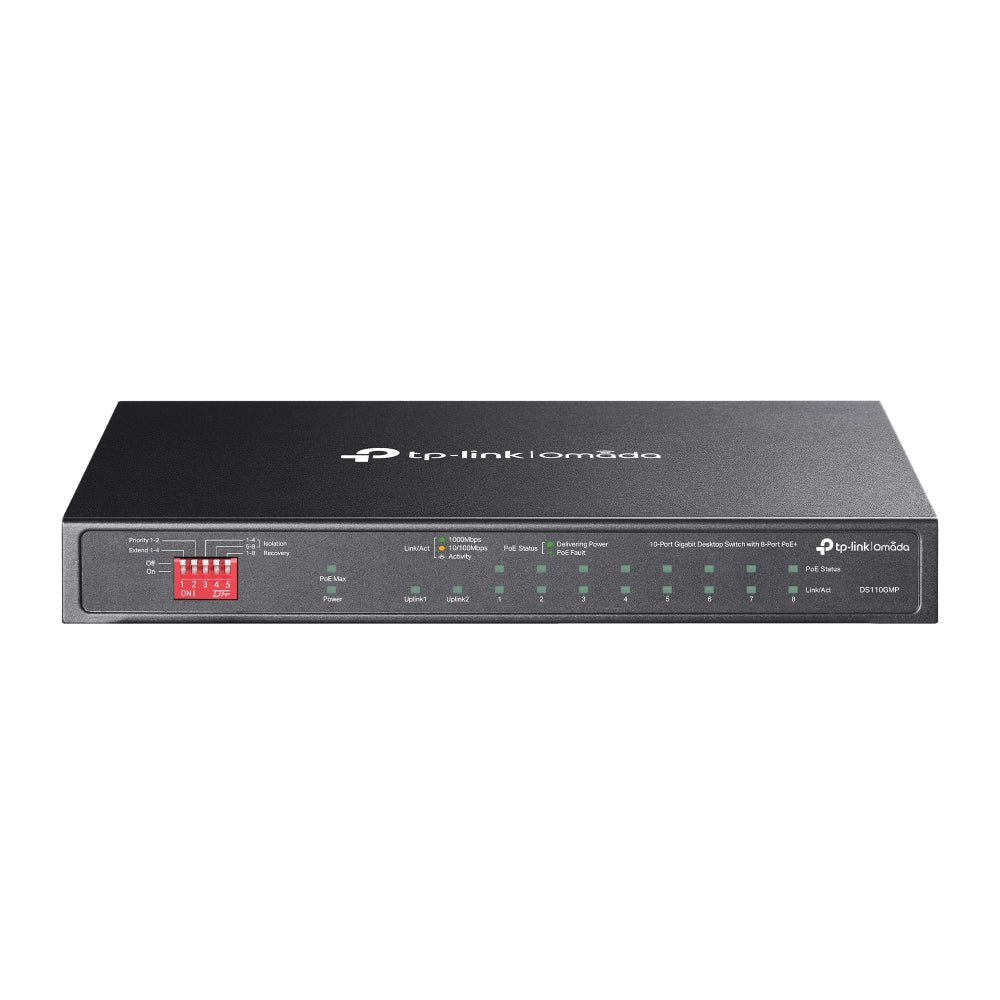

TP-Link Omada DS110GMP 10-Port Gigabit 123W PoE+ Switch
The TP-Link Omada DS110GMP is a fanless, unmanaged Gigabit switch with eight IEEE 802.3af/at PoE+ ports. It provides a shared PoE budget of 123 W, with up to 30 W per powered port, for compatible cameras, access points and other PoE devices. Its ten-port layout comprises nine Gigabit RJ45 ports and one Gigabit SFP/RJ45 combo port.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the TL-DS110GMP is
Use the DS110GMP for a plug-and-play network where Omada SDN central management is not required.
Front-panel modes provide port priority, isolation and PoE Auto Recovery.
Extend Mode applies to ports 1–4 and can reach up to 250 m, but reduces those ports to 10 Mbps; achievable distance depends on cable quality and the powered device.
Size the combined PoE load within the shared 123 W budget rather than assuming eight simultaneous 30 W loads.
02Engineering
TL-DS110GMP specifications
PoE budget: 123 W shared total; up to 30 W per PoE port
Uplink flexibility: Gigabit RJ45 and SFP/RJ45 combo connectivity
Operation: Unmanaged plug-and-play; fanless
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Manufacturer model | DS110GMP; supplier SKU TL-DS110GMP |
| Port layout | 9× 10/100/1000 Mbps RJ45; 1× 1000 Mbps SFP/RJ45 combo port |
| PoE ports | Ports 1–8; IEEE 802.3af/at |
| PoE output | 123 W total budget; up to 30 W per PoE port |
| Extend Mode | Ports 1–4; up to 250 m at 10 Mbps, subject to cable and device conditions |
| Priority Mode | Ports 1–2 |
| Isolation Mode | Port groups 1–4 / 5–8 |
| PoE Auto Recovery | Ports 1–8 |
| Management | Unmanaged; no Omada SDN central management |
| Switching performance | 20 Gbps switching capacity; 14.88 Mpps forwarding rate |
| MAC / jumbo frames | 4K MAC table; 16 KB jumbo frames |
| Power adapter output | 53.5 V DC, 2.43 A |
| Construction / mounting | Fanless; desktop or wall mounting |
| Dimensions (W × D × H) | 209 × 126 × 26 mm |
| Operating conditions | 0 °C to 40 °C; 10% to 90% RH, non-condensing |
| Package contents | Switch, power adapter, installation guide and rubber feet (UN 1.20 datasheet) |
| Specifications — Manufacturer model | DS110GMP; supplier SKU TL-DS110GMP |
|---|---|
| Specifications — Port layout | 9× 10/100/1000 Mbps RJ45; 1× 1000 Mbps SFP/RJ45 combo port |
| Specifications — PoE ports | Ports 1–8; IEEE 802.3af/at |
| Specifications — PoE output | 123 W total budget; up to 30 W per PoE port |
| Specifications — Extend Mode | Ports 1–4; up to 250 m at 10 Mbps, subject to cable and device conditions |
| Specifications — Priority Mode | Ports 1–2 |
| Specifications — Isolation Mode | Port groups 1–4 / 5–8 |
| Specifications — PoE Auto Recovery | Ports 1–8 |
| Specifications — Management | Unmanaged; no Omada SDN central management |
| Specifications — Switching performance | 20 Gbps switching capacity; 14.88 Mpps forwarding rate |
| Specifications — MAC / jumbo frames | 4K MAC table; 16 KB jumbo frames |
| Specifications — Power adapter output | 53.5 V DC, 2.43 A |
| Specifications — Construction / mounting | Fanless; desktop or wall mounting |
| Specifications — Dimensions (W × D × H) | 209 × 126 × 26 mm |
| Specifications — Operating conditions | 0 °C to 40 °C; 10% to 90% RH, non-condensing |
| Specifications — Package contents | Switch, power adapter, installation guide and rubber feet (UN 1.20 datasheet) |
08Questions
Frequently asked about the TL-DS110GMP
Q.01
Can the Omada controller manage this switch?
Q.02
Does Extend Mode keep Gigabit speed over 250 metres?
