Hikvision DS-KAD7060EY Two-Wire HD Distributor
1 1
Hikvision

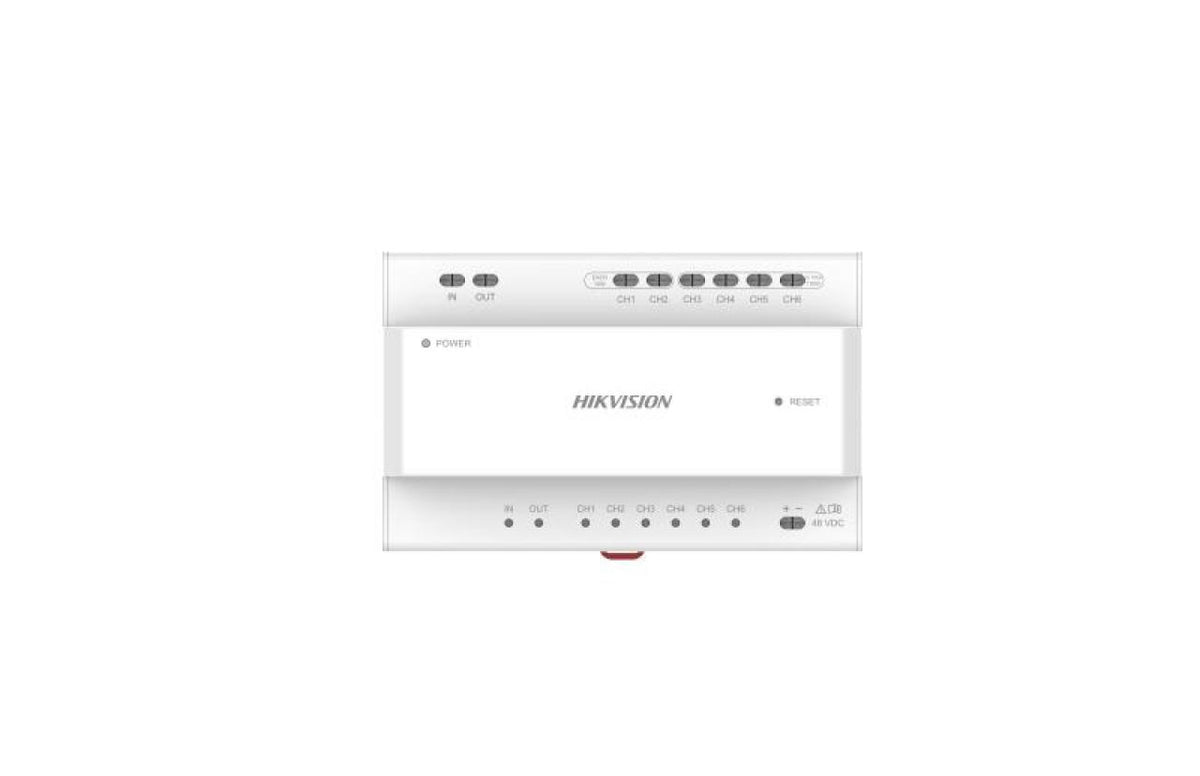

Hikvision DS-KAD7060EY Two-Wire HD Distributor

SKU: DS-KAD7060EY
Description

Hikvision DS-KAD7060EY distributes power and network signals over two-wire cabling in a compatible HD intercom system. Its station channels and cascade connections support a structured building layout.
$236.00 AUD $236.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-KAD7060EY is

Hikvision DS-KAD7060EY distributes power and network signals over two-wire cabling in a compatible HD intercom system. Its station channels and cascade connections support a structured building layout.

Use CH1–CH6 for the door and indoor station connections, with IN and OUT reserved for the cascade path. The interface indicators provide a local view of connection status.

The unit uses a 48VDC supply and DIN rail mounting. For a system connecting multiple buildings, its cascade arrangement can include the DS-KAD7060EY-S cascade distributor.

§ 02Engineering

DS-KAD7060EY specifications

Hikvision DS-KAD7060EY — System role: Two-wire HD power and network distribution for door stations, indoor stations and 7061 devices
Station channels: CH1–CH6 for door and indoor stations
Cascade interfaces: IN and OUT for cascading; eight two-wire interfaces in total
Power input: 48 VDC
Mounting: DIN rail installation
Indicators: Eight signal indicators and one power indicator; reset button
Dimensions: 143.7 x 92.4 x 65.9 mm

§ 03Full datasheet

Detailed specifications

Specification

Specification — Hikvision DS-KAD7060EY Two-Wire HD Distributor
FeatureDetail
System role Two-wire HD power and network distribution for door stations, indoor stations and 7061 devices
Station channels CH1–CH6 for door and indoor stations
Cascade interfaces IN and OUT for cascading; eight two-wire interfaces in total
Power input 48 VDC
Mounting DIN rail installation
Indicators Eight signal indicators and one power indicator; reset button
Dimensions 143.7 x 92.4 x 65.9 mm
Cascade support DS-KAD7060EY cascade or DS-KAD7060EY-S for communication between multiple buildings
Temperature -10°C to 55°C

§ 08Questions

Frequently asked about the DS-KAD7060EY

Q.01

Can all eight DS-KAD7060EY interfaces connect indoor stations?
CH1–CH6 are the station channels. IN and OUT have a cascade role, so the eight-interface total should not be treated as eight interchangeable station channels.
Q.02

How does it connect with the EY-S version in a larger system?
The IN/OUT arrangement supports cascading DS-KAD7060EY units or connection to DS-KAD7060EY-S for network communication between buildings. Select each unit for its role in the system topology rather than treating the two model suffixes as equivalent.
