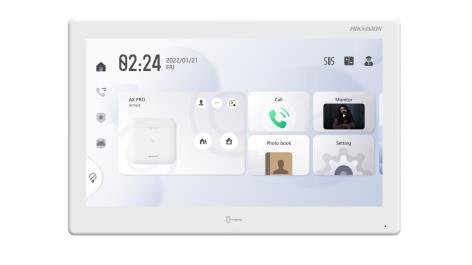

Hikvision DS-KH9510-WTE1 10.1-Inch Android Indoor Station
The Hikvision DS-KH9510-WTE1 is a 10.1-inch indoor video intercom station supplied in the B revision. A capacitive touch display, built-in microphone and speaker provide the interface for a compatible intercom installation.
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KH9510-WTE1 is
Hikvision DS-KH9510-WTE1 in the B revision gives the indoor answering point a larger touch interface, with Android application support and both wired and wireless network options.
Choose this station when a larger indoor display and Android application support are required. Compare the Hikvision range for other indoor stations and verify door-station compatibility and firmware before combining devices.
Plan an indoor surface-mounted position with Ethernet or suitable Wi-Fi coverage. Use the specified DC supply or standard PoE. A TF card and the optional table bracket are separate selections; confirm any third-party application requirements before deployment.
§ 02Engineering
DS-KH9510-WTE1 specifications
Display — 10.1-inch IPS capacitive touch screen; 1024 x 600
Memory — 2 GB RAM and 8 GB ROM
Network — 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi
Power — 12 VDC, 1 A or standard IEEE 802.3af PoE
Audio — Built-in microphone and loudspeaker; echo cancellation
Storage — TF card support up to 128 GB
§ 03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Manufacturer version | DS-KH9510-WTE1(B) |
| Display | 10.1-inch IPS capacitive touch screen; 1024 x 600 |
| Memory | 2 GB RAM and 8 GB ROM |
| Network | 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi |
| Power | 12 VDC, 1 A or standard IEEE 802.3af PoE |
| Audio | Built-in microphone and loudspeaker; echo cancellation |
| Storage | TF card support up to 128 GB |
| Dimensions | 254 x 166 x 26.65 mm |
| Environment | Indoor; -10 to 50 degrees C |
| Application platform | Built-in Android system; supports Android application installation |
| Optional accessory | DS-KABH9510-T table bracket |
| Specification — Manufacturer version | DS-KH9510-WTE1(B) |
|---|---|
| Specification — Display | 10.1-inch IPS capacitive touch screen; 1024 x 600 |
| Specification — Memory | 2 GB RAM and 8 GB ROM |
| Specification — Network | 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi |
| Specification — Power | 12 VDC, 1 A or standard IEEE 802.3af PoE |
| Specification — Audio | Built-in microphone and loudspeaker; echo cancellation |
| Specification — Storage | TF card support up to 128 GB |
| Specification — Dimensions | 254 x 166 x 26.65 mm |
| Specification — Environment | Indoor; -10 to 50 degrees C |
| Specification — Application platform | Built-in Android system; supports Android application installation |
| Specification — Optional accessory | DS-KABH9510-T table bracket |
