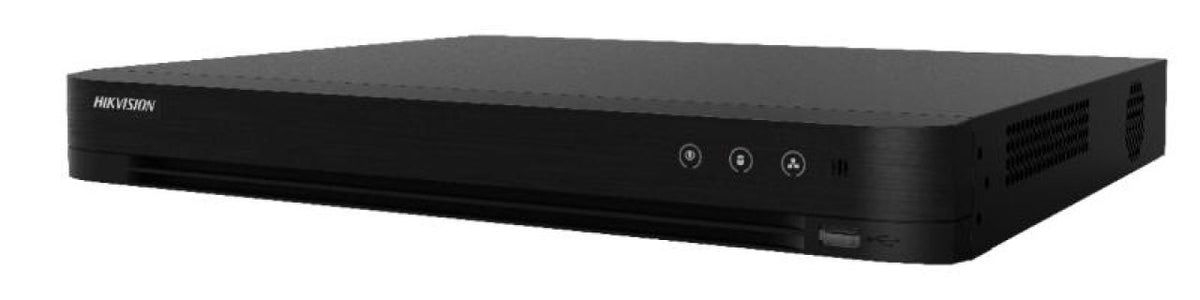

Hikvision iDS-7208HUHI-M2/S 8-Channel AcuSense DVR
Keep compatible coaxial cameras in service with the Hikvision iDS-7208HUHI-M2/S AcuSense DVR. Its eight BNC inputs accept multiple analogue formats, with network camera inputs available for a mixed installation. Supplied without a hard drive.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the iDS-7208HUHI-M2/S is
The Hikvision iDS-7208HUHI-M2/S is designed for analogue and mixed CCTV installations. Its BNC connections accept HDTVI, AHD, HDCVI and CVBS cameras, while network inputs allow compatible IP cameras to join the system. Check each camera format and resolution before connecting existing equipment.
Choose the recording resolution and frame rate together. Full 8 MP recording is specified at 8 fps, while 5 MP recording runs at 12 fps. The recorder provides separate HDMI and VGA display connections and supports simultaneous output.
AcuSense offers human and vehicle classification through Motion Detection 2.0 or perimeter protection. These two modes cannot run at the same time; enhanced IP mode also has potential conflicts with smart events. Plan the channel configuration around the analytics you need.
Two internal SATA interfaces provide room for a recording storage plan using compatible drives. This listing does not include a hard drive. Hik-Connect support provides a remote access option after network setup.
02Engineering
iDS-7208HUHI-M2/S specifications
Resolution and frame rate — record 8 MP at 8 fps or 5 MP at 12 fps.
Motion Detection 2.0 — classify people and vehicles on the analogue inputs.
Perimeter analysis — protect up to 4 channels; select this instead of Motion Detection 2.0.
Two SATA bays — accommodate drives up to 10 TB each for your recording plan.
Local monitoring — connect HDMI and VGA displays, with HDMI output up to 4K.
03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Analogue inputs | 8 BNC channels; HDTVI, AHD, HDCVI and CVBS |
| IP input configuration | 4 IP channels, expandable to 12; enhanced IP mode supports 8, expandable to 16, at up to 4 Mbps per channel |
| Recording rates | 8 MP at 8 fps; 5 MP and 3K at 12 fps; 4 MP at 15 fps |
| Compression | H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 |
| Motion detection | Human and vehicle classification on all analogue channels |
| Perimeter protection | Human and vehicle analysis on up to 4 channels |
| Analytics modes | Motion Detection 2.0 and perimeter protection cannot operate simultaneously; enhanced IP mode may conflict with smart events |
| Storage interfaces | 2 SATA interfaces; up to 10 TB per disk |
| Playback | 8-channel synchronous playback |
| Video outputs | HDMI up to 4K at 30 Hz; VGA up to 1080p at 60 Hz; simultaneous HDMI and VGA |
| Network | 1 RJ45 10/100/1000 Mbps Ethernet interface; total bandwidth 128 Mbps |
| Audio | 1 RCA input and 1 RCA output; audio over coax supported |
| Remote access | Hik-Connect, DDNS and HTTPS |
| USB | 1 USB 2.0 and 1 USB 3.0 port |
| Power | 12 VDC; consumption up to 15 W |
| Operating temperature | -10 to 55 °C |
| Dimensions | 380 × 320 × 48 mm |
| Weight | Up to 2 kg |
| Specification — Analogue inputs | 8 BNC channels; HDTVI, AHD, HDCVI and CVBS |
|---|---|
| Specification — IP input configuration | 4 IP channels, expandable to 12; enhanced IP mode supports 8, expandable to 16, at up to 4 Mbps per channel |
| Specification — Recording rates | 8 MP at 8 fps; 5 MP and 3K at 12 fps; 4 MP at 15 fps |
| Specification — Compression | H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 |
| Specification — Motion detection | Human and vehicle classification on all analogue channels |
| Specification — Perimeter protection | Human and vehicle analysis on up to 4 channels |
| Specification — Analytics modes | Motion Detection 2.0 and perimeter protection cannot operate simultaneously; enhanced IP mode may conflict with smart events |
| Specification — Storage interfaces | 2 SATA interfaces; up to 10 TB per disk |
| Specification — Playback | 8-channel synchronous playback |
| Specification — Video outputs | HDMI up to 4K at 30 Hz; VGA up to 1080p at 60 Hz; simultaneous HDMI and VGA |
| Specification — Network | 1 RJ45 10/100/1000 Mbps Ethernet interface; total bandwidth 128 Mbps |
| Specification — Audio | 1 RCA input and 1 RCA output; audio over coax supported |
| Specification — Remote access | Hik-Connect, DDNS and HTTPS |
| Specification — USB | 1 USB 2.0 and 1 USB 3.0 port |
| Specification — Power | 12 VDC; consumption up to 15 W |
| Specification — Operating temperature | -10 to 55 °C |
| Specification — Dimensions | 380 × 320 × 48 mm |
| Specification — Weight | Up to 2 kg |
08Questions
Frequently asked about the iDS-7208HUHI-M2/S
Q.01
Can I keep my existing coaxial cameras with the iDS-7208HUHI-M2/S?
Q.02
Can Motion Detection 2.0 and perimeter protection run together?
Q.03
Will enhanced IP mode keep all smart detection functions available?
Q.04
Does a 4K display output mean the same recording frame rate?
