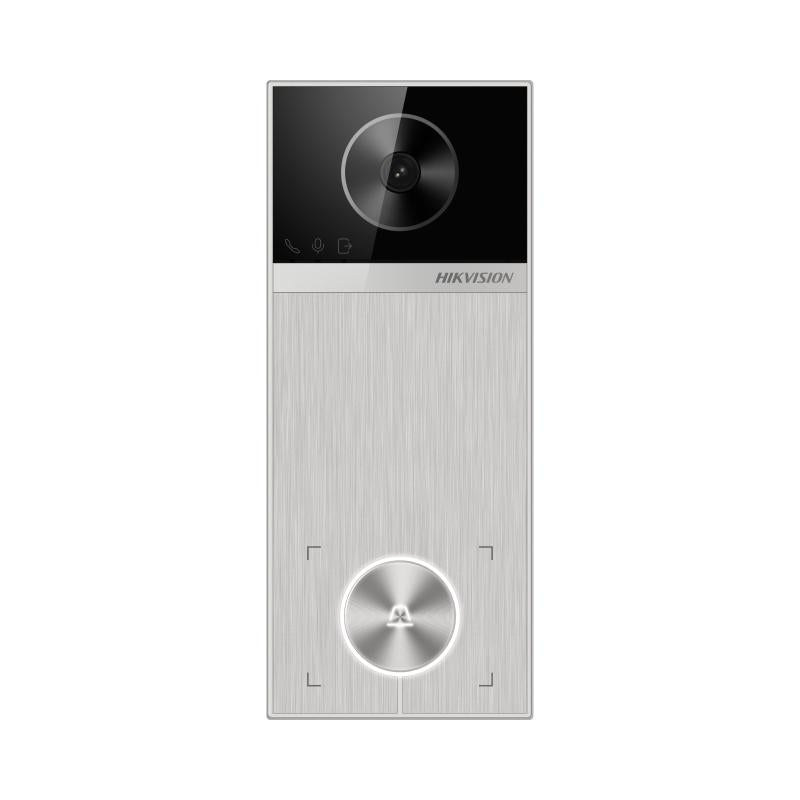

Hikvision DS-KV6114-MWBE1 4MP Metal Panel IP Door Station
The Hikvision DS-KV6114-MWBE1 brings visitor calling and access control to an outdoor entrance in a slim, surface-mounted unit. A 4MP camera covers a 150° horizontal view, with a built-in microphone and speaker for conversation. This metal panel model offers M1 card, Bluetooth, Hik-Connect and indoor-station unlocking, plus two lock-control relays.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-KV6114-MWBE1 is
Choose wired Ethernet or 2.4GHz Wi-Fi 6 to connect the door station to your network.
Power it from IEEE 802.3at PoE or a 12 VDC, 1.2 A supply; wireless networking still needs a power connection.
The IP65-rated body measures 164 mm high by 69 mm wide, making mounting width straightforward to check before installation.
Plan the indoor-station, lock and power arrangements for your installation, and confirm the exact device compatibility before ordering.
Recording and playback are supported through Hik-Connect or a PC web interface, with TF storage supported up to 128 GB.
02Engineering
DS-KV6114-MWBE1 specifications
Network choice: 2.4GHz Wi-Fi 6 or 10/100 Mbps Ethernet
Lock control: Two relays, rated up to 30 VDC, 2 A
Power options: IEEE 802.3at PoE or 12 VDC, 1.2 A
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Model | DS-KV6114-MWBE1 |
| Type / call button | IP villa door station / 1 physical button |
| Maximum main-stream resolution | 4MP (2688 × 1520) |
| Field of view | 150° horizontal; 75° vertical |
| WDR / night illumination | 120 dB WDR; infrared illumination up to 3 m |
| Video compression | H.264, H.265, MJPEG |
| Audio | Built-in microphone and speaker; noise suppression and echo cancellation |
| Wireless network | 2.4GHz Wi-Fi 6; IEEE 802.11b/g/n/ax |
| Ethernet | 1 × RJ45, 10/100 Mbps |
| Unlocking methods | M1 card, Bluetooth, Hik-Connect, indoor station |
| Card reader | 13.56 MHz M1; reading distance 2–2.5 cm |
| User / card capacity | 2,000 users / 6,000 cards |
| Lock outputs | 2 relays; maximum 30 VDC, 2 A |
| Inputs / interfaces | 4 alarm inputs including exit-button and door-contact inputs; 1 RS-485; 1 tamper interface |
| Local storage | TF card support up to 128 GB; FAT32 or exFAT |
| Power input | IEEE 802.3at PoE or 12 VDC, 1.2 A |
| Power consumption / output | Less than 10 W / maximum 12 VDC, 1 A output |
| Mounting / protection | Surface mounting; outdoor; IP65 |
| Dimensions (H × W × D) | 164 × 69 × 24.7 mm |
| Materials | Aluminium alloy panel; plastic front and rear shells; glass viewing window |
| Operating conditions | −40°C to +60°C; 10–90% humidity, non-condensing |
| Specifications — Model | DS-KV6114-MWBE1 |
|---|---|
| Specifications — Type / call button | IP villa door station / 1 physical button |
| Specifications — Maximum main-stream resolution | 4MP (2688 × 1520) |
| Specifications — Field of view | 150° horizontal; 75° vertical |
| Specifications — WDR / night illumination | 120 dB WDR; infrared illumination up to 3 m |
| Specifications — Video compression | H.264, H.265, MJPEG |
| Specifications — Audio | Built-in microphone and speaker; noise suppression and echo cancellation |
| Specifications — Wireless network | 2.4GHz Wi-Fi 6; IEEE 802.11b/g/n/ax |
| Specifications — Ethernet | 1 × RJ45, 10/100 Mbps |
| Specifications — Unlocking methods | M1 card, Bluetooth, Hik-Connect, indoor station |
| Specifications — Card reader | 13.56 MHz M1; reading distance 2–2.5 cm |
| Specifications — User / card capacity | 2,000 users / 6,000 cards |
| Specifications — Lock outputs | 2 relays; maximum 30 VDC, 2 A |
| Specifications — Inputs / interfaces | 4 alarm inputs including exit-button and door-contact inputs; 1 RS-485; 1 tamper interface |
| Specifications — Local storage | TF card support up to 128 GB; FAT32 or exFAT |
| Specifications — Power input | IEEE 802.3at PoE or 12 VDC, 1.2 A |
| Specifications — Power consumption / output | Less than 10 W / maximum 12 VDC, 1 A output |
| Specifications — Mounting / protection | Surface mounting; outdoor; IP65 |
| Specifications — Dimensions (H × W × D) | 164 × 69 × 24.7 mm |
| Specifications — Materials | Aluminium alloy panel; plastic front and rear shells; glass viewing window |
| Specifications — Operating conditions | −40°C to +60°C; 10–90% humidity, non-condensing |
08Questions
Frequently asked about the DS-KV6114-MWBE1
Q.01
Which PoE supply does this door station require?
Q.02
Does Wi-Fi operation remove the need for power wiring?
Q.03
What cards and lock connections are supported?
Q.04
How much space does the surface-mounted unit need?
