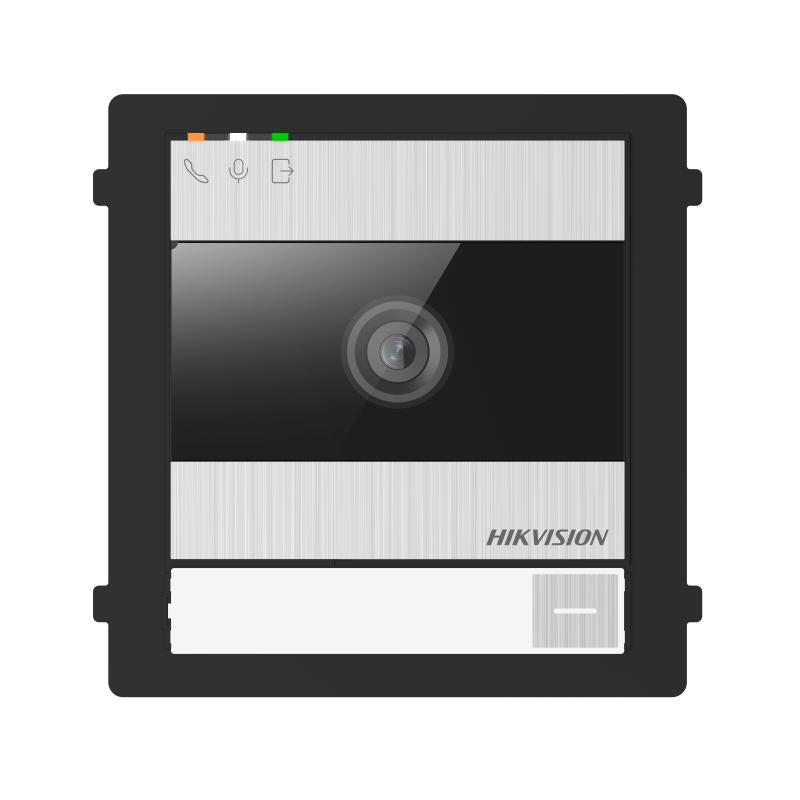

Hikvision DS-KD8005-IME1-S 5 MP Stainless Steel Door Station
The Hikvision DS-KD8005-IME1-S puts a 5 MP camera, microphone, speaker and two lock-control relays into the stainless steel main module of a KD8 entrance panel. It connects over Ethernet and accepts standard PoE or 12 VDC power. Choose this version when your modular intercom design calls for a stainless steel finish.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-KD8005-IME1-S is
Plan the panel around the required call layout: this main unit supports zero, one or two call buttons.
Add the mounting assembly and any optional keypad, reader or display modules suited to the project, and confirm the receiving station's system and firmware compatibility.
The station is rated IP65 and IK08 for outdoor use.
Lock control requires an external power supply; include that requirement in the door-hardware design.
02Engineering
DS-KD8005-IME1-S specifications
Entrance camera: 5 MP with 134° horizontal field of view
Power options: IEEE 802.3af PoE or 12 VDC
Door control: Two relays; external lock power required
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Manufacturer model | DS-KD8005-IME1/S (supplier SKU DS-KD8005-IME1-S) |
| Product format | KD8 modular IP door-station main unit; stainless steel |
| Camera / video resolution | 5 MP camera; 3200 × 1800 |
| Field of view | 134° horizontal; 82° vertical |
| WDR / low-light support | 100 dB WDR; infrared supplement lighting |
| Video compression | H.264, H.265, MJPEG |
| Audio | Built-in omnidirectional microphone and loudspeaker; noise suppression and echo cancellation |
| Call-button layout | Configurable for 0, 1 or 2 call buttons |
| Ethernet | 1 × RJ45; 10/100 Mbps self-adaptive |
| Network protocols | TCP/IP, RTSP, RTP, SIP, ONVIF |
| Lock outputs | 2 relays; maximum 30 VDC, 2 A; external lock power required |
| Alarm / door inputs | 4 alarm inputs, assigned by default to 2 exit buttons and 2 door contacts; 1 tamper input |
| Submodule connection | 1 × RS-485 for Hikvision submodule communication |
| Capacity | 2000 users; 1000 linked indoor stations; 99 sub door stations |
| Power supply | 12 VDC, 1.5 A or IEEE 802.3af standard PoE |
| Power consumption | Up to 5 W |
| Protection / operating temperature | IP65, IK08; -40°C to +60°C; outdoor use |
| Mounting | Surface or flush mounting with a suitable optional assembly |
| Overall module dimensions | 99.5 mm wide × 98.5 mm high × 34.7 mm deep (manufacturer drawing) |
| Unit weight | 260 g without packaging |
| Specifications — Manufacturer model | DS-KD8005-IME1/S (supplier SKU DS-KD8005-IME1-S) |
|---|---|
| Specifications — Product format | KD8 modular IP door-station main unit; stainless steel |
| Specifications — Camera / video resolution | 5 MP camera; 3200 × 1800 |
| Specifications — Field of view | 134° horizontal; 82° vertical |
| Specifications — WDR / low-light support | 100 dB WDR; infrared supplement lighting |
| Specifications — Video compression | H.264, H.265, MJPEG |
| Specifications — Audio | Built-in omnidirectional microphone and loudspeaker; noise suppression and echo cancellation |
| Specifications — Call-button layout | Configurable for 0, 1 or 2 call buttons |
| Specifications — Ethernet | 1 × RJ45; 10/100 Mbps self-adaptive |
| Specifications — Network protocols | TCP/IP, RTSP, RTP, SIP, ONVIF |
| Specifications — Lock outputs | 2 relays; maximum 30 VDC, 2 A; external lock power required |
| Specifications — Alarm / door inputs | 4 alarm inputs, assigned by default to 2 exit buttons and 2 door contacts; 1 tamper input |
| Specifications — Submodule connection | 1 × RS-485 for Hikvision submodule communication |
| Specifications — Capacity | 2000 users; 1000 linked indoor stations; 99 sub door stations |
| Specifications — Power supply | 12 VDC, 1.5 A or IEEE 802.3af standard PoE |
| Specifications — Power consumption | Up to 5 W |
| Specifications — Protection / operating temperature | IP65, IK08; -40°C to +60°C; outdoor use |
| Specifications — Mounting | Surface or flush mounting with a suitable optional assembly |
| Specifications — Overall module dimensions | 99.5 mm wide × 98.5 mm high × 34.7 mm deep (manufacturer drawing) |
| Specifications — Unit weight | 260 g without packaging |
