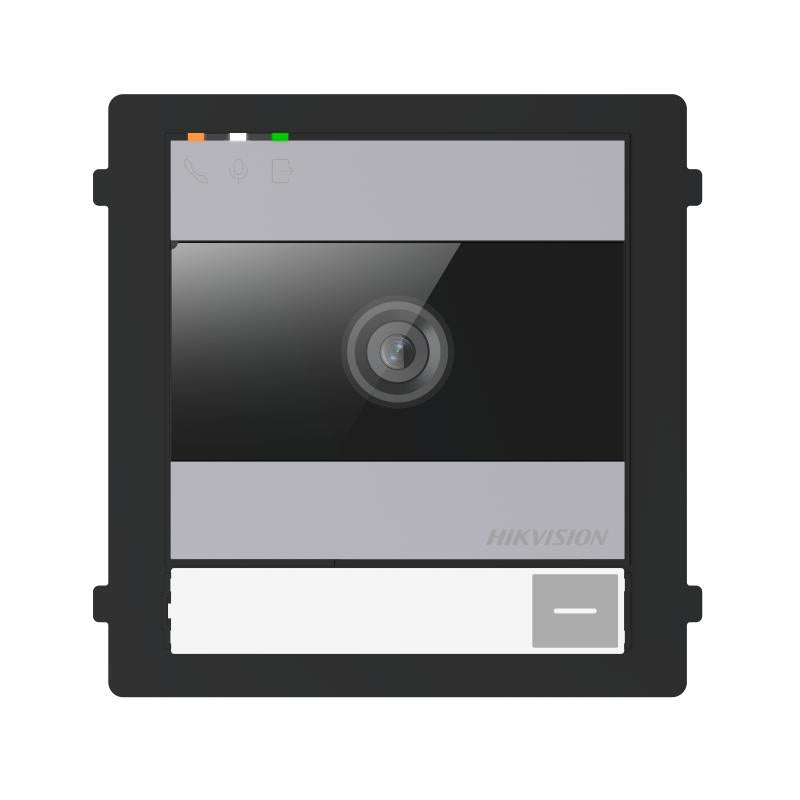

Hikvision DS-KD8005-IME1 5 MP PoE Door Station Main Module
The Hikvision DS-KD8005-IME1 provides the camera and audio connection at the entrance of a KD8 modular intercom system. This aluminium main module combines 5 MP video with a microphone, loudspeaker and two lock-control relays. Power it through IEEE 802.3af PoE or a suitable 12 VDC supply; the locks need their own external power supply.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-KD8005-IME1 is
Choose this module when an entrance panel needs configurable calling and room for additional KD8 functions.
The call-button arrangement supports zero, one or two buttons, and an RS-485 interface connects Hikvision submodules.
Select the mounting assembly and any keypad or reader modules for the installation, then confirm the receiving indoor station and system configuration.
This listing is for one main module; frames, indoor stations and electric locks are separate system components.
02Engineering
DS-KD8005-IME1 specifications
Calling: Configurable 0 / 1 / 2 call buttons
Door control: Two relays; external lock power required
Outdoor protection: IP65 and IK08
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Model / function | DS-KD8005-IME1 / KD8 modular door-station main unit |
| Camera / resolution | 5 MP / 3200 × 1800 |
| Field of view | 134° horizontal; 82° vertical |
| WDR / illumination | 100 dB WDR; infrared supplementary lighting |
| Video compression | H.264, H.265, MJPEG |
| Audio | Built-in omnidirectional microphone and loudspeaker; noise suppression and echo cancellation |
| Call buttons | 0 / 1 / 2 configurable arrangement |
| Lock relays | 2; maximum 30 VDC, 2 A; external lock power required |
| Alarm inputs | 4; default allocation is 2 exit buttons and 2 door contacts |
| Submodule / tamper interfaces | 1 × RS-485 for Hikvision submodules; 1 tamper input |
| Network port | 1 × RJ45, 10/100 Mbps |
| Network protocols | TCP/IP, RTSP, RTP, SIP, ONVIF |
| Capacity | 2,000 users; 1,000 linked indoor stations; 99 sub door stations |
| Power supply | 12 VDC, 1.5 A or IEEE 802.3af standard PoE |
| Power consumption | ≤ 5 W |
| Material | Aluminium |
| Installation | Surface or flush mounting with compatible mounting assembly |
| Environment / protection | Outdoor / IP65, IK08 |
| Operating temperature | -40°C to +60°C |
| Overall dimensions | 99.5 × 98.5 × 34.7 mm (W × H × D, drawing envelope) |
| Net weight | 260 g, excluding packaging |
| Supply scope | 1 main module; mounting assembly and other system components selected separately |
| Specifications — Model / function | DS-KD8005-IME1 / KD8 modular door-station main unit |
|---|---|
| Specifications — Camera / resolution | 5 MP / 3200 × 1800 |
| Specifications — Field of view | 134° horizontal; 82° vertical |
| Specifications — WDR / illumination | 100 dB WDR; infrared supplementary lighting |
| Specifications — Video compression | H.264, H.265, MJPEG |
| Specifications — Audio | Built-in omnidirectional microphone and loudspeaker; noise suppression and echo cancellation |
| Specifications — Call buttons | 0 / 1 / 2 configurable arrangement |
| Specifications — Lock relays | 2; maximum 30 VDC, 2 A; external lock power required |
| Specifications — Alarm inputs | 4; default allocation is 2 exit buttons and 2 door contacts |
| Specifications — Submodule / tamper interfaces | 1 × RS-485 for Hikvision submodules; 1 tamper input |
| Specifications — Network port | 1 × RJ45, 10/100 Mbps |
| Specifications — Network protocols | TCP/IP, RTSP, RTP, SIP, ONVIF |
| Specifications — Capacity | 2,000 users; 1,000 linked indoor stations; 99 sub door stations |
| Specifications — Power supply | 12 VDC, 1.5 A or IEEE 802.3af standard PoE |
| Specifications — Power consumption | ≤ 5 W |
| Specifications — Material | Aluminium |
| Specifications — Installation | Surface or flush mounting with compatible mounting assembly |
| Specifications — Environment / protection | Outdoor / IP65, IK08 |
| Specifications — Operating temperature | -40°C to +60°C |
| Specifications — Overall dimensions | 99.5 × 98.5 × 34.7 mm (W × H × D, drawing envelope) |
| Specifications — Net weight | 260 g, excluding packaging |
| Specifications — Supply scope | 1 main module; mounting assembly and other system components selected separately |
08Questions
Frequently asked about the DS-KD8005-IME1
Q.01
Which camera specification applies to DS-KD8005-IME1?
Q.02
Will the PoE connection also power my door locks?
Q.03
What else should I select for the entrance panel?
