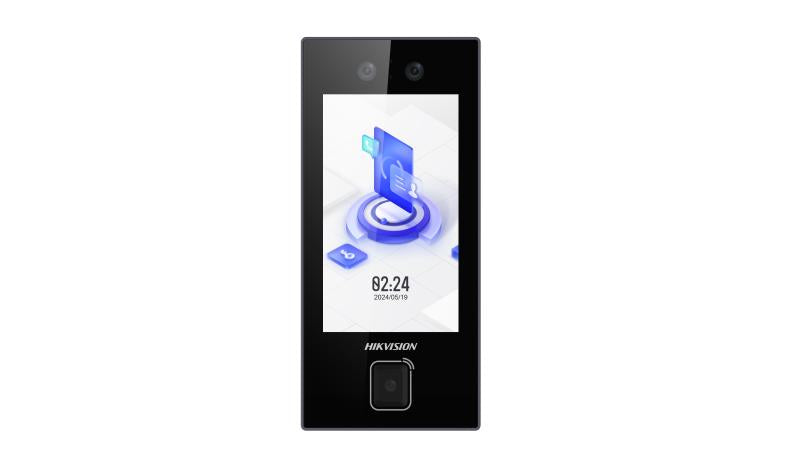

Hikvision DS-K1T344MBWX-QRE1 Face & QR Access Terminal
The Hikvision DS-K1T344MBWX-QRE1 is a wall-mounted access terminal for entrances using face, M1 card, PIN or QR credentials. Its 4.5-inch touchscreen brings these access methods together, with capacity for 3,000 users. Choose wired Ethernet or Wi-Fi connectivity and plan power through IEEE 802.3at PoE or a 12 V DC supply.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-K1T344MBWX-QRE1 is
The DS-K1T344MBWX-QRE1 provides a dedicated QR module as well as camera-based QR reading.
Configuration is available through a mobile or desktop web browser.
Lock-control, door-contact and exit-button connections support integration into the door system; check the selected lock and wiring requirements before ordering.
02Engineering
DS-K1T344MBWX-QRE1 specifications
User capacity: 3,000
Power: 802.3at PoE / 12 V DC
Protection: IP65
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Model | DS-K1T344MBWX-QRE1 |
| Display | 4.5-inch LCD touchscreen; 480 × 854 |
| Credentials | Face, M1 card, PIN and QR code; card frequency 13.56 MHz |
| Capacity | 3,000 users; 3,000 faces; 3,000 cards; 150,000 events |
| Face recognition distance | 0.3–1.5 m |
| Connectivity | 10/100 Mbps Ethernet, Wi-Fi and Bluetooth |
| Power input | IEEE 802.3at PoE or 12 V DC, 1 A |
| Door interfaces | 1 lock control, 1 exit-button input, 1 door-contact input |
| Other interfaces | 2 alarm inputs, 1 alarm output, RS-485, single-direction Wiegand input, tamper and USB |
| Mounting & protection | Wall mounting; IP65 |
| Operating temperature | −30 °C to +60 °C |
| Dimensions | 165.2 × 75.7 × 25 mm |
| Weight | 0.30 kg net; 0.60 kg gross |
| Specifications — Model | DS-K1T344MBWX-QRE1 |
|---|---|
| Specifications — Display | 4.5-inch LCD touchscreen; 480 × 854 |
| Specifications — Credentials | Face, M1 card, PIN and QR code; card frequency 13.56 MHz |
| Specifications — Capacity | 3,000 users; 3,000 faces; 3,000 cards; 150,000 events |
| Specifications — Face recognition distance | 0.3–1.5 m |
| Specifications — Connectivity | 10/100 Mbps Ethernet, Wi-Fi and Bluetooth |
| Specifications — Power input | IEEE 802.3at PoE or 12 V DC, 1 A |
| Specifications — Door interfaces | 1 lock control, 1 exit-button input, 1 door-contact input |
| Specifications — Other interfaces | 2 alarm inputs, 1 alarm output, RS-485, single-direction Wiegand input, tamper and USB |
| Specifications — Mounting & protection | Wall mounting; IP65 |
| Specifications — Operating temperature | −30 °C to +60 °C |
| Specifications — Dimensions | 165.2 × 75.7 × 25 mm |
| Specifications — Weight | 0.30 kg net; 0.60 kg gross |
08Questions
Frequently asked about the DS-K1T344MBWX-QRE1
Q.01
Which PoE supply does this terminal need?
Q.02
Is the Wiegand connection an input or an output?
Q.03
Does it have a physical intercom call button?
