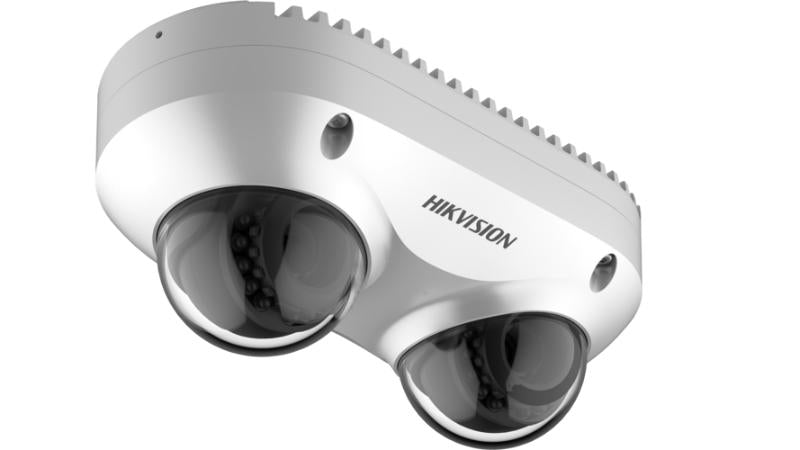

Hikvision DS-2CD6D42G2-IS Dual 4MP PanoVu Camera, 2.8mm
The Hikvision DS-2CD6D42G2-IS puts two adjustable viewing channels in one PanoVu network camera. This 2.8 mm version records up to 2688 × 1520 at 20 fps on each channel, allowing you to frame two directions from one mounting position. Two built-in microphones, infrared illumination up to 15 m and 120 dB WDR support monitoring through changing light conditions.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-2CD6D42G2-IS is
Consider this dual-directional camera where a single mounting position needs to cover two approaches, such as an entrance and an adjoining passage.
Each 2.8 mm lens provides a 110.4° horizontal field of view.
Human and vehicle classification supports perimeter event filtering.
Plan power with an IEEE 802.3at PoE+ source or suitable 12 VDC supply, and confirm that your recorder supports both video channels.
The IP67 and IK10 enclosure has no specific anti-corrosion protection, so those ratings alone do not establish suitability for a salt-exposed site.
02Engineering
DS-2CD6D42G2-IS specifications
Selected lenses: Dual 2.8 mm; 110.4° horizontal view per lens
Night illumination: Infrared up to 15 m
Power: IEEE 802.3at PoE+ or 12 VDC
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Model / version | DS-2CD6D42G2-IS, dual 2.8 mm |
| Camera configuration | One dual-directional camera with two video channels |
| Image sensor | 1/1.8-inch progressive scan CMOS |
| Maximum main stream | 2688 × 1520 at 20 fps on each channel (50 Hz and 60 Hz) |
| Lens / aperture | 2.8 mm fixed focal length / F1.6 |
| Field of view per lens | 110.4° horizontal; 54.4° vertical; 136.8° diagonal |
| Angle adjustment | Pan -90° to 90°; tilt 0° to 60°; rotate 0° to 355° |
| IR illumination | Up to 15 m; 850 nm |
| Wide dynamic range | 120 dB WDR |
| Main stream compression | H.265+, H.265, H.264+, H.264 |
| Perimeter events | Line crossing, intrusion, region entrance and region exiting; human and vehicle target filtering |
| Audio | Two built-in microphones; one line input and one line output, 3.5 mm |
| Alarm connections | Two inputs and two outputs; output maximum 36 VDC, 30 mA |
| Network port | One RJ45 10/100/1000 Mbps Ethernet port |
| Memory card support | microSD / microSDHC / microSDXC, up to 1024 GB |
| Power supply | 12 VDC ±20%, 1.2 A, or IEEE 802.3at Class 4 PoE; maximum 14 W |
| Housing | Aluminium alloy body |
| Overall dimensions | 164.3 × 84.6 × 67.4 mm |
| Camera weight | Approximately 810 g |
| Operating conditions | -30°C to 60°C; humidity up to 95%, non-condensing |
| Protection | IP67 and IK10; no specific anti-corrosion protection |
| Optional mounting accessories | DS-1270ZJ-DE7 and DS-1280ZJ-DE7 |
| Specifications — Model / version | DS-2CD6D42G2-IS, dual 2.8 mm |
|---|---|
| Specifications — Camera configuration | One dual-directional camera with two video channels |
| Specifications — Image sensor | 1/1.8-inch progressive scan CMOS |
| Specifications — Maximum main stream | 2688 × 1520 at 20 fps on each channel (50 Hz and 60 Hz) |
| Specifications — Lens / aperture | 2.8 mm fixed focal length / F1.6 |
| Specifications — Field of view per lens | 110.4° horizontal; 54.4° vertical; 136.8° diagonal |
| Specifications — Angle adjustment | Pan -90° to 90°; tilt 0° to 60°; rotate 0° to 355° |
| Specifications — IR illumination | Up to 15 m; 850 nm |
| Specifications — Wide dynamic range | 120 dB WDR |
| Specifications — Main stream compression | H.265+, H.265, H.264+, H.264 |
| Specifications — Perimeter events | Line crossing, intrusion, region entrance and region exiting; human and vehicle target filtering |
| Specifications — Audio | Two built-in microphones; one line input and one line output, 3.5 mm |
| Specifications — Alarm connections | Two inputs and two outputs; output maximum 36 VDC, 30 mA |
| Specifications — Network port | One RJ45 10/100/1000 Mbps Ethernet port |
| Specifications — Memory card support | microSD / microSDHC / microSDXC, up to 1024 GB |
| Specifications — Power supply | 12 VDC ±20%, 1.2 A, or IEEE 802.3at Class 4 PoE; maximum 14 W |
| Specifications — Housing | Aluminium alloy body |
| Specifications — Overall dimensions | 164.3 × 84.6 × 67.4 mm |
| Specifications — Camera weight | Approximately 810 g |
| Specifications — Operating conditions | -30°C to 60°C; humidity up to 95%, non-condensing |
| Specifications — Protection | IP67 and IK10; no specific anti-corrosion protection |
| Specifications — Optional mounting accessories | DS-1270ZJ-DE7 and DS-1280ZJ-DE7 |
08Questions
Frequently asked about the DS-2CD6D42G2-IS
Q.01
Does 4 MP describe each channel or the whole camera?
Q.02
What power source does this camera require?
Q.03
Is this the 2.8 mm or 4 mm version?
Q.04
Can it record audio and use a memory card?
Q.05
Is it suitable for outdoor or coastal installation?
