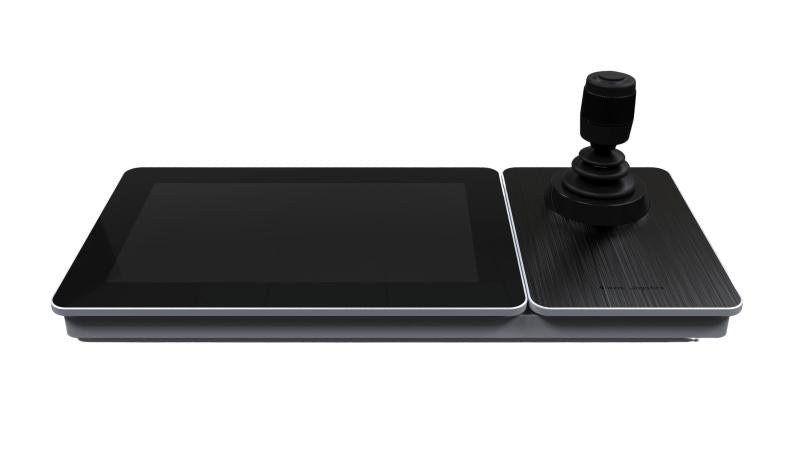

Hikvision DS-1600KI-B 10.1-inch Touchscreen Network Keyboard
The Hikvision DS-1600KI-B network keyboard puts a 10.1-inch touchscreen and four-axis joystick at the operator's desk. Identified by Hikvision as DS-1600KI(B), it provides network-based control for compatible surveillance equipment, with physical PTZ operation and HDMI and DVI connections for external displays.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-1600KI-B is
Use the touchscreen for local video viewing and the joystick to position a compatible PTZ camera.
The keyboard supports Ethernet and Wi-Fi, with power supplied through 12 VDC or PoE.
Its built-in screen is 1280 × 800 pixels; the separate video decoding specification is one 4K stream at 30 fps or four 1080p streams at 30 fps.
Before adding it to an existing system, check the intended cameras, recorders and management platform against the keyboard's firmware and supported integration.
02Engineering
DS-1600KI-B specifications
External displays: One HDMI output and one DVI output
Network connection: Gigabit Ethernet and Wi-Fi support
Power options: 12 VDC or PoE; maximum 15 W
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Commercial model | DS-1600KI-B |
| Manufacturer model | DS-1600KI(B) |
| Product type | Network keyboard controller |
| Operating system | Android |
| Screen | 10.1-inch TFT LCD touchscreen; 1280 × 800 pixels |
| Joystick | 4-axis |
| Video outputs | 1 × HDMI; 1 × DVI |
| Decoding capacity | 1 channel of 4K at 30 fps or 4 channels of 1080p at 30 fps |
| Decoding formats | H.264, H.264+, H.265, H.265+, MPEG4 |
| Ethernet | 10/100/1000 Mbps adaptive port |
| Wi-Fi | Supported |
| USB | 2 × USB 2.0 |
| Audio input | 1 channel, 3.5 mm connector; 2.0 Vp-p, >1 kΩ |
| Audio output | 1 channel, 3.5 mm connector; 2.0 Vp-p, 600 Ω |
| Power supply | 12 VDC or PoE |
| Power consumption | ≤15 W |
| Dimensions (W × H × D) | 404 × 163 × 180 mm |
| Net weight | 1.7 kg |
| Operating temperature | -10 to +55 °C |
| Operating humidity | 10% to 90% |
| Specifications — Commercial model | DS-1600KI-B |
|---|---|
| Specifications — Manufacturer model | DS-1600KI(B) |
| Specifications — Product type | Network keyboard controller |
| Specifications — Operating system | Android |
| Specifications — Screen | 10.1-inch TFT LCD touchscreen; 1280 × 800 pixels |
| Specifications — Joystick | 4-axis |
| Specifications — Video outputs | 1 × HDMI; 1 × DVI |
| Specifications — Decoding capacity | 1 channel of 4K at 30 fps or 4 channels of 1080p at 30 fps |
| Specifications — Decoding formats | H.264, H.264+, H.265, H.265+, MPEG4 |
| Specifications — Ethernet | 10/100/1000 Mbps adaptive port |
| Specifications — Wi-Fi | Supported |
| Specifications — USB | 2 × USB 2.0 |
| Specifications — Audio input | 1 channel, 3.5 mm connector; 2.0 Vp-p, >1 kΩ |
| Specifications — Audio output | 1 channel, 3.5 mm connector; 2.0 Vp-p, 600 Ω |
| Specifications — Power supply | 12 VDC or PoE |
| Specifications — Power consumption | ≤15 W |
| Specifications — Dimensions (W × H × D) | 404 × 163 × 180 mm |
| Specifications — Net weight | 1.7 kg |
| Specifications — Operating temperature | -10 to +55 °C |
| Specifications — Operating humidity | 10% to 90% |
08Questions
Frequently asked about the DS-1600KI-B
Q.01
Does 4K decoding mean the touchscreen is 4K?
Q.02
Can I use this keyboard with my Hikvision PTZ system?
Q.03
What network and power connections should I plan for?
