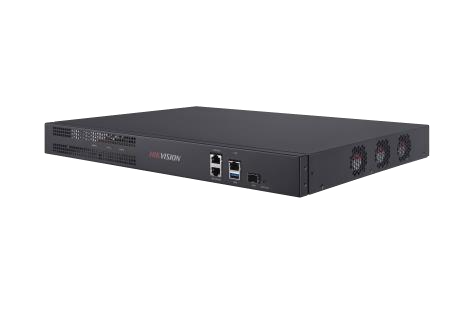

Hikvision DS-6904UDI 4-HDMI Video Wall Decoder

SKU: DS-6904UDI
Description

The Hikvision DS-6904UDI decodes network video for a multi-screen display system. Four HDMI outputs and two BNC outputs support video wall layouts, with local HDMI and DVI-I inputs for additional sources.
$2,640.00 AUD $2,640.00 AUD $2,772.00 AUD
Sale 4.76% $132.00 AUD (4.76%)
Bulk Price$2,481.60 AUD
Save $158.40 AUD — 6% off orders over $1,500, applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-6904UDI is

The Hikvision DS-6904UDI decodes network video for a multi-screen display system.

Size the display arrangement and decoding workload together. A compatible DS-1100KI control keyboard can form part of the operator setup after its device and firmware support is checked. Output count does not mean every HDMI port provides 4K.

Use the original DS-6904UDI specification when planning screen resolutions and stream counts. Provide rack space, ventilation, the specified AC supply and compatible source streams. The copper and optical network interfaces share a combo connection.

§ 02Engineering

DS-6904UDI specifications

Hikvision DS-6904UDI Outputs — 4 HDMI and 2 BNC
HDMI resolution — 4K (3840 x 2160) at up to 30 Hz on odd-numbered HDMI outputs
Video inputs — HDMI and DVI-I
Decoding capacity — 36 channels at 1080p or 8 channels at 8 MP and 30 fps
Network — One Gigabit RJ45 and one optical interface forming a combo
Codecs — H.265/H.264 families including + variants, plus Hik264, MPEG4 and MJPEG
Serial connections — RS-232 and RS-485

§ 03Full datasheet

Detailed specifications

Specification

Specification — Hikvision DS-6904UDI 4-HDMI Video Wall Decoder
FeatureDetail
Outputs 4 HDMI and 2 BNC
HDMI resolution 4K (3840 x 2160) at up to 30 Hz on odd-numbered HDMI outputs
Video inputs HDMI and DVI-I
Decoding capacity 36 channels at 1080p or 8 channels at 8 MP and 30 fps
Network One Gigabit RJ45 and one optical interface forming a combo
Codecs H.265/H.264 families including + variants, plus Hik264, MPEG4 and MJPEG
Serial connections RS-232 and RS-485
Power 220 VAC; maximum 70 W
Dimensions 440 x 320.8 x 44.5 mm
Operating temperature -10 degrees C to 55 degrees C

§ 08Questions

Frequently asked about the DS-6904UDI

Q.01

What is the DS-6904UDI?
The Hikvision DS-6904UDI decodes network video for a multi-screen display system.
Q.02

Which video outputs are provided?
4 HDMI and 2 BNC.
Q.03

Which outputs support 4K?
Up to 3840 x 2160 at 30 Hz on odd-numbered HDMI outputs.
Q.04

Which local video inputs are available?
HDMI and DVI-I.
Q.05

How many streams can be decoded?
36 channels at 1080p or 8 channels at 8 MP and 30 fps.
Q.06

What network connection is provided?
One Gigabit RJ45 and one optical interface forming a combo.
Q.07

What should I check before ordering?
Use the original DS-6904UDI specification when planning screen resolutions and stream counts. Provide rack space, ventilation, the specified AC supply and compatible source streams. The copper and optical network interfaces share a combo connection.
