Hikvision 6MP 4CH CCTV Kit: 2xEXIR Bullet Cameras with AcuSense + 4CH PoE NVR/4TB
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision 6MP 4CH CCTV Kit: 2xEXIR Bullet Cameras with AcuSense + 4CH PoE NVR/4TB
SKU: DS-2CD2T66G2-2I
Description
2 x 6MP Hikvision AcuSense Bullet Cameras
Model: DS-2CD2T66G2-2I
Specs: 6MP High-Resolution Imaging, AcuSense Human & Vehicle Detection, Powered by DarkFighter Low-Light Technology, 60m Long-Range IR Night Vision
1 x 4CH Hikvision PoE NVR (4TB HDD)
Model: DS-7604NI-I1-4P
Specs: 4-Port Plug & Play PoE, 4K HDMI Video Output, H.265+ High-Efficiency Compression, 4TB Surveillance-Grade HDD
Regular price
$1,096.10 AUD
Sale price
$1,096.10 AUD
Regular price
$1,357.00 AUD
Sale
19.23%
$260.90 AUD
(19.23%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision 6MP 4CH CCTV Kit: 2xEXIR Bullet Cameras with AcuSense + 4CH PoE NVR/4TB
1
/
of
1
Customize this kit Kit price $1,096.10

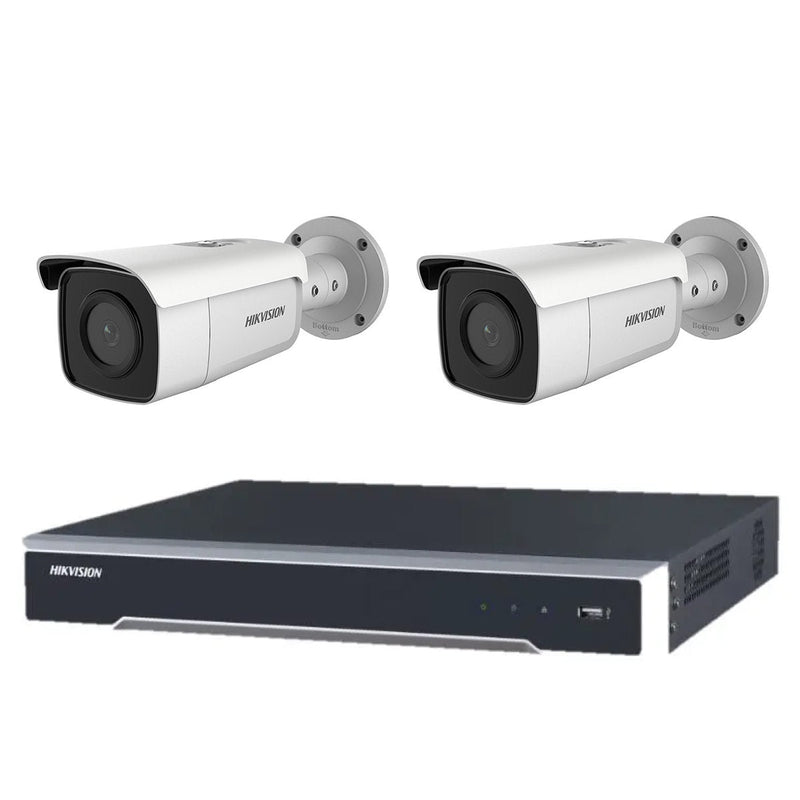

This kit includes:
- 2 × Hikvision DS-2CD2T66G2-2I Acusense 6MP EXIR Outdoor Bullet CCTV Camera Up to 60m IR
- 1 × Hikvision DS-7604NI-M1/4P 4ch M-Series PoE NVR, 40Mbps, H.265, 4 PnP Ports, 1 HDD Bay, 4TB (4ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Hikvision DS-2CD2T66G2 6MP Bullet CCTV Kit is a professional security Product designed to provide high-resolution monitoring for Australian residential and commercial properties. This package features the advanced Model DS-2CD2T66G2, which utilizes AI-driven detection to protect outdoor perimeters with precision. As a complete security solution, it offers organisations a reliable way to secure their assets with intelligent technology and long-range visibility.
§ 02Engineering
Technical specifications
- 2 x 6MP Cameras: Bullet-style outdoor AI cameras delivering 3072 x 2048 resolution with a wide-angle 102° field of view for extensive property coverage.
- AcuSense Gen 2 Technology: Uses deep learning to distinguish between humans, vehicles, and irrelevant motion like falling leaves or animals to prevent false alarms.
- DarkFighter Low-Light Imaging: Provides superior night performance by producing bright and usable images in near-dark conditions as low as 0.003 lux.
- 60m Infrared Range: Equipped with powerful long-range IR LEDs that ensure clear and dependable surveillance in complete darkness up to 60 metres.
- 120dB True WDR: Balances exposure in high-contrast lighting environments to maintain clear image detail in both bright and shadowed areas.
- IP67 Weatherproof Protection: Features a rugged, outdoor-rated housing designed to withstand the harsh Australian climate, protecting against dust and heavy rain.
- Advanced Searchable Analytics: Generates specific alarm events for humans and vehicles, allowing users to quickly search through recorded footage for specific incidents.
- 4CH NVR System: Professional recording hub with built-in PoE support for four cameras and integrated storage for reliable long-term video management.
- AcuSense Gen 2 Technology: Uses deep learning to distinguish between humans, vehicles, and irrelevant motion like falling leaves or animals to prevent false alarms.
- DarkFighter Low-Light Imaging: Provides superior night performance by producing bright and usable images in near-dark conditions as low as 0.003 lux.
- 60m Infrared Range: Equipped with powerful long-range IR LEDs that ensure clear and dependable surveillance in complete darkness up to 60 metres.
- 120dB True WDR: Balances exposure in high-contrast lighting environments to maintain clear image detail in both bright and shadowed areas.
- IP67 Weatherproof Protection: Features a rugged, outdoor-rated housing designed to withstand the harsh Australian climate, protecting against dust and heavy rain.
- Advanced Searchable Analytics: Generates specific alarm events for humans and vehicles, allowing users to quickly search through recorded footage for specific incidents.
- 4CH NVR System: Professional recording hub with built-in PoE support for four cameras and integrated storage for reliable long-term video management.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Parameters Switch | Yes |
| SNR | ≥ 52 dB |
| Target Cropping | Yes |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6° | 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8° | 6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5° |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
| DORI | 2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m | 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m | 6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Range | -2I: up to 60 m | -4I: up to 80 m |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 3200 × 1800 |
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) | 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ | Sub-stream: H.265/H.264/MJPEG | Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection. Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR). Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+ | Plug-in free live view: Chrome 57.0+, Firefox 52.0+ | Local service: Chrome 57.0+, Firefox 52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
General & Environment
| Feature | Detail |
|---|---|
| Firmware Version | V5.5.113 |
| Software Reset | Yes |
| Power Interface | Ø5.5 mm coaxial power plug |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, reverse polarity protection | PoE: 802.3af, Class 3 |
| Power Consumption and Current | -2I: 12 VDC, 0.63 A, max. 7.5 W; PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W | -4I: 12 VDC, 0.88 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W |
| Material | Metal |
| Dimension | Ø105 mm × 290 mm (Ø4.1" × 11.4") |
| Package Dimension | 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1") |
| Weight | Approx. 1085g (2.4 lb.) |
| With Package Weight | Approx. 1604 g (3.5 lb.) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
