Hikvision 6MP 4CH CCTV Kit: 4xDome Cameras with AcuSense + 4CH PoE NVR
Skip to product information
1
/
of
1
Vendor:
Hikvision

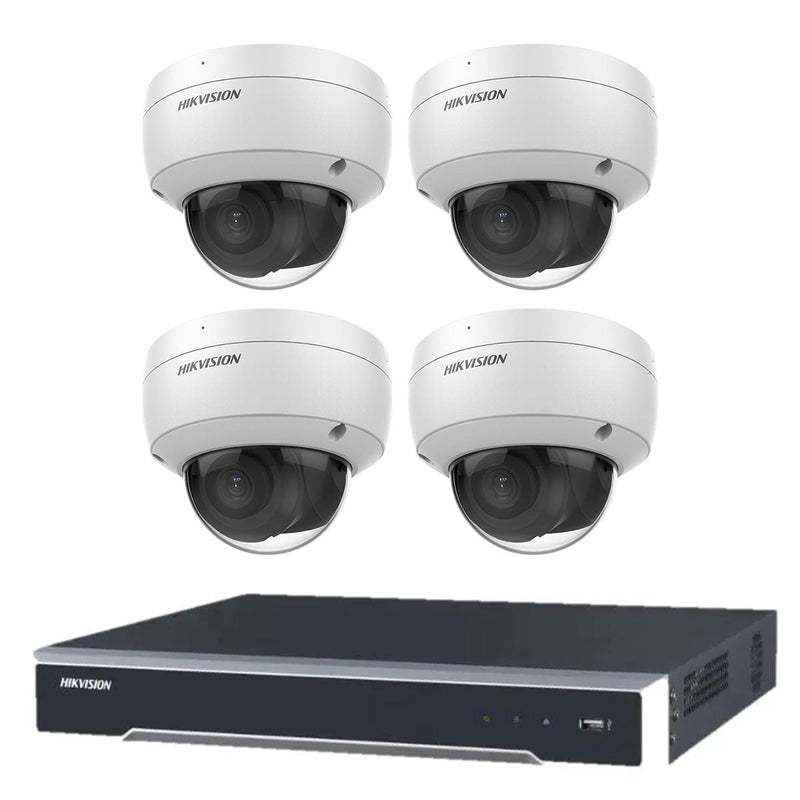

Hikvision 6MP 4CH CCTV Kit: 4xDome Cameras with AcuSense + 4CH PoE NVR
SKU: DS-2CD2166G2H-ISU
Description
This Hikvision 6 MP kit pairs four DS-2CD2166G2H-ISU AcuSense dome cameras with a 4-channel DS-7604NI-I1/4P PoE NVR and a 4 TB surveillance hard drive, supplied ready to record.
What's in the kit
- 4 x DS-2CD2166G2H-ISU 6 MP AcuSense dome cameras
- DarkFighter low-light imaging; built-in microphone
- Human and vehicle classification; 30 m IR; 120 dB WDR
- IP67 weatherproof and IK10 vandal-resistant
- 1 x DS-7604NI-I1/4P 4-channel PoE NVR
- No HDD included — add a hard drive to enable recording
- 4K HDMI output and H.265+ compression
Regular price
$1,330.85 AUD
Sale price
$1,330.85 AUD
Regular price
$1,891.00 AUD
Sale
29.62%
$560.15 AUD
(29.62%)
Member
Sign in to save $26.62 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision 6MP 4CH CCTV Kit: 4xDome Cameras with AcuSense + 4CH PoE NVR
1
/
of
1
Customize this kit Kit price $1,330.85
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 4 × Hikvision DS-2CD2166G2H-ISU 6 MP Acusense DarkFighter Fixed Dome 2.8mm / 4mm Options, IP67/IK10
- 1 × Hikvision DS-7604NI-I1-4P 4ch PoE CCTV NVR 4K NO Hard Drive (4ch)
- No HDD included (add one below)
No hard drive selected
Without a hard drive the system cannot record footage.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD2166G2H-ISU is
This Hikvision 6 MP kit is a complete four-camera dome system for a home or small business, supplied ready to record.
It pairs four DS-2CD2166G2H-ISU AcuSense dome cameras with a four-channel DS-7604NI-I1/4P PoE NVR — no hard drive is included (add one below to enable recording) — and each camera connects on a single network cable and the recorder is set up to capture all four channels from the start.
With four cameras on a four-channel recorder, the kit is supplied complete for the cameras provided.
The cameras are the strength of this kit.
Each is a 6 MP dome with DarkFighter low-light imaging for clean detail in dim scenes, AcuSense deep learning that classifies human and vehicle targets so alerts and searches ignore rain, shadows and animals, and a 120 dB wide dynamic range that holds detail against bright backlight.
The metal housing is IP67 weatherproof and IK10 vandal-resistant, so these domes suit accessible and public-facing positions such as entrances, shopfronts and car parks where a camera could be knocked or tampered with.
Each camera also has a built-in microphone, so the kit can record audio alongside the video.
A couple of honest notes so it is set up correctly.
At night these are infrared cameras with a 30 metre range, so the picture is black and white, not full colour; DarkFighter improves low-light quality but this is not a white-light ColorVu kit.
The cameras have a built-in microphone for audio recording but no built-in speaker, so they are not a two-way intercom on their own.
No hard drive is included — add one below to enable recording; a 4 TB drive gives generous everyday retention, H.265+ compression keeps storage efficient, and a larger drive can be fitted for longer retention.
See it in action
What the DS-2CD2166G2H-ISU features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
False Alarm Reduction
Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD2166G2H-ISU specifications
- 4 x DS-2CD2166G2H-ISU 6 MP AcuSense dome cameras
- DarkFighter low-light imaging for clean detail in dim scenes
- AcuSense human and vehicle classification to reduce false alarms
- Built-in microphone for audio recording (microphone only, not two-way)
- 30 m infrared at night (infrared black-and-white image)
- IP67 weatherproof and IK10 vandal-resistant metal domes
- DS-7604NI-I1/4P 4-channel NVR with built-in PoE ports
- No HDD included (add a hard drive to enable recording); 4K HDMI output and H.265+ compression
- DarkFighter low-light imaging for clean detail in dim scenes
- AcuSense human and vehicle classification to reduce false alarms
- Built-in microphone for audio recording (microphone only, not two-way)
- 30 m infrared at night (infrared black-and-white image)
- IP67 weatherproof and IK10 vandal-resistant metal domes
- DS-7604NI-I1/4P 4-channel NVR with built-in PoE ports
- No HDD included (add a hard drive to enable recording); 4K HDMI output and H.265+ compression
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5° | 4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 1.7 m to ∞ | 4 mm: 2.2 m to ∞ |
| DORI | 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m | 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | -U: Mono sound |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggered by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| Smart Event | Scene change detection |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | -U: Yes |
| Audio | -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -S: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.65 A, max. 7.8 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 9.5 W |
| Material | Base: aluminum alloy, cover: aluminum alloy |
| Dimension | Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84") |
| Package Dimension | 150 mm × 150 mm × 142 mm (9.2" × 4.7" × 4.6") |
| Weight | Approx. 525 g (1.2 lb.) |
| With Package Weight | Approx. 750 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015; RCM: AS/NZS CISPR 32: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
§ 04Why choose this
Built for the way you actually use the DS-2CD2166G2H-ISU
Built to take a hit
IP67 weatherproof and IK10 vandal-resistant metal domes suit accessible, public-facing positions where a camera could be knocked.
Fewer false alarms
AcuSense human and vehicle classification keeps alerts and searches focused on people and vehicles, not weather or animals.
Detail and audio
6 MP resolution with DarkFighter low-light imaging and a built-in microphone capture clear footage with sound context.
§ 05Where it fits
Right at home in these scenarios
Family homes
Cover the front, back and key entries of a house with four 6 MP cameras and people and vehicle alerts.
Shops and retail
Tamper-resistant dome coverage of entrances, aisles and tills with audio context for incident review.
Offices and reception
Discreet domes over front doors, side entries and waiting areas with strong backlight handling.
Small car parks and entries
Impact-resistant cameras for accessible, public-facing spots where a vandal rating matters.
§ 06Setup
Installation & setup
In the box
Four DS-2CD2166G2H-ISU dome cameras, the DS-7604NI-I1/4P NVR (no HDD included — add a hard drive to enable recording), power supply and mounting accessories. Connect a monitor for local viewing.
Cabling
Run one network cable from each camera to a PoE port on the NVR. Standard Ethernet runs apply, and a PoE switch can extend reach for a distant camera.
Mounting
Fix each dome to a ceiling, wall or eave covering the area you want watched, within the 30 metre infrared range, and adjust the lens angle inside the housing.
Setup
Connect the NVR to a screen and the network, add the cameras on the plug-and-play PoE ports, set the AcuSense human and vehicle rules and recording schedule, and set up remote viewing in the Hik-Connect app.
§ 07Questions
Frequently asked about the DS-2CD2166G2H-ISU
Q.01
Is the kit ready to record out of the box?
Yes. It includes the four 6 MP AcuSense dome cameras and the four-channel DS-7604NI-I1/4P PoE NVR — no hard drive is included (add one below to enable recording) — and each camera connects on one network cable and the recorder captures all four channels. Add a screen or use the Hik-Connect app to view live and recorded footage.
Q.02
Does this kit include a hard drive?
No — a hard drive is not included with this kit. A hard drive is required for recording; add one to your order below. A 4 TB drive gives generous everyday retention for four 6 MP cameras, and you can fit a larger drive later if you want to keep footage for longer.
Q.03
Do the cameras record sound or allow two-way talk?
Each DS-2CD2166G2H-ISU has a built-in microphone, so the kit can record audio alongside the video. They have a microphone only and no built-in speaker, so they are not a two-way intercom on their own. Confirm that recording audio is permitted for your site before enabling it.
Q.04
Do the cameras film in colour at night?
Not in the dark. They use DarkFighter low-light imaging for clean detail in dim conditions, but at night they switch to 30 metre infrared, so the image is black and white. For full-colour footage all night you would choose a ColorVu kit with white-light cameras.
Q.05
What does the IK10 rating add over a normal camera?
IK10 is the highest common impact rating, so the dome housing is built to take knocks, kicks and tampering. Combined with IP67 weather sealing, it makes these cameras a strong fit for accessible and public spots such as entrances, shopfronts, stairwells and car parks where a camera might be hit.
Q.06
Can I add more cameras to this kit?
The recorder is a four-channel NVR and the kit uses all four channels, so it is complete as supplied. To run more than four cameras you would step up to a larger recorder, such as an eight or sixteen-channel NVR, and add a PoE switch for the extra ports.
Q.07
What does AcuSense do for me?
AcuSense uses on-camera deep learning to classify human and vehicle targets and ignore other movement such as rain, leaves or animals. The system alerts you to what matters, cuts false alarms, and lets you search recordings by human or vehicle events instead of scrubbing through hours of footage.
Q.08
Are the cameras suitable for outdoors in Australian weather?
Yes. The dome cameras are IP67 rated against dust and water in a metal housing, so they handle sun, rain and dust on outdoor walls and eaves as well as indoor positions, with 30 metre infrared for night coverage.
§ 09Bundles
Recommended packages
Add or replace a camera
Add or swap a matching DS-2CD2166G2H-ISU 6MP AcuSense dome. The kit fills all four channels, so to run more cameras step up to a larger recorder.
Grow beyond four cameras
Step up to a DS-7616NI-M2/16P 16-channel PoE NVR and add a NS-0109P-60 8-port PoE switch for the extra ports.
Add storage and mounting
No HDD is included — fit a 6TB surveillance hard drive or an 8TB surveillance hard drive to enable recording, and tidy each camera with a DS-1280ZJ-DM46 junction box.
