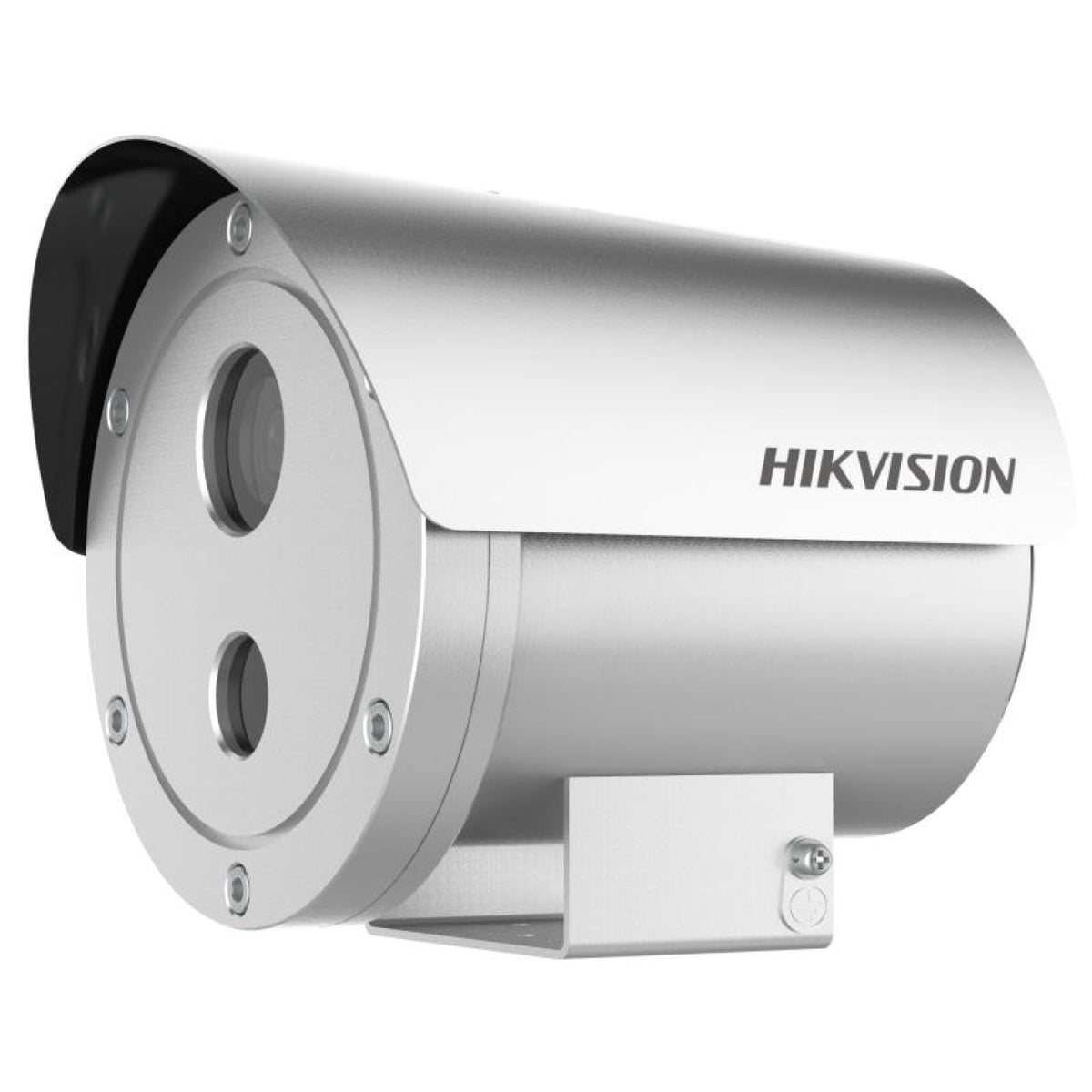

Hikvision HIK-2XE6222FIS4 2MP 4mm Explosion-Proof Camera
1 1
Hikvision

Hikvision HIK-2XE6222FIS4 2MP 4mm Explosion-Proof Camera

SKU: HIK-2XE6222FIS4
Description

The Hikvision HIK-2XE6222FIS4 is the 4 mm fixed-lens option of the DS-2XE6222F-IS/316L(D) explosion-proof camera. It combines two-megapixel video, infrared illumination and a corrosion-resistant stainless steel enclosure.
$4,849.00 AUD $4,849.00 AUD
Bulk Price$4,558.06 AUD
Save $290.94 AUD — 6% off orders over $1,500, applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $5,219.00

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $4,849.00
Bulk Price$4,558.06 6% off orders over $1,500 — applied automatically at checkout.

§ 01Overview

What the HIK-2XE6222FIS4 is

Hikvision HIK-2XE6222FIS4 brings a 4 mm fixed view to industrial surveillance installations that require the specified explosion protection and corrosion-resistant housing.

The 4 mm lens provides a 83-degree horizontal view. Select the focal length around the required scene coverage and target distance. Browse the Hikvision camera range for other surveillance equipment suited to the installation.

Have the hazardous-area installation designed against the camera certification, equipment marking and site classification. Follow the manufacturer requirements for power, earthing, cable entries and mounting. Arrange an internal memory card with the order if required.

§ 02Engineering

HIK-2XE6222FIS4 specifications

Hikvision HIK-2XE6222FIS4 Manufacturer configuration — DS-2XE6222F-IS(4mm)(D)/316L
Image sensor — 1/2.8-inch progressive scan CMOS; 1920 x 1080
Lens — 4 mm fixed focal length; horizontal field of view 83 degrees; vertical 43 degrees
IR illumination — Up to 30 m; 850 nm
Dynamic range — 120 dB WDR
Housing — 316L stainless steel with anti-corrosion surface treatment
Protection — IP68 and IK08

§ 03Full datasheet

Detailed specifications

Specification

Specification — Hikvision HIK-2XE6222FIS4 2MP 4mm Explosion-Proof Camera
FeatureDetail
Manufacturer configuration DS-2XE6222F-IS(4mm)(D)/316L
Image sensor 1/2.8-inch progressive scan CMOS; 2 MP; 1920 x 1080
Lens 4 mm fixed focal length; horizontal field of view 83 degrees; vertical 43 degrees
IR illumination Up to 30 m; 850 nm
Dynamic range 120 dB WDR
Housing 316L stainless steel with anti-corrosion surface treatment
Protection IP68 and IK08
Video formats H.265+, H.265, H.264+ and H.264
Power 100 to 240 VAC or IEEE 802.3af Class 3 PoE
Network One 10/100 Mbps RJ45 port
Storage MicroSD/SDHC/SDXC support up to 256 GB; arrange card installation when ordering
Weight Approximately 6.17 kg
Operating temperature -30 to 60 degrees C
Explosion protection ATEX and IECEx; Ex db IIC T6 Gb / Ex tb IIIC T80 degrees C Db IP68

§ 04Why choose this

Built for the way you actually use the HIK-2XE6222FIS4

Selected field of view

Hikvision HIK-2XE6222FIS4 provides a 83-degree horizontal view with its 4 mm lens. Match scene width and working distance before selecting this focal length.

Lighting changes

The camera combines 120 dB WDR with infrared illumination reaching up to 30 m. Exposure and illumination should be commissioned for the actual scene.

Enclosure protection

The 316L stainless steel housing carries IP68 and IK08 ratings. Its ATEX and IECEx classifications define the applicable explosion-protection conditions.

§ 05Where it fits

Right at home in these scenarios

Industrial process observation

Hikvision HIK-2XE6222FIS4 can support video observation where the hazardous-area classification matches its certified equipment marking. Verify the complete installation against the site requirements.

Corrosive environments

The stainless steel enclosure and anti-corrosion treatment support installations exposed to corrosive conditions. Assess the actual chemicals and mounting environment during system design.

Fixed scene coverage

Choose the 4 mm version when a 83-degree horizontal view suits the required area. Lens selection should account for the target size and distance.

§ 06Setup

Installation & setup

01

Electrical connection

Hikvision HIK-2XE6222FIS4 supports the specified AC input or standard IEEE 802.3af PoE. Use the manufacturer wiring instructions and the approved installation arrangement.

02

Mounting and cable entries

Follow the supplied instructions for mounting, earthing and cable entry treatment. The installation must preserve the enclosure and explosion-protection requirements.

03

Commissioning

Set video encoding, image exposure and event rules for the scene, then verify recording and playback. Check the final view under both daytime and infrared illumination.

§ 08Questions

Frequently asked about the HIK-2XE6222FIS4

Q.01

Which camera configuration is this?
Hikvision HIK-2XE6222FIS4 is listed as the DS-2XE6222F-IS(4mm)(D)/316L configuration.
Q.02

How wide is the camera view?
The 4 mm fixed lens provides a 83-degree horizontal field of view.
Q.03

What video resolution does it support?
The maximum image resolution is 1920 x 1080, with H.265 and H.264 compression options.
Q.04

Does it provide infrared illumination?
Yes. The camera has infrared illumination with a specified range of up to 30 m.
Q.05

How is the camera powered?
It supports 100 to 240 VAC or standard IEEE 802.3af Class 3 PoE. Follow the connection requirements for the chosen installation.
Q.06

Can an internal memory card be fitted?
The camera supports microSD, SDHC and SDXC storage up to 256 GB. Arrange the card with the order so it can be installed during manufacture.
Q.07

How should hazardous-area suitability be checked?
Match the equipment marking, ATEX and IECEx certification and installation instructions to the site classification. A qualified installer should check cable entries, earthing and mounting.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

§ 10Bundles

Recommended packages

01

Selected camera

Hikvision HIK-2XE6222FIS4 identifies the 4 mm lens configuration. The manufacturer part number specifies the corresponding D revision in 316L stainless steel.

02

Recording system

Select a compatible recorder or network storage arrangement to suit the streams and retention period. Check camera connections and recording settings before commissioning.

03

Optional storage and mounting

The manufacturer recommends arranging any internal memory card when ordering. Additional mounting components depend on the installation and should be selected against the official accessory list.
