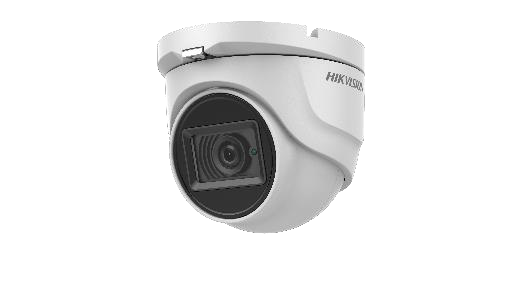

Hikvision DS-2CE76H8T-ITMF 5MP 2.8mm Turbo HD Turret
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision DS-2CE76H8T-ITMF 5MP 2.8mm Turbo HD Turret
SKU: DS-2CE76H8T-ITMF
Description
Hikvision DS-2CE76H8T-ITMF provides a fixed 2.8mm view for a compatible coaxial recording system. Its 5MP image output suits an analogue installation being upgraded for more scene detail.
Regular price
$106.00 AUD
Sale price
$106.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Hikvision DS-2CE76H8T-ITMF 5MP 2.8mm Turbo HD Turret
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-2CE76H8T-ITMF is
Hikvision DS-2CE76H8T-ITMF provides a fixed 2.8mm view for a compatible coaxial recording system. Its 5MP image output suits an analogue installation being upgraded for more scene detail.
The camera combines 130dB WDR with infrared illumination up to 30m. Switchable TVI, AHD, CVI and CVBS output allows the signal mode to match the recorder, with resolution and frame-rate limits varying by format.
Use a suitable 12V supply and select a supported recording mode before fixing the turret. The metal housing is rated IP67; seal the connection area and check day and night footage after positioning.
02Engineering
DS-2CE76H8T-ITMF specifications
Hikvision DS-2CE76H8T-ITMF — Resolution: 5 MP
Video sensor: 5 MP; 2560 × 1944
TVI/AHD output: 5 MP at 20 fps
CVI output: Up to 4 MP at 25/30 fps
Lens: Fixed 2.8 mm
Illumination: IR up to 30 m
Wide dynamic range: 130 dB
Signal formats: TVI, AHD, CVI and CVBS
Video sensor: 5 MP; 2560 × 1944
TVI/AHD output: 5 MP at 20 fps
CVI output: Up to 4 MP at 25/30 fps
Lens: Fixed 2.8 mm
Illumination: IR up to 30 m
Wide dynamic range: 130 dB
Signal formats: TVI, AHD, CVI and CVBS
03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Resolution | 5 MP |
| Video sensor | 5 MP; 2560 × 1944 |
| TVI/AHD output | 5 MP at 20 fps |
| CVI output | Up to 4 MP at 25/30 fps |
| Lens | Fixed 2.8 mm |
| Illumination | IR up to 30 m |
| Wide dynamic range | 130 dB |
| Signal formats | TVI, AHD, CVI and CVBS |
| Power | 12 VDC ±25%; maximum 5.8 W |
| Protection | IP67; metal housing |
| Dimensions and weight | 90 mm diameter × 79.37 mm; approximately 300 g |
| Specification — Resolution | 5 MP |
|---|---|
| Specification — Video sensor | 5 MP; 2560 × 1944 |
| Specification — TVI/AHD output | 5 MP at 20 fps |
| Specification — CVI output | Up to 4 MP at 25/30 fps |
| Specification — Lens | Fixed 2.8 mm |
| Specification — Illumination | IR up to 30 m |
| Specification — Wide dynamic range | 130 dB |
| Specification — Signal formats | TVI, AHD, CVI and CVBS |
| Specification — Power | 12 VDC ±25%; maximum 5.8 W |
| Specification — Protection | IP67; metal housing |
| Specification — Dimensions and weight | 90 mm diameter × 79.37 mm; approximately 300 g |
04Why choose this
Built for the way you actually use the DS-2CE76H8T-ITMF
Work with changing light
Set exposure and available illumination for the scene, then check footage under the brightest and darkest expected conditions.
Plan a complete system
Check the recorder video format and camera power before upgrading a coaxial installation.
05Where it fits
Right at home in these scenarios
Entrance monitoring
Hikvision DS-2CE76H8T-ITMF can monitor an approach to a building. Test the image at the distance where people pause or pass through.
Activity areas
Frame the relevant walkway, work area or access route. Check the smallest detail the recording needs to preserve.
Day and night recording
Review sample footage at the intended mounting height. Reflections, surrounding lighting and target movement all affect the usable image.
06Setup
Installation & setup
-
01
Plan connections
Hikvision DS-2CE76H8T-ITMF requires a compatible coaxial video recorder and the specified external power supply.
-
02
Position and secure
Choose a fixing surface suited to the camera weight. Protect cable entries and follow the mounting and sealing instructions for the housing.
-
03
Commission the recording
Set the supported resolution and frame rate, confirm the camera view and test playback. Configure only the event and audio functions required by the site.
08Questions
Frequently asked
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Recording equipment
Hikvision DS-2CE76H8T-ITMF pairs with a recorder that accepts the selected analogue signal format and resolution. Select storage for the intended schedule.
Mounting hardware
Choose the matching camera mount or connection box for the surface and cable route. Verify the accessory fit before ordering.
Power and cabling
Allow for the camera power demand and cable distance. Calculate the supply capacity across all connected equipment.
