Hikvision AE-IFC00 Wired Alarm Button with 2.5 m Cable
1 1
Hikvision

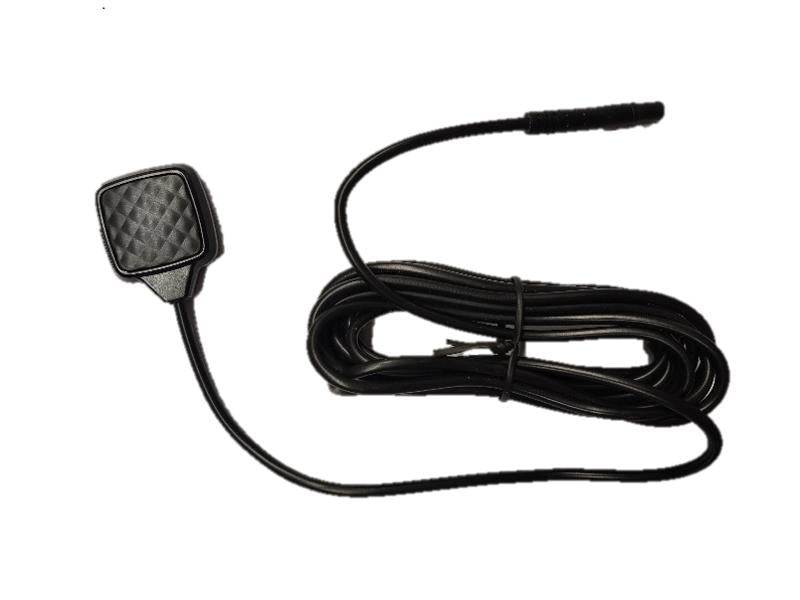

Hikvision AE-IFC00 Wired Alarm Button with 2.5 m Cable

SKU: AE-IFC00
Description

The Hikvision AE-IFC00 combines a push-type alarm button with a 2.5 m cable for compatible Hikvision onboard security equipment. The compact button provides tactile feedback and a self-adhesive mounting surface. Its BM interface and maximum rating of 12 V DC, 50 mA should be checked against the host equipment before installation.
$14.52 AUD $14.52 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the AE-IFC00 is

The button measures 26.5 × 33 × 8.1 mm.

Plan the mounting point and cable route around the specified 2.5 m length.

Hikvision's G40 Pro installation guide lists the AE-IFC00 as an optional wired alarm button for the AE-DI5052-G40 Pro; confirm the host model and connection requirements when selecting a replacement or adding a button.

02Engineering

AE-IFC00 specifications

Cable length: 2.5 m
Button: Push-type with tactile feedback
Mounting: Self-adhesive
Maximum rating: 12 V DC, 50 mA

03Full datasheet

Detailed specifications

Specifications

Specifications — Hikvision AE-IFC00 Wired Alarm Button with 2.5 m Cable
FeatureDetail
Model AE-IFC00; O-STD cable alarm, 2.5 m
Cable length 2.5 m
Interface & mounting BM interface; self-adhesive button
Actuation Push-type; tactile feedback
Maximum electrical rating 12 V DC, 50 mA
Contact resistance On: 2 Ω maximum; off: 2 MΩ minimum
Button dimensions 26.5 × 33 × 8.1 mm
Operating temperature −20 °C to +60 °C
Storage temperature −20 °C to +80 °C

08Questions

Frequently asked about the AE-IFC00

Q.01

Which recorder should I check for compatibility?
Hikvision's G40 Pro installation guide lists AE-IFC00(O-STD)(cable alarm)(2.5m) as an optional wired alarm button for the AE-DI5052-G40 Pro. This confirms that documented combination. For another recorder, check its own accessory list and connection requirements before ordering.
