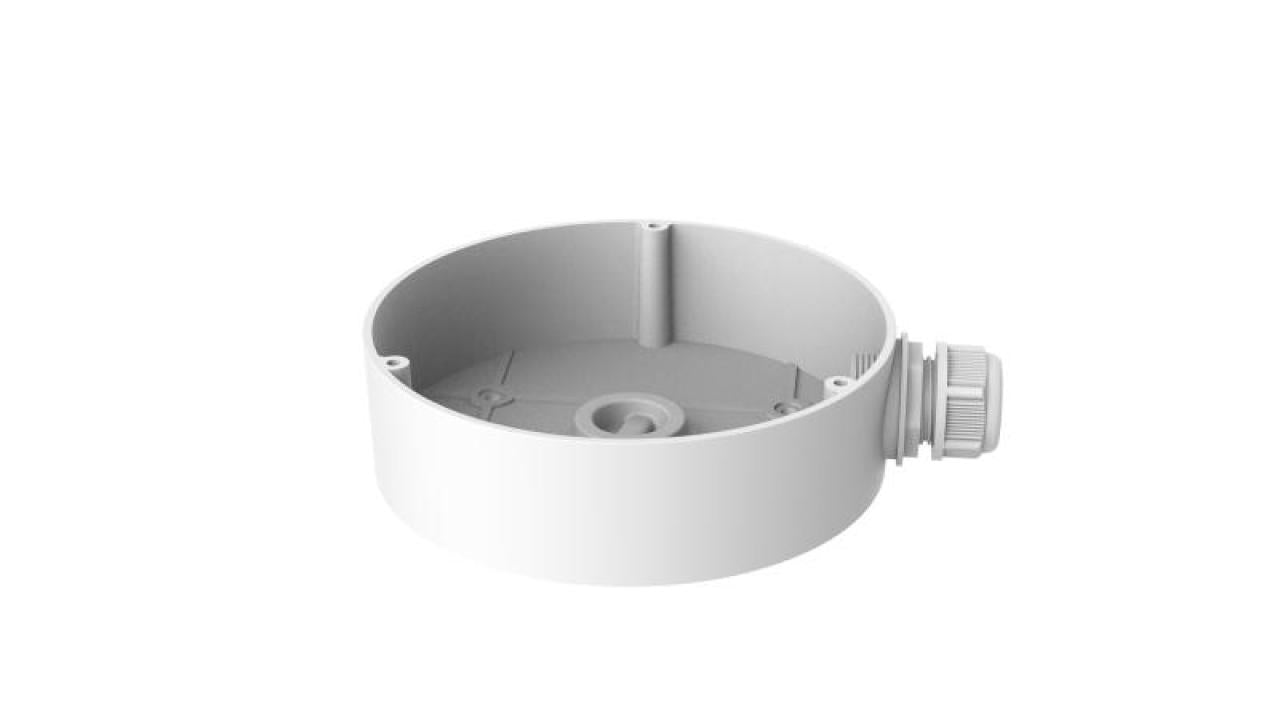

Hikvision DS-1280ZJ-DM45 Junction Box White
1 2
Hikvision

Hikvision DS-1280ZJ-DM45 Junction Box White

SKU: DS-1280ZJ-DM45
Description

The Hikvision DS-1280ZJ-DM45 (factory code CB140-DM45) is an aluminium-alloy junction box for Hikvision dome cameras that use the DM45 base. It mounts flat behind the camera to hide and weatherproof the cable join, with side and bottom cable inlets and an interchangeable bottom water-resistant cover and side gland nut.

Key points
- Genuine Hikvision junction box, Hikvision white finish
- Aluminium alloy with surface spray treatment
- Side and bottom inlets; interchangeable bottom water-resistant cover and side gland nut
- Φ140 mm × 40 mm, approx. 237 g
- Maximum load 3 kg
- Indoor and outdoor use
$24.00 AUD $24.00 AUD $28.00 AUD
Sale 14.29% $4.00 AUD (14.29%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-1280ZJ-DM45 is

The Hikvision DS-1280ZJ-DM45 (Hikvision factory code CB140-DM45) is a junction box for Hikvision dome cameras that use the DM45 base. It mounts flat on a wall or ceiling behind the camera and gives a sealed cavity for the network cable and connector, so the join is protected and out of sight.

It is aluminium alloy with a surface spray treatment. The bottom water-resistant cover and the side gland nut are interchangeable, so the cable can come in from behind or from the side to suit the wall. It measures Φ140 mm by 40 mm, weighs about 237 g, and is rated to a 3 kg maximum load. Hikvision says the mounting surface must support at least three times the combined weight of the camera and the box.

§ 02Engineering

DS-1280ZJ-DM45 specifications

- Genuine Hikvision DS-1280ZJ-DM45 (factory code CB140-DM45) junction box
- Aluminium alloy with surface spray treatment
- Side and bottom cable inlets
- Interchangeable bottom water-resistant cover and side gland nut

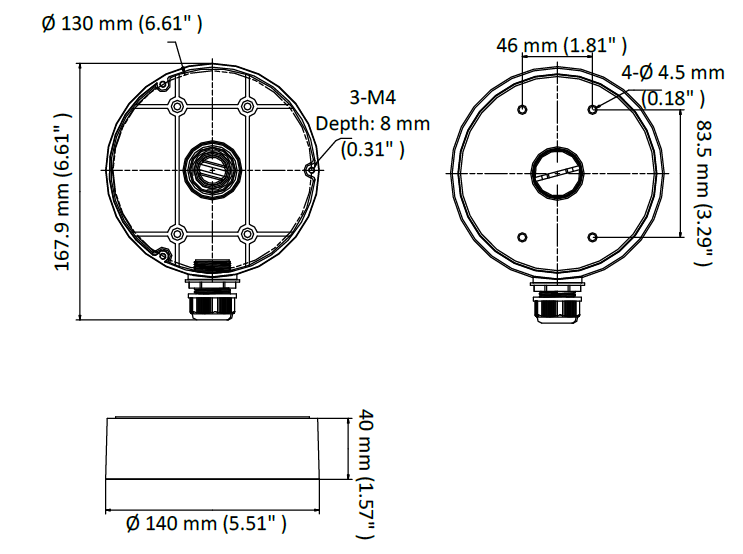

- Φ140 mm × 40 mm, approx. 237 g, Hikvision white
- Maximum load 3 kg; suitable for indoor and outdoor mounting
