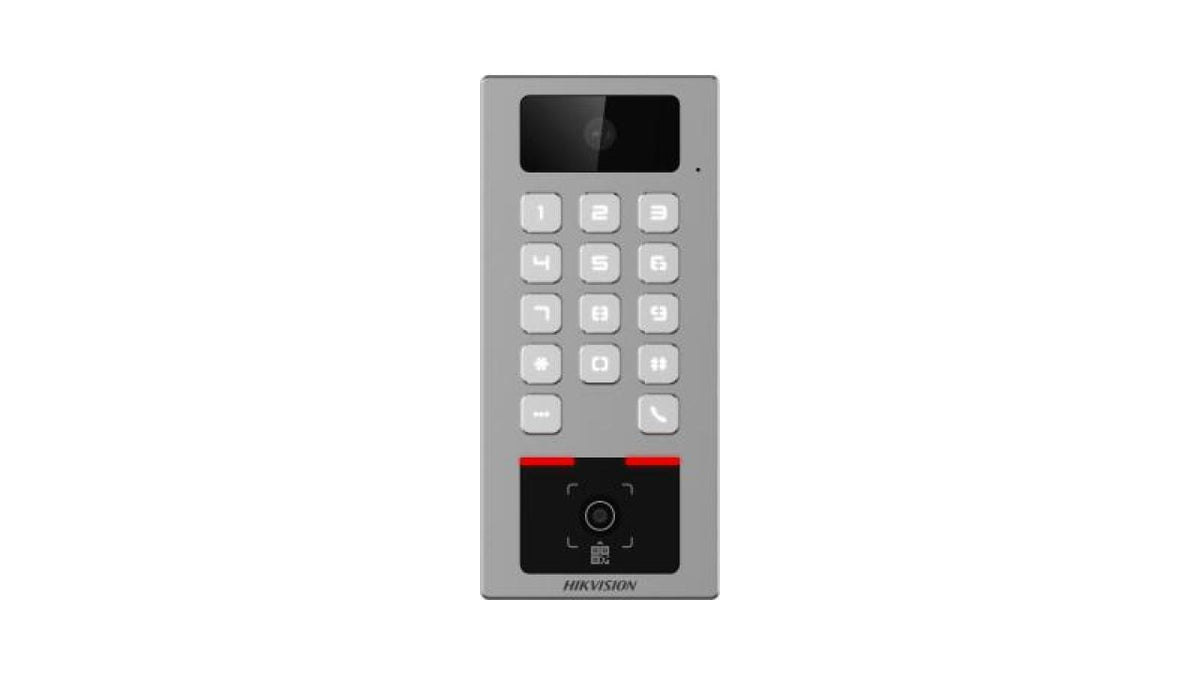

Hikvision DS-K1T502DBWX-CQRE1 PoE QR Access Terminal
Hikvision DS-K1T502DBWX-CQRE1 combines card, PIN and QR access with a video intercom call point. It supports PoE power and dual lock-control relays for a planned two-door arrangement.
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-K1T502DBWX-CQRE1 is
Hikvision DS-K1T502DBWX-CQRE1 combines card, PIN and QR access with a video intercom call point. It supports PoE power and dual lock-control relays for a planned two-door arrangement.
A visitor can call an indoor station, the management centre or Hik-Connect. SIP intercom support also provides an integration path with the named server platforms, while Wiegand connects to an external access controller.
Select the credential and door hardware together. The terminal provides a powered lock output as well as its control relays; check the lock against the output rating.
§ 02Engineering
DS-K1T502DBWX-CQRE1 specifications
Video: 2MP camera; 110° horizontal and 81° vertical field of view
Network: 10/100 Mbps Ethernet; 2.4 GHz 802.11b/g/n Wi-Fi; AP mode
Power: IEEE 802.3at PoE or 12–24 VDC, 1 A; maximum 24 W
Door connections: Two lock-control relays; one exit-button input; one door-contact input
Protection: IP65 and IK09; zinc-alloy construction
Mobile control: Hik-Connect; call button can call management centre, indoor station or Hik-Connect
§ 03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Entry methods | Card, PIN and QR code authentication; Bluetooth door release |
| Video | 2MP camera; 110° horizontal and 81° vertical field of view |
| Network | 10/100 Mbps Ethernet; 2.4 GHz 802.11b/g/n Wi-Fi; AP mode |
| Power | IEEE 802.3at PoE or 12–24 VDC, 1 A; maximum 24 W |
| Door connections | Two lock-control relays; one exit-button input; one door-contact input |
| Protection | IP65 and IK09; zinc-alloy construction |
| Mobile control | Hik-Connect; call button can call management centre, indoor station or Hik-Connect |
| External controller | Wiegand Hik 26-bit and 34-bit; RS-485 for external card reader and elevator calling |
| SIP servers | Brekeke, miniSipServer, FreePBX, Asterisk, 3CX, ELASTIX and PBXware |
| QR operation | Individual QR-code peripheral supports dynamic QR authentication |
| PIN management | PIN settings supported in platform mode and local mode |
| Lock power | Direct 12 V, 1 A lock-power output |
| Specification — Entry methods | Card, PIN and QR code authentication; Bluetooth door release |
|---|---|
| Specification — Video | 2MP camera; 110° horizontal and 81° vertical field of view |
| Specification — Network | 10/100 Mbps Ethernet; 2.4 GHz 802.11b/g/n Wi-Fi; AP mode |
| Specification — Power | IEEE 802.3at PoE or 12–24 VDC, 1 A; maximum 24 W |
| Specification — Door connections | Two lock-control relays; one exit-button input; one door-contact input |
| Specification — Protection | IP65 and IK09; zinc-alloy construction |
| Specification — Mobile control | Hik-Connect; call button can call management centre, indoor station or Hik-Connect |
| Specification — External controller | Wiegand Hik 26-bit and 34-bit; RS-485 for external card reader and elevator calling |
| Specification — SIP servers | Brekeke, miniSipServer, FreePBX, Asterisk, 3CX, ELASTIX and PBXware |
| Specification — QR operation | Individual QR-code peripheral supports dynamic QR authentication |
| Specification — PIN management | PIN settings supported in platform mode and local mode |
| Specification — Lock power | Direct 12 V, 1 A lock-power output |
§ 08Questions
Frequently asked about the DS-K1T502DBWX-CQRE1
Q.01
What PoE supply and lock load should I plan for the DS-K1T502DBWX-CQRE1?
Q.02
Can it join an existing SIP intercom or access-control system?
Q.03
Can I manage PIN access locally as well as through a platform?
