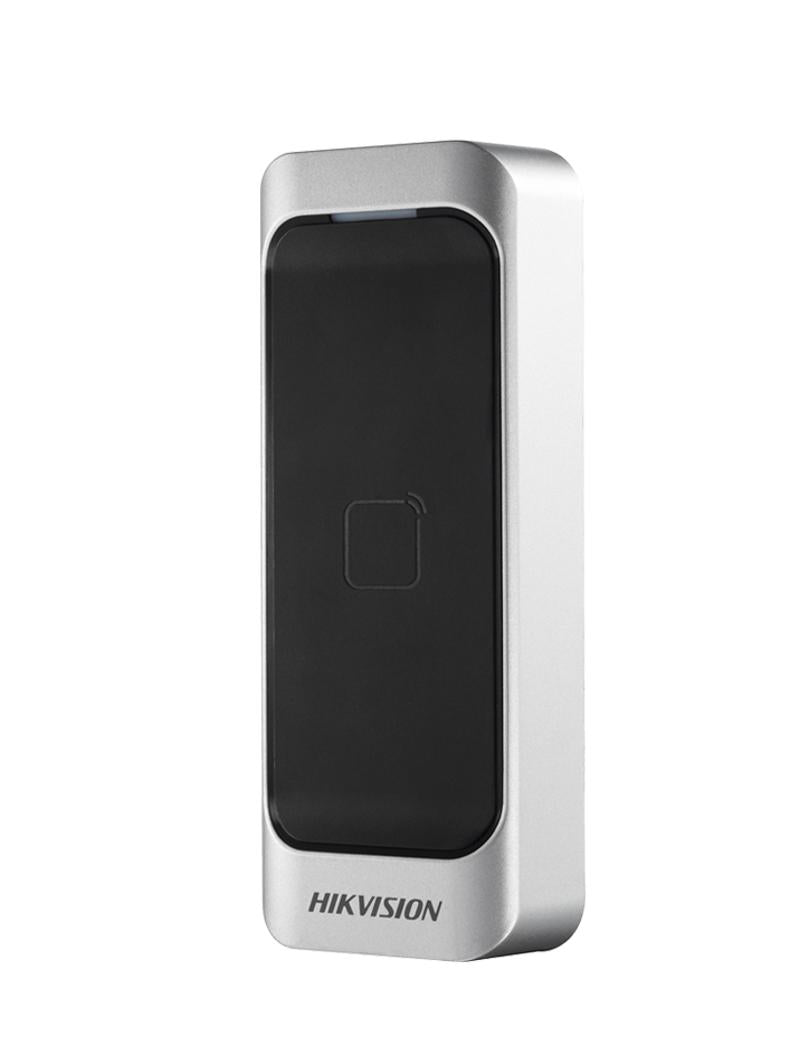

Hikvision DS-K1107AM M1 Card Reader
Hikvision DS-K1107AM is a slimline 13.56 MHz M1 card reader for access control doors. It reads cards at up to 50 mm and communicates with the controller over RS-485 with OSDP support or over Wiegand 26/34, selected by DIP switch.
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-K1107AM is
Hikvision DS-K1107AM is a slimline 13.56 MHz M1 card reader for access control doors. It reads cards at up to 50 mm and communicates with the controller over RS-485 with OSDP support or over Wiegand 26/34, selected by DIP switch.
A 32-bit processor, tamper alarm, built-in buzzer for read status and power/status indicators are included, and firmware can be upgraded online. The IP65 housing is rated -20 °C to 65 °C at 10 to 90 % humidity, and the reader draws no more than 2 W from 12 VDC.
The 115 × 44 × 22 mm body mounts to a wall with screws; Hikvision states it does not support gang-box mounting.
§ 02Engineering
DS-K1107AM specifications
RS-485 with OSDP support or Wiegand 26/34, selected by DIP switch
Tamper alarm and built-in buzzer for read status
IP65 housing rated -20 °C to 65 °C
12 VDC supply, no more than 2 W
Slim 115 × 44 × 22 mm body, wall mounted with screws
§ 03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Model | DS-K1107AM |
| Card technology | Built-in M1 card reading module, 13.56 MHz |
| Reading distance | ≤ 50 mm |
| Communication | RS-485 (OSDP supported, baud 19200) or Wiegand W26/W34, set via DIP switch |
| Processor | 32-bit high-speed processor |
| Power supply | 12 VDC |
| Power consumption | ≤ 2 W |
| Tamper alarm | Supported |
| Buzzer | Built-in, indicates reading status |
| Indicators | Power indicator, status indicator |
| Firmware | Online upgrade function |
| Protection level | IP65 |
| Operating temperature | -20 °C to 65 °C |
| Humidity | 10 % to 90 % non-condensing |
| Dimensions | 115 mm × 44 mm × 22 mm |
| Installation | Wall mounting with screws; does not support gang box |
| Specification — Model | DS-K1107AM |
|---|---|
| Specification — Card technology | Built-in M1 card reading module, 13.56 MHz |
| Specification — Reading distance | ≤ 50 mm |
| Specification — Communication | RS-485 (OSDP supported, baud 19200) or Wiegand W26/W34, set via DIP switch |
| Specification — Processor | 32-bit high-speed processor |
| Specification — Power supply | 12 VDC |
| Specification — Power consumption | ≤ 2 W |
| Specification — Tamper alarm | Supported |
| Specification — Buzzer | Built-in, indicates reading status |
| Specification — Indicators | Power indicator, status indicator |
| Specification — Firmware | Online upgrade function |
| Specification — Protection level | IP65 |
| Specification — Operating temperature | -20 °C to 65 °C |
| Specification — Humidity | 10 % to 90 % non-condensing |
| Specification — Dimensions | 115 mm × 44 mm × 22 mm |
| Specification — Installation | Wall mounting with screws; does not support gang box |
