Hanwha SBO-100B1 Dark Grey Bullet Camera Back Box
1 1
Hanwha

Hanwha SBO-100B1 Dark Grey Bullet Camera Back Box

SKU: SBO-100B1
Description

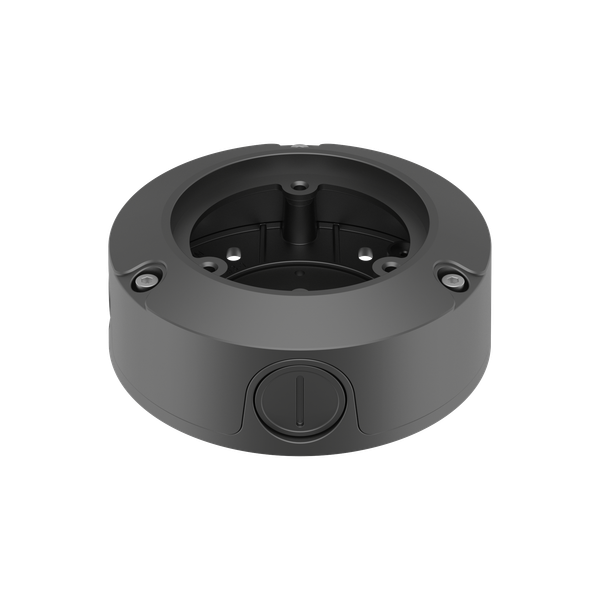

The Hanwha SBO-100B1 is a dark grey aluminium back box for selected bullet cameras. It measures 125.6 mm in diameter and 45 mm deep, with two conduit entries for cable routing.
$47.15 AUD $47.15 AUD
Installation in Sydney & Melbourne Through licensed local installers
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the SBO-100B1 is

Match the camera's complete model number against Hanwha's compatibility list before choosing this box.

Supported examples include QNO-7010R, QNO-7020R, QNO-7030R and QNO-7080R.

The official datasheet includes a dimensioned installation drawing for checking mounting positions.

02Engineering

SBO-100B1 specifications

Construction: Aluminium, dark grey
Size: 125.6 mm diameter × 45 mm depth
Cable entries: Two conduit holes
Camera type: Selected Hanwha bullet cameras

03Full datasheet

Detailed specifications

Specifications

Specifications — Hanwha SBO-100B1 Dark Grey Bullet Camera Back Box
FeatureDetail
Model SBO-100B1
Accessory type Bullet camera back box / junction box
Material Aluminium
Colour Dark grey
Dimensions Ø125.6 × 45 mm
Conduit entries 2; PF 3/4 thread shown on manufacturer drawing
Compatible QNO models QNO-6010R, QNO-6020R, QNO-6030R, QNO-6070R, QNO-6012R, QNO-6022R, QNO-6032R, QNO-6082R, QNO-7010R, QNO-7020R, QNO-7030R, QNO-7080R, QNO-8010R, QNO-8020R, QNO-8030R
Other compatible models HCO-7010R, HCO-7020R, HCO-7030R, HCO-7070R, HCO-6070R, HCO-6080R, SNO-L6083R, SNO-L5083R, SCO-6083R
